NSN 5915-00-908-3042 D104449, 00-908-3042, 009083042
Product Details | CAPACITOR-RESISTOR
5915-00-908-3042 An item consisting of one or more capacitors and one or more resistors molded together, housed together in a common case, or mounted on a common board. The individual capacitors and resistors are not separable and the overall item usually has various design applications; hence, cannot be considered a subassembly. Do not use if more applicable item names, such as FILTER (as modified), or NETWORK (as modified), exist.
Part Alternates: D104449, 5915-00-908-3042, 00-908-3042, 5915009083042, 009083042
Electrical and Electronic Equipment Components | Filters and Networks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-908-3042 | 05090 ( CAPACITOR-RESISTOR ) |
Drawings & Photos | NSN 5915-00-908-3042
Cross Reference | NSN 5915-00-908-3042
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| D104449 | 94271 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5915-00-908-3042
Related Products | NSN 5915-00-908-3042
Technical Data | NSN 5915-00-908-3042
| Characteristic | Specifications |
|---|---|

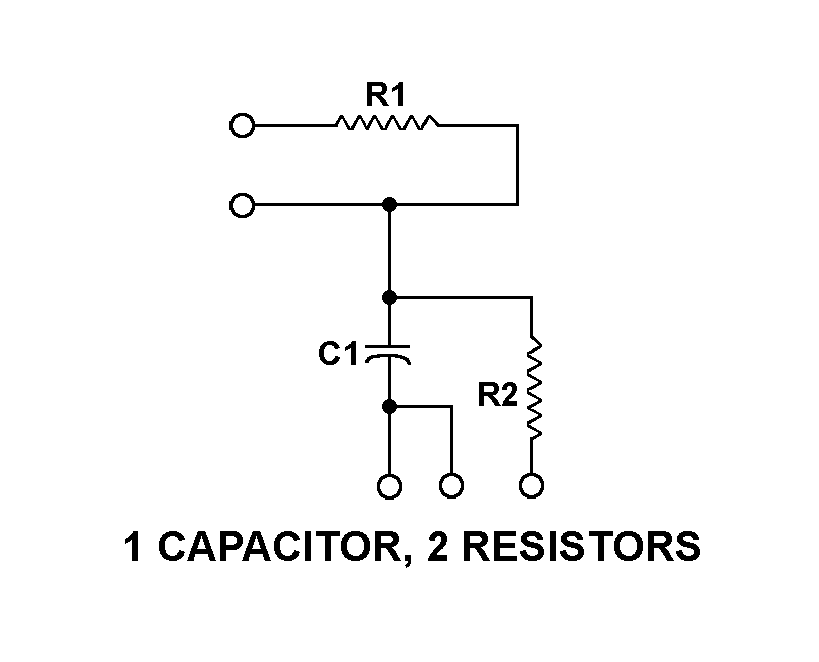

| SCHEMATIC DIAGRAM DESIGNATOR | 10 1 CAPACITOR, 2 RESISTORS |
| CAPACITANCE VALUE PER FUNCTION | 400.0 MICROFARADS ALL CAPACITORS |
| CAPACITANCE TOLERANCE PER FUNCTION IN PERCENT | -15.0 TO 75.0 ALL CAPACITORS |
| DC VOLTAGE RATING PER FUNCTION IN VOLTS | 50.0 ALL CAPACITORS |
| ELECTRICAL RESISTANCE PER FUNCTION | 4.64 KILOHMS RESISTOR R1 10.0 OHMS RESISTOR R2 |
| RESISTANCE TOLERANCE PER FUNCTION IN PERCENT | -1.0 TO 1.0 RESISTOR R1 -5.0 TO 5.0 RESISTOR R2 |
| RESISTOR POWER DISSIPATION RATING PER FUNCTION IN WATTS | 0.250 RESISTOR R1 7.000 RESISTOR R2 |
| ASSEMBLY FORM | BOARD MOUNTED |
| TERMINAL TYPE AND QUANTITY | 5 CONNECTOR PLUG |
| MOUNTING METHOD | BRACKET |
| OVERALL LENGTH | 5.187 INCHES NOMINAL |
| OVERALL WIDTH | 4.875 INCHES NOMINAL |
| OVERALL HEIGHT | 1.344 INCHES NOMINAL |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | MATERIAL WILL BE IN ACCORDANCE WITH SHIPS PARTS CONTROL CENTERACTIVITY HX QUALITY CONTROL,MANUFACTURING AND TESTING SPECIFICATIONS |
| CRITICALITY CODE JUSTIFICATION | ZZZY |
| MANUFACTURERS CODE | 94271 |
| DESIGN CONTROL REFERENCE | D104449 |
Restrictions/Controls & Freight Information | NSN 5915-00-908-3042
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | F | Munitions List Item or Commerce Control List Item. Demilitarization required. Demilitarization Instructions to be furnished by the Item/Technical Manager. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
