Product Details | CAPACITOR-RESISTOR
5915-01-285-5236 An item consisting of one or more capacitors and one or more resistors molded together, housed together in a common case, or mounted on a common board. The individual capacitors and resistors are not separable and the overall item usually has various design applications; hence, cannot be considered a subassembly. Do not use if more applicable item names, such as FILTER (as modified), or NETWORK (as modified), exist.
Part Alternates: 13234904, 5915-01-285-5236, 01-285-5236, 5915012855236, 012855236
Electrical and Electronic Equipment Components | Filters and Networks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 SEP 1988 | 01-285-5236 | 05090 ( CAPACITOR-RESISTOR ) |
Drawings & Photos | NSN 5915-01-285-5236
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5915-01-285-5236
Related Products | NSN 5915-01-285-5236
Technical Data | NSN 5915-01-285-5236
| Characteristic | Specifications |
|---|---|

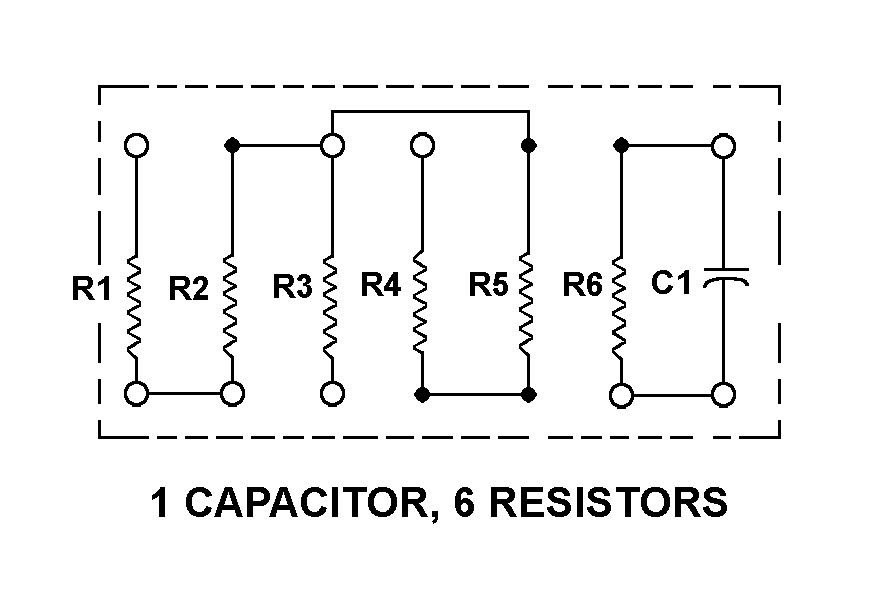

| SCHEMATIC DIAGRAM DESIGNATOR | 27 1 CAPACITOR, 6 RESISTORS |
| CAPACITANCE VALUE PER FUNCTION | ANY ACCEPTABLE |
| ELECTRICAL RESISTANCE PER FUNCTION | ANY ACCEPTABLE |
| ASSEMBLY FORM | BOARD MOUNTED |
| TERMINAL TYPE AND QUANTITY | 16 EYELET W/WIRE LEAD |
| MOUNTING METHOD | SOLDER |
| OVERALL LENGTH | 0.850 INCHES NOMINAL |
| OVERALL WIDTH | 0.103 INCHES NOMINAL |
| OVERALL HEIGHT | 0.850 INCHES NOMINAL |
| OVERALL DIAMETER | 0.103 INCHES NOMINAL |
