NSN 5920-00-009-8186 A4BY3000, KTU 3000, KTU3000
Product Details | INCLOSED LINK FUSE
5920-00-009-8186 A fuse in which the element is inclosed in a body of other than cylindrical shape. It may include visual indication that the fusible element is severed. For cylindrical items, see FUSE, CARTRIDGE. Excludes FUSE, OPEN LINK; and FUSE LINK, ELECTRICAL.
Part Alternates: A4BY3000, KTU 3000, KTU3000, KTU3000A, KTU-3000A, LCL 3000I, LCL3000I, 710316A10, 5920-00-009-8186, 00-009-8186, 5920000098186, 000098186
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 02 AUG 1972 | 00-009-8186 | 00249 ( FUSE, INCLOSED LINK ) |
Drawings & Photos | NSN 5920-00-009-8186
Demand History | NSN 5920-00-009-8186
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5920-00-009-8186 | 2007-11-313 | 10 | DIBBS |
| 5920-00-009-8186 | 2007-11-310 | 1 | DIBBS |
Cross Reference | NSN 5920-00-009-8186
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5920-00-009-8186
Technical Data | NSN 5920-00-009-8186
| Characteristic | Specifications |
|---|---|

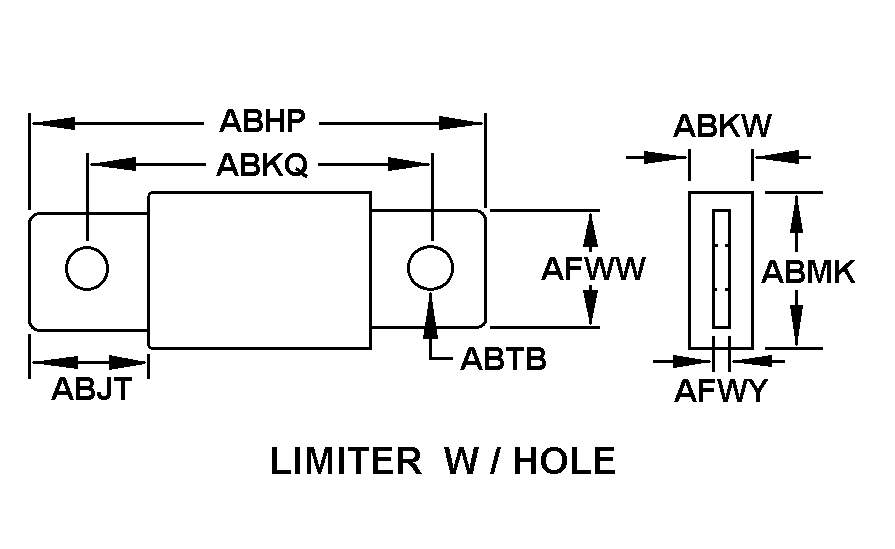

| BODY STYLE | 4B LIMITER W/HOLE |
| OVERALL LENGTH | 10.750 INCHES NOMINAL |
| TERMINAL LENGTH | 3.469 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 5.750 INCHES NOMINAL |
| OVERALL HEIGHT | 1.000 INCHES NOMINAL |
| OVERALL WIDTH | 5.000 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.625 INCHES NOMINAL |
| TERMINAL WIDTH | 4.000 INCHES NOMINAL |
| TERMINAL THICKNESS | 0.750 INCHES NOMINAL |
| CONTINUOUS CURRENT RATING IN AMPS | 3000.000 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 600.0 AC |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | NORMAL INSTANTANEOUS |
| INTERRUPTION INDICATOR METHOD | OPAQUE BODY |
| SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS | 200000.0 |
| TERMINAL SURFACE TREATMENT | NICKEL PLATED |
| III CASE MATERIAL | CERAMIC |
Restrictions/Controls & Freight Information | NSN 5920-00-009-8186
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062060 | FUSES NOI IN BOXES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5920-00-009-8186
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
