NSN 5920-00-107-0824 MS289341, MS28934-1, 00-107-0824
Product Details | BLOCK FUSEHOLDER
5920-00-107-0824 A fuseholder in which the fuseholder stud and/or clips and insulation are mounted on a flat base. Excludes FUSEHOLDER, RECEPTACLE.
Part Alternates: MS289341, MS28934-1, 5920-00-107-0824, 00-107-0824, 5920001070824, 001070824
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 02 AUG 1968 | 00-107-0824 | 28908 ( FUSEHOLDER, BLOCK ) |

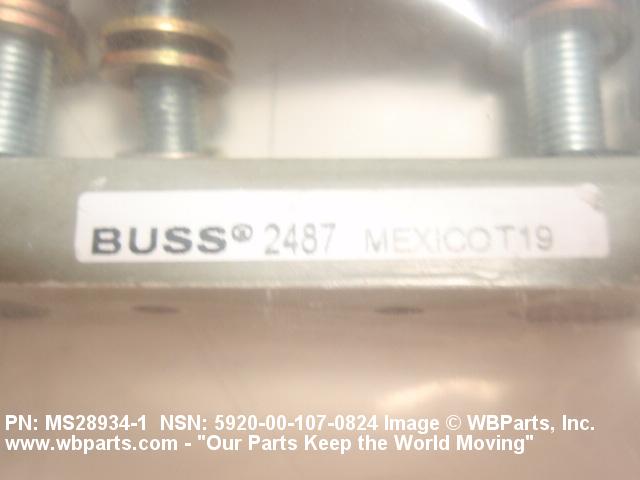

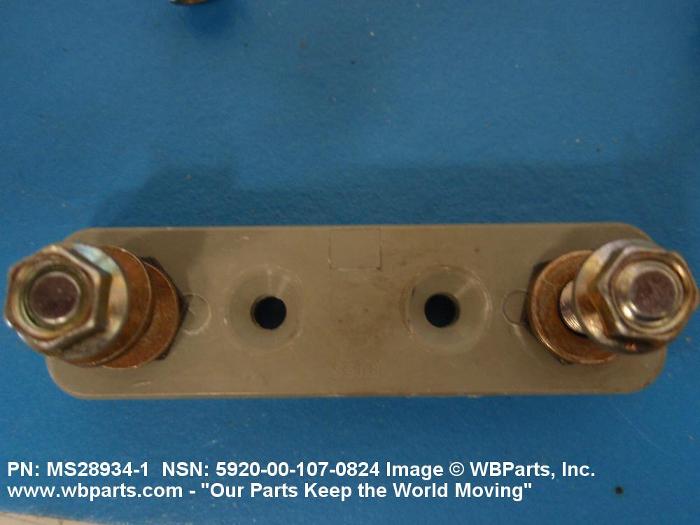

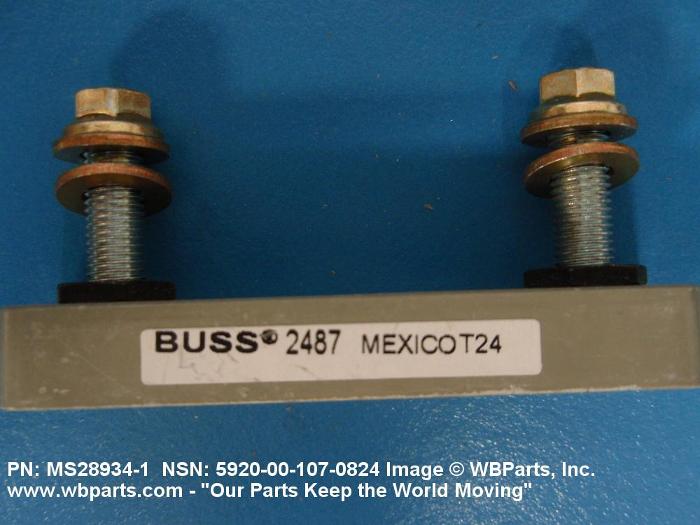

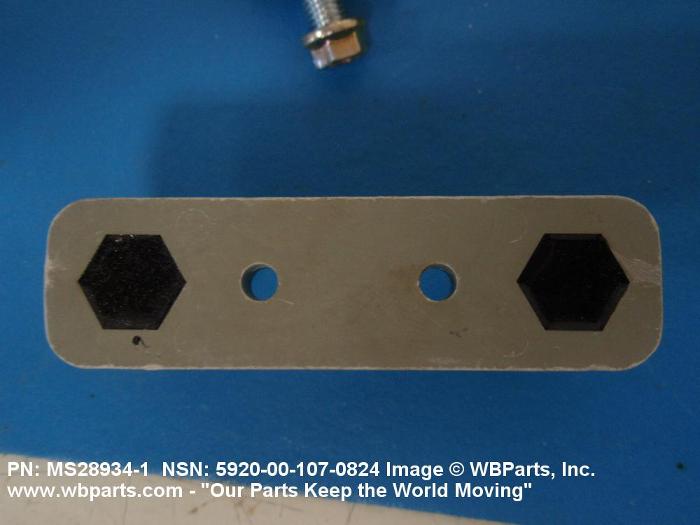

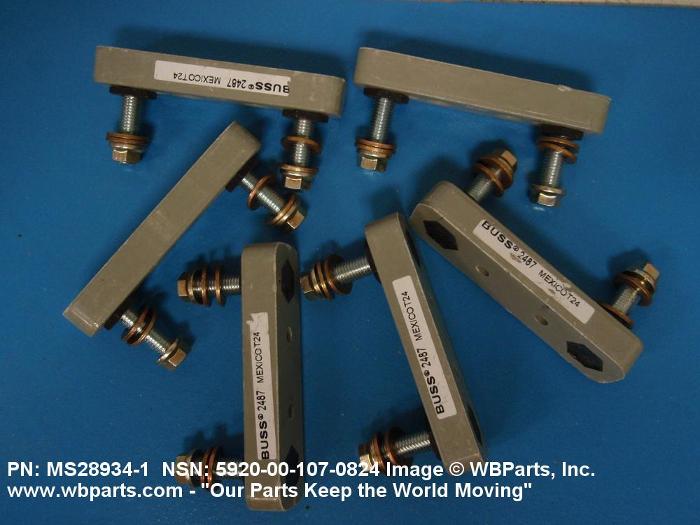

Drawings & Photos | NSN 5920-00-107-0824
Demand History | NSN 5920-00-107-0824
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS289341 | 2020-06-178 | 1 | JP |
| MS289341 | 2014-11-321 | 76 | United States |
| 5920001070824 | 2011-12-343 | 1 | US |
| MS289341 | 2010-11-315 | 2 | United States |
| MS289341 | 2010-09-259 | 45 | US |
Cross Reference | NSN 5920-00-107-0824
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS28934-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-00-107-0824
Related Products | NSN 5920-00-107-0824
Technical Data | NSN 5920-00-107-0824
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 1 |
| CURRENT CARRYING RATING IN AMPS | 500.0 |
| VOLTAGE IN VOLTS | 41.0 |
| FUSE TERMINAL TYPE ACCOMMODATED | SLOTTED LUG |
| TERMINAL TYPE AND QUANTITY | 2 THREADED STUD |
| SCREW THREAD DIAMETER | 0.312 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 24.0 |
| CONTACT MATERIAL | STEEL |
| CONTACT SURFACE TREATMENT | CADMIUM, QQ-P-416 |

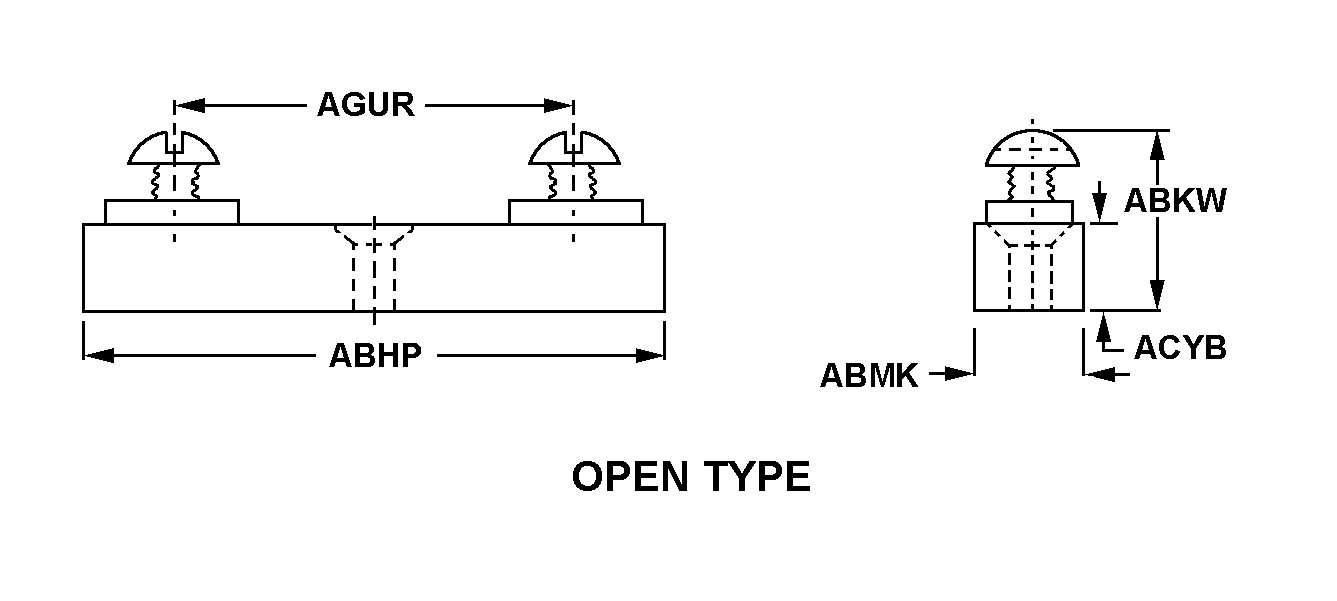

| BODY STYLE | C10 OPEN TYPE |
| OVERALL LENGTH | 3.943 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.922 INCHES MAXIMUM |
| OVERALL WIDTH | 0.907 INCHES MINIMUM AND 0.969 INCHES MAXIMUM |
| BASE THICKNESS | 0.580 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN FUSE CONTACTS | 2.433 INCHES MINIMUM AND 2.443 INCHES MAXIMUM |
| MOUNTING HOLE STYLE | F28 IN-LINE ALONG THE LENGTH |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 0.995 INCHES MINIMUM AND 1.005 INCHES MAXIMUM |
| MOUNTING HOLE QUANTITY | 2 |
| MOUNTING HOLE DIAMETER | 0.190 INCHES NOMINAL |
| ACCOMMODATED FUSE LENGTH | 3.188 INCHES NOMINAL |
| ACCOMMODATED FUSE WIDTH | 0.750 INCHES NOMINAL |
| ACCOMMODATED FUSE THICKNESS | 0.094 INCHES MAXIMUM |
| INTERNAL CIRCUIT CONFIGURATION AND POLE QUANTITY | 1 POLE, MAINLINE, FUSED |
| TEST DATA DOCUMENT | 81349-MIL-F-5373C SPECIFICATION |
| III TERMINAL MATERIAL | CADMIUM, QQ-P-416 AND SILVER PLATED, QQ-S-365 |
| III TERMINAL SURFACE TREATMENT | STEEL, MIL-S-6050 |
| III BODY MATERIAL | PLASTIC, POLYESTER, MIL-M-14, TYPE MAI-60 AND PLASTIC, SILICONE, MIL-M-14, TYPE MSI-30 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS28934-1 |
