NSN 5920-00-539-6920 MB030, ABC30, AGC30

Product Details | CARTRIDGE FUSE

5920-00-539-6920 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.

Part Alternates: MB030, ABC30, AGC30, AGC-30, B201569 , C2435315, C24353-15, F03A12530, F03A125-30, F03A125V30A, F03A129V30A, F03A250V30A, F30A125/314, F30A125314, FFJ30000, FFJ-30-000 , FM09A125V30A, MILF151603, MILF15160-3, MILPRF15160, MIL-PRF-15160, MIL-PRF-15160/3, MILPRF151603, 351-003-006, 396604, 3966-04, 3966B4, 3966B-4, 47263241, 4726324-1, 584C224, 584C2-24, 09A125V30A, 10650801, 106508-01, 24513013, 621031, 5920-00-539-6920, 00-539-6920, 5920005396920, 005396920, 351003006

Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1961	00-539-6920	00248 ( FUSE, CARTRIDGE )

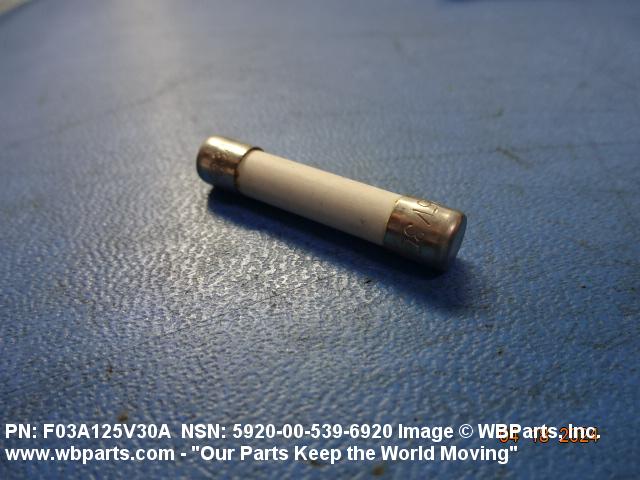

Drawings & Photos | NSN 5920-00-539-6920

Part Number	Request Date	QTY	Origin
5920-00-539-6920	2024-03-76	1	us
5920-00-539-6920	2022-12-350	10	United States
5920-00-539-6920	2019-10-298	6200	DIBBS
5920-00-539-6920	2019-10-287	6200	DIBBS
5920-00-539-6920	2019-09-259	6640	DIBBS
5920-00-539-6920	2019-09-247	6640	DIBBS
5920-00-539-6920	2019-07-190	30	United States
5920-00-539-6920	2019-07-190	50	United States
5920-00-539-6920	2018-03-88	5341	DIBBS
5920-00-539-6920	2018-01-11	4650	DIBBS
5920-00-539-6920	2017-09-254	4850	DIBBS
5920-00-539-6920	2017-07-211	4650	DIBBS
5920-00-539-6920	2016-01-05	10	US
5920-00-539-6920	2016-01-05	10	US
5920-00-539-6920	2016-01-05	10	US
5920-00-539-6920	2015-06-181	5726	DIBBS
5920-00-539-6920	2015-04-103	10	United States
5920-00-539-6920	2014-11-322	30	US
5920-00-539-6920	2012-08-240	6077	DIBBS
5920-00-539-6920	2012-08-222	4812	DIBBS
5920-00-539-6920	2012-07-199	437	DIBBS
5920-00-539-6920	2011-07-211	2957	DIBBS
5920-00-539-6920	2011-02-48	2623	DIBBS
5920-00-539-6920	2011-01-18	1411	DIBBS
5920-00-539-6920	2010-12-337	3340	DIBBS
5920-00-539-6920	2010-07-211	6137	DIBBS
5920-00-539-6920	2010-03-77	5000	DIBBS
5920-00-539-6920	2010-02-50	10000	DIBBS
5920-00-539-6920	2010-02-40	496	DIBBS
5920-00-539-6920	2009-12-349	677	DIBBS
5920-00-539-6920	2009-08-226	10	United States
5920-00-539-6920	2009-04-112	14144	DIBBS
5920-00-539-6920	2008-10-288	11942	DIBBS

Cross Reference | NSN 5920-00-539-6920

Part Number	Cage Code	Manufacturer
09A125V30A	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
106508-01	14345	ROLM CORP MIL SPEC COMPUTERS
24513013	34010	CONTROL DATA SYSTEMS INC CONTRACTS DEPT
24513013	59661	SYNTEGRA / USA/ INC COMPUTER PARTS AND SUPPLIES
351-003-006	07421	INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS
3966-04	22501	HOWELL LABORATORIES, INC.
3966B-4	22501	HOWELL LABORATORIES, INC.
4726324-1	0AHU0	KALMAR AC INC
584C2-24	94033	CARDWELL CONDENSER CORP LAPOINTE-ADMIRAL DIV
621031	31033	TRW INC TRW INTL TRADE GOVERNMENT SALES DEPT
ABC30	71400	COOPER BUSSMANN INC
AGC-30	13445	COLE HERSEE COMPANY
AGC-30	71400	COOPER BUSSMANN INC
AGC-30	S8777	CBS CONTROLS AB
B201569	29407	MASTER CONTROL SYSTEMS INC
C24353-15	07860	BOGUE ELECTRIC MANUFACTURING CO
F03A125-30	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
F03A125V30A	71400	COOPER BUSSMANN INC
F03A125V30A	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
F03A129V30A	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
F03A250V30A	71400	COOPER BUSSMANN INC
F30A125/314	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
FFJ-30-000	80103	VEECO INSTRUMENTS INC LAMBDA DIV
FM09A125V30A	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MB030	71400	COOPER BUSSMANN INC
MIL-PRF-15160	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-PRF-15160/3	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILF15160-3	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5920-00-539-6920

Compare

Related Products | NSN 5920-00-539-6920

5920-00-539-6971, 5920-00-539-6989, 5920-00-539-7333, 5920-00-539-7426, 5920-00-539-7573

Technical Data | NSN 5920-00-539-6920

Characteristic	Specifications
BODY STYLE	2A TUBE TYPE

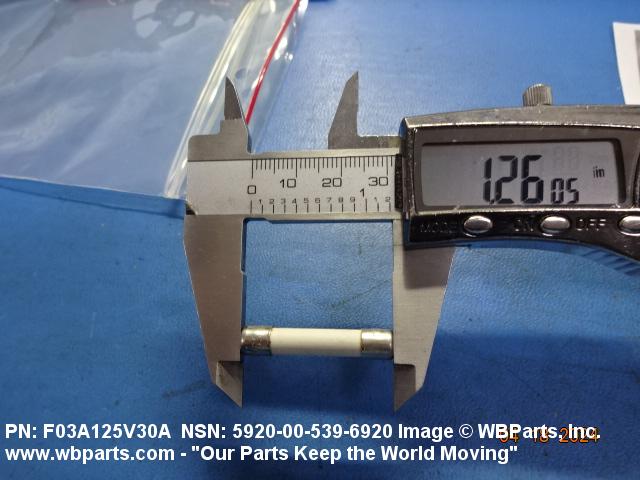

OVERALL LENGTH	1.250 INCHES NOMINAL

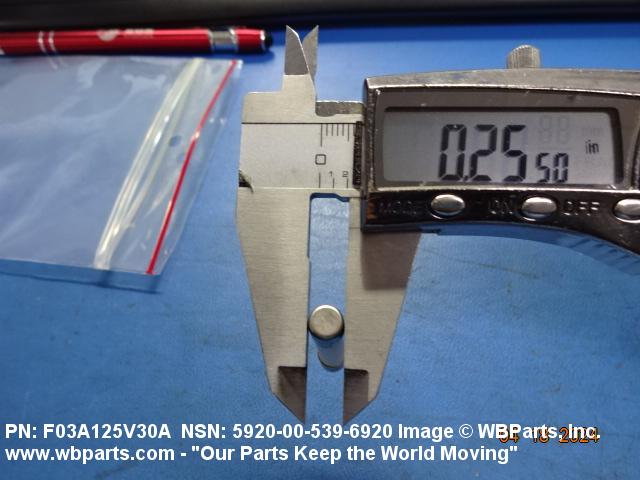

OVERALL DIAMETER	0.250 INCHES NOMINAL
CONTINUOUS CURRENT RATING IN AMPS	30.000
MAXIMUM VOLTAGE RATING IN VOLTS	125.0 AC AND 125.0 DC
CIRCUIT OVER-CURRENT INTERRUPTION TYPE	NORMAL INSTANTANEOUS
INTERRUPTION INDICATOR METHOD	OPAQUE BODY
SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS	10000.0
TERMINAL SURFACE TREATMENT	NICKEL
FEATURES PROVIDED	NONRENEWABLE FUSIBLE ELEMENT
TEST DATA DOCUMENT	81349-MIL-F-15160 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-F-15160/3 GOVERNMENT SPECIFICATION
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	F03A125V30A
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-PRF-15160/3

Restrictions/Controls & Freight Information | NSN 5920-00-539-6920

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	062060	FUSES NOI IN BOXES
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	72D	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5920-00-539-6920

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each
