Product Details | CARTRIDGE FUSE
5920-00-548-3126 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Part Alternates: MS9007815, MS90078-15, MTH2506, MTH250-6, MTH-6.00-250, MTH600250, MTH6A, MEE225BE006, NF60NR-6A 6A, NF60NR6A6A, AGC-6 , AGC6AMP, B9019, B901-9, F02A2506A, F02A250-6A, F02A250V6A, F02A250V6AM, F02A-250V-6AM, F02G6R00A, F03A2506A, MIL-F-15160/2, MILF151602, MIL-PRF-15160/2, MILPRF151602, FUS21, FUS-21, FC12, 5M481122064, 5M4811-220-64, 680800231001, 680-800231-001, 70960002013, 70960002-013, 743-623985, 83840900, 838409-00, AGC6, 04598, 07520028027, 075-20028-027, 1090090015, 109-009-0015, 118673, 11-8673, 148369, 1751472129, 175-14721-29, 193406A, 19340-6A, 21100056, 2110-0056, 211151-225, 2267176P58, 226-7176P58, 2640727000, 264-0727-000, 311006, 312006, 312006 AGC-6 , 312006/MTH-6, 312006AGC6, 312006MTH6, 351-006-015, 3824710 , 3AG 5 AMP/250V, 3AG/6A, 3AG5AMP250V, 3AG6A, 410002-024, 4133725035, 4133725-035, 42843, 42-843, 503067-022, 55100018, 5900052113, 59000521-13, 0004642022, 0004-642-022, 5920-00-548-3126, 00-548-3126, 5920005483126, 005483126, 503067022, 410002024, 351006015, 211151225, 743623985
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-548-3126 | 00248 ( FUSE, CARTRIDGE ) |

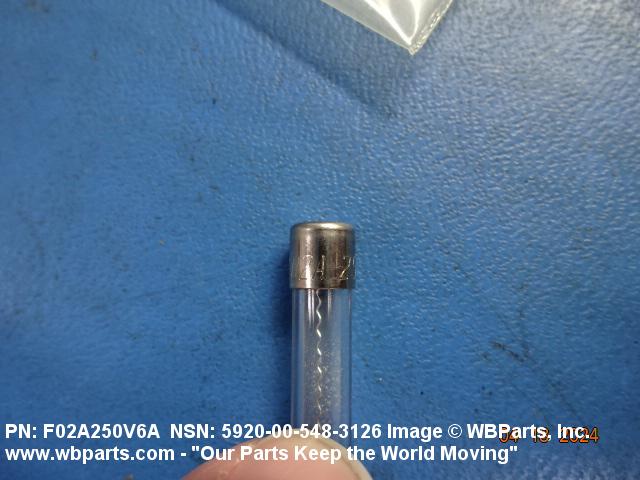

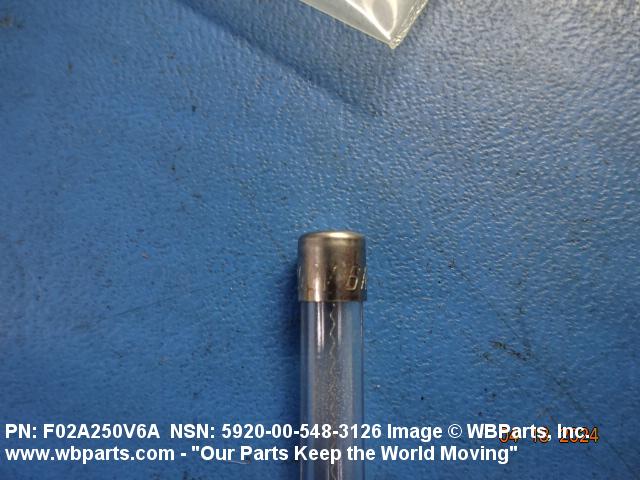

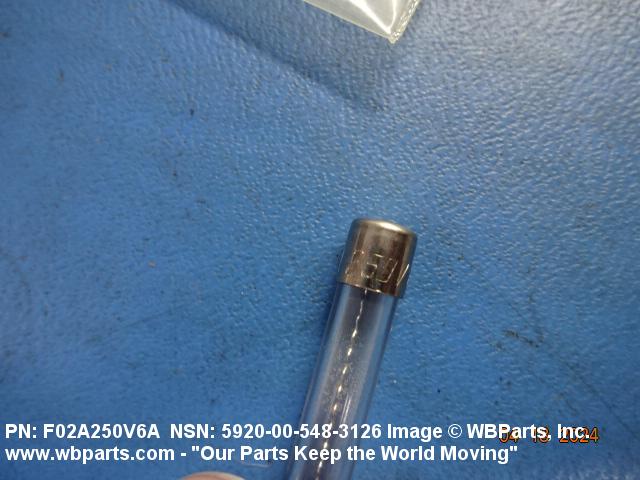

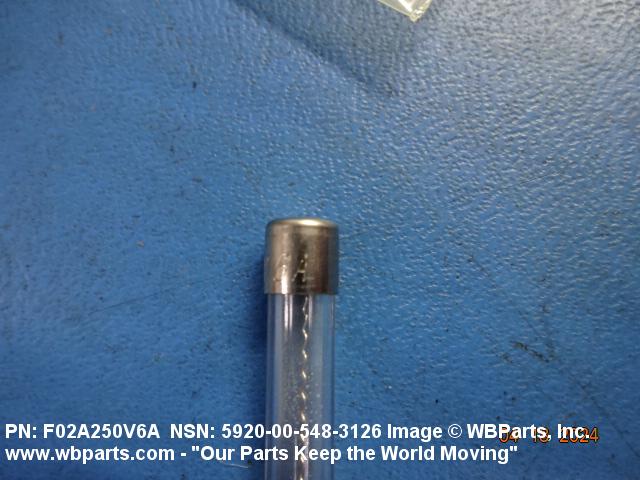

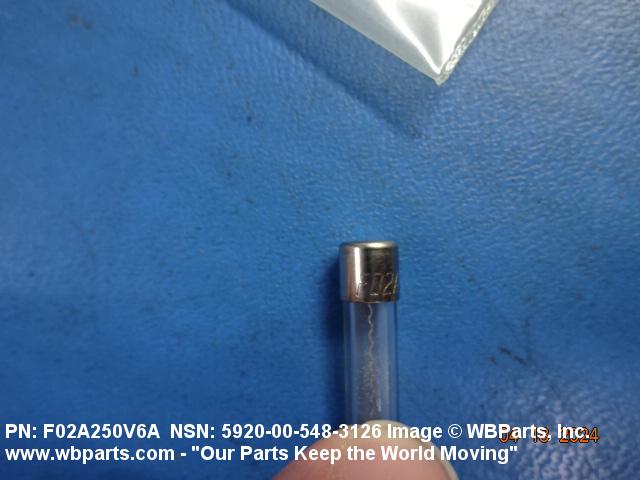

Drawings & Photos | NSN 5920-00-548-3126
Demand History | NSN 5920-00-548-3126
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5920-00-548-3126 | 2024-07-186 | 1750 | DIBBS |
| 5920-00-548-3126 | 2024-03-76 | 1 | us |
| 5920-00-548-3126 | 2023-12-345 | 1390 | DIBBS |
| 5920-00-548-3126 | 2023-11-332 | 1390 | DIBBS |
| 5920-00-548-3126 | 2021-03-81 | 1021 | DIBBS |
| 5920-00-548-3126 | 2021-03-70 | 1021 | DIBBS |
| 5920-00-548-3126 | 2020-06-167 | 1672 | DIBBS |
| 5920-00-548-3126 | 2020-05-152 | 1672 | DIBBS |
| 5920-00-548-3126 | 2019-01-02 | 1967 | DIBBS |
| 5920-00-548-3126 | 2018-12-347 | 3170 | DIBBS |
| 5920-00-548-3126 | 2016-12-340 | 5000 | DIBBS |
| 5920-00-548-3126 | 2016-03-77 | 2 | United States |
| 5920-00-548-3126 | 2015-04-117 | 4420 | DIBBS |
| 5920-00-548-3126 | 2013-11-325 | 4458 | DIBBS |
| 5920-00-548-3126 | 2009-06-170 | 8394 | DIBBS |
| 5920-00-548-3126 | 2007-10-275 | 7133 | DIBBS |
Cross Reference | NSN 5920-00-548-3126
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0004-642-022 | 93929 | SPX CORPORATION DBA RADIODETECTION |
| 04598 | 97520 | BASLER ELECTRIC COMPANY |
| 075-20028-027 | 12131 | LH ENTERPRISE |
| 109-009-0015 | 88818 | KEARFOTT CORPORATION DBA KEARFOTT |
| 11-8673 | 53782 | CONTROL INSTRUMENTS CORP |
| 148369 | 12204 | DAIMLER CHRYSLER |
| 175-14721-29 | 04773 | GTE COMMUNICATION SYSTEMS CORP |
| 19340-6A | D3841 | WICKMANN WERKE GMBH |
| 19340-6A | DN837 | LITTELFUSE GMBH |
| 2110-0056 | 28480 | HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP |
| 211151-225 | 32274 | CIPHER DATA PRODUCTS INC OEM MARKETING DIV |
| 226-7176P58 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 226-7176P58 | 52315 | L-3 COMMUNICATIONS KLEIN ASSOCIATES, INC. |
| 264-0727-000 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 264-0727-000 | 98247 | CANADIAN COMMERCIAL CORP DBACORPORATION COMMERCIALE |
| 311006 | 71400 | COOPER BUSSMANN INC |
| 312006 | 78176 | STANDARD ELECTRIC SUPPLY CO |
| 312006 AGC-6 | 78505 | ELECTRONIC INDUSTRIES INC. |
| 312006/MTH-6 | 75915 | LITTELFUSE, INC. |
| 351-006-015 | 07421 | INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS |
| 3824710 | 45152 | OSHKOSH CORPORATION |
| 3AG 5 AMP/250V | 71400 | COOPER BUSSMANN INC |
| 3AG/6A | 28199 | L-3 COMMUNICATIONS CORPORATION DBA L-3 HENSCHEL |
| 410002-024 | 53719 | C AND D TECHNOLOGIES |
| 4133725-035 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 42-843 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 503067-022 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 55100018 | 52297 | DELTYME CORPORATION |
| 59000521-13 | 50544 | I S S DIV OF SPERRY UNIVAC |
| 5M4811-220-64 | D1901 | AIRBUS DEFENCE AND SPACE GMBH DIV SEPS |
| 680-800231-001 | 04761 | MODCOMP INC. |
| 70960002-013 | 53178 | BULL HN INFORMATION SYSTEMS INC |
| 743-623985 | 18056 | DOALL BALTIMORE COMPANY |
| 838409-00 | 32345 | DEFENSE REDUCTION AGENCY |
| AGC-6 | 1UW16 | COOPER BUSSMANN |
| AGC6 | 15476 | COMPAQ FEDERAL LLC |
| AGC6AMP | 71400 | COOPER BUSSMANN INC |
| B901-9 | 54553 | ERICO JONES CO |
| F02A-250V-6AM | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| F02A250-6A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| F02A250V6A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| F02G6R00A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| F03A2506A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| FC12 | 37338 | NAUTEL LIMITED |
| FC12 | 57655 | NAUTEL MAINE INC. |
| FUS-21 | 60532 | TRANE U.S. INC. DBA TRANE |
| MEE225BE006 | 98865 | MCGRAW-EDISON CO POWER SYSTEMS GROUP |
| MIL-F-15160/2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-15160/2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS90078-15 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MTH-6.00-250 | 71400 | COOPER BUSSMANN INC |
| MTH250-6 | 71400 | COOPER BUSSMANN INC |
| MTH6A | 71400 | COOPER BUSSMANN INC |
| NF60NR-6A 6A | 7H422 | RAYTHEON MARINE CO HQ |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-00-548-3126
Related Products | NSN 5920-00-548-3126
Technical Data | NSN 5920-00-548-3126
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 2A TUBE TYPE |

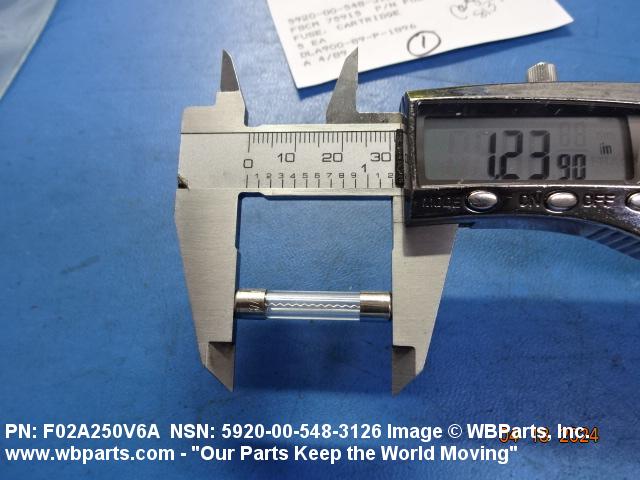

| OVERALL LENGTH | 1.219 INCHES MINIMUM AND 1.281 INCHES MAXIMUM |

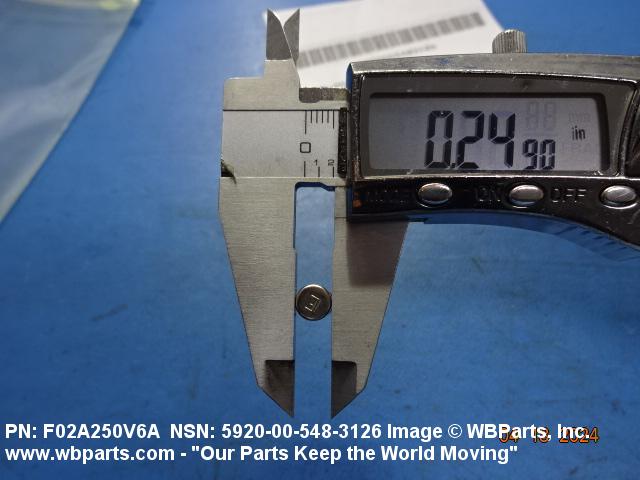

| OVERALL DIAMETER | 0.246 INCHES MINIMUM AND 0.254 INCHES MAXIMUM |
| CONTINUOUS CURRENT RATING IN AMPS | 6.000 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC AND 250.0 DC |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | NORMAL INSTANTANEOUS |
| INTERRUPTION INDICATOR METHOD | VISIBLE ELEMENT |
| SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS | 10000.0 |
| TERMINAL SURFACE TREATMENT | NICKEL OR NICKEL PLATED |
| FEATURES PROVIDED | NONRENEWABLE FUSIBLE ELEMENT |
| TEST DATA DOCUMENT | 81349-MIL-F-15160 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-F-15160/2 GOVERNMENT SPECIFICATION |
| III CASE MATERIAL | GLASS |
| III TERMINAL MATERIAL | BRASS |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | F02A250V6A |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-15160/2 |
