NSN 5920-00-557-2080 A514A0067, AGC10, AGC-10
Product Details | CARTRIDGE FUSE
5920-00-557-2080 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Part Alternates: A514A0067, AGC10, AGC-10, 65A10266, 855996, 117142, 5920-00-557-2080, 00-557-2080, 5920005572080, 005572080
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-557-2080 | 00248 ( FUSE, CARTRIDGE ) |

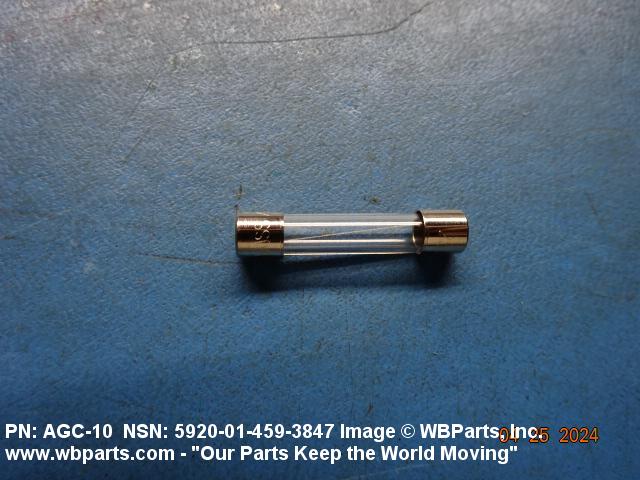

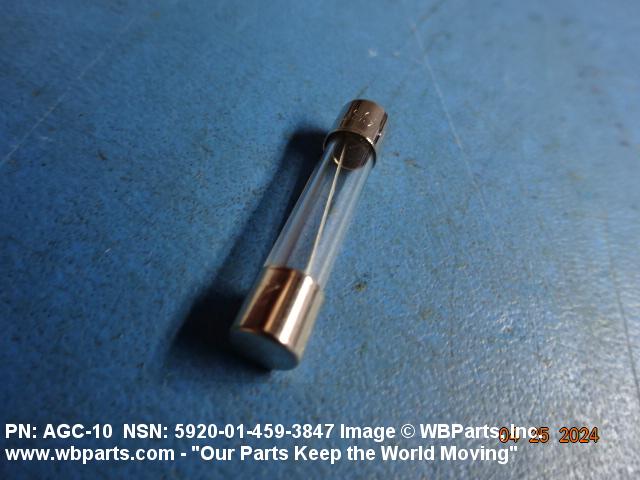

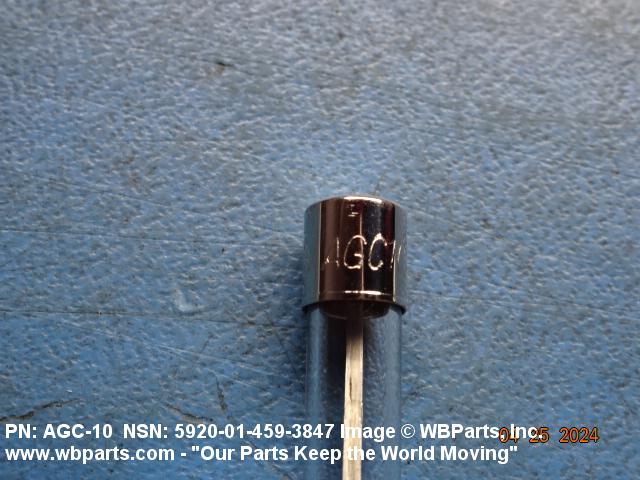

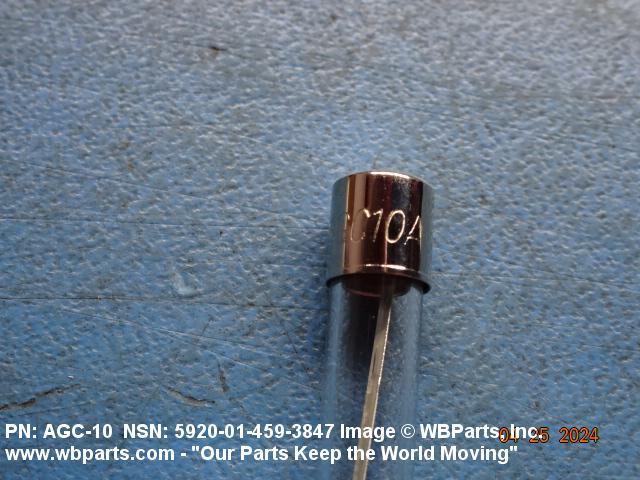

Drawings & Photos | NSN 5920-00-557-2080
Demand History | NSN 5920-00-557-2080
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AGC-10 | 2018-11-317 | 5 | Kuwait |
Cross Reference | NSN 5920-00-557-2080
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 117142 | 93219 | TRUCK AND BUS GROUP FLINT TRUCK ASSEMBLY PLANT |
| 65A10266 | 1VPW8 | GENERAL DYNAMICS C4 SYSTEMS, INC. |
| 65A10266 | 94990 | MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS |
| 855996 | 1PQF4 | L-3 COMMUNICATIONS CORPORATION DBA LINK SIMULATION & TRAINING |
| 855996 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
| A514A0067 | 24630 | APPLIED DYNAMICS INTERNATIONAL, INC. |
| AGC-10 | 73274 | HOSE-MCCANN TELEPHONE CO., INC. DBA HOSE MCCANN COMMUNICATIONS |
| AGC10 | 71400 | COOPER BUSSMANN INC |
| AGC10 | K0647 | COOPER BUSSMANN UK LTD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5920-00-557-2080
Technical Data | NSN 5920-00-557-2080
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 2A TUBE TYPE |

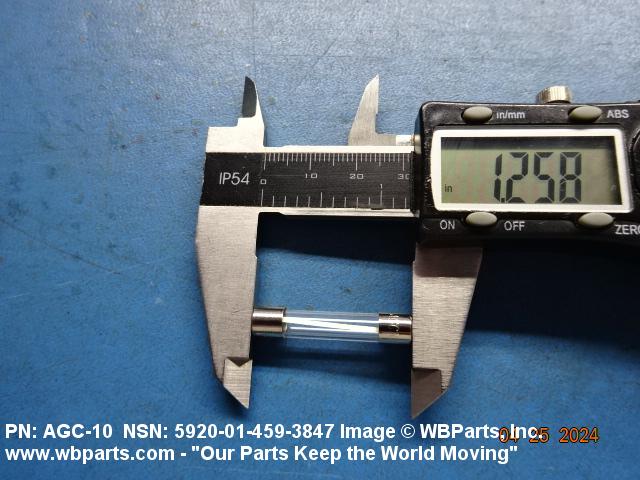

| OVERALL LENGTH | 1.250 INCHES NOMINAL |

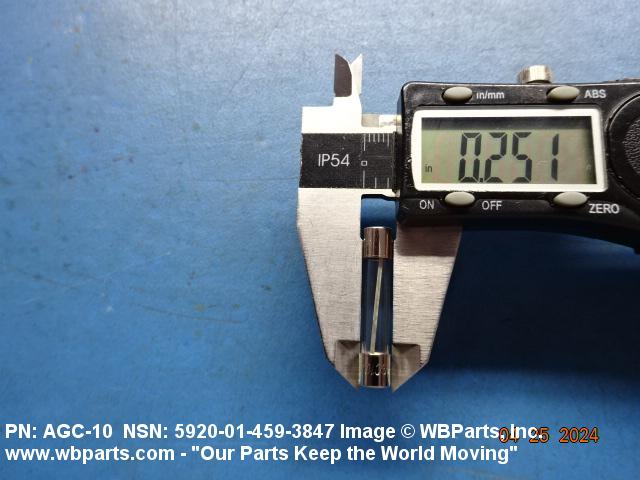

| OVERALL DIAMETER | 0.250 INCHES NOMINAL |
| CONTINUOUS CURRENT RATING IN AMPS | 10.000 |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | NORMAL INSTANTANEOUS |
| INTERRUPTION INDICATOR METHOD | VISIBLE ELEMENT |
| TERMINAL SURFACE TREATMENT | SILVER PLATED |
| FEATURES PROVIDED | NONRENEWABLE FUSIBLE ELEMENT |
Restrictions/Controls & Freight Information | NSN 5920-00-557-2080
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
