NSN 5920-00-956-6898 AD969LAH, 191801, 1918-01
Product Details | LIGHTNING ARRESTER
5920-00-956-6898 A protective device to provide a discharge path for lightning between line and line, and/or line and ground. See also PROTECTOR, TELEPHONE.
Part Alternates: AD969LAH, 191801, 1918-01, 5920-00-956-6898, 00-956-6898, 5920009566898, 009566898
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16-MAY-66 | 00-956-6898 | 00382 ( ARRESTER, LIGHTNING ) |

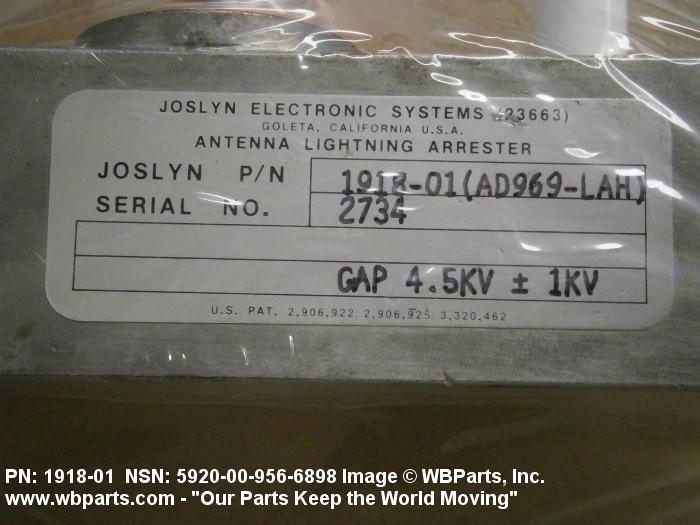

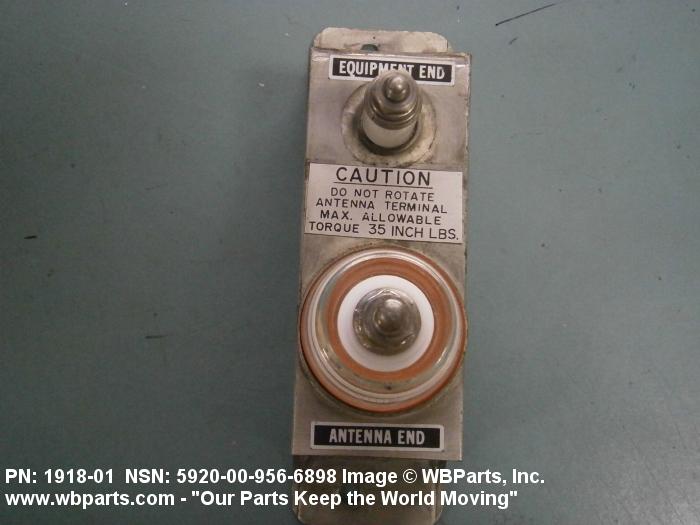

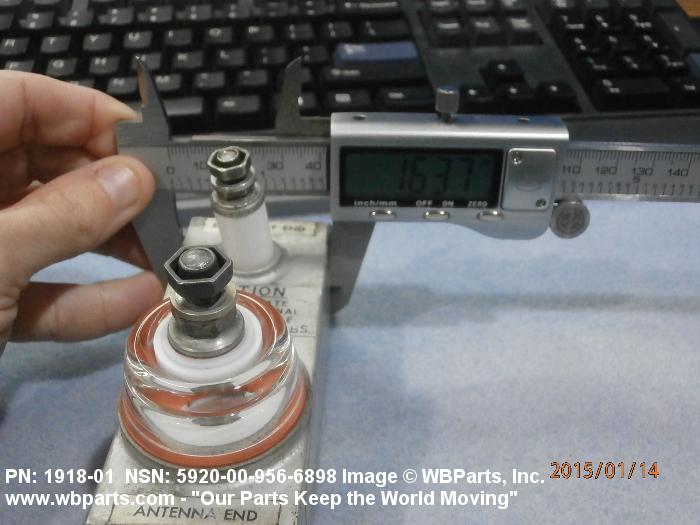

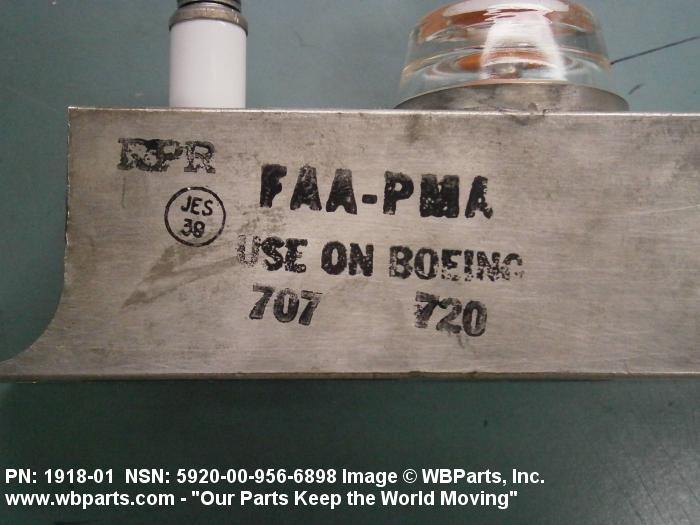

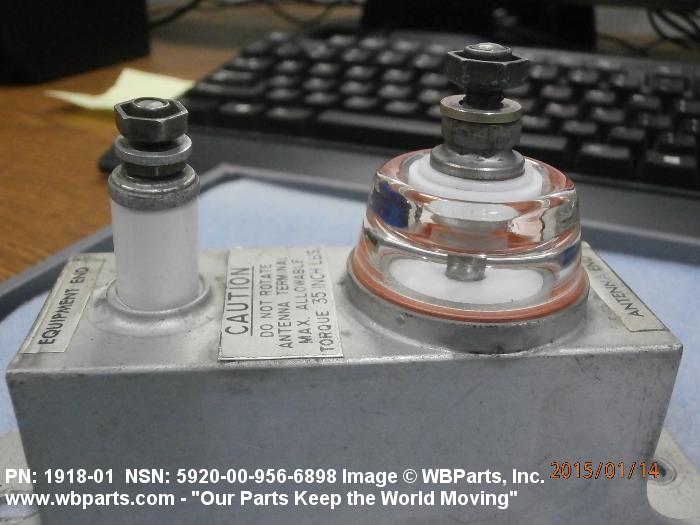

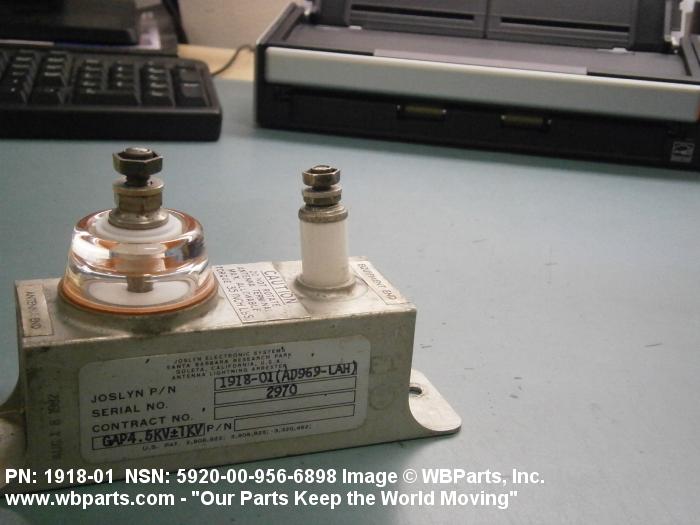

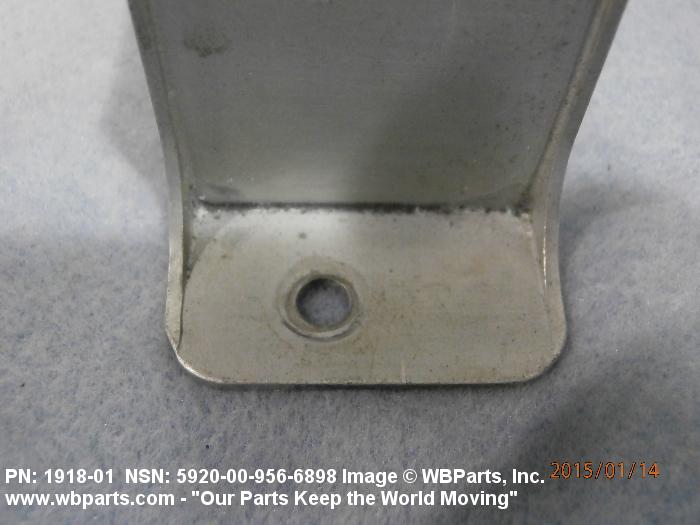

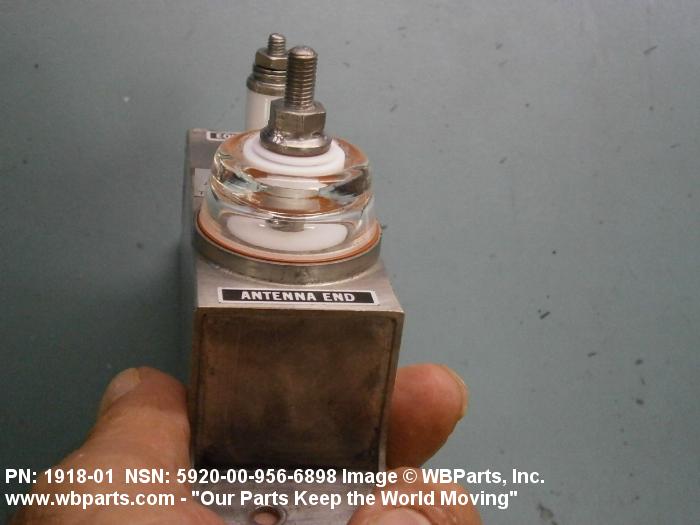

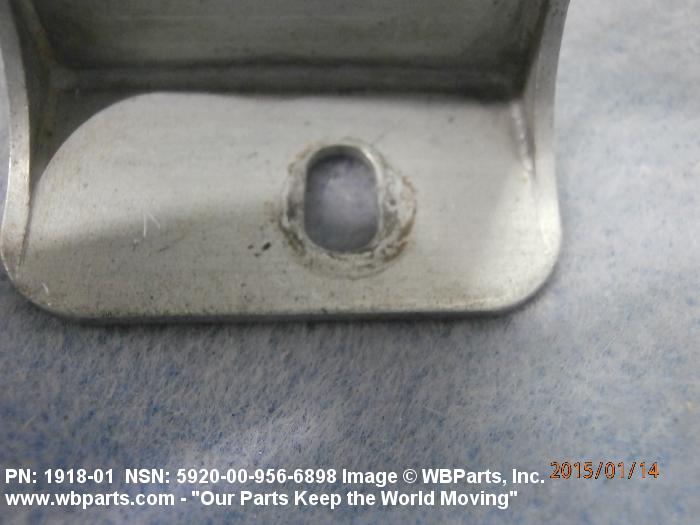

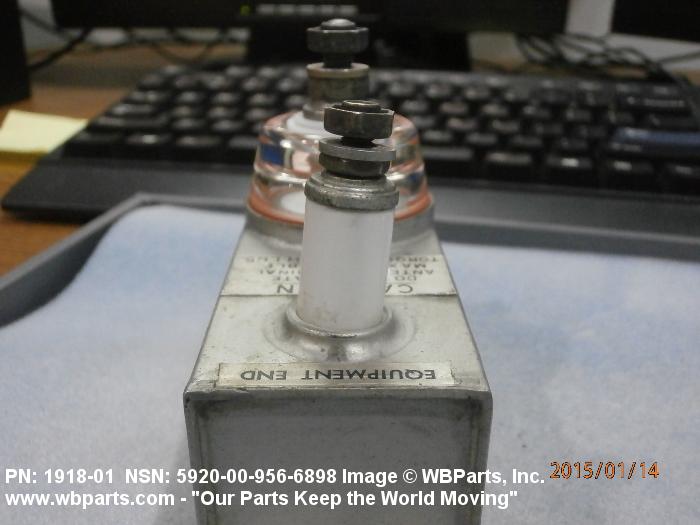

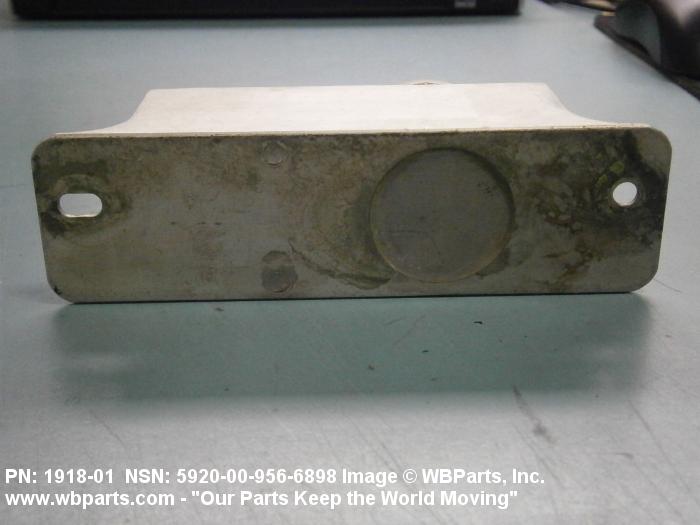

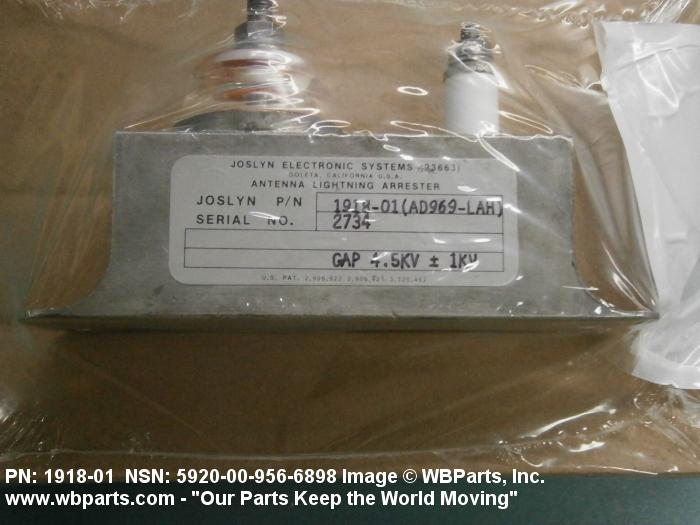

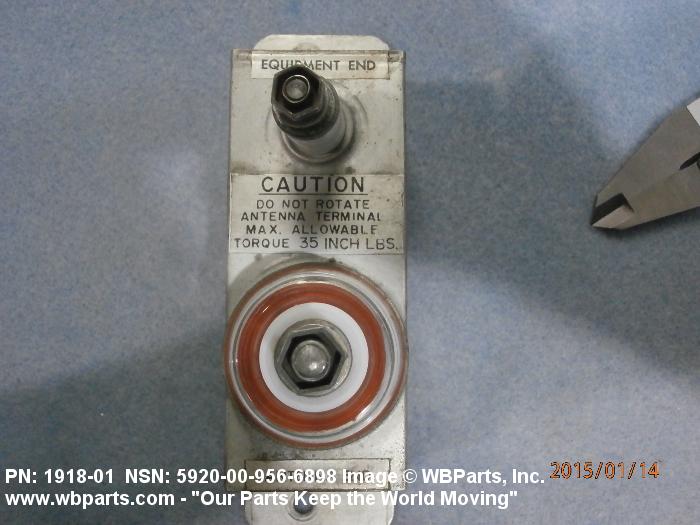

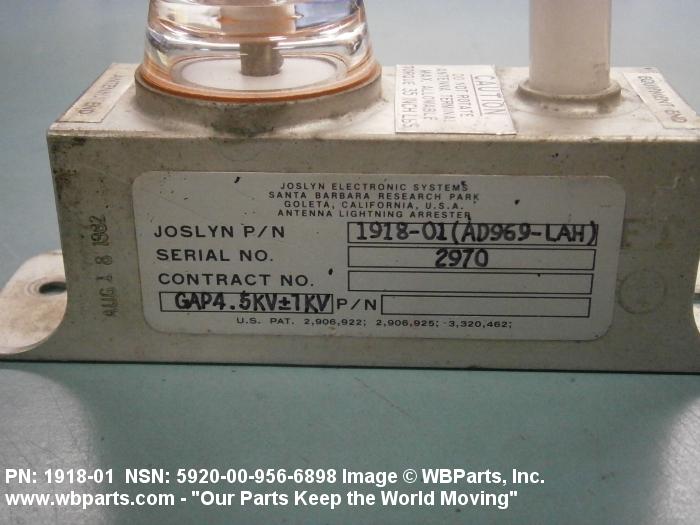

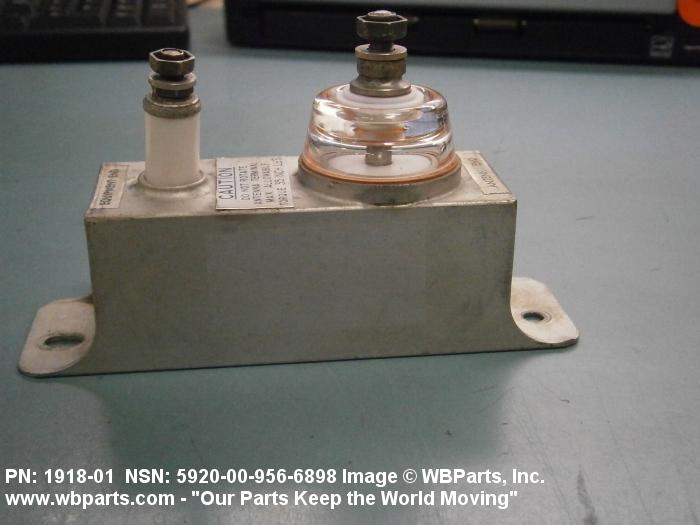

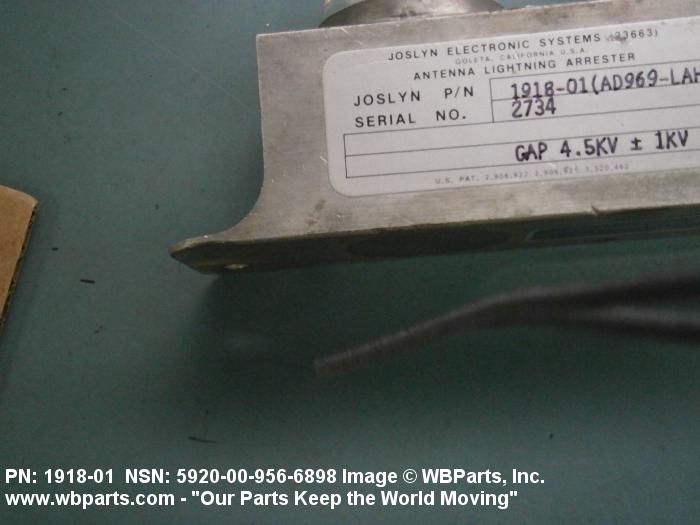

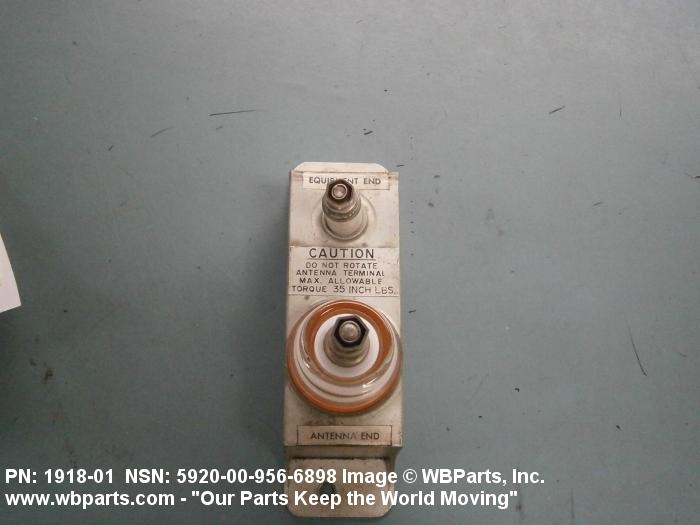

Drawings & Photos | NSN 5920-00-956-6898
Demand History | NSN 5920-00-956-6898
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 191801 | 2013-07-204 | 2 | United States |
| AD969LAH | 2013-05-123 | 8 | United States |
| 5920-00-956-6898 | 2012-08-244 | 1 | DIBBS |
| 5920-00-956-6898 | 2012-03-75 | 2 | DIBBS |
| 5920-00-956-6898 | 2011-08-238 | 3 | DIBBS |
| 5920-00-956-6898 | 2010-03-61 | 5 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5920-00-956-6898
Technical Data | NSN 5920-00-956-6898
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 5.620 INCHES NOMINAL |
| OVERALL WIDTH | 0.162 INCHES NOMINAL |
| OVERALL HEIGHT | 0.325 INCHES NOMINAL |
| MOUNTING METHOD | HOLES |
| MOUNTING CONFIGURATION | TWO 0.218 IN. DIA HOLES SPACED 5.250 IN. C TO C |
| BODY MATERIAL | METAL |
| USAGE DESIGN | OUTDOOR |
| ARRESTER TYPE | RESISTOR |
| BREAKDOWN VOLTAGE | 5.000 KILOVOLTS NOMINAL |
| TERMINAL TYPE | THREADED STUD |
| TERMINAL QUANTITY | 2 |
| MANUFACTURERS CODE | 02101 |
| DESIGN CONTROL REFERENCE | 1918-01 |
Restrictions/Controls & Freight Information | NSN 5920-00-956-6898
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
