NSN 5920-01-015-7042 4194A, 01-015-7042, 010157042
Product Details | THERMAL FUSE LINK
5920-01-015-7042 A replaceable, protective, current carrying element for heaters, heat ducts, and like items. It is designed with fusible material which will melt at known ambient temperatures and disconnect the item from its power source. See also LINK, FUSIBLE, FIRE.
Part Alternates: 4194A, 5920-01-015-7042, 01-015-7042, 5920010157042, 010157042
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 JAN 1976 | 01-015-7042 | 20348 ( FUSE LINK, THERMAL ) |

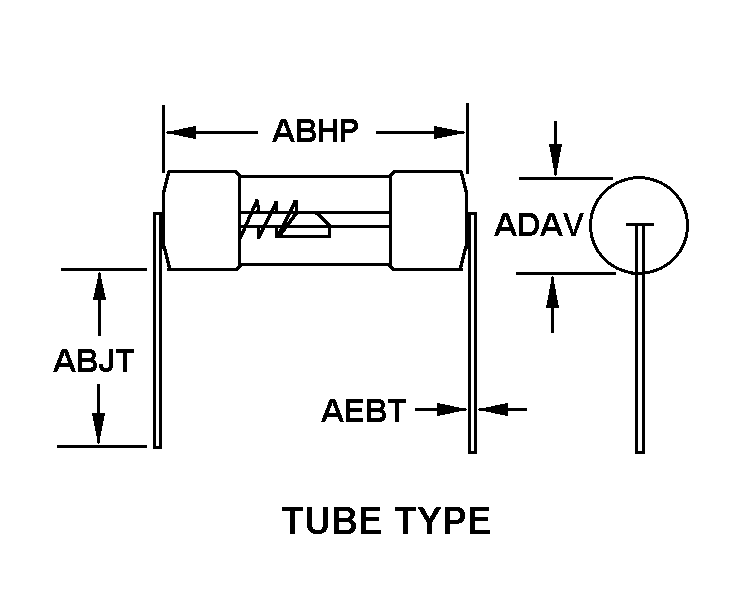

Drawings & Photos | NSN 5920-01-015-7042
Cross Reference | NSN 5920-01-015-7042
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4194A | 27012 | MICRO DEVICES CORP SUB OF EMERSON ELECTRIC CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5920-01-015-7042
Technical Data | NSN 5920-01-015-7042
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 4G TUBE TYPE |
| OVERALL LENGTH | 0.457 INCHES NOMINAL |
| TERMINAL LENGTH | 0.687 INCHES MINIMUM AND 1.375 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.158 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.040 INCHES NOMINAL |
| CONTINUOUS CURRENT RATING IN AMPS | 15.000 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 1200.0 AC |
| INTERRUPTION INDICATOR METHOD | OPAQUE BODY |
| TEMP RATING | -58.0 DEG CELSIUS AND 240.0 DEG CELSIUS |
| ELEMENT MELTING TEMP | 93.0 DEG CELSIUS |
Restrictions/Controls & Freight Information | NSN 5920-01-015-7042
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062060 | FUSES NOI IN BOXES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
