NSN 5920-01-181-2673 FAU 031.3573, FAU 031.3577, FAU0313573
Product Details | FUSEHOLDER SUBASSEMBLY
5920-01-181-2673 The components of a fuseholder which together form the carrier to hold a fuse in position to provide electrical contact, but which in itself is not a complete functioning item and cannot be assigned a more definite item name.
Part Alternates: FAU 031.3573, FAU 031.3577, FAU0313573, FAU0313577, 031.3577, 0313577, 345101-010, 352-0895-00, 4042564, 5920-01-181-2673, 01-181-2673, 5920011812673, 352089500, 011812673, 345101010
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 JUN 1984 | 01-181-2673 | 62213 ( FUSEHOLDER SUBASSEMBLY ) |
Drawings & Photos | NSN 5920-01-181-2673
Demand History | NSN 5920-01-181-2673
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5920-01-181-2673 | 2009-03-77 | 80 | DIBBS |
| 5920-01-181-2673 | 2006-05-142 | 80 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-01-181-2673
Related Products | NSN 5920-01-181-2673
Technical Data | NSN 5920-01-181-2673
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 1 |
| CURRENT CARRYING RATING IN AMPS | 6.3 |
| VOLTAGE IN VOLTS | 250.0 |
| FUSE TERMINAL TYPE ACCOMMODATED | FERRULE |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | NICKEL PLATED |

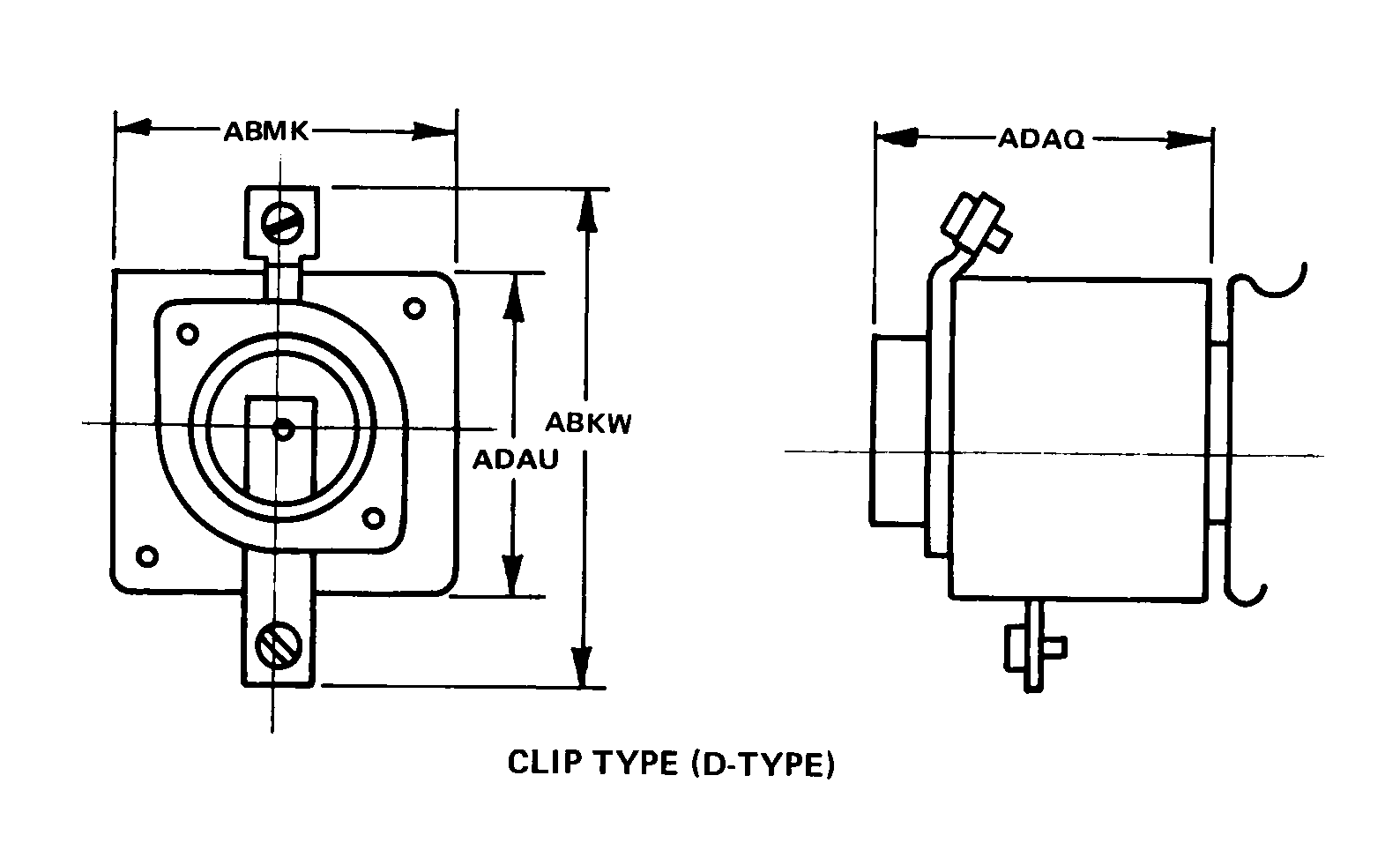

| BODY STYLE | D25 CLIP TYPE |
| OVERALL HEIGHT | 1.770 INCHES MINIMUM |
| OVERALL WIDTH | 0.490 INCHES NOMINAL |
| BODY LENGTH | 0.440 INCHES NOMINAL |
| BODY HEIGHT | 0.480 INCHES NOMINAL |
| ACCOMMODATED FUSE LENGTH | 0.788 INCHES MINIMUM AND 1.250 INCHES MAXIMUM |
| ACCOMMODATED FERRULE DIAMETER | 0.197 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| INTERRUPTION INDICATOR METHOD | VISUAL INDICATING |
| SPECIAL FEATURES | ITEM IS A FUSEHOLDER BODY ONLY FOR PRINTED CIRCUIT BOARD MOUNTING THAT WILL ACCEPT 1.250 IN. LG BY 0.250 IN. DIA FUSES OR 20.0 MILLIMETER LG BY 5.0 MILLIMETER DIA FUSES DEPENDING ON WHICH FUSE CARRIER IS ORDERED; IF USING A 1.250 IN. LG BY 0.250 IN. DIA FUSE ORDER PART NUMBER FEK031.1666 FOR THE APPROPRIATE FUSE CARRIER,COLOR-CODED GREY; IF USING A 20.0 MILLIMETER LG BY 5.0 MILLIMETER DIA FUSE ORDER PART NUMBER FEK031.1663 FOR THE APPROPRIATE FUSE CARRIER,COLOR-CODED BLACK |
| III BODY MATERIAL | PLASTIC, PHENOLIC, MOULDED |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
| III STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
Restrictions/Controls & Freight Information | NSN 5920-01-181-2673
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
