NSN 5920-01-231-2406 V275PA40A, 106360031403, 1063-60031-40-3
Product Details | OVERVOLTAGE ABSORBER
5920-01-231-2406 An item specifically designed to absorb and consume surges of voltage such as that resulting across contacts when breaking a circuit having an inductive load or a burst of static across a telephone receiver. It is connected in parallel with the item it is protecting. It may be made up of metallic rectifier cells or semiconductor devices connected back-to-back which may or may not be shunted by a capacitor. It may also be a single rectifier cell or semiconductor device shunted by a capacitor. Excludes metallic rectifiers which are rated for rectifying capabilities and all single unit semiconductor devices not shunted by a capacitor. For items perfoming this function by use of voltage sensitive resistors, see RESISTOR, VOLTAGE SENSITIVE. See also CUTOUT DISK, PROTECTIVE.
Part Alternates: V275PA40A, 106360031403, 1063-60031-40-3, 5920-01-231-2406, 01-231-2406, 5920012312406, 012312406
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 APR 1986 | 01-231-2406 | 21899 ( ABSORBER, OVERVOLTAGE ) |

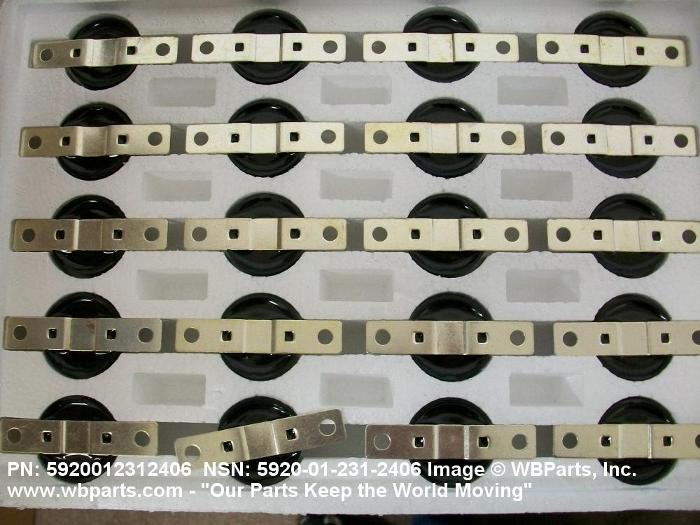

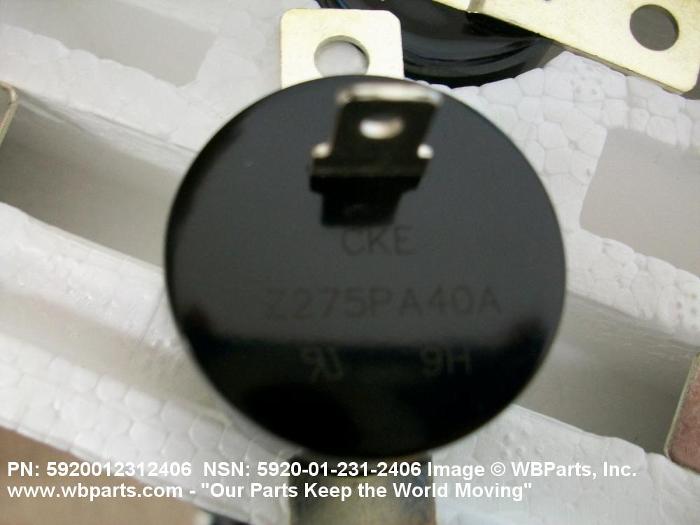

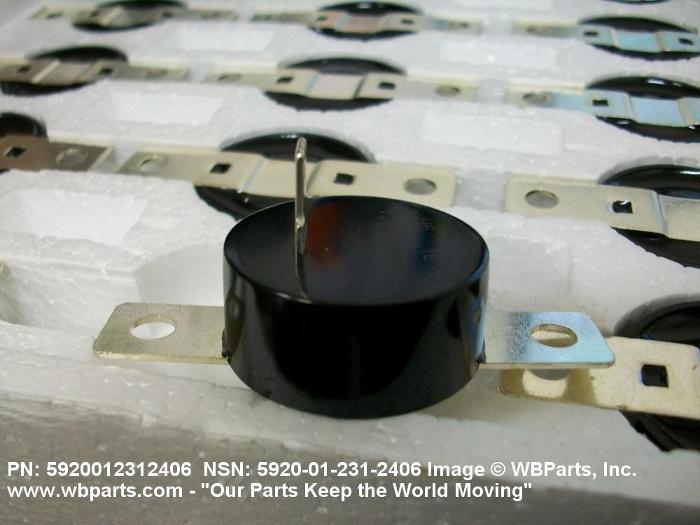

Drawings & Photos | NSN 5920-01-231-2406
Demand History | NSN 5920-01-231-2406
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5920-01-231-2406 | 2011-07-209 | 48 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5920-01-231-2406
Technical Data | NSN 5920-01-231-2406
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 1.030 INCHES MINIMUM |
| OVERALL WIDTH | 2.610 INCHES MAXIMUM |
| MOUNTING METHOD | THREADED HOLE |
| CURRENT TYPE | DC |
| VOLTAGE IN VOLTS | 369.0 |
| PROTECTED ITEM MAXIMUM CURRENT RATING IN AMPS | 100.00 |
| PROTECTIVE COVERING TYPE | CASE |
| SPECIAL FEATURES | TYPICAL CAPACITANCE IN PF 1100.0; RESPONSE TIME 50.0 NANOSEC; LOW THERMAL RESISTANCE; QUICK CONNECT TERMINAL; OPERATING BASE PLATE AMBIENT TEMP +75 DEG C |
Restrictions/Controls & Freight Information | NSN 5920-01-231-2406
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
