NSN 5920-01-244-0473 FM07A125V2A, MIL-F-23419/7, MILF234197
Product Details | CARTRIDGE FUSE
5920-01-244-0473 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Part Alternates: FM07A125V2A, MIL-F-23419/7, MILF234197, MIL-PRF-23419/7, MILPRF234197, 5920-01-244-0473, 01-244-0473, 5920012440473, 012440473
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 NOV 1986 | 01-244-0473 | 00248 ( FUSE, CARTRIDGE ) |

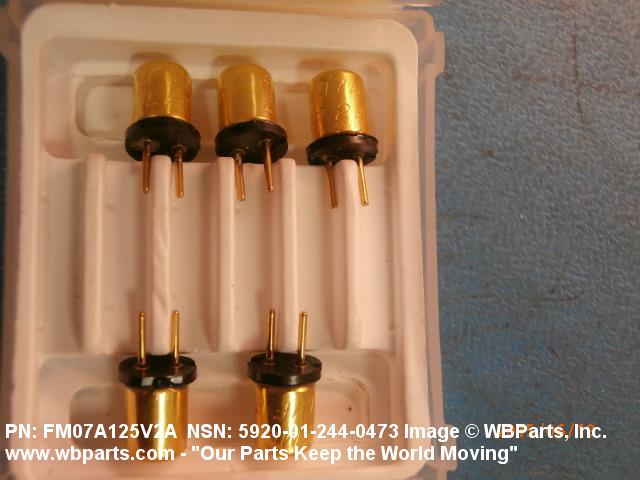

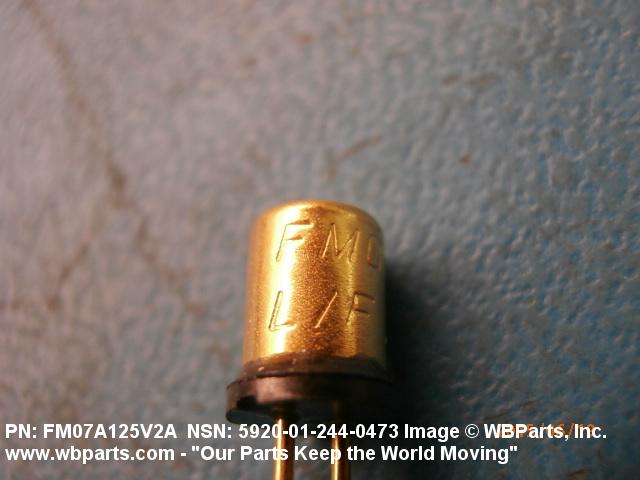

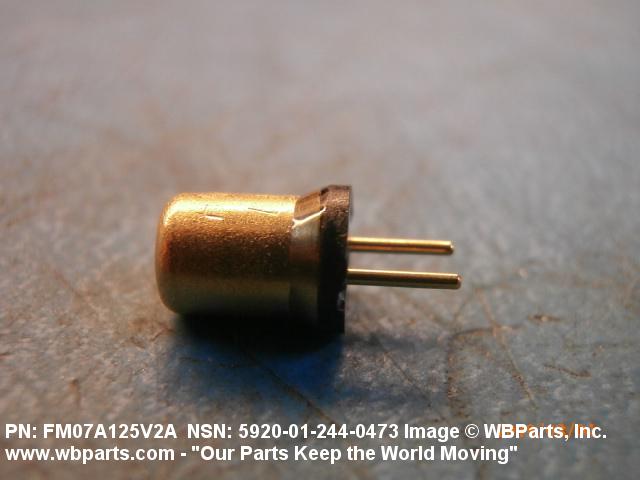

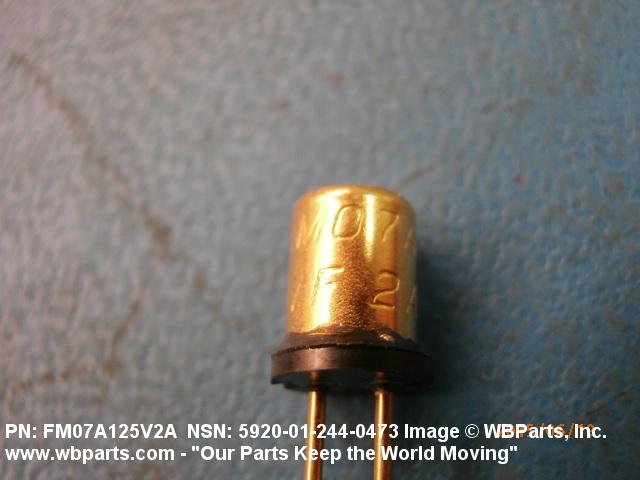

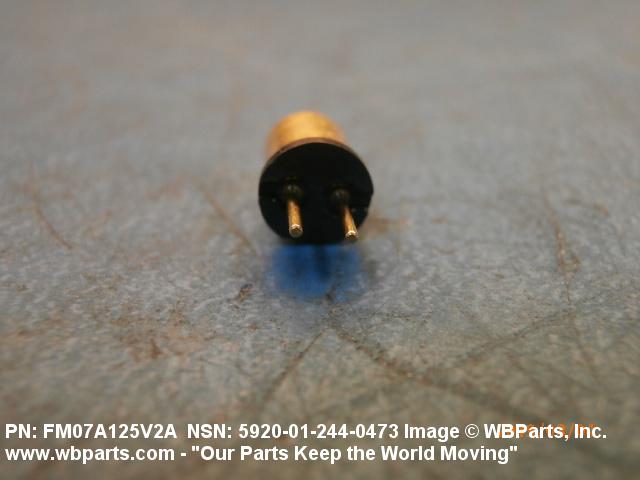

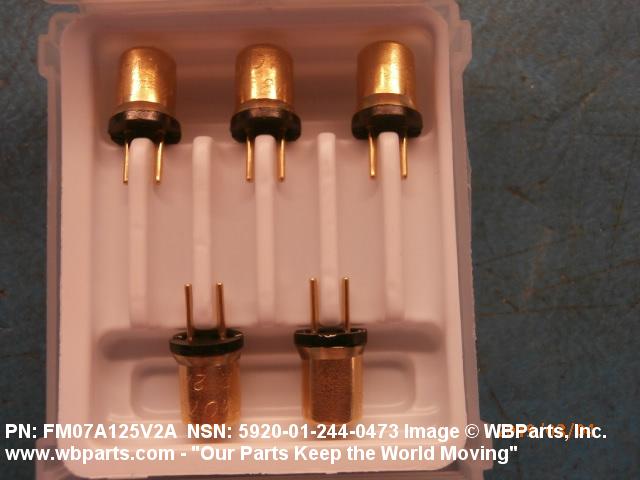

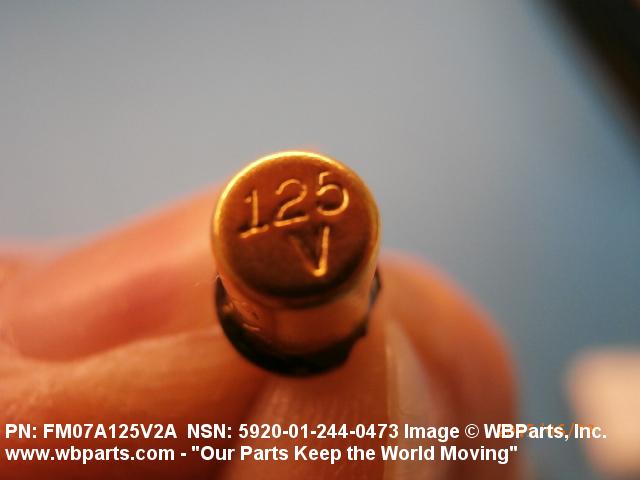

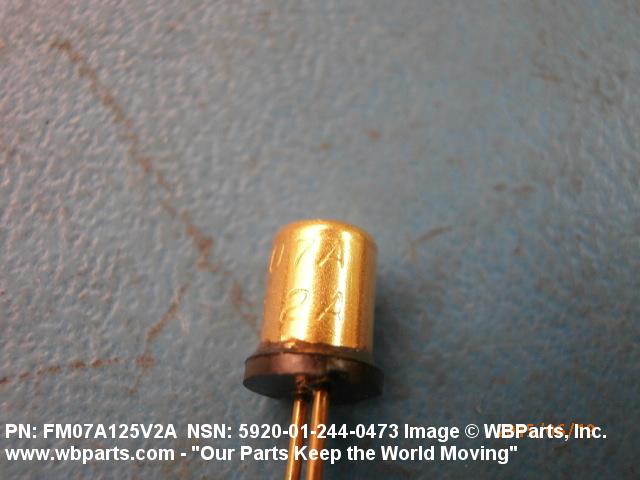

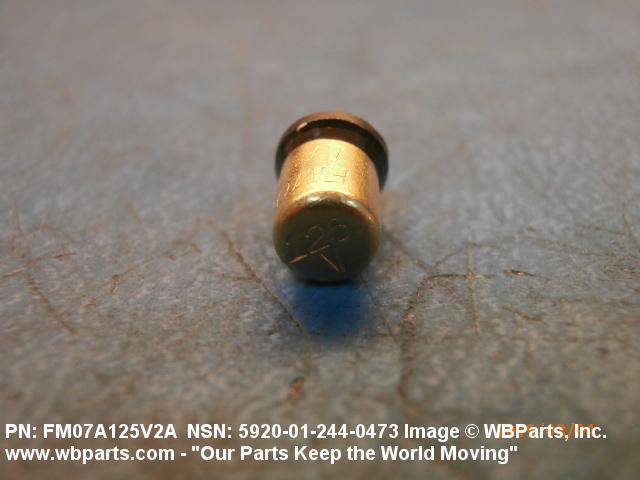

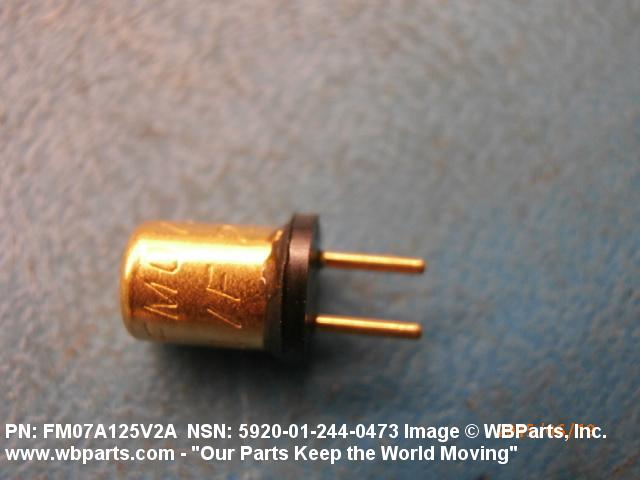

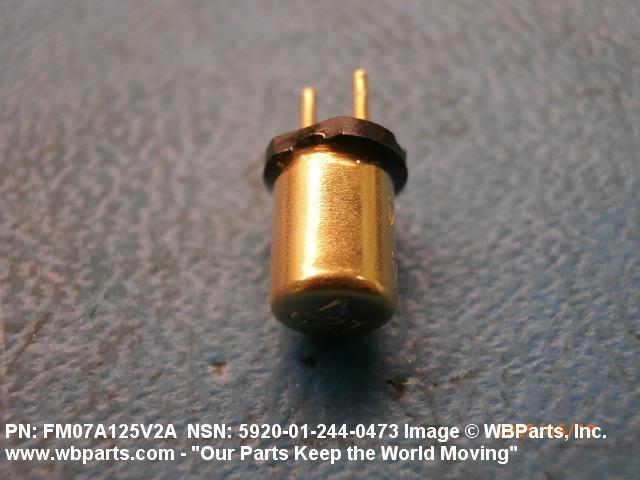

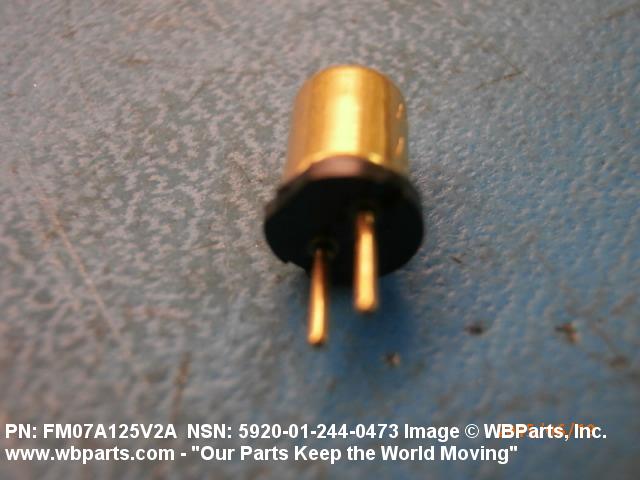

Drawings & Photos | NSN 5920-01-244-0473
Demand History | NSN 5920-01-244-0473
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5920-01-244-0473 | 2025-05-141 | 886 | DIBBS |
| 5920-01-244-0473 | 2025-05-127 | 890 | AF |
| 5920-01-244-0473 | 2025-05-126 | 886 | DIBBS |
| 5920-01-244-0473 | 2024-05-126 | 227 | DIBBS |
| 5920-01-244-0473 | 2024-05-122 | 227 | DIBBS |
| 5920-01-244-0473 | 2024-04-121 | 227 | US |
| 5920-01-244-0473 | 2024-04-107 | 227 | DIBBS |
| 5920-01-244-0473 | 2024-04-95 | 1285 | DIBBS |
| 5920-01-244-0473 | 2024-03-84 | 1285 | DIBBS |
| 5920-01-244-0473 | 2019-03-80 | 200 | Singapore |
| 5920-01-244-0473 | 2019-02-59 | 5 | United States |
| 5920-01-244-0473 | 2019-02-34 | 910 | DIBBS |
| 5920-01-244-0473 | 2019-01-24 | 804 | DIBBS |
| 5920-01-244-0473 | 2018-12-358 | 1 | DIBBS-RFPs |
| 5920-01-244-0473 | 2018-08-228 | 2400 | DIBBS |
| FM07A125V2A | 2018-01-29 | 20 | United States |
| 5920-01-244-0473 | 2017-10-282 | 876 | DIBBS |
| 5920-01-244-0473 | 2017-08-226 | 876 | DIBBS |
| 5920-01-244-0473 | 2017-08-215 | 876 | DIBBS |
| 5920-01-244-0473 | 2016-08-238 | 300 | DIBBS |
| 5920-01-244-0473 | 2016-04-102 | 1 | DIBBS-RFPs |
| 5920-01-244-0473 | 2015-11-307 | 941 | DIBBS |
| 5920-01-244-0473 | 2015-09-267 | 795 | DIBBS |
| 5920-01-244-0473 | 2015-07-186 | 1045 | DIBBS |
| 5920-01-244-0473 | 2015-06-168 | 10 | United States |
| 5920-01-244-0473 | 2014-09-247 | 3222 | DIBBS |
| 5920-01-244-0473 | 2013-12-351 | 3000 | DIBBS |
| 5920-01-244-0473 | 2013-03-80 | 1698 | DIBBS |
| 5920-01-244-0473 | 2013-03-78 | 555 | DIBBS |
| 5920-01-244-0473 | 2011-11-319 | 3200 | DIBBS |
| 5920-01-244-0473 | 2011-09-262 | 810 | DIBBS |
| 5920-01-244-0473 | 2011-07-186 | 2290 | DIBBS |
| 5920-01-244-0473 | 2011-03-60 | 500 | DIBBS |
| 5920-01-244-0473 | 2011-01-18 | 1000 | DIBBS |
| 5920-01-244-0473 | 2010-12-342 | 1100 | DIBBS |
| 5920-01-244-0473 | 2009-03-61 | 754 | DIBBS |
| 5920-01-244-0473 | 2008-11-320 | 1354 | DIBBS |
| 5920-01-244-0473 | 2008-10-301 | 1026 | DIBBS |
| 5920-01-244-0473 | 2008-08-226 | 244 | DIBBS |
| 5920-01-244-0473 | 2008-08-214 | 471 | DIBBS |
| 5920-01-244-0473 | 2008-03-79 | 219 | DIBBS |
| 5920-01-244-0473 | 2007-11-313 | 219 | DIBBS |
| 5920-01-244-0473 | 2007-10-295 | 600 | DIBBS |
| 5920-01-244-0473 | 2007-10-282 | 121 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-01-244-0473
Related Products | NSN 5920-01-244-0473
Technical Data | NSN 5920-01-244-0473
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 30A PLUG-IN TYPE |

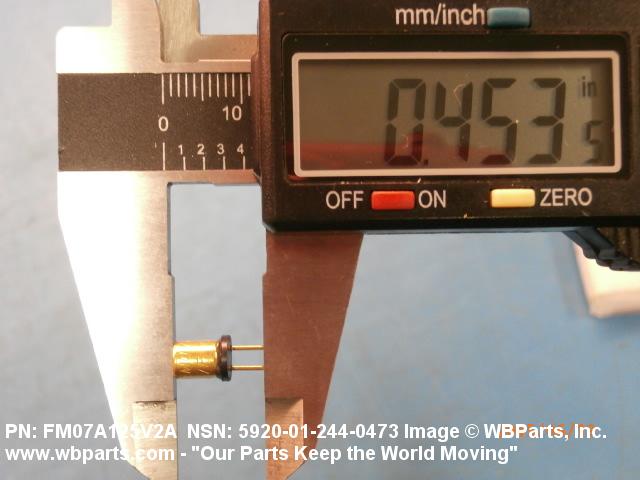

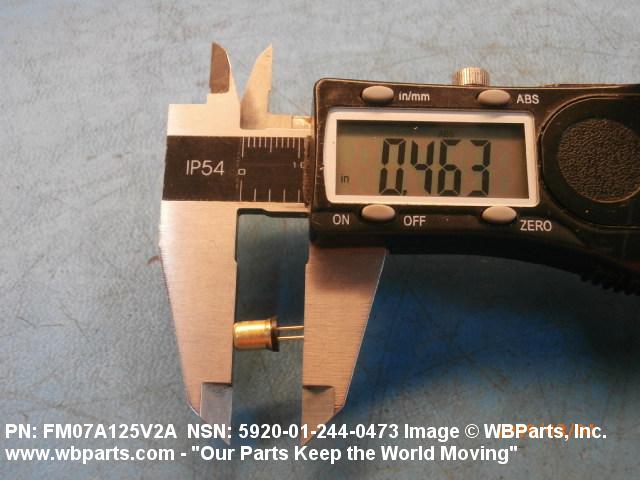

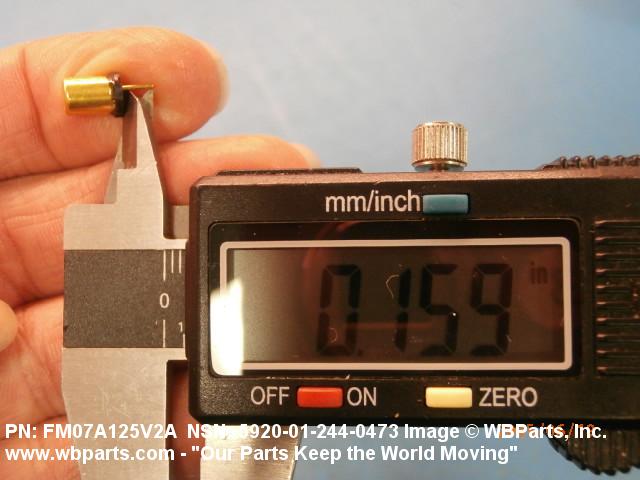

| OVERALL LENGTH | 0.460 INCHES NOMINAL |
| TERMINAL LENGTH | 0.170 INCHES NOMINAL |
| BODY LENGTH | 0.290 INCHES NOMINAL |

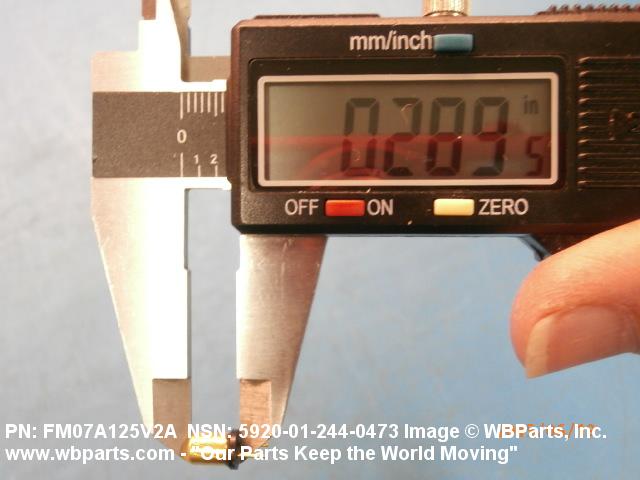

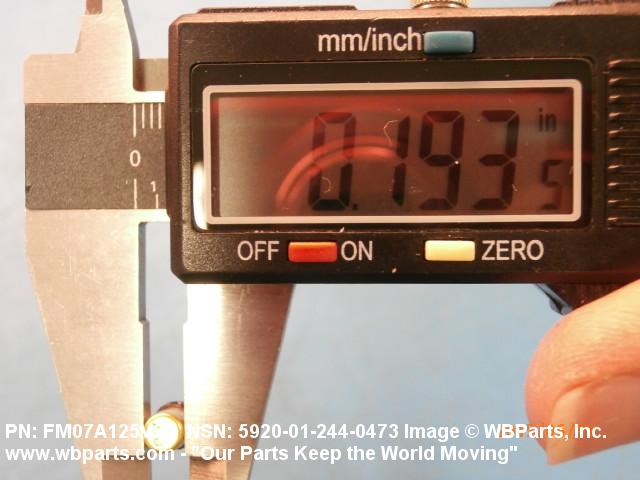

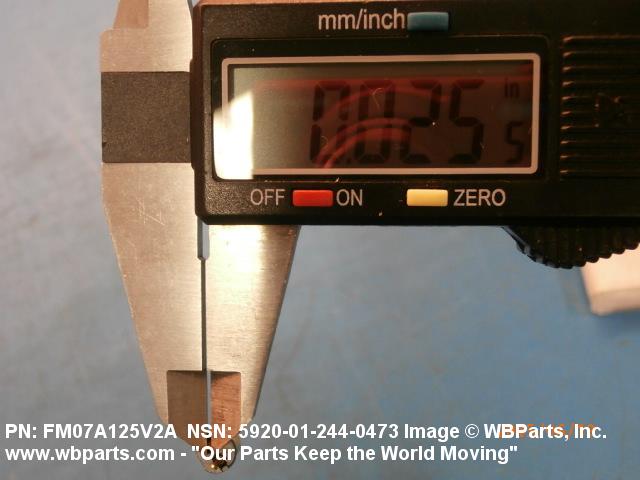

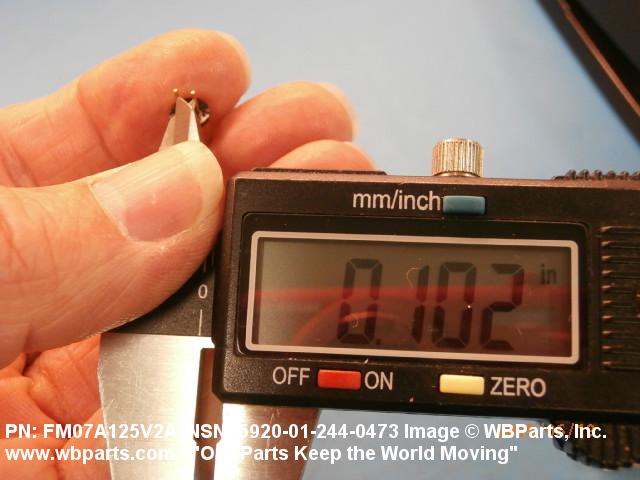

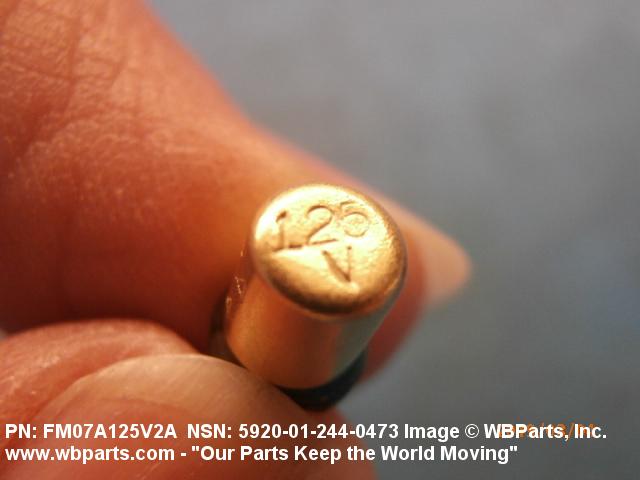

| OVERALL DIAMETER | 0.193 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.025 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO DIAMETER | 0.104 INCHES NOMINAL |
| CONTINUOUS CURRENT RATING IN AMPS | 2.000 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 125.0 AC AND 125.0 DC |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | NORMAL INSTANTANEOUS |
| INTERRUPTION INDICATOR METHOD | OPAQUE BODY |
| SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS | 10000.0 |
| TERMINAL SURFACE TREATMENT | GOLD PLATED |
| FEATURES PROVIDED | NONRENEWABLE FUSIBLE ELEMENT |
| TEST DATA DOCUMENT | 81349-MIL-F-23419 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-F-23419/7 GOVERNMENT SPECIFICATION |
| III CASE MATERIAL | BRASS |
| III TERMINAL MATERIAL | COPPER |
| III UNPACKAGED UNIT WEIGHT | 0.360 GRAMS |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | FUSE CAP AND TERMINAL SURFACES GOLD |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FM07A125V2A |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-23419/7 |
