NSN 5925-00-026-4767 MS390621, MS39062-1, M13516/1-1
Product Details | CIRCUIT BREAKER
5925-00-026-4767 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.
Part Alternates: MS390621, MS39062-1, M13516/1-1, M1351611, C9115515, C9115-5-15, LA1118, TC151447, TC15-1447, MIL-C-13516/1, MILC135161, 60092, 79Z622, 0624A0392, 12045387, 16913P11, 195900, 20L10, 22353, 375MAF1, 3M5999, 4499, 481525, 485643, 517323, 519566, 5925-00-026-4767, 00-026-4767, 5925000264767, 000264767
Electrical and Electronic Equipment Components | Circuit Breakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-026-4767 | 00136 ( CIRCUIT BREAKER ) |

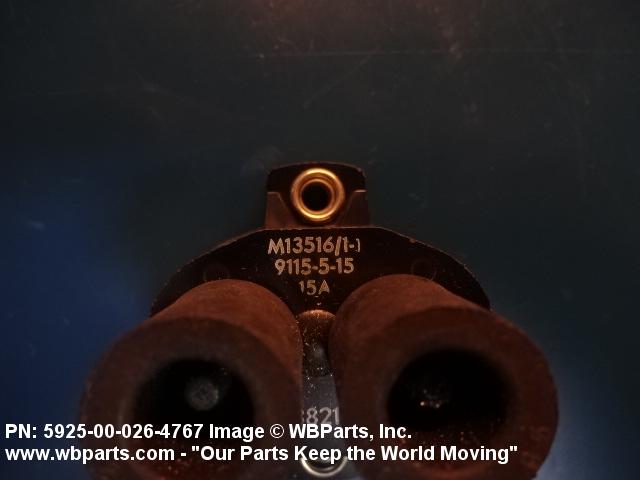

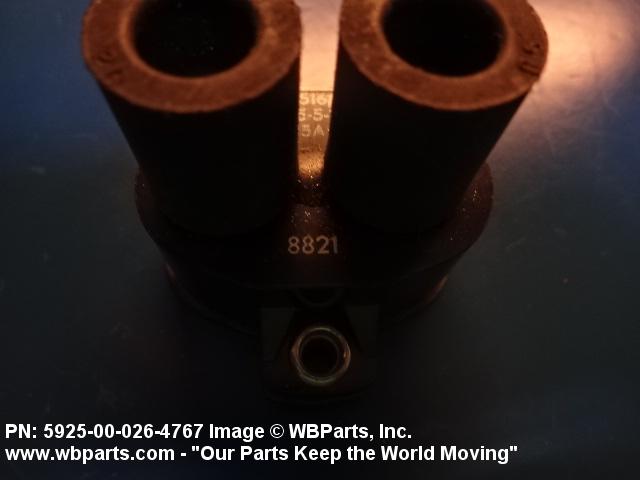

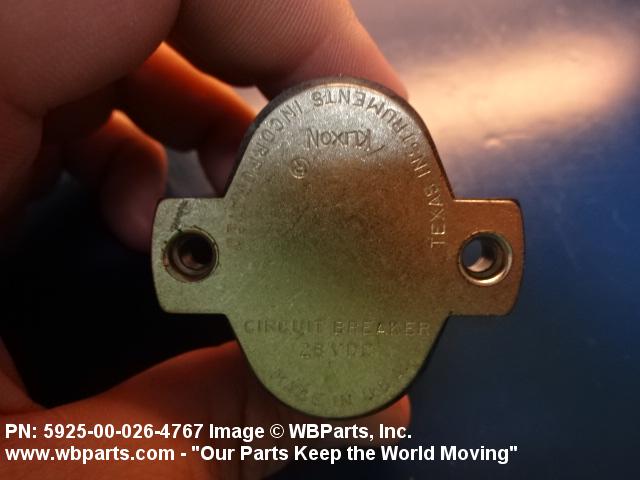

Drawings & Photos | NSN 5925-00-026-4767
Demand History | NSN 5925-00-026-4767
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5925-00-026-4767 | 2023-10-303 | 10 | United States |
| 5925-00-026-4767 | 2021-10-293 | 50 | United States |
| 5925-00-026-4767 | 2019-03-70 | 46 | Thailand |
| 5925-00-026-4767 | 2019-01-10 | 48 | MANUAL |
| M13516/1-1 | 2019-01-10 | 48 | Thailand |
| 5925-00-026-4767 | 2018-12-354 | 3 | DIBBS-KIT |
| M13516/1-1 | 2018-12-353 | 3 | |
| 5925000264767 | 2018-11-306 | 16 | Thailand |
| 5925-00-026-4767 | 2018-10-292 | 2 | MANUAL |
| M13516/1-1 | 2018-10-292 | 2 | Thailand |
| 5925-00-026-4767 | 2018-09-262 | 4 | Thailand |
| 5925-00-026-4767 | 2018-09-257 | 4 | Thailand |
| 5925-00-026-4767 | 2017-07-192 | 24 | MANUAL |
| MS39062-1 | 2017-07-192 | 24 | PK |
| 5925-00-026-4767 | 2017-02-32 | 3 | MANUAL |
| MS39062-1 | 2017-02-32 | 3 | United States |
| 5925-00-026-4767 | 2015-11-309 | 33 | Pakistan |
| 5925-00-026-4767 | 2013-04-99 | 42 | Thailand |
| 5925-00-026-4767 | 2012-04-104 | 5 | MANUAL |
| 5925-00-026-4767 | 2011-06-155 | 5 | MANUAL |
| 5925-00-026-4767 | 2011-06-155 | 5 | MANUAL |
| MS39062-1 | 2011-06-155 | 5 | PK |
| MS39062-1 | 2011-06-155 | 5 | PK |
| MS390621 | 2008-10-295 | 8 | US |
| 5925-00-026-4767 | 2008-02-43 | 15 | Thailand |
Cross Reference | NSN 5925-00-026-4767
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0624A0392 | 55207 | ARROW-MASTER, INCORPORATED |
| 12045387 | 88853 | BCP CONSTRUCTION PRODUCTS DIV OF TEREX CORP |
| 16913P11 | 90407 | M-R-S MFG CO |
| 195900 | 23382 | FWD SEAGRAVE HOLDINGS, LP DIV FWD SEAGRAVE HOLDINGS, LP |
| 20L10 | 05643 | BARBER-GREENE CO |
| 22353 | 77241 | PERFECTION-COBEY CO DIV OF HARSCO CORP |
| 375MAF1 | 05415 | LINDE LIFT TRUCK CORP. |
| 3M5999 | 11083 | CATERPILLAR INC. DBA CATERPILLAR |
| 4499 | 23834 | ELLIOTT MACHINE WORKS INC. |
| 481525 | 02280 | AMERICAN HOIST AND DERRICK CO |
| 485643 | 35311 | AMERICAN STANDARD INC WESTINGHOUSE AIR BRAKE CO DIV |
| 517323 | 07464 | BADGER FIRE PROTECTION INC |
| 519566 | 12603 | CLARK EQUIPMENT CO |
| 519566 | 40152 | VME AMERICAS INC SUB OF VME GROUP N V |
| 5925000264767 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 60092 | 16004 | DAVEY COMPRESSOR CO DIV OF KECO INDUSTRIES INC |
| 79Z622 | 27315 | MORRIS MATERIAL HANDLING, INC. |
| C9115-5-15 | 82647 | SENSATA TECHNOLOGIES, INC DIV SENSATA ATTLEBORO |
| LA1118 | 46717 | PETTIBONE LLC |
| M13516/1-1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-13516/1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS39062-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| TC15-1447 | 03677 | ANTHONY YORK CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5925-00-026-4767
Related Products | NSN 5925-00-026-4767
Technical Data | NSN 5925-00-026-4767
| Characteristic | Specifications |
|---|---|
| POLE QUANTITY | 1 |
| MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE | 15.0 AMPERES DC SINGLE LOCATION |
| OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS | 28.0 DC SINGLE LOCATION |
| MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS | 575.0 DC SINGLE LOCATION |
| CIRCUIT PROTECTION TYPE | OVERCURRENT SINGLE LOCATION |
| TRIP RELEASE METHOD | THERMAL SINGLE LOCATION |
| INTERNAL TRIP RELEASE CONFIGURATION | SERIES TRIP SINGLE LOCATION |
| TRIP RELEASE AMBIENT TEMP RATING | 25.0 DEG CELSIUS NOMINAL SINGLE LOCATION |
| TRIP RELEASE CHARACTERISTIC | TIME DELAY SINGLE LOCATION |
| TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT | 8.000 MINIMUM AT 200 PCT AND 50.000 MAXIMUM AT 200 PCT SINGLE LOCATION |
| ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT | 138.0 SINGLE LOCATION |
| RESET METHOD | AUTOMATIC |
| BODY STYLE | 16A SINGLE POLE TYPE |

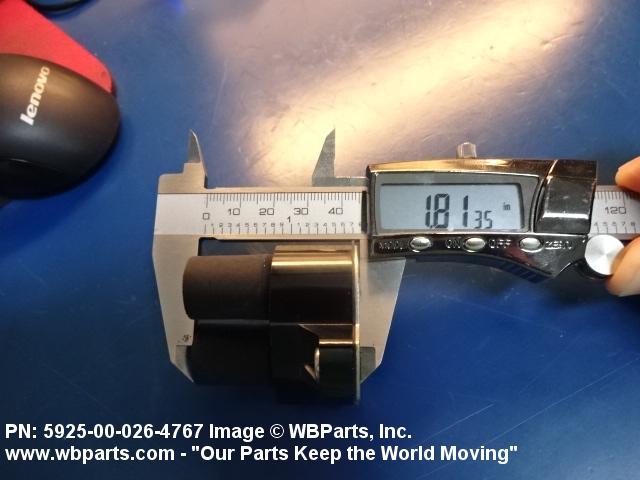

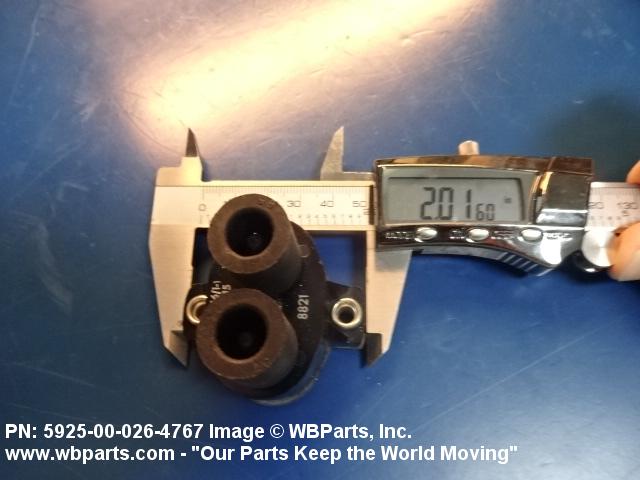

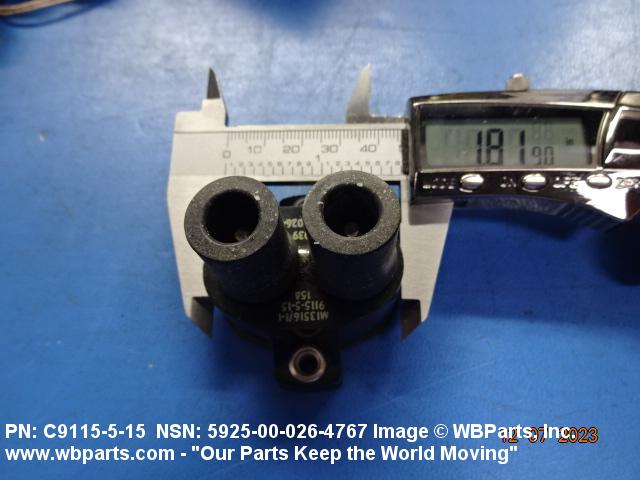

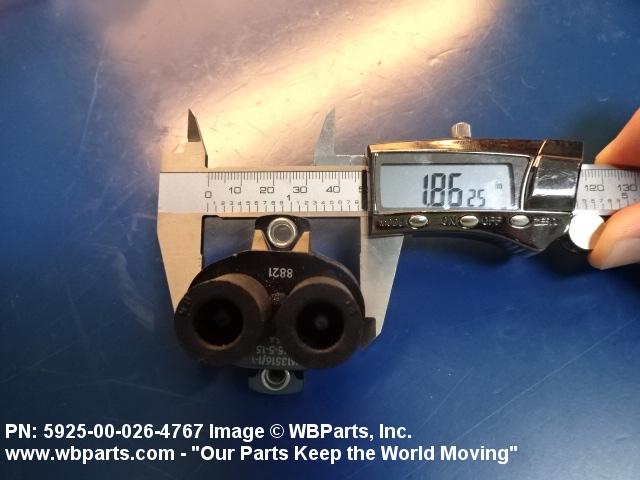

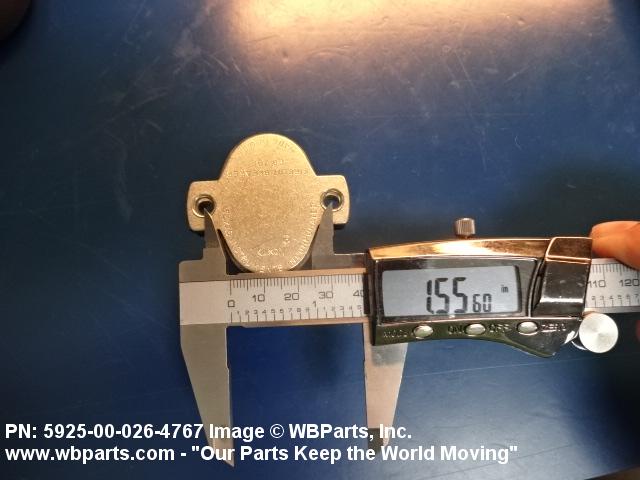

| BODY LENGTH | 2.000 INCHES NOMINAL |
| BODY WIDTH | 1.813 INCHES NOMINAL |
| BODY HEIGHT | 1.875 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH | 0.625 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 1.566 INCHES MINIMUM AND 1.582 INCHES MAXIMUM |
| CASE MATERIAL | PLASTIC |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |

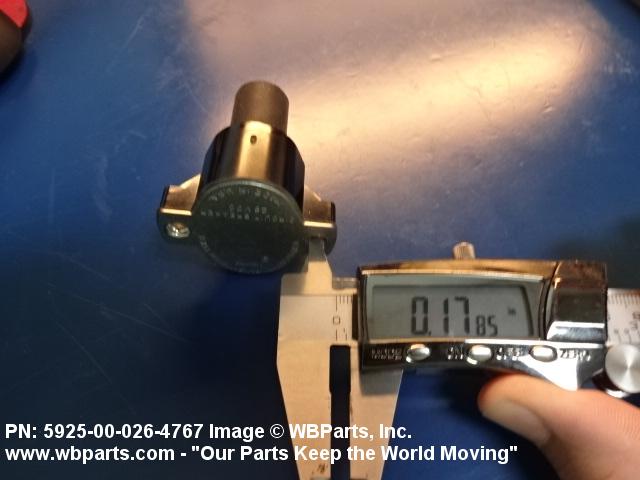

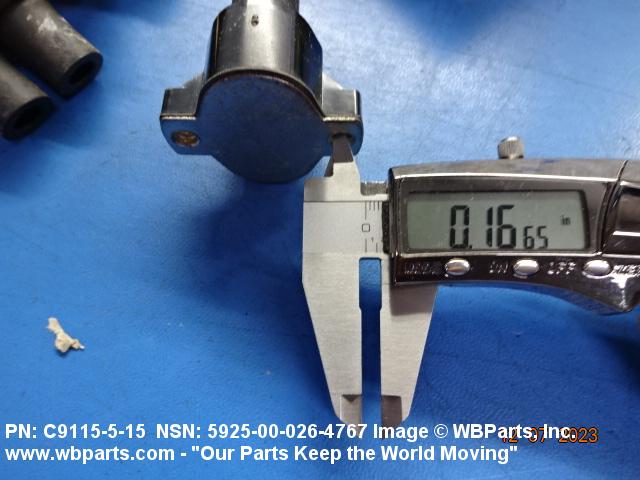

| UNTHREADED MOUNTING HOLE DIAMETER | 0.174 INCHES NOMINAL |
