NSN 5925-00-133-0451 MS25361100, MS25361-100, MP160012100

Product Details | CIRCUIT BREAKER

5925-00-133-0451 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.

Part Alternates: MS25361100, MS25361-100, MP160012100, MP160-012-100, AS25361, AS58091, MILC5809, MIL-C-5809, 6401692, 5925-00-133-0451, 00-133-0451, 5925001330451, 001330451

Electrical and Electronic Equipment Components | Circuit Breakers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	30 DEC 1968	00-133-0451	00136 ( CIRCUIT BREAKER )

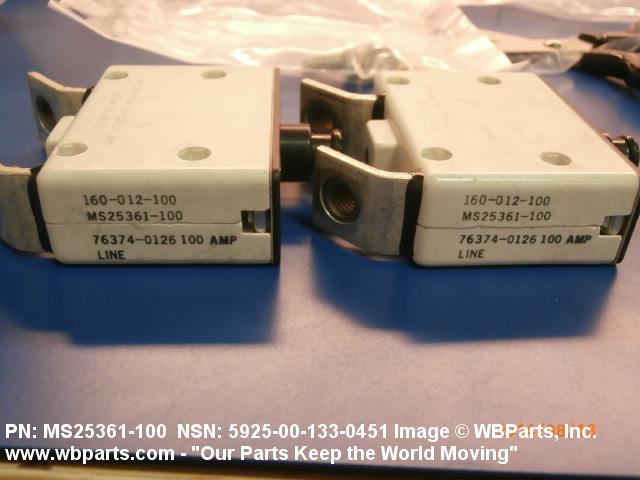

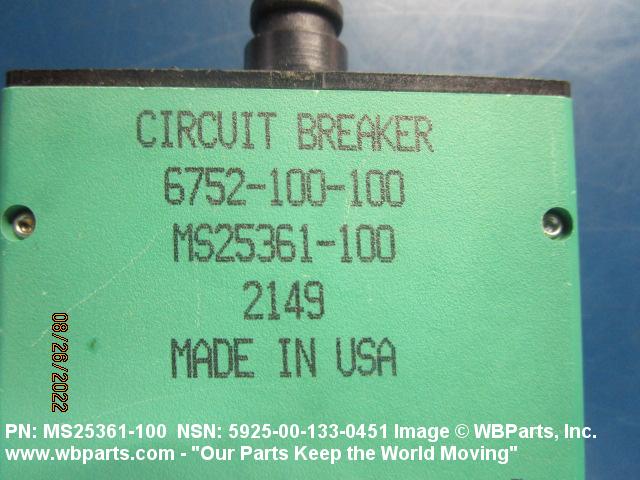

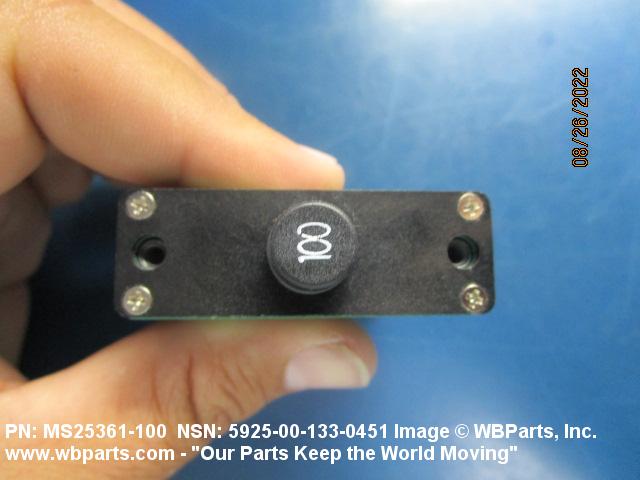

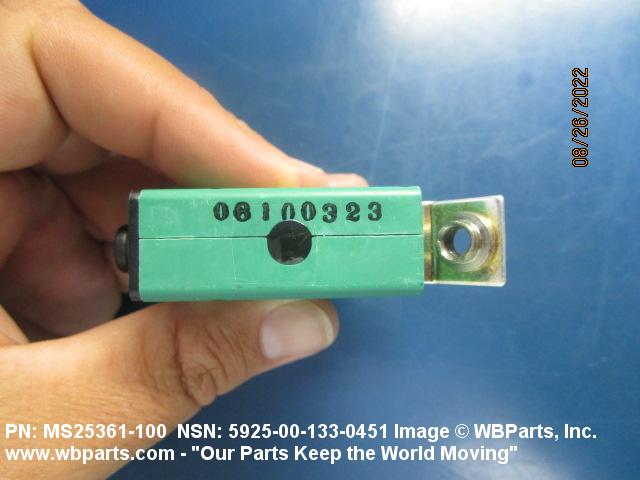

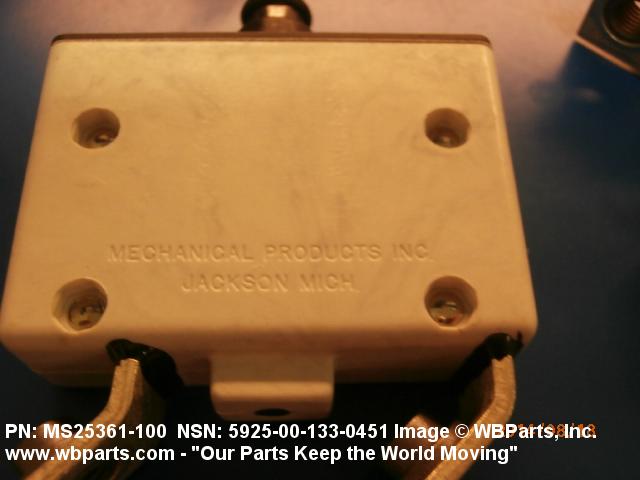

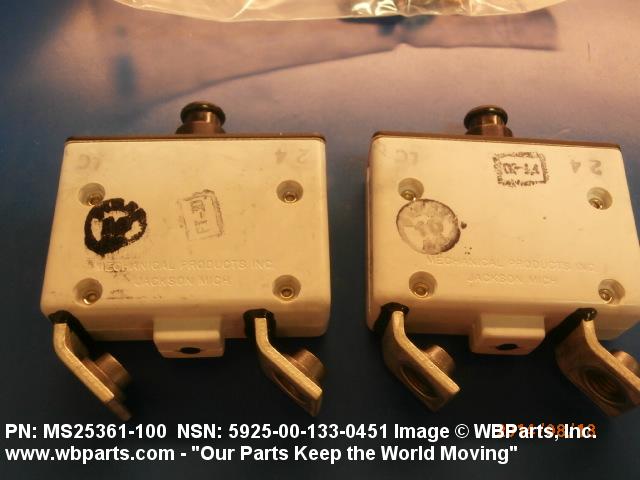

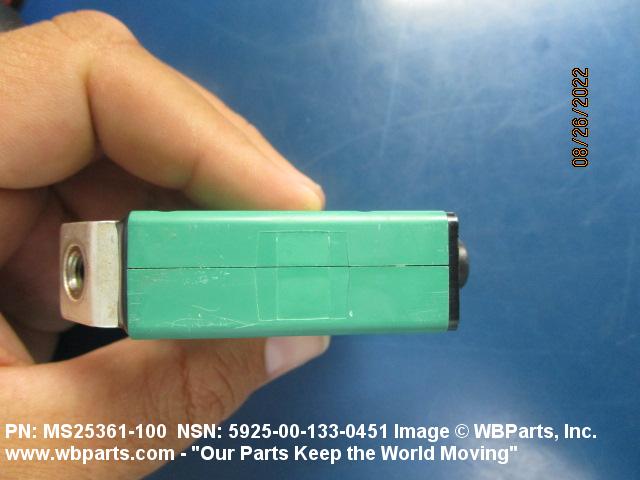

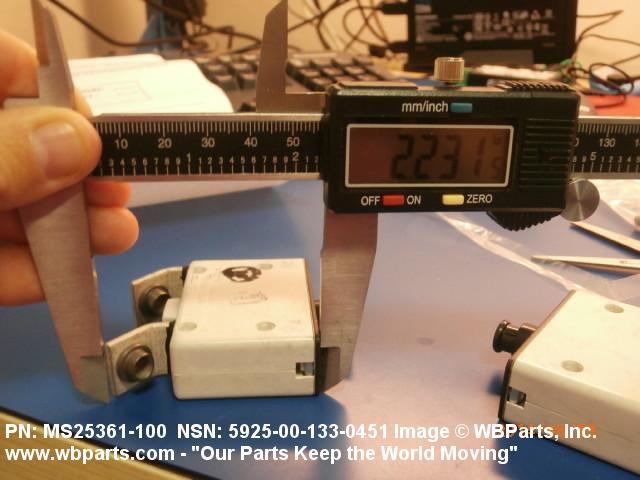

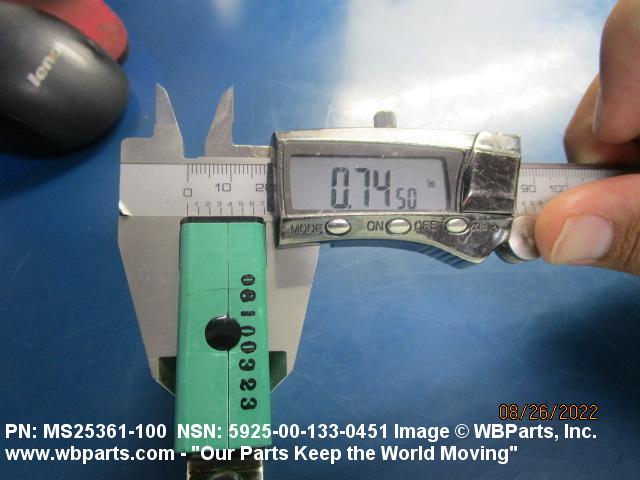

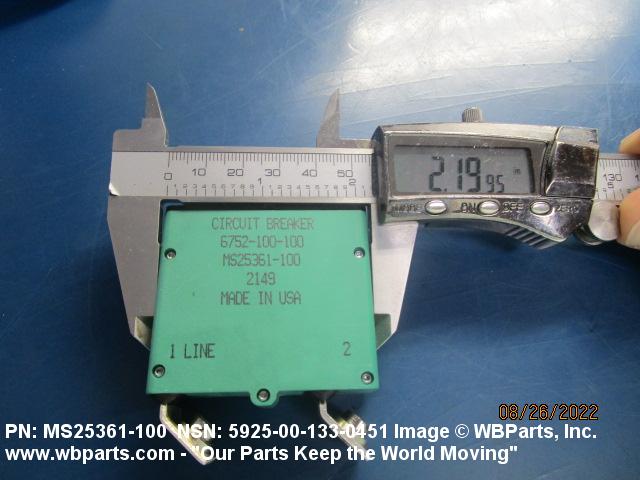

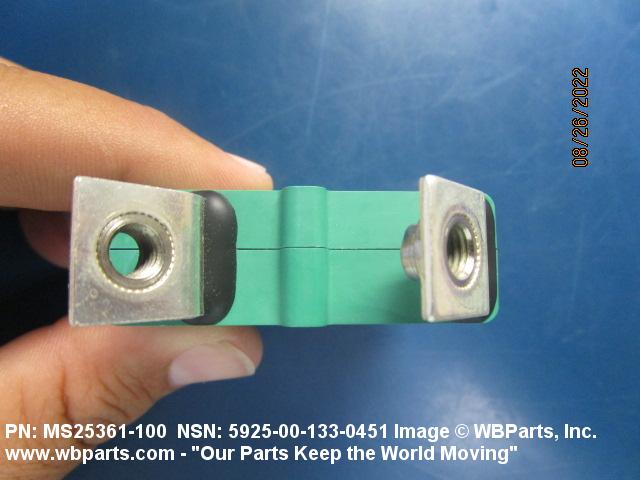

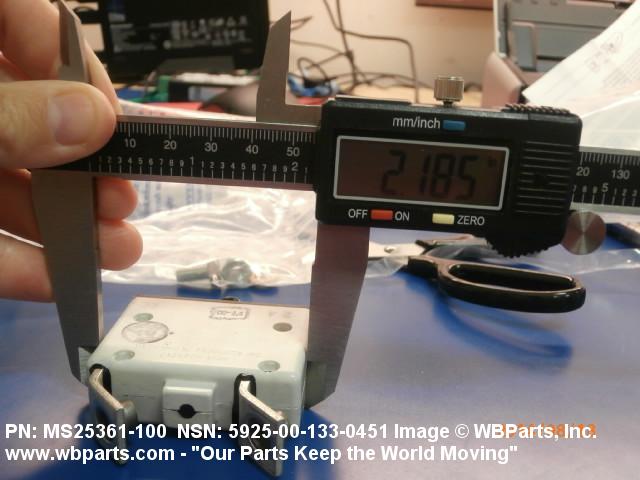

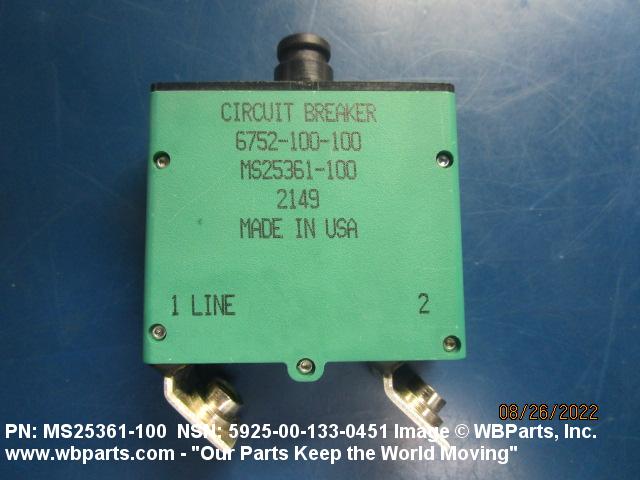

Drawings & Photos | NSN 5925-00-133-0451

Part Number	Request Date	QTY	Origin
5925-00-133-0451	2025-08-236	58	DIBBS
5925-00-133-0451	2025-07-201	36	DIBBS
5925-00-133-0451	2025-06-156	49	DIBBS
5925-00-133-0451	2025-04-99	1	GR
5925-00-133-0451	2025-02-49	14	DIBBS
5925-00-133-0451	2025-02-37	14	DIBBS
MS25361100	2024-03-88	1	United States
5925-00-133-0451	2024-03-74	51	DIBBS
5925-00-133-0451	2024-02-57	1	Taiwan
5925-00-133-0451	2023-08-243	42	DIBBS
5925-00-133-0451	2023-07-192	47	DIBBS
5925-00-133-0451	2022-12-361	7	MANUAL
6401692	2022-12-361	7	Saudi Arabia
5925-00-133-0451	2022-12-341	3	TH
5925-00-133-0451	2022-09-265	75	DIBBS
5925-00-133-0451	2022-09-254	75	DIBBS
5925-00-133-0451	2022-08-227	2	United States
5925-00-133-0451	2022-07-201	4	US
5925-00-133-0451	2022-03-77	10	TR
5925-00-133-0451	2021-10-274	1	US
5925-00-133-0451	2021-06-175	145	DIBBS
5925-00-133-0451	2020-12-363	1	US
5925-00-133-0451	2020-10-299	76	DIBBS
5925-00-133-0451	2020-09-267	3	KR
5925-00-133-0451	2020-09-265	3	KR
5925-00-133-0451	2020-09-258	3	KR
5925-00-133-0451	2020-08-214	2	KR
5925-00-133-0451	2019-08-218	2	United States
5925-00-133-0451	2018-08-232	176	DIBBS
5925-00-133-0451	2018-08-219	176	DIBBS
AS58091	2018-05-121	5	United States
5925-00-133-0451	2018-03-86	1	United States
5925-00-133-0451	2017-01-09	78	DIBBS
5925-00-133-0451	2016-10-286	140	DIBBS
5925-00-133-0451	2016-04-115	52	DIBBS
5925-00-133-0451	2016-03-69	108	DIBBS
5925-00-133-0451	2015-07-210	136	DIBBS
5925-00-133-0451	2015-05-149	63	DIBBS
5925-00-133-0451	2015-04-92	5	United States
MS25361100	2014-07-196	2	Singapore
5925-00-133-0451	2013-06-177	25	DIBBS
5925-00-133-0451	2013-06-177	23	DIBBS
MS25361100	2013-02-44	100	United States
5925-00-133-0451	2012-12-363	0	DIBBS
5925-00-133-0451	2012-12-354	82	DIBBS
5925-00-133-0451	2012-05-135	40	Korea
MS25361100	2012-04-111	50	United States
MIL-C-5809	2011-06-155	1	Saudi Arabia
MS25361100	2009-08-229	13	US
5925-00-133-0451	2009-05-146	30	South Korea
MS25361100	2009-05-143	30	South Korea
5925-00-133-0451	2008-02-51	1	US

Cross Reference | NSN 5925-00-133-0451

Part Number	Cage Code	Manufacturer
6401692	001JK	EMBRAER S/A
6401692	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
AS25361	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS58091	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MIL-C-5809	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MP160-012-100	76374	EATON CORPORATION DBA FLUID POWER DIV USE CAGE CODE
MS25361-100	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS25361-100	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5925-00-133-0451

Compare

Related Products | NSN 5925-00-133-0451

5925-00-133-2811, 5925-00-133-2963, 5925-00-133-3120, 5925-00-133-3126, 5925-00-133-5365

Technical Data | NSN 5925-00-133-0451

Characteristic	Specifications
POLE QUANTITY	1
MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE	100.0 AMPERES AC AND 100.0 AMPERES DC SINGLE LOCATION
OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS	115.0 AC AND 28.0 DC SINGLE LOCATION
FREQUENCY IN HERTZ	400.0 SINGLE LOCATION
MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS	3500.0 AC AND 6000.0 DC SINGLE LOCATION
CIRCUIT PROTECTION TYPE	OVERCURRENT SINGLE LOCATION
TRIP RELEASE METHOD	THERMAL SINGLE LOCATION
INTERNAL TRIP RELEASE CONFIGURATION	SERIES TRIP SINGLE LOCATION
TRIP RELEASE AMBIENT TEMP RATING	25.0 DEG CELSIUS NOMINAL SINGLE LOCATION
TRIP RELEASE CHARACTERISTIC	TIME DELAY SINGLE LOCATION
TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT	15.000 MINIMUM AT 200 PCT AND 65.000 MAXIMUM AT 200 PCT SINGLE LOCATION
ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT	138.0 SINGLE LOCATION
RESET METHOD	MANUAL
MAIN CONTACT TRIPPING MECHANISM TYPE	TRIP FREE
BODY STYLE	7A SINGLE POLE TYPE
BUSHING LENGTH	0.250 INCHES NOMINAL
BODY LENGTH	2.189 INCHES MAXIMUM

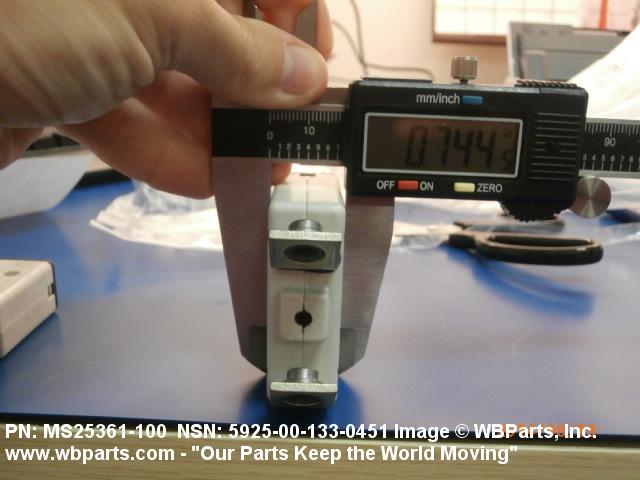

BODY WIDTH	0.750 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH	1.438 INCHES NOMINAL
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH	1.812 INCHES NOMINAL
MOUNTING SURFACE TO TERMINAL END DISTANCE	2.250 INCHES NOMINAL
CASE MATERIAL	METAL
MOUNTING FACILITY TYPE AND QUANTITY	2 THREADED HOLE
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD SIZE	0.138 INCHES
THREAD QUANTITY PER INCH	32
MANUAL ACTUATOR TYPE AND QUANTITY	1 PUSH-PULL
ACTUATOR FUNCTION	TRIP-RESET
ACTUATOR POSITION DESIGNATION	AT POLE ONE
TERMINAL TYPE AND QUANTITY	2 SCREW
INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED	MOISTURE RESISTANT AND EXPLOSION RESISTANT
TEST DATA DOCUMENT	81349-MIL-C-5809 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS25361 GOVERNMENT STANDARD
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE
III FRAGILITY FACTOR	MODERATELY RUGGED
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-C-5809
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS25361-100

Restrictions/Controls & Freight Information | NSN 5925-00-133-0451

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	658	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5925-00-133-0451

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
