NSN 5925-00-175-5227 MCM364T100, SCB32768, C63084100
Product Details | CIRCUIT BREAKER
5925-00-175-5227 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.
Part Alternates: MCM364T100, SCB32768, C63084100, C63084-100, D63641100, D6364-1-100, D6364Z6A100A, 61245820, 612458-20, 6216, 7974170, 8446709, 5925-00-175-5227, 00-175-5227, 5925001755227, 001755227
Electrical and Electronic Equipment Components | Circuit Breakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-175-5227 | 00136 ( CIRCUIT BREAKER ) |

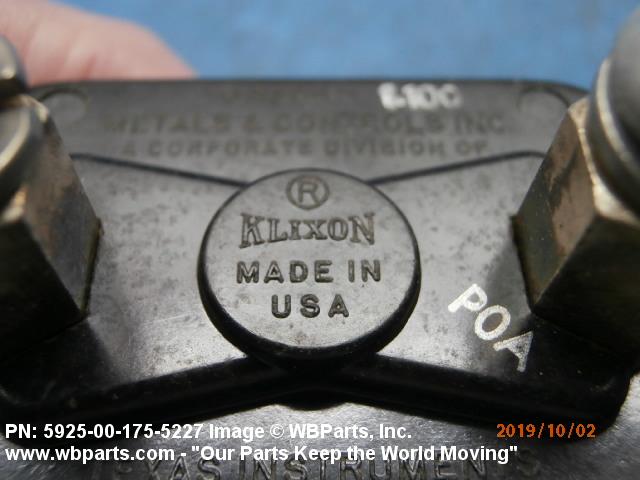

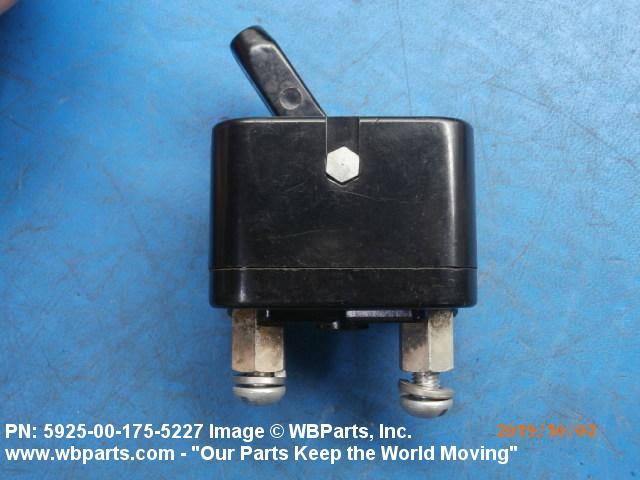

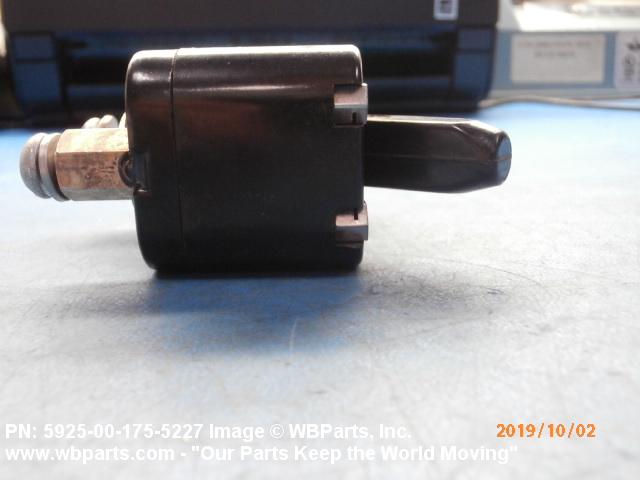

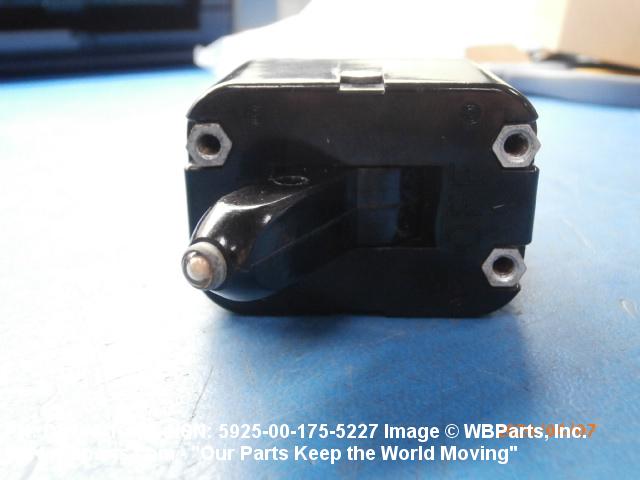

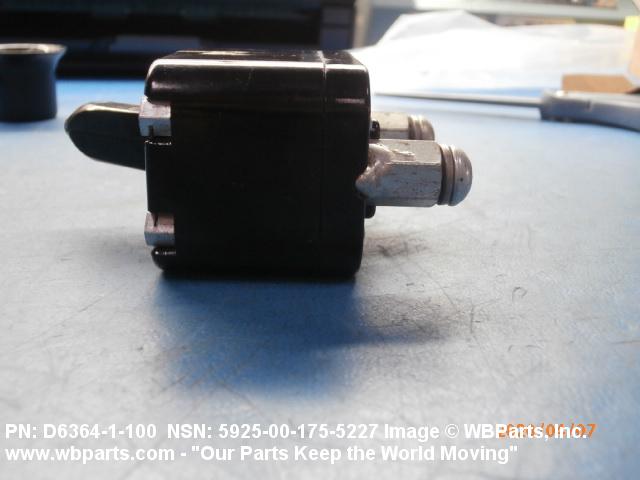

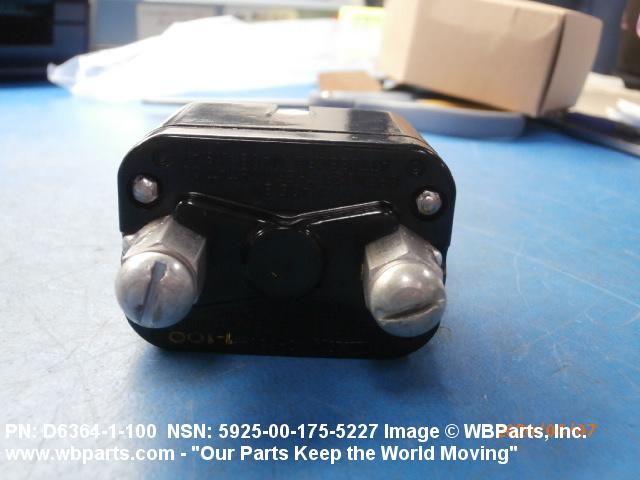

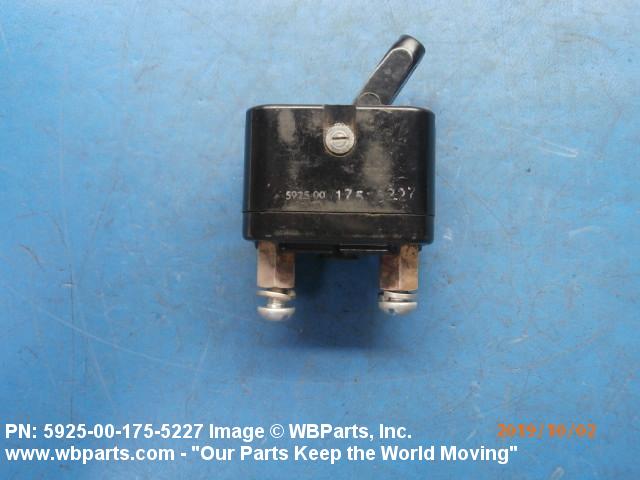

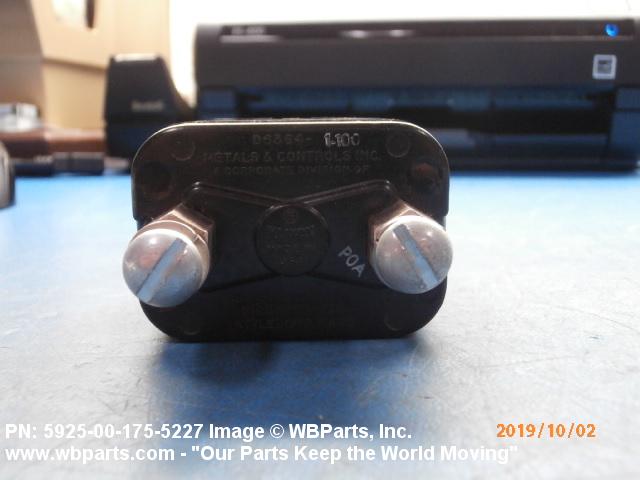

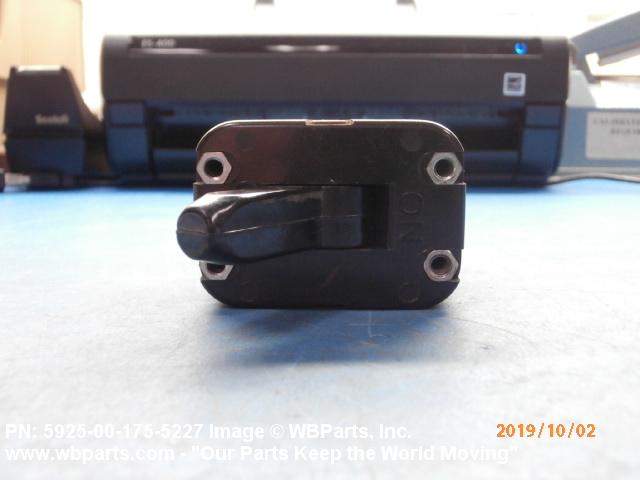

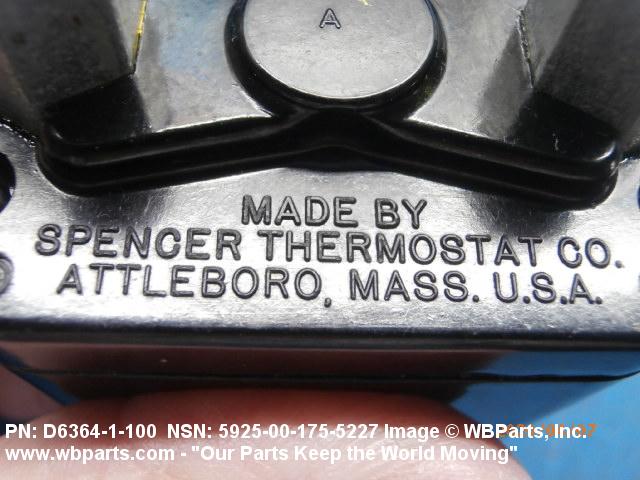

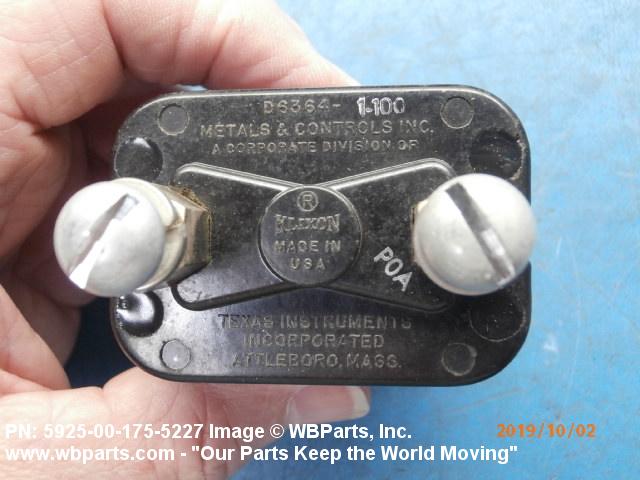

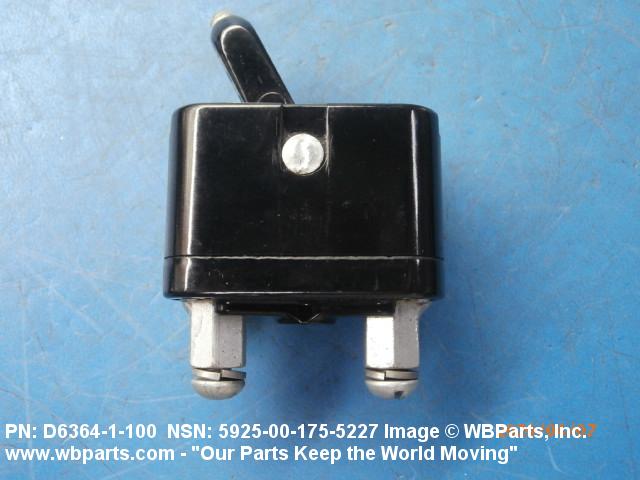

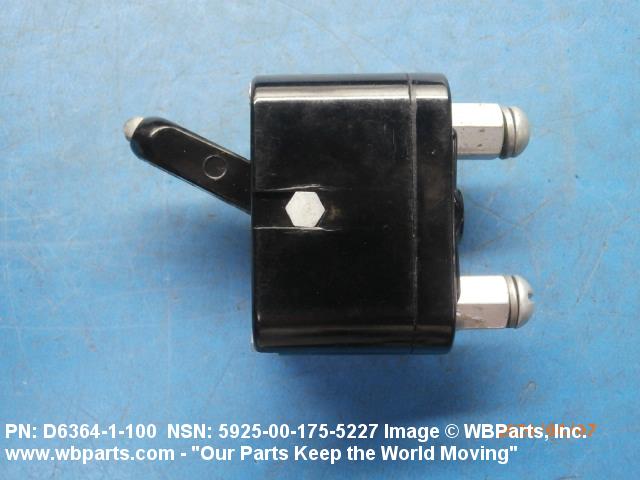

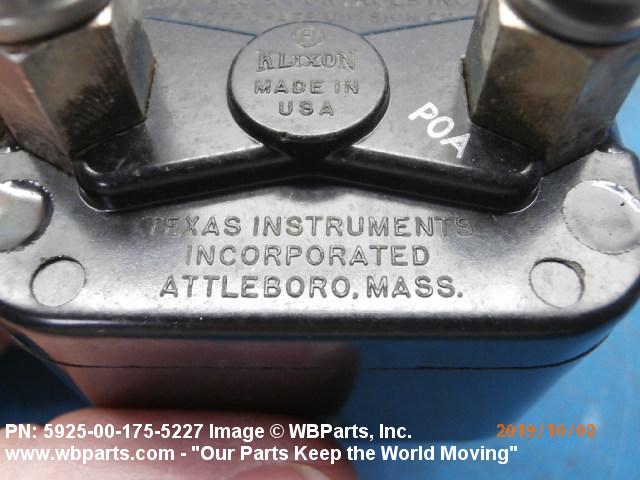

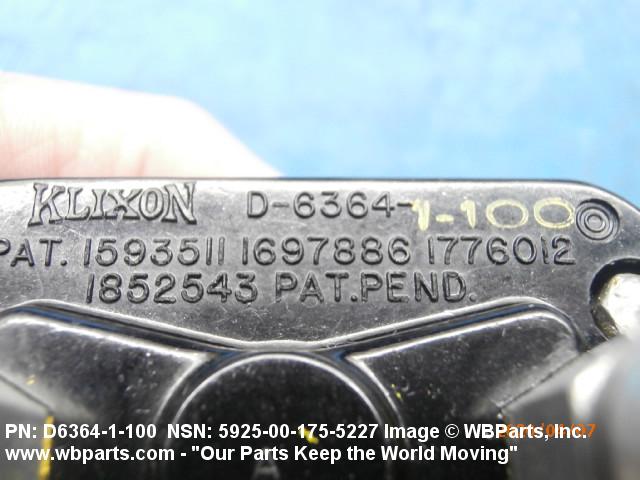

Drawings & Photos | NSN 5925-00-175-5227
Demand History | NSN 5925-00-175-5227
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5925-00-175-5227 | 2020-03-72 | 1 | us |
| 5925-00-175-5227 | 2019-09-252 | 1 | United States |
| 6216 | 2010-08-225 | 1 | Japan |
Cross Reference | NSN 5925-00-175-5227
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 612458-20 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| 6216 | 82815 | MOTO-SEARCH MFG CO INC |
| 7974170 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 8446709 | 36024 | LIBBY POWER SYSTEMS LLC |
| C63084-100 | 06845 | RAYTHEON COMPANY DBA RAYTHEON |
| D6364-1-100 | 82647 | SENSATA TECHNOLOGIES, INC DIV SENSATA ATTLEBORO |
| D6364Z6A100A | 73803 | TEXAS INSTRUMENTS INC METALLURGICAL MATERIALS DIV |
| MCM364T100 | 81893 | GENERAL ELECTRIC CO LYNN RIVER WORKS |
| SCB32768 | 53110 | VIASYS RESPIRATORY CARE INC. DBA BIOSYS HEALTHCARE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5925-00-175-5227
Technical Data | NSN 5925-00-175-5227
| Characteristic | Specifications |
|---|---|
| POLE QUANTITY | 1 |
| MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE | 100.0 AMPERES AC AND 100.0 AMPERES DC SINGLE LOCATION |
| OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS | 115.0 AC AND 30.0 DC SINGLE LOCATION |
| FREQUENCY IN HERTZ | 60.0 SINGLE LOCATION |
| MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS | 2000.0 AC AND 2000.0 DC SINGLE LOCATION |
| CIRCUIT PROTECTION TYPE | OVERCURRENT SINGLE LOCATION |
| TRIP RELEASE METHOD | THERMAL SINGLE LOCATION |
| INTERNAL TRIP RELEASE CONFIGURATION | SERIES TRIP SINGLE LOCATION |
| TRIP RELEASE AMBIENT TEMP RATING | 25.0 DEG CELSIUS NOMINAL SINGLE LOCATION |
| TRIP RELEASE CHARACTERISTIC | TIME DELAY SINGLE LOCATION |
| TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT | 29.000 NOMINAL AT 200 PCT SINGLE LOCATION |
| ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT | 125.0 SINGLE LOCATION |
| RESET METHOD | MANUAL |
| MAIN CONTACT TRIPPING MECHANISM TYPE | TRIP FREE |
| BODY STYLE | 4A SINGLE POLE TYPE |

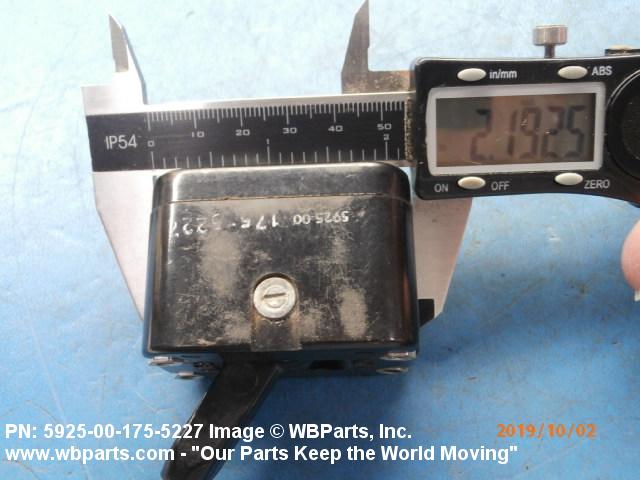

| BODY LENGTH | 2.203 INCHES NOMINAL |

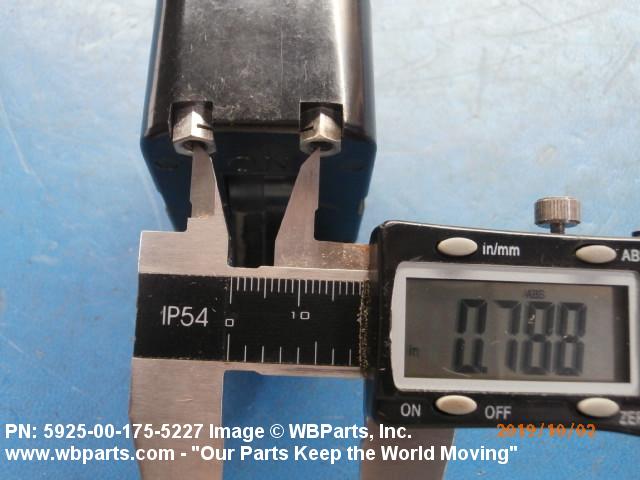

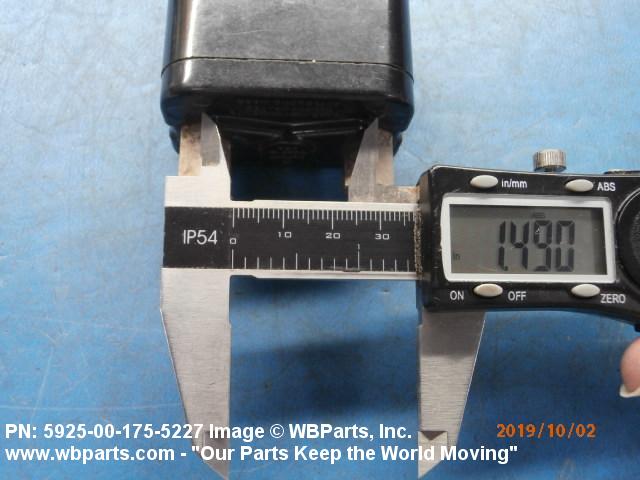

| BODY WIDTH | 0.766 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH | 1.438 INCHES NOMINAL |

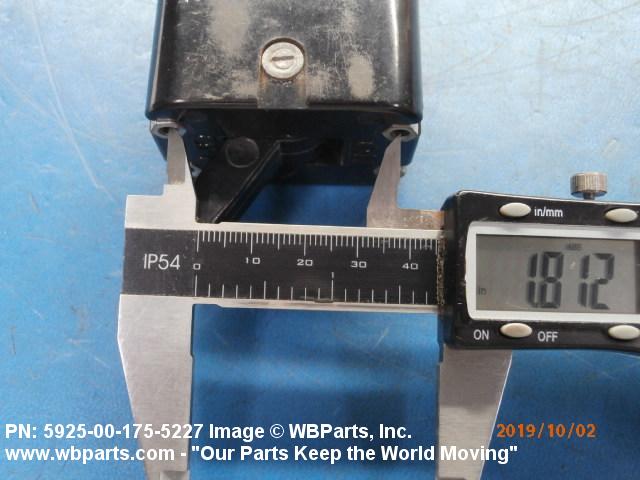

| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 1.812 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.406 INCHES NOMINAL |
| CASE MATERIAL | PLASTIC |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| THREAD SERIES DESIGNATOR | UNC |

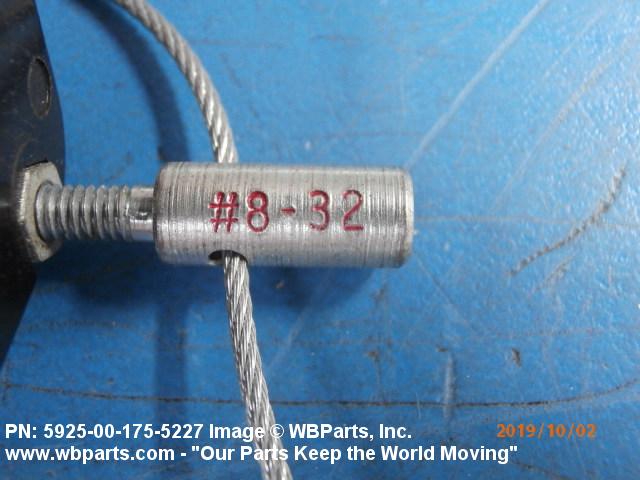

| NOMINAL THREAD SIZE | 0.164 INCHES |
