NSN 5925-00-204-7488 ALB-1/10A, ALB-1/10AMP, ALB110
Product Details | CIRCUIT BREAKER
5925-00-204-7488 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.
Part Alternates: ALB-1/10A, ALB-1/10AMP, ALB110, ALB1-10, ALB110A, ALB110AMP, S62053232365REVCALB110AMP, S6205-3-232-365REVCALB1-10AMP, TN1110, ETN1071, MILC17588, MIL-C-17588, PL-709733 ITEN 66, PL709733ITEN66, 30201010, 302-01-010, 321-5871390 PC-20, 3215871390PC20, 4097375, 409737-5, 454D507G02, 609867PC32, 7899562, 789956-2, 85840942, 8584094-2, 5925-00-204-7488, 00-204-7488, 5925002047488, 002047488
Electrical and Electronic Equipment Components | Circuit Breakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-204-7488 | 00136 ( CIRCUIT BREAKER ) |

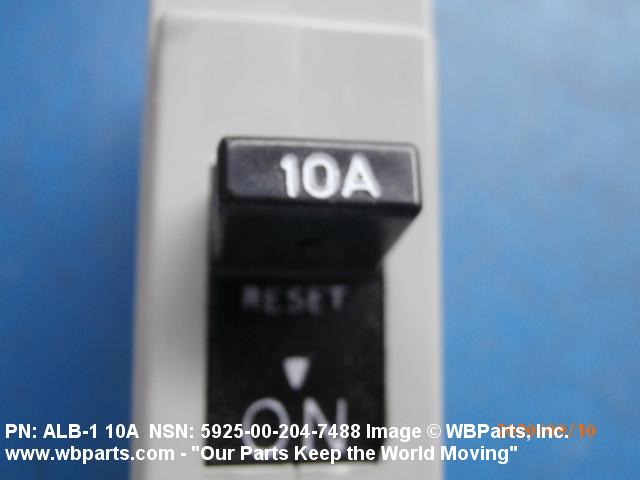

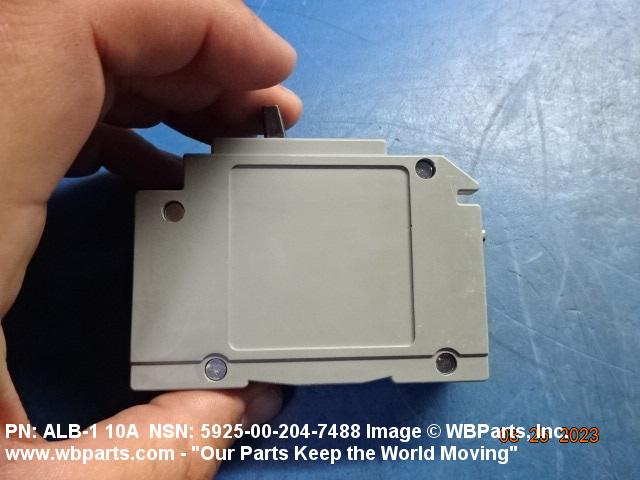

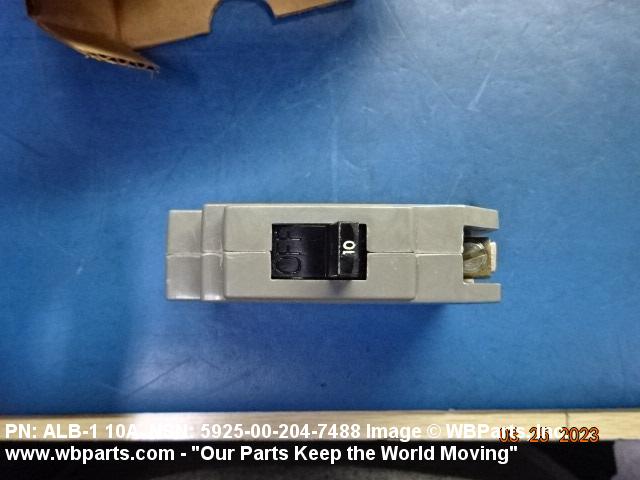

Drawings & Photos | NSN 5925-00-204-7488
Demand History | NSN 5925-00-204-7488
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5925-00-204-7488 | 2025-12-337 | 14 | us |
| 5925-00-204-7488 | 2025-10-303 | 231 | DIBBS |
| 5925-00-204-7488 | 2025-10-279 | 148 | DIBBS |
| MILC17588 | 2025-09-266 | 16 | United States |
| MILC17588 | 2025-09-266 | 32 | United States |
| 5925-00-204-7488 | 2025-09-253 | 1 | US |
| 5925-00-204-7488 | 2025-08-234 | 14 | United States |
| 5925-00-204-7488 | 2025-07-195 | 167 | US |
| 5925-00-204-7488 | 2025-07-187 | 167 | DIBBS |
| 5925-00-204-7488 | 2025-07-182 | 4 | United States |
| 5925-00-204-7488 | 2025-06-168 | 4 | United States |
| 454D507G02 | 2025-06-167 | 2 | United States |
| 5925-00-204-7488 | 2025-06-164 | 4 | US |
| 5925-00-204-7488 | 2025-06-162 | 2 | United States |
| 5925-00-204-7488 | 2025-03-86 | 200 | DIBBS |
| 5925-00-204-7488 | 2025-03-66 | 8 | us |
| 454D507G02 | 2025-02-35 | 16 | us |
| 454D507G02 | 2025-01-17 | 16 | us |
| 454D507G02 | 2025-01-09 | 8 | us |
| 5925-00-204-7488 | 2024-12-352 | 8 | United States |
| 5925-00-204-7488 | 2024-08-240 | 4 | United States |
| 454D507G02 | 2024-07-206 | 2 | us |
| 5925-00-204-7488 | 2024-03-71 | 2 | US |
| 5925-00-204-7488 | 2024-01-23 | 14 | United States |
| 5925-00-204-7488 | 2023-08-227 | 14 | United States |
| 5925-00-204-7488 | 2022-09-255 | 132 | DIBBS |
| 5925-00-204-7488 | 2022-07-188 | 155 | DIBBS |
| 5925-00-204-7488 | 2022-06-160 | 196 | DIBBS |
| 5925-00-204-7488 | 2022-05-133 | 2 | United States |
| 5925-00-204-7488 | 2022-04-98 | 28 | US |
| 5925-00-204-7488 | 2022-04-98 | 14 | US |
| 5925-00-204-7488 | 2022-04-98 | 14 | US |
| 5925-00-204-7488 | 2022-03-90 | 159 | DIBBS |
| 5925-00-204-7488 | 2022-03-73 | 4 | US |
| 5925-00-204-7488 | 2021-11-334 | 1 | US |
| 5925-00-204-7488 | 2021-11-312 | 192 | DIBBS |
| 5925-00-204-7488 | 2021-10-287 | 50 | DIBBS |
| 5925-00-204-7488 | 2021-10-277 | 117 | DIBBS |
| 5925-00-204-7488 | 2021-09-266 | 117 | DIBBS |
| 5925-00-204-7488 | 2021-06-179 | 6 | United States |
| 5925-00-204-7488 | 2021-05-148 | 262 | DIBBS |
| 5925-00-204-7488 | 2021-05-133 | 262 | DIBBS |
| 5925-00-204-7488 | 2021-01-18 | 1 | Philippines |
| MILC17588 | 2020-10-281 | 2 | United States |
| MILC17588 | 2020-10-281 | 4 | United States |
| MILC17588 | 2020-10-281 | 8 | United States |
| MILC17588 | 2020-10-281 | 12 | United States |
| MILC17588 | 2020-10-281 | 14 | United States |
| 5925-00-204-7488 | 2020-04-115 | 10 | United States |
| 5925-00-204-7488 | 2020-04-106 | 2 | US |
| 5925-00-204-7488 | 2019-10-298 | 28 | United States |
| 5925-00-204-7488 | 2019-05-123 | 3 | United States |
| 5925-00-204-7488 | 2019-03-66 | 865 | DIBBS |
| 5925-00-204-7488 | 2018-09-248 | 197 | DIBBS |
| 5925-00-204-7488 | 2018-07-200 | 8 | us |
| 5925-00-204-7488 | 2018-07-191 | 6 | US |
| 5925-00-204-7488 | 2018-07-182 | 179 | DIBBS |
| 5925-00-204-7488 | 2018-05-128 | 170 | DIBBS |
| 5925-00-204-7488 | 2018-04-105 | 122 | DIBBS |
| 5925-00-204-7488 | 2018-03-85 | 4 | United States |
| 5925-00-204-7488 | 2018-01-03 | 40 | United States |
| 5925-00-204-7488 | 2017-10-295 | 342 | DIBBS |
| 5925-00-204-7488 | 2017-10-282 | 3 | US |
| 5925-00-204-7488 | 2017-10-275 | 4 | US |
| 5925-00-204-7488 | 2016-08-235 | 114 | DIBBS |
| 5925-00-204-7488 | 2016-06-174 | 2 | US |
| 5925-00-204-7488 | 2016-05-143 | 79 | DIBBS |
| 5925-00-204-7488 | 2015-07-201 | 118 | DIBBS |
| 5925-00-204-7488 | 2015-06-166 | 32 | DIBBS |
| 5925-00-204-7488 | 2015-04-103 | 220 | DIBBS |
| 5925-00-204-7488 | 2015-04-97 | 225 | DIBBS |
| 5925-00-204-7488 | 2012-08-237 | 209 | DIBBS |
| 5925-00-204-7488 | 2012-08-227 | 10 | US |
| 5925-00-204-7488 | 2011-11-311 | 211 | DIBBS |
| 454D507G02 | 2011-05-122 | 52 | US |
| MILC17588 | 2011-04-108 | 2 | US |
| ALB110A | 2011-02-55 | 34 | US |
| 5925-00-204-7488 | 2010-09-265 | 2 | US |
| 5925-00-204-7488 | 2010-08-235 | 660 | DIBBS |
| 5925-00-204-7488 | 2009-09-261 | 2 | US |
| 454D507G02 | 2008-11-321 | 2 | IL |
| 454D507G02 | 2008-11-318 | 2 | DE |
| ETN1071 | 2008-11-318 | 2 | DE |
| 5925-00-204-7488 | 2008-03-70 | 3 | DIBBS |
| 5925-00-204-7488 | 2007-03-80 | 333 | DIBBS |
Cross Reference | NSN 5925-00-204-7488
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 302-01-010 | 58475 | WESTWOOD CORPORATION DBA NMP DIVISION |
| 321-5871390 PC-20 | 24900 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 409737-5 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| 454D507G02 | 89946 | EATON CORPORATION |
| 609867PC32 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 789956-2 | 02769 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 789956-2 | 49671 | LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS |
| 8584094-2 | 49671 | LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS |
| ALB-1/10A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| ALB-1/10AMP | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| ALB1-10 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| ETN1071 | 30086 | SPD ELECTRICAL SYSTEMS, INC |
| MIL-C-17588 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| PL-709733 ITEN 66 | 58475 | WESTWOOD CORPORATION DBA NMP DIVISION |
| S6205-3-232-365REVCALB1-10AMP | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| TN1110 | 60969 | GENERAL ELECTRIC CO ELECTRICAL DISTRIBUTION AND CONTROL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5925-00-204-7488
Related Products | NSN 5925-00-204-7488
Technical Data | NSN 5925-00-204-7488
| Characteristic | Specifications |
|---|---|
| POLE QUANTITY | 1 |
| MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE | 10.0 AMPERES AC AND 10.0 AMPERES DC SINGLE LOCATION |
| OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS | 120.0 AC AND 125.0 DC SINGLE LOCATION |
| FREQUENCY IN HERTZ | 400.0 SINGLE LOCATION |
| MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS | 5000.0 AC AND 2500.0 DC SINGLE LOCATION |
| CIRCUIT PROTECTION TYPE | OVERCURRENT SINGLE LOCATION |
| TRIP RELEASE METHOD | THERMAL-MAGNETIC SINGLE LOCATION |
| TRIP RELEASE AMBIENT TEMP RATING | 50.0 DEG CELSIUS NOMINAL SINGLE LOCATION |
| TRIP RELEASE CHARACTERISTIC | TIME DELAY SINGLE LOCATION |
| TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT | 10.000 MINIMUM AT 200 PCT AND 210.000 MAXIMUM AT 200 PCT SINGLE LOCATION |
| ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT | 138.0 SINGLE LOCATION |
| RESET METHOD | MANUAL |
| MAIN CONTACT TRIPPING MECHANISM TYPE | TRIP FREE |
| BODY STYLE | 10A SINGLE POLE TYPE |

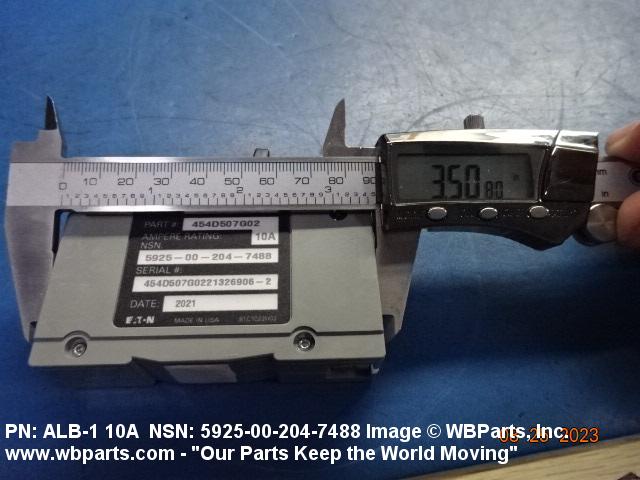

| BODY LENGTH | 3.500 INCHES NOMINAL |
| BODY WIDTH | 0.969 INCHES NOMINAL |

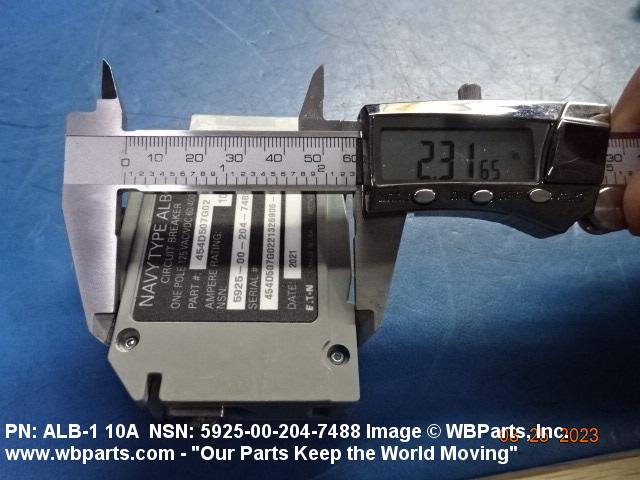

| BODY HEIGHT | 2.313 INCHES NOMINAL |
| BOSS HEIGHT | 0.188 INCHES NOMINAL |
| CASE MATERIAL | PLASTIC |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 TERMINAL AND 1 CLIP |
| MANUAL ACTUATOR TYPE AND QUANTITY | 1 TOGGLE |
| ACTUATOR FUNCTION | TRIP-RESET |
| ACTUATOR POSITION DESIGNATION | AT POLE ONE |

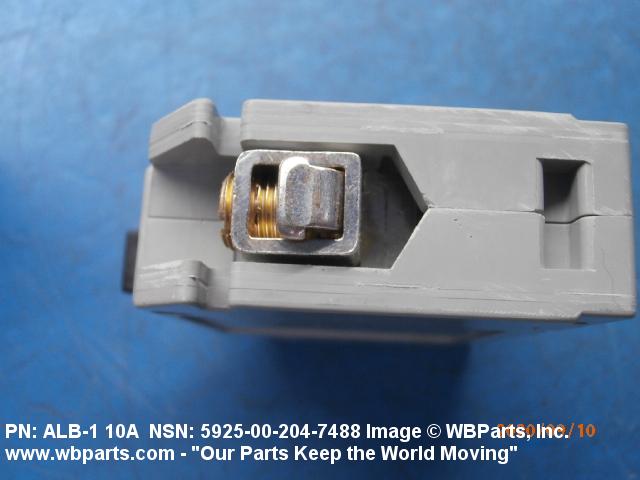

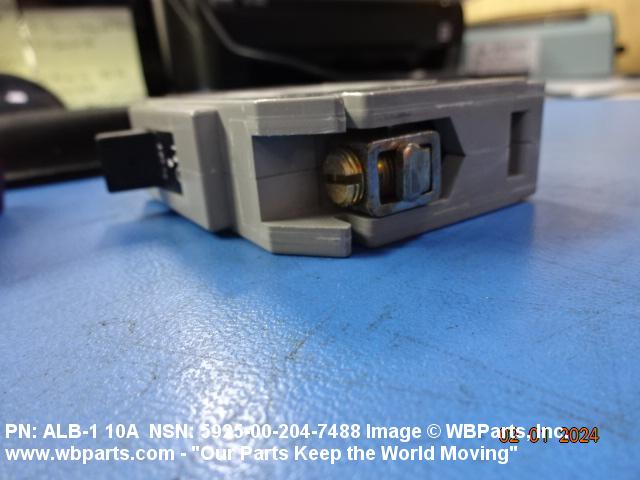

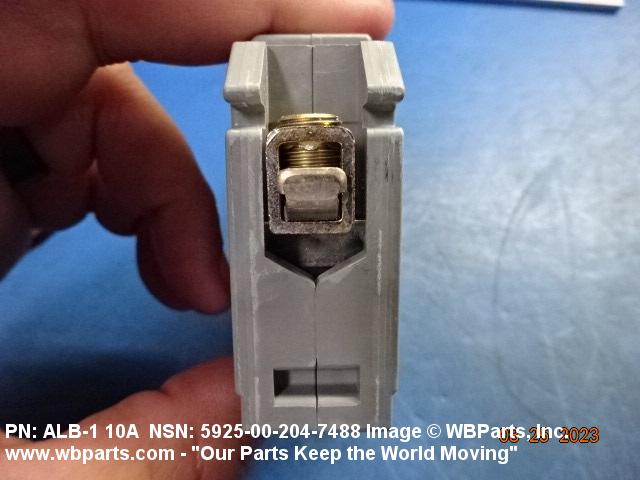

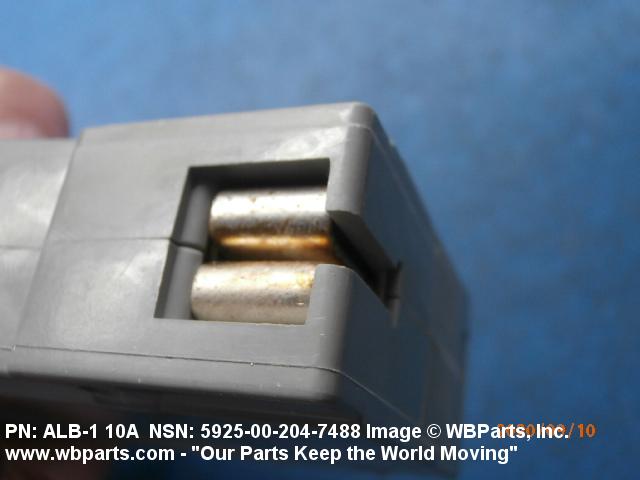

| TERMINAL TYPE AND QUANTITY | 1 COMPRESSION AND 1 QUICK DISCONNECT, FEMALE |
| INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED | SHOCK RESISTANT AND VIBRATION RESISTANT |
| TEST DATA DOCUMENT | 81349-MIL-C-17588 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-17588 GOVERNMENT SPECIFICATION |
| III STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
| III SPECIAL HANDLING FEATURE | MAGNETIC |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | ALB-1/10A |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-17588 |
Restrictions/Controls & Freight Information | NSN 5925-00-204-7488
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5925-00-204-7488
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
