NSN 5925-00-431-3255 MS332010, MS3320-10, AS33201

Product Details | CIRCUIT BREAKER

5925-00-431-3255 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.

Part Alternates: MS332010, MS3320-10, AS33201, AS58091, ASC1248042, B81230, FV 2191250 ITEM C81, FV 2191250/C81, FV2191250C81, FV2191250ITEMC81, MILC5809, MIL-C-5809, X24309523, X24-309-523, 724459010700, 870SS0053, 10135256, 1036212F4, 2600999030, 260-0999-030, 4310-001-10, 5925-00-431-3255, 00-431-3255, 5925004313255, 004313255, 431000110

Electrical and Electronic Equipment Components | Circuit Breakers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	08 MAY 1970	00-431-3255	00136 ( CIRCUIT BREAKER )

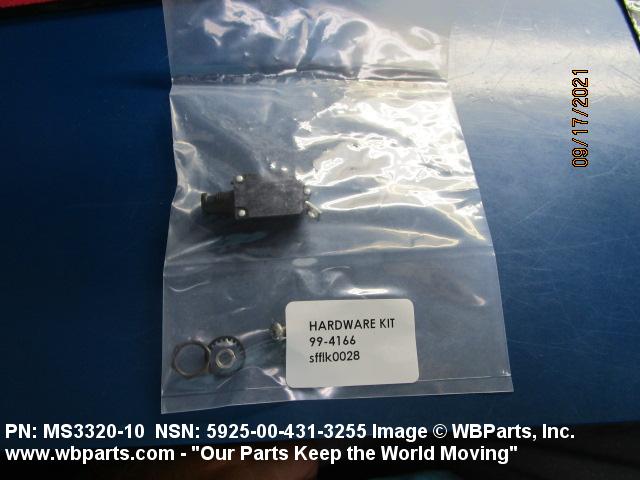

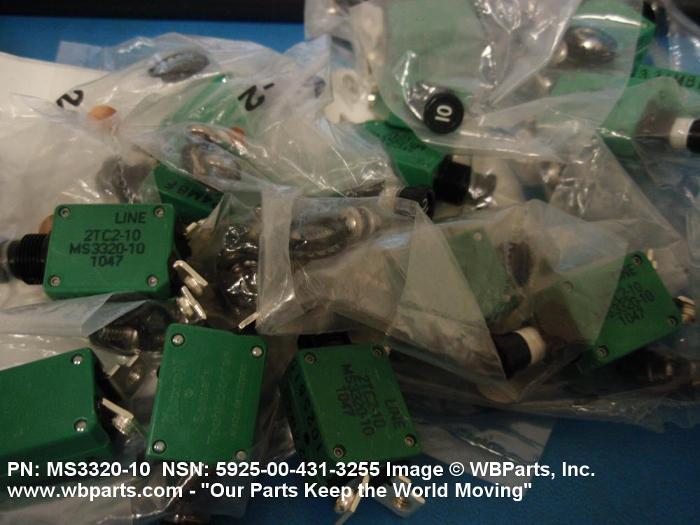

Drawings & Photos | NSN 5925-00-431-3255

Part Number	Request Date	QTY	Origin
5925-00-431-3255	2025-04-107	829	DIBBS
5925-00-431-3255	2025-04-92	829	DIBBS
5925-00-431-3255	2024-04-114	1091	DIBBS
5925-00-431-3255	2024-04-99	1091	DIBBS
5925-00-431-3255	2023-04-108	846	DIBBS
5925-00-431-3255	2023-04-107	215	DIBBS
5925-00-431-3255	2023-01-13	10	us
5925-00-431-3255	2023-01-09	10	United States
5925-00-431-3255	2022-11-314	732	DIBBS
5925-00-431-3255	2022-10-303	732	DIBBS
5925-00-431-3255	2021-09-253	1	United States
5925-00-431-3255	2021-08-242	1	United States
5925-00-431-3255	2021-08-239	1	United States
MS332010	2021-08-228	1	JP
5925-00-431-3255	2020-01-16	85	us
5925-00-431-3255	2020-01-03	1	DIBBS-RFPs
5925-00-431-3255	2019-12-336	10	Singapore
5925-00-431-3255	2019-11-331	10	Singapore
5925-00-431-3255	2019-11-322	10	Slovakia
5925-00-431-3255	2019-08-218	4	United States
5925-00-431-3255	2019-01-31	1	US
5925-00-431-3255	2019-01-31	1	United States
AS58091	2018-05-121	5	United States
5925-00-431-3255	2018-03-79	1352	DIBBS
5925-00-431-3255	2018-03-66	684	DIBBS
5925-00-431-3255	2018-02-45	490	DIBBS
431000110	2016-08-223	6	us
MS332010	2016-07-209	19	IL
5925-00-431-3255	2016-04-119	1383	DIBBS
MS332010	2016-03-84	1	US
MS332010	2014-10-302	4	IN
MS332010	2014-10-295	1	TH
MS3320-10	2014-07-210	4	India
5925-00-431-3255	2014-01-07	11	IL
5925-00-431-3255	2012-11-324	1113	DIBBS
MS3320-10	2012-11-310	43
5925-00-431-3255	2012-10-280	0	DIBBS
5925-00-431-3255	2012-08-230	259	DIBBS
5925-00-431-3255	2012-05-138	438	DIBBS
5925-00-431-3255	2012-04-98	0	DIBBS
MS332010	2012-02-53	10	US
5925-00-431-3255	2012-01-09	620	DIBBS
MS332010	2011-10-300	15	TR
5925-00-431-3255	2011-10-297	0	DIBBS
5925-00-431-3255	2011-10-294	309	DIBBS
5925-00-431-3255	2011-06-173	230	Denmark
MIL-C-5809	2011-06-155	1	Saudi Arabia
5925-00-431-3255	2011-05-122	135	DIBBS
5925-00-431-3255	2011-04-98	100	Denmark
5925-00-431-3255	2011-03-73	479	DIBBS
5925-00-431-3255	2010-12-337	439	DIBBS
5925-00-431-3255	2010-10-281	484	DIBBS
MS332010	2009-12-363	10	Italy
MS332010	2008-10-288	3	Kenya
5925-00-431-3255	2007-08-226	3244	DIBBS
5925-00-431-3255	2007-08-219	1185	DIBBS
5925-00-431-3255	2007-07-205	424	DIBBS
5925-00-431-3255	2007-06-165	366	DIBBS
5925-00-431-3255	2007-03-78	1704	DIBBS

Cross Reference | NSN 5925-00-431-3255

Part Number	Cage Code	Manufacturer
1036212F4	K0967	MBDA UK LTD
260-0999-030	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
4310-001-10	76374	EATON CORPORATION DBA FLUID POWER DIV USE CAGE CODE
724459010700	A1140	OTO MELARA SPA UNITA'' BREDA MECCANICA BRESCIANA
870SS0053	0291H	ROSOMAK S.A
AS33201	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS58091	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
ASC1248042	Z4779	ASC PTY LTD
B81230	K0976	STOREYS INDUSTRIAL PRODUCTS LTD
FV 2191250 ITEM C81	K7004	BIOQUELL UK LIMITED
FV 2191250/C81	K7004	BIOQUELL UK LIMITED
MIL-C-5809	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS3320-10	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS3320-10	8R659	CARVER SUPPLY INC.
MS3320-10	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
X24-309-523	S3712	BAE SYSTEMS BOFORS AB
X24-309-523	S3715	BOFORS AB

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5925-00-431-3255

Compare

Related Products | NSN 5925-00-431-3255

5925-01-112-0839, 5925-01-568-3128, 5925-01-569-0770, 5925-01-569-6755, 5925-01-570-2193

Technical Data | NSN 5925-00-431-3255

Characteristic	Specifications
POLE QUANTITY	1
MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE	10.0 AMPERES AC AND 10.0 AMPERES DC SINGLE LOCATION
OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS	120.0 AC AND 28.0 DC SINGLE LOCATION
FREQUENCY IN HERTZ	400.0 SINGLE LOCATION
MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS	5000.0 AC AND 2500.0 DC SINGLE LOCATION
CIRCUIT PROTECTION TYPE	OVERCURRENT SINGLE LOCATION
TRIP RELEASE METHOD	THERMAL SINGLE LOCATION
INTERNAL TRIP RELEASE CONFIGURATION	SERIES TRIP SINGLE LOCATION
TRIP RELEASE AMBIENT TEMP RATING	25.0 DEG CELSIUS NOMINAL SINGLE LOCATION
TRIP RELEASE CHARACTERISTIC	TIME DELAY SINGLE LOCATION
TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT	1.500 MINIMUM AT 200 PCT AND 40.000 MAXIMUM AT 200 PCT SINGLE LOCATION
ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT	138.0 SINGLE LOCATION
RESET METHOD	MANUAL
MAIN CONTACT TRIPPING MECHANISM TYPE	TRIP FREE
BODY STYLE	1A SINGLE POLE TYPE
BUSHING LENGTH	0.250 INCHES NOMINAL
BODY LENGTH	0.781 INCHES MAXIMUM
BODY WIDTH	0.593 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH	0.500 INCHES NOMINAL
MOUNTING SURFACE TO TERMINAL END DISTANCE	1.343 INCHES MAXIMUM
CASE MATERIAL	PLASTIC
MOUNTING FACILITY TYPE AND QUANTITY	1 THREADED BUSHING W/PANEL SEAL
THREAD SERIES DESIGNATOR	UN
NOMINAL THREAD SIZE	0.438 INCHES
THREAD QUANTITY PER INCH	32
MANUAL ACTUATOR TYPE AND QUANTITY	1 PUSH-PULL
ACTUATOR FUNCTION	TRIP-RESET
ACTUATOR POSITION DESIGNATION	AT POLE ONE
TERMINAL TYPE AND QUANTITY	2 TAB W/SCREW
INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED	FUNGUS RESISTANT AND VIBRATION RESISTANT AND SHOCK RESISTANT AND SALT SPRAY PROOF AND DUSTTIGHT AND CORROSION RESISTANT AND MOISTURE RESISTANT AND EXPLOSION PROOF
TEST DATA DOCUMENT	81349-MIL-C-5809 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS3320 GOVERNMENT STANDARD
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE
III UNPACKAGED UNIT WEIGHT	0.055 POUNDS
III FRAGILITY FACTOR	MODERATELY RUGGED
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT	MIL-C-5809

Restrictions/Controls & Freight Information | NSN 5925-00-431-3255

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	658	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5925-00-431-3255

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
