NSN 5925-00-783-6399 ALB-5/10A-1, ALB510A1, ALB510AMP
Product Details | CIRCUIT BREAKER
5925-00-783-6399 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.
Part Alternates: ALB-5/10A-1, ALB510A1, ALB510AMP, ALB5-10AMP, AQBA50, AQB-A50, AQBA5010, AQB-A50-10, ETN1001, MILC17361AQBA501, TK173A10L, 1244C52G01, 7182084-00, 7905092, 790509-2, 5925-00-783-6399, 00-783-6399, 5925007836399, 007836399, 718208400
Electrical and Electronic Equipment Components | Circuit Breakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-783-6399 | 00136 ( CIRCUIT BREAKER ) |

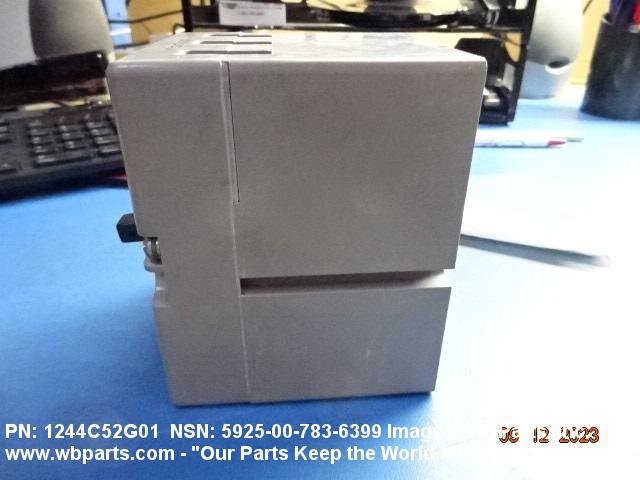

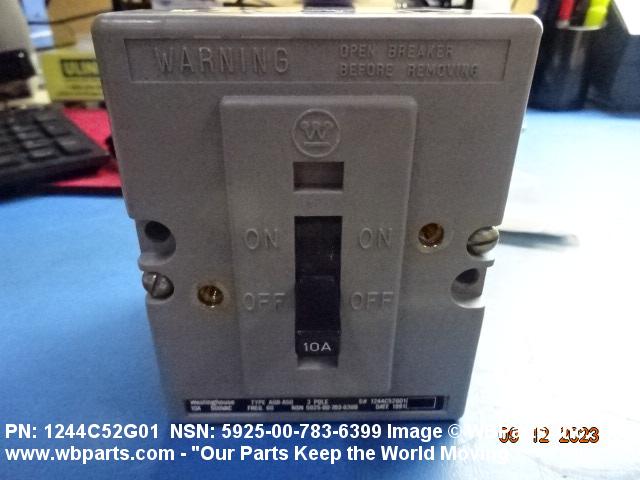

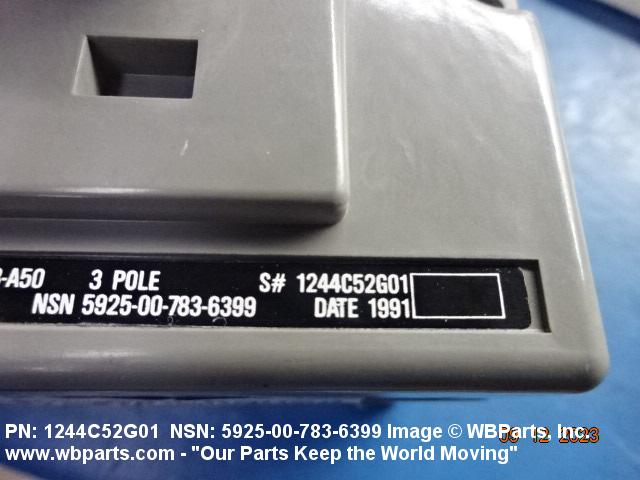

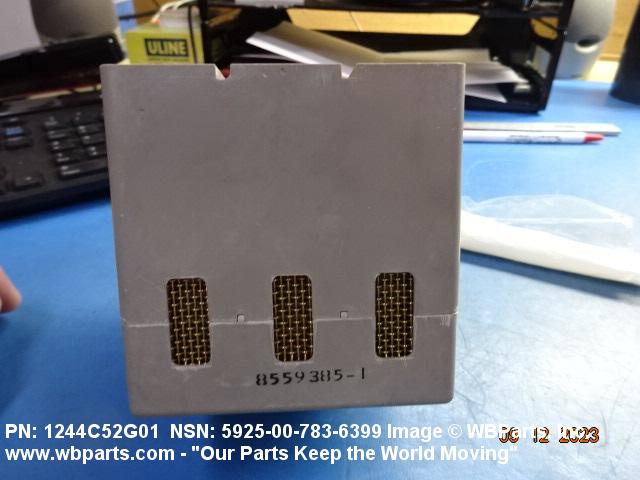

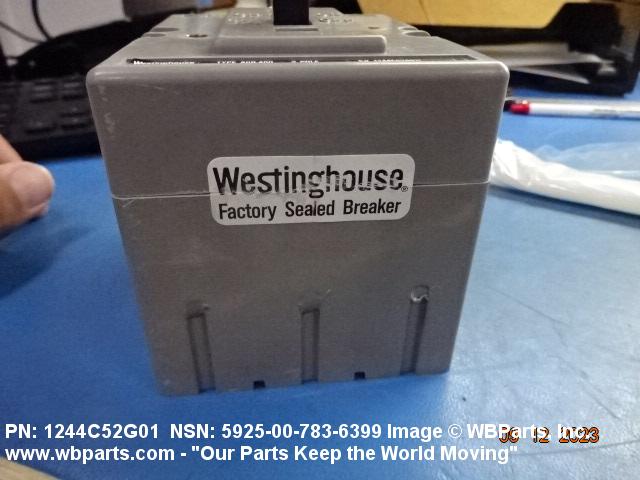

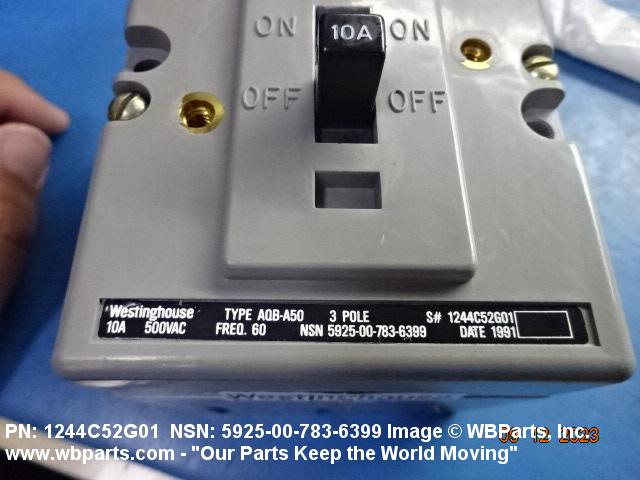

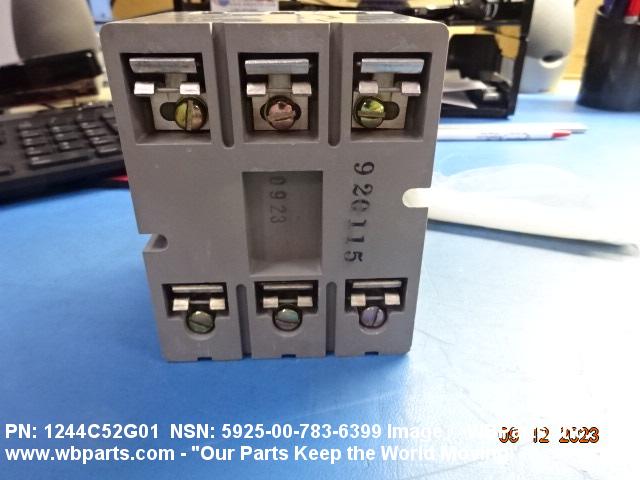

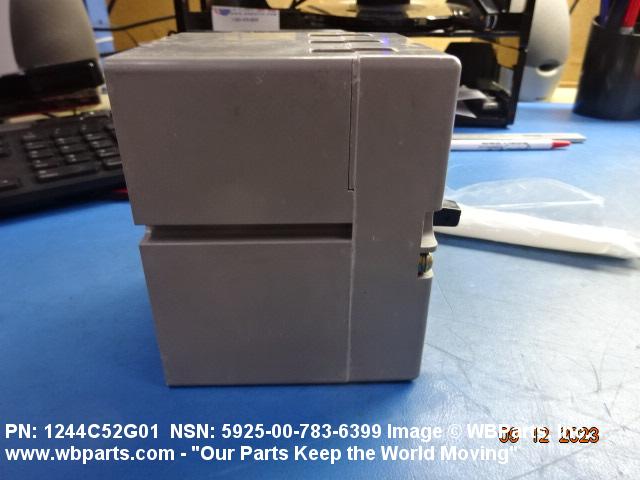

Drawings & Photos | NSN 5925-00-783-6399
Demand History | NSN 5925-00-783-6399
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1 | 2026-03-60 | 1 | '" |
| 1 | 2026-03-60 | 1 | '" |
| 1244C52G01 | 2026-02-41 | 26 | DIBBS |
| ETN1001 | 2026-02-41 | 26 | DIBBS |
| 5925-00-783-6399 | 2026-01-28 | 26 | US |
| 5925-00-783-6399 | 2026-01-28 | 26 | US |
| 5925-00-783-6399 | 2026-01-27 | 4 | US |
| 1244C52G01 | 2026-01-26 | 26 | DIBBS |
| ETN1001 | 2026-01-26 | 26 | DIBBS |
| AQBA50 | 2025-08-237 | 1 | United States |
| 5925-00-783-6399 | 2025-08-220 | 2 | United States |
| 1 | 2025-07-202 | 1 | us |
| 1 | 2025-07-190 | 1 | us |
| 1244C52G01 | 2025-02-48 | 8 | DIBBS |
| ETN1001 | 2025-02-48 | 8 | DIBBS |
| 1244C52G01 | 2025-02-35 | 16 | DIBBS |
| ETN1001 | 2025-02-35 | 16 | DIBBS |
| 1 | 2025-01-14 | 1 | us |
| 1 | 2024-09-267 | 1 | United States |
| 1 | 2024-07-212 | 1 | US |
| 1 | 2023-11-319 | 1 | US |
| 1 | 2023-11-311 | 1 | United States |
| 1244C52G01 | 2023-10-304 | 50 | DIBBS |
| ETN1001 | 2023-10-304 | 50 | DIBBS |
| 5925-00-783-6399 | 2023-09-251 | 1 | United States |
| 1 | 2023-05-137 | 1 | US |
| ETN1001 | 2023-03-80 | 1 | United States |
| ETN1001 | 2023-01-31 | 1 | US |
| 1244C52G01 | 2022-11-329 | 53 | DIBBS |
| ETN1001 | 2022-11-329 | 53 | DIBBS |
| 1244C52G01 | 2022-11-317 | 53 | DIBBS |
| ETN1001 | 2022-11-317 | 53 | DIBBS |
| 1244C52G01 | 2022-09-270 | 1 | DIBBS |
| ETN1001 | 2022-09-270 | 1 | DIBBS |
| 1244C52G01 | 2022-09-251 | 40 | DIBBS |
| ETN1001 | 2022-09-251 | 40 | DIBBS |
| 1244C52G01 | 2022-08-236 | 40 | DIBBS |
| ETN1001 | 2022-08-236 | 40 | DIBBS |
| ETN1001 | 2021-11-321 | 4 | United States |
| 1244C52G01 | 2021-09-259 | 73 | DIBBS |
| ETN1001 | 2021-09-259 | 73 | DIBBS |
| 5925-00-783-6399 | 2021-09-245 | 73 | US |
| 1244C52G01 | 2021-09-244 | 73 | DIBBS |
| ETN1001 | 2021-09-244 | 73 | DIBBS |
| 1244C52G01 | 2021-05-142 | 113 | DIBBS |
| ETN1001 | 2021-05-142 | 113 | DIBBS |
| 1244C52G01 | 2021-05-126 | 113 | DIBBS |
| 1244C52G01 | 2021-05-126 | 43 | DIBBS |
| ETN1001 | 2021-05-126 | 113 | DIBBS |
| ETN1001 | 2021-05-126 | 43 | DIBBS |
| 1 | 2020-11-325 | 1 | US |
| 1 | 2019-05-141 | 1 | US |
| 1 | 2019-04-99 | 4 | |
| 5925-00-783-6399 | 2017-11-325 | 1 | US |
| 5925-00-783-6399 | 2017-11-325 | 1 | US |
| 1 | 2016-10-301 | 1 | |
| 1 | 2016-07-209 | 22 | us |
| 1 | 2016-07-209 | 12 | us |
| 5925-00-783-6399 | 2015-12-351 | 76 | DIBBS |
| 5925-00-783-6399 | 2015-11-320 | 84 | DIBBS |
| 5925-00-783-6399 | 2015-11-318 | 33 | DIBBS |
| 5925-00-783-6399 | 2015-11-306 | 33 | DIBBS |
| 5925-00-783-6399 | 2015-10-303 | 18 | DIBBS |
| 5925-00-783-6399 | 2015-10-291 | 18 | DIBBS |
| 5925-00-783-6399 | 2015-08-243 | 23 | DIBBS |
| 5925-00-783-6399 | 2015-08-232 | 23 | DIBBS |
| 1 | 2014-05-136 | 1 | US |
| 5925-00-783-6399 | 2014-03-64 | 15 | DIBBS |
| 5925-00-783-6399 | 2012-12-352 | 0 | DIBBS |
| 5925-00-783-6399 | 2012-08-220 | 20 | DIBBS |
| 5925-00-783-6399 | 2012-04-121 | 26 | DIBBS |
| AQBA50 | 2012-03-62 | 10 | United States |
| 5925-00-783-6399 | 2012-03-61 | 20 | DIBBS |
| 5925-00-783-6399 | 2012-01-19 | 17 | DIBBS |
| 1 | 2011-06-160 | 1 | PH |
| 5925-00-783-6399 | 2010-09-265 | 52 | DIBBS |
| 5925-00-783-6399 | 2010-03-60 | 14 | DIBBS |
| 5925-00-783-6399 | 2009-12-337 | 13 | DIBBS |
| AQBA5010 | 2009-05-131 | 23 | United States |
| 1244C52G01 | 2009-02-54 | 86 | US |
| TK173A10L | 2009-02-54 | 86 | US |
| 5925-00-783-6399 | 2007-10-274 | 105 | DIBBS |
| 5925-00-783-6399 | 2007-09-260 | 105 | US |
| 5925-00-783-6399 | 2007-09-256 | 116 | DIBBS |
| 5925-00-783-6399 | 2007-07-204 | 105 | DIBBS |
| 5925-00-783-6399 | 2007-05-130 | 27 | DIBBS |
| 5925-00-783-6399 | 2007-02-42 | 25 | DIBBS |
Cross Reference | NSN 5925-00-783-6399
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1244C52G01 | 89946 | EATON CORPORATION |
| 7182084-00 | 06401 | L-3 COMMUNICATIONS CORPORATION DBA COMMUNICATIONS SYSTEMS WEST |
| 790509-2 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| ALB-5/10A-1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| ALB5-10AMP | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| AQB-A50 | 30086 | SPD ELECTRICAL SYSTEMS, INC |
| AQB-A50-10 | 30086 | SPD ELECTRICAL SYSTEMS, INC |
| ETN1001 | 30086 | SPD ELECTRICAL SYSTEMS, INC |
| MIL-C-17361AQB-A50,1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| TK173A10L | 03497 | GENERAL ELECTRIC CO OUTDOOR BREAKER BUSINESS SECTION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5925-00-783-6399
Related Products | NSN 5925-00-783-6399
Technical Data | NSN 5925-00-783-6399
| Characteristic | Specifications |
|---|---|
| POLE QUANTITY | 3 |
| MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE | 10.0 AMPERES AC AND 10.0 AMPERES DC ALL LOCATIONS |
| OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS | 500.0 AC AND 250.0 DC ALL LOCATIONS |
| FREQUENCY IN HERTZ | 60.0 ALL LOCATIONS |
| MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS | 5000.0 AC AND 2500.0 DC ALL LOCATIONS |
| CIRCUIT PROTECTION TYPE | OVERCURRENT ALL LOCATIONS |
| TRIP RELEASE METHOD | THERMAL-MAGNETIC ALL LOCATIONS |
| TRIP RELEASE AMBIENT TEMP RATING | 50.0 DEG CELSIUS NOMINAL ALL LOCATIONS |
| TRIP RELEASE CHARACTERISTIC | INSTANTANEOUS AND TIME DELAY ALL LOCATIONS |
| TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT | 20.000 MINIMUM AT 200 PCT AND 90.000 MAXIMUM AT 200 PCT ALL LOCATIONS |
| ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT | 115.0 ALL LOCATIONS |
| RESET METHOD | MANUAL |
| MAIN CONTACT TRIPPING MECHANISM TYPE | TRIP FREE |
| BODY STYLE | 15B MULTIPOLE-SINGLE ACTUATOR TYPE |

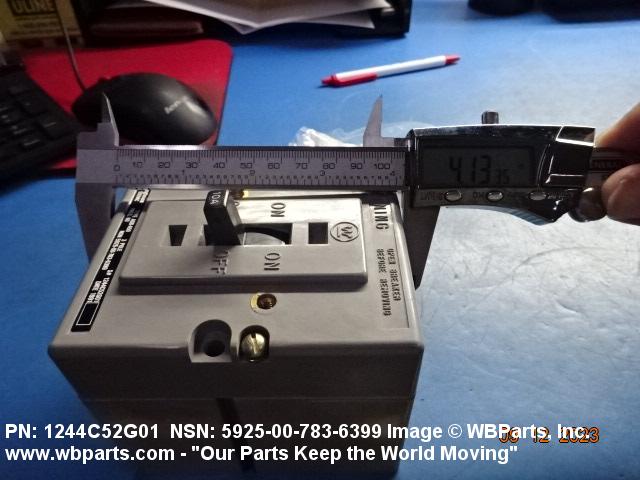

| BODY LENGTH | 4.125 INCHES NOMINAL |

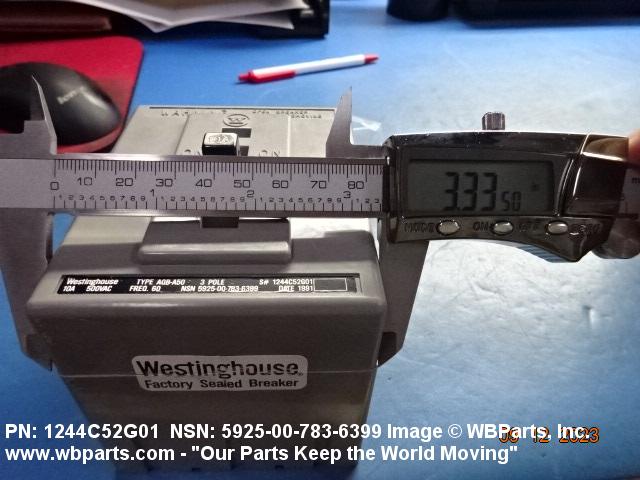

| BODY WIDTH | 3.344 INCHES NOMINAL |

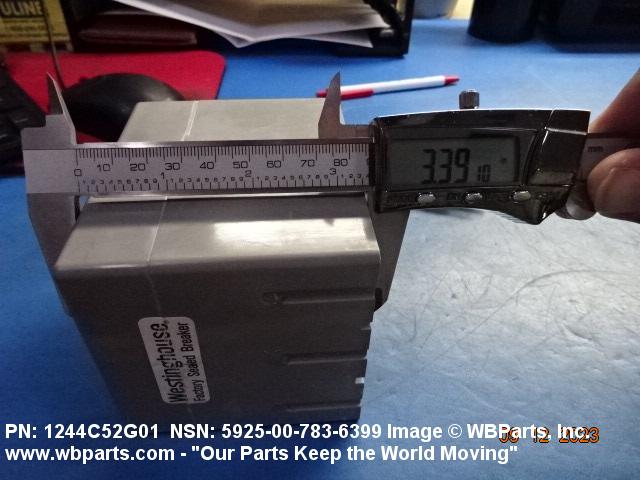

| BODY HEIGHT | 3.375 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH | 2.625 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO WIDTH | 1.125 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 0.625 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 2.938 INCHES NOMINAL |
| BOSS HEIGHT | 0.125 INCHES NOMINAL |
| CASE MATERIAL | PLASTIC |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED HOLE |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.216 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| MANUAL ACTUATOR TYPE AND QUANTITY | 1 TOGGLE |
| ACTUATOR FUNCTION | TRIP-RESET |
| ACTUATOR POSITION DESIGNATION | AT POLE ONE AND AT POLE THREE |
| TERMINAL TYPE AND QUANTITY | 6 QUICK DISCONNECT, FEMALE |
| MANUFACTURERS CODE | 30086 |
| DESIGN CONTROL REFERENCE | ETN1001 |
Restrictions/Controls & Freight Information | NSN 5925-00-783-6399
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
