NSN 5925-00-803-3179 MB122, 1682771, 168277-1
Product Details | CIRCUIT BREAKER
5925-00-803-3179 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.
Part Alternates: MB122, 1682771, 168277-1, 1682771REVA, 168277-1REVA, 6142234, 5925-00-803-3179, 00-803-3179, 5925008033179, 008033179
Electrical and Electronic Equipment Components | Circuit Breakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-803-3179 | 00136 ( CIRCUIT BREAKER ) |
Drawings & Photos | NSN 5925-00-803-3179
Cross Reference | NSN 5925-00-803-3179
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 168277-1 | 02929 | NEWARK ELECTRONICS CORPORATION DBA NEWARK |
| 168277-1 | 37695 | RAYTHEON COMPANY DBA RAYTHEON |
| 168277-1 | 88204 | GTE PRODUCTS CORP SYLVANIA MINIATURE LIGHTING DIV |
| 168277-1REVA | 37695 | RAYTHEON COMPANY DBA RAYTHEON |
| 6142234 | 71313 | VIKING TECHNOLOGIES, LTD. |
| MB122 | 52343 | OSRAM SYLVANIA INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5925-00-803-3179
Technical Data | NSN 5925-00-803-3179
| Characteristic | Specifications |
|---|---|
| POLE QUANTITY | 1 |
| MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE | 500.0 MILLIAMPERES DC SINGLE LOCATION |
| OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS | 6.0 DC SINGLE LOCATION |
| MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS | 2.0 DC SINGLE LOCATION |
| CIRCUIT PROTECTION TYPE | OVERCURRENT SINGLE LOCATION |
| TRIP RELEASE METHOD | THERMAL SINGLE LOCATION |
| INTERNAL TRIP RELEASE CONFIGURATION | SERIES TRIP SINGLE LOCATION |
| TRIP RELEASE AMBIENT TEMP RATING | 50.0 DEG CELSIUS NOMINAL SINGLE LOCATION |
| TRIP RELEASE CHARACTERISTIC | TIME DELAY SINGLE LOCATION |
| TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT | 10.000 MINIMUM AT 200 PCT AND 30.000 MAXIMUM AT 200 PCT SINGLE LOCATION |
| ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT | 125.0 SINGLE LOCATION |
| RESET METHOD | AUTOMATIC |

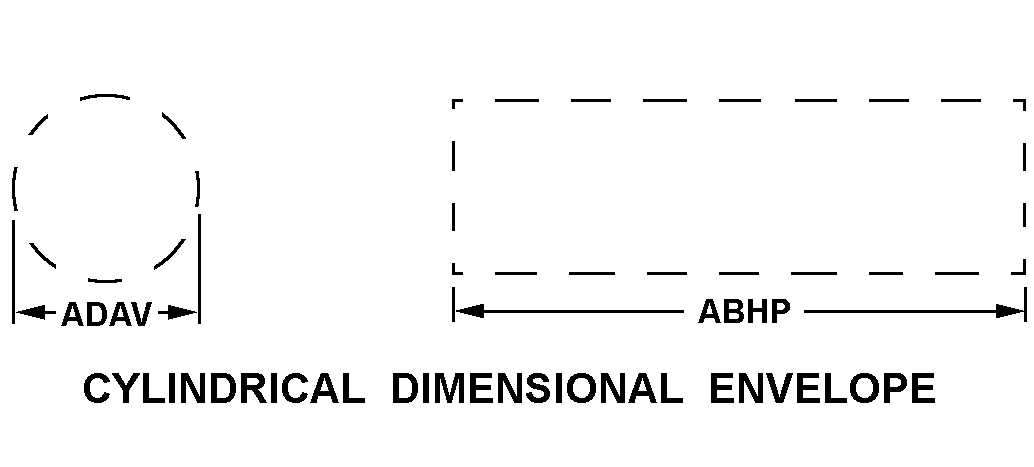

| BODY STYLE | 2D CYLINDRICAL DIMENSIONAL ENVELOPE |
| OVERALL LENGTH | 1.260 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.375 INCHES MAXIMUM |
| CASE MATERIAL | MICA |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 TERMINAL |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED | HERMETICALLY SEALED AND SHOCK RESISTANT AND VIBRATION RESISTANT |
| III STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
