NSN 5925-00-821-2109 MS2451015, MS24510-15, MS2451015A
Product Details | CIRCUIT BREAKER
5925-00-821-2109 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.
Part Alternates: MS2451015, MS24510-15, MS2451015A, MS24510-15A, MS24510A15, MS24510-A-15, AS24510, AS58091, D167009000, D167-009-000 , D7271115, D7271-1-15, D7271815, D7271-8-15, MILC5809, MIL-C-5809, 2603085000, 260-3085-000, 7271815, 7271-8-15, 9157332 , 972.55.17.505, 9725517505, 5925-00-821-2109, 00-821-2109, 5925008212109, 008212109
Electrical and Electronic Equipment Components | Circuit Breakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-821-2109 | 00136 ( CIRCUIT BREAKER ) |

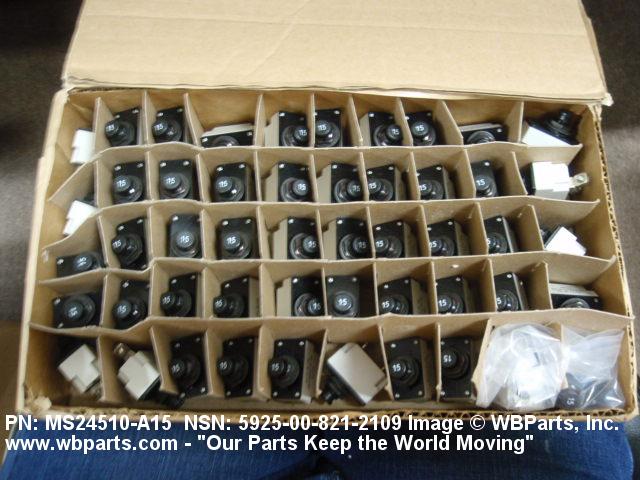

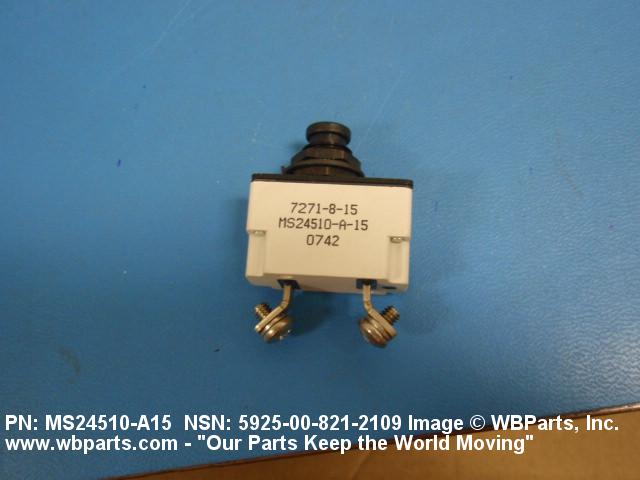

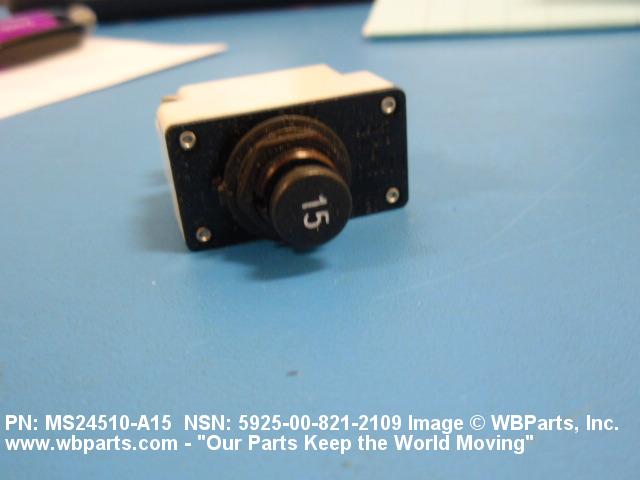

Drawings & Photos | NSN 5925-00-821-2109
Demand History | NSN 5925-00-821-2109
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5925-00-821-2109 | 2025-10-282 | 148 | DIBBS |
| 5925-00-821-2109 | 2025-09-268 | 70 | DIBBS |
| 5925-00-821-2109 | 2024-08-228 | 137 | DIBBS |
| 5925-00-821-2109 | 2024-08-214 | 72 | DIBBS |
| MS24510A15 | 2024-03-88 | 1 | US |
| 5925-00-821-2109 | 2024-02-57 | 44 | DIBBS |
| 5925-00-821-2109 | 2024-02-39 | 73 | DIBBS |
| 5925-00-821-2109 | 2024-01-25 | 169 | DIBBS |
| MS24510A15 | 2023-05-150 | 2 | United States |
| 5925-00-821-2109 | 2023-04-110 | 169 | DIBBS |
| 5925-00-821-2109 | 2023-02-40 | 27 | DIBBS |
| 5925-00-821-2109 | 2023-01-25 | 64 | KR |
| 5925-00-821-2109 | 2022-01-20 | 18 | DIBBS |
| 5925-00-821-2109 | 2020-10-280 | 20 | DIBBS |
| 5925-00-821-2109 | 2020-08-230 | 12 | DIBBS |
| 5925-00-821-2109 | 2020-08-215 | 12 | DIBBS |
| 5925-00-821-2109 | 2020-07-203 | 151 | DIBBS |
| 5925-00-821-2109 | 2020-06-153 | 180 | DIBBS |
| 5925-00-821-2109 | 2020-05-142 | 180 | DIBBS |
| 5925-00-821-2109 | 2019-08-213 | 50 | DIBBS |
| 5925-00-821-2109 | 2019-02-39 | 1 | US |
| 5925-00-821-2109 | 2019-02-39 | 3 | US |
| 5925-00-821-2109 | 2019-02-39 | 5 | US |
| AS58091 | 2018-05-121 | 5 | United States |
| 5925-00-821-2109 | 2017-12-353 | 120 | DIBBS |
| AS24510 | 2017-10-277 | 50 | Saudi Arabia |
| 5925-00-821-2109 | 2017-02-43 | 144 | DIBBS |
| 5925-00-821-2109 | 2015-11-321 | 100 | Malaysia |
| 5925-00-821-2109 | 2015-11-309 | 100 | Malaysia |
| 5925-00-821-2109 | 2015-09-245 | 198 | DIBBS |
| 5925-00-821-2109 | 2015-07-188 | 78 | DIBBS |
| 5925-00-821-2109 | 2015-03-76 | 100 | Malaysia |
| 5925-00-821-2109 | 2014-11-316 | 142 | DIBBS |
| MS24510-A-15 | 2012-11-310 | 95 | |
| MS24510A15 | 2012-10-276 | 1 | Thailand |
| MS24510A15 | 2012-02-55 | 5 | CA |
| MIL-C-5809 | 2011-06-155 | 1 | Saudi Arabia |
| 5925-00-821-2109 | 2011-01-25 | 25 | US |
| 5925-00-821-2109 | 2010-12-343 | 23 | South Korea |
| D7271815 | 2010-11-327 | 25 | KR |
| 5925-00-821-2109 | 2010-11-319 | 20 | South Korea |
| MS24510A15 | 2010-07-182 | 100 | US |
| 5925-00-821-2109 | 2010-02-44 | 50 | Canada |
| 5925-00-821-2109 | 2009-10-275 | 5 | United Kingdom |
| MS24510A15 | 2009-05-142 | 50 | Italy |
| 5925-00-821-2109 | 2009-04-98 | 157 | DIBBS |
| 5925-00-821-2109 | 2009-03-84 | 18 | DIBBS |
| 5925-00-821-2109 | 2009-03-71 | 266 | DIBBS |
| 5925-00-821-2109 | 2009-01-29 | 101 | DIBBS |
| 5925-00-821-2109 | 2009-01-14 | 151 | DIBBS |
| 5925-00-821-2109 | 2008-12-352 | 6 | DIBBS |
| 5925-00-821-2109 | 2008-12-350 | 261 | DIBBS |
| 5925-00-821-2109 | 2008-11-324 | 62 | DIBBS |
| 5925-00-821-2109 | 2008-11-310 | 1 | France |
| 5925-00-821-2109 | 2008-11-310 | 1 | France |
| 5925-00-821-2109 | 2008-01-06 | 39 | South Korea |
| 5925-00-821-2109 | 2007-07-188 | 276 | DIBBS |
| MS24510A15 | 2007-06-164 | 96 | United States |
| 5925-00-821-2109 | 2007-01-26 | 26 | DIBBS |
Cross Reference | NSN 5925-00-821-2109
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 260-3085-000 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 5925008212109 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 7271-8-15 | 73803 | TEXAS INSTRUMENTS INC METALLURGICAL MATERIALS DIV |
| 7271-8-15 | 82647 | SENSATA TECHNOLOGIES, INC DIV SENSATA ATTLEBORO |
| 972.55.17.505 | S4080 | PILATUS AIRCRAFT LTD |
| AS24510 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS58091 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| D7271-1-15 | 82647 | SENSATA TECHNOLOGIES, INC DIV SENSATA ATTLEBORO |
| D7271-8-15 | 82647 | SENSATA TECHNOLOGIES, INC DIV SENSATA ATTLEBORO |
| MIL-C-5809 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS24510-15 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS24510-15A | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS24510-A-15 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS24510-A-15 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5925-00-821-2109
Related Products | NSN 5925-00-821-2109
Technical Data | NSN 5925-00-821-2109
| Characteristic | Specifications |
|---|---|
| POLE QUANTITY | 1 |
| MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE | 15.0 AMPERES AC AND 15.0 AMPERES DC SINGLE LOCATION |
| OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS | 115.0 AC AND 28.0 DC SINGLE LOCATION |
| FREQUENCY IN HERTZ | 400.0 SINGLE LOCATION |
| MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS | 3500.0 AC AND 3500.0 DC ALL LOCATIONS |
| CIRCUIT PROTECTION TYPE | OVERCURRENT SINGLE LOCATION |
| TRIP RELEASE METHOD | THERMAL SINGLE LOCATION |
| INTERNAL TRIP RELEASE CONFIGURATION | SERIES TRIP SINGLE LOCATION |
| TRIP RELEASE AMBIENT TEMP RATING | 25.0 DEG CELSIUS NOMINAL SINGLE LOCATION |
| TRIP RELEASE CHARACTERISTIC | TIME DELAY SINGLE LOCATION |
| TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT | 10.000 MINIMUM AT 200 PCT AND 70.000 MAXIMUM AT 200 PCT SINGLE LOCATION |
| ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT | 138.0 SINGLE LOCATION |
| RESET METHOD | MANUAL |
| MAIN CONTACT TRIPPING MECHANISM TYPE | TRIP FREE |
| BODY STYLE | 1A SINGLE POLE TYPE |
| BUSHING LENGTH | 0.313 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| BODY LENGTH | 1.375 INCHES MAXIMUM |
| BODY WIDTH | 0.750 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH | 0.875 INCHES MINIMUM AND 0.937 INCHES MAXIMUM |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.343 INCHES MAXIMUM |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.469 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| MANUAL ACTUATOR TYPE AND QUANTITY | 1 PUSH-PULL |
| ACTUATOR FUNCTION | TRIP-RESET |
| ACTUATOR POSITION DESIGNATION | AT POLE ONE |
| TERMINAL TYPE AND QUANTITY | 2 TAB W/SCREW |
| INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED | CORROSION RESISTANT AND DUSTTIGHT AND EXPLOSION PROOF AND SAND RESISTANT AND SHOCKPROOF AND VIBRATION RESISTANT AND MOISTURE RESISTANT |
| TEST DATA DOCUMENT | 81349-MIL-C-5809 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 96906-MS24510 GOVERNMENT STANDARD |
| III STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
| III UNPACKAGED UNIT WEIGHT | 0.078 POUNDS |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
| MANUFACTURERS CODE | 81349 |
Restrictions/Controls & Freight Information | NSN 5925-00-821-2109
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
