NSN 5925-00-840-5393 MS390692, MS39069-2, M13516/8-7
Product Details | CIRCUIT BREAKER
5925-00-840-5393 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.
Part Alternates: MS390692, MS39069-2, M13516/8-7, M1351687, AA55571/08, AA55571/08-002, AA5557108, AA5557108002, C78557200, C7855-7-200, 78557200, 7855-7-200, 5925-00-840-5393, 00-840-5393, 5925008405393, 008405393
Electrical and Electronic Equipment Components | Circuit Breakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-840-5393 | 00136 ( CIRCUIT BREAKER ) |

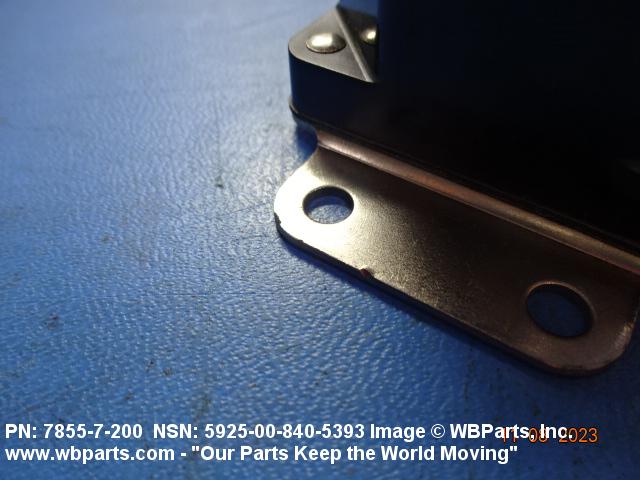

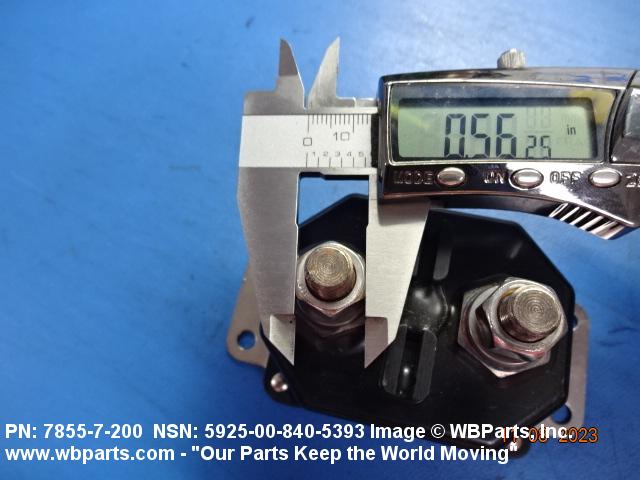

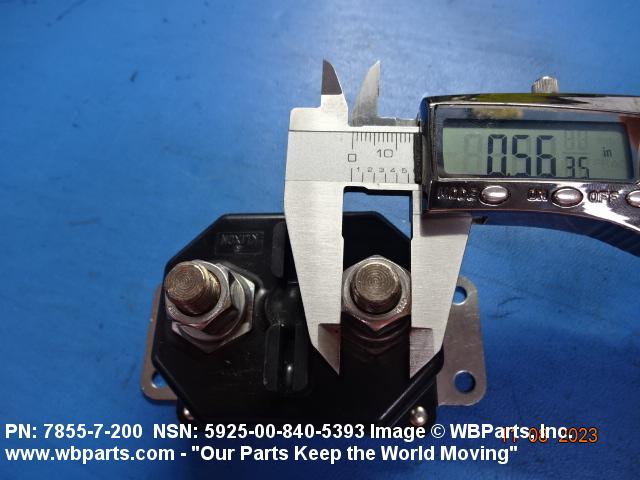

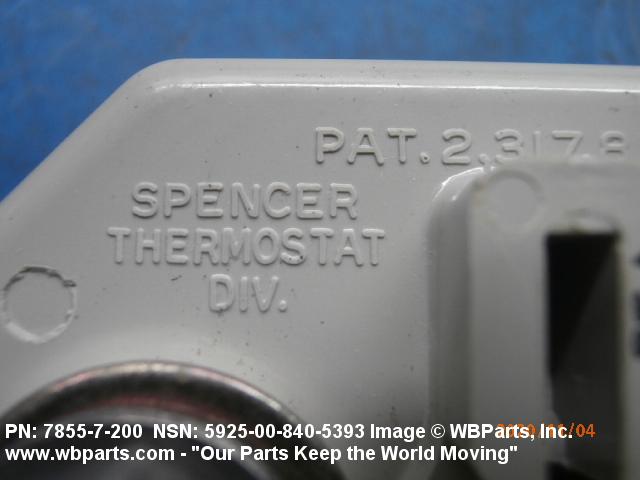

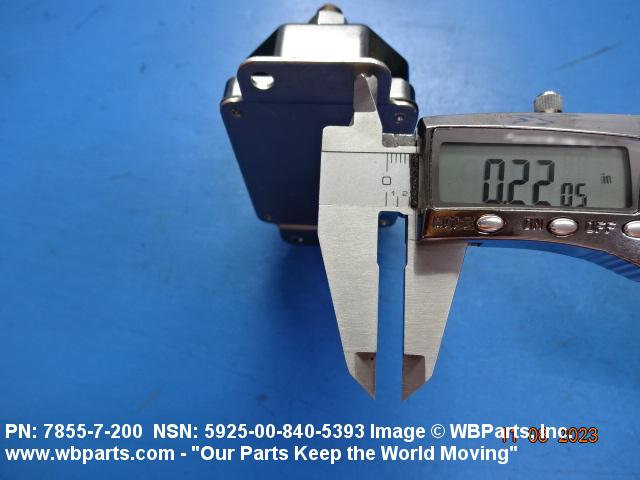

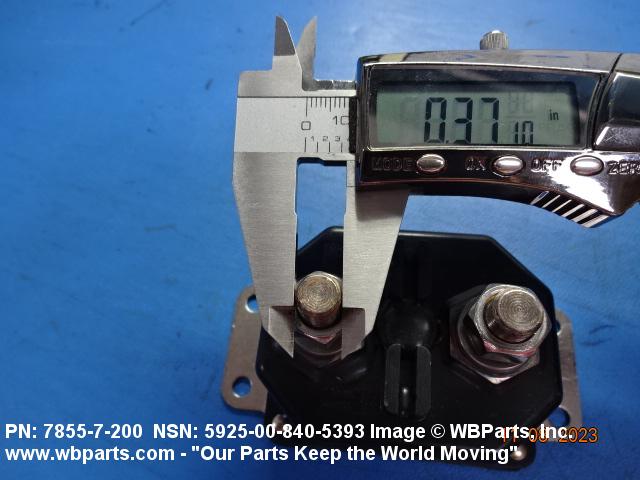

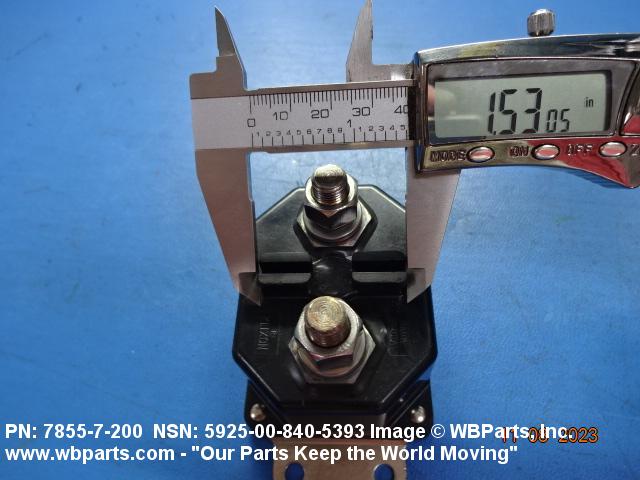

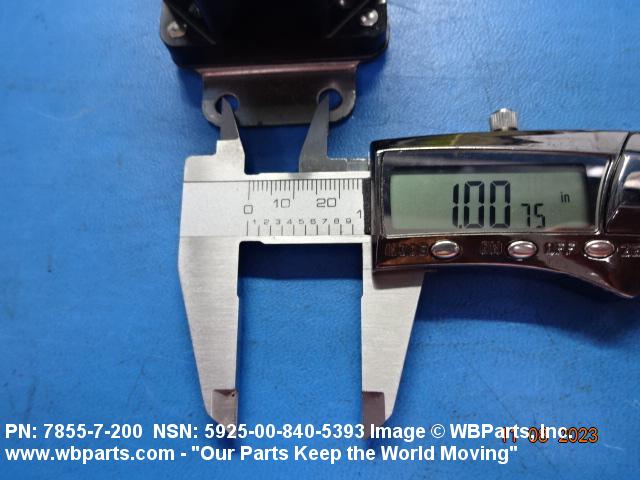

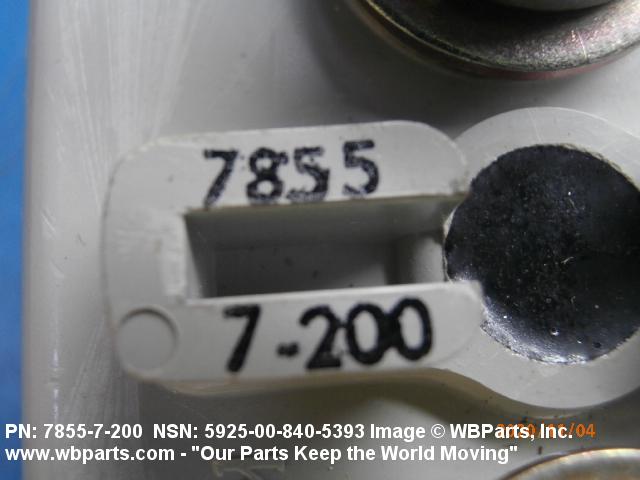

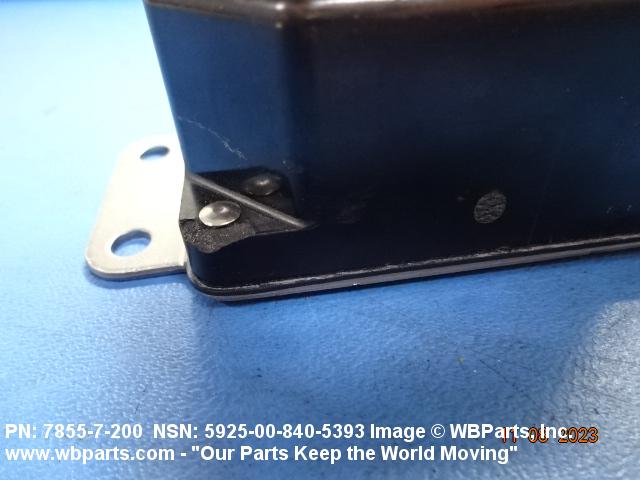

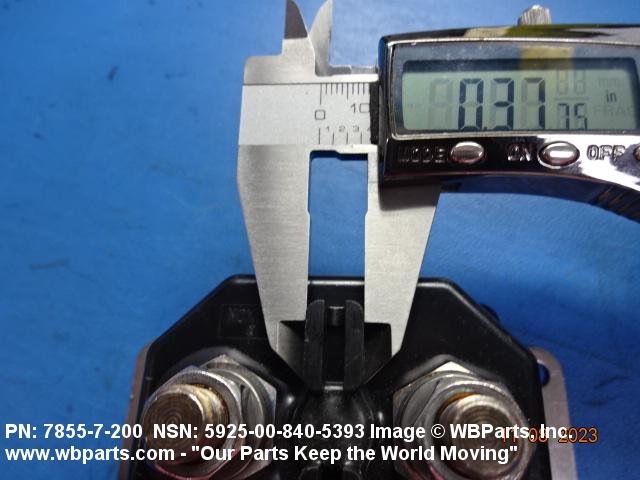

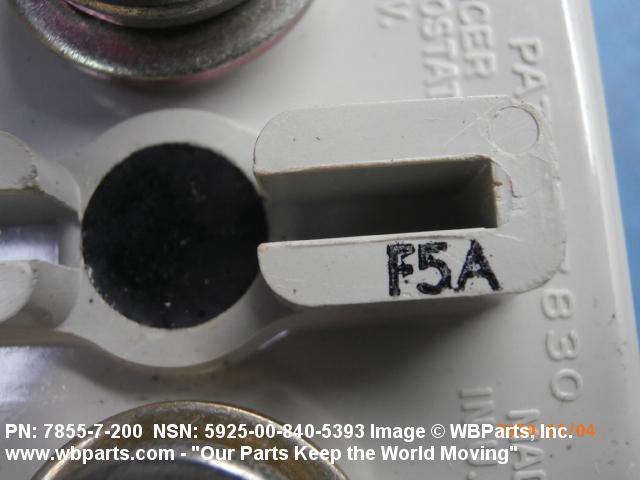

Drawings & Photos | NSN 5925-00-840-5393
Demand History | NSN 5925-00-840-5393
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5925-00-840-5393 | 2025-10-300 | 3 | US |
| 5925-00-840-5393 | 2025-10-300 | 3 | DIBBS |
| 5925-00-840-5393 | 2025-09-265 | 1 | UA |
| 5925-00-840-5393 | 2025-07-198 | 42 | DIBBS |
| 5925-00-840-5393 | 2025-05-139 | 45 | DIBBS |
| 5925-00-840-5393 | 2025-05-128 | 45 | DIBBS |
| 78557200 | 2023-10-304 | 1 | United States |
| 5925-00-840-5393 | 2023-02-55 | 50 | Israel |
| 5925-00-840-5393 | 2021-01-14 | 1 | Brazil |
| 78557200 | 2020-10-296 | 1 | United States |
| 5925-00-840-5393 | 2020-10-282 | 49 | DIBBS |
| 5925-00-840-5393 | 2020-06-173 | 33 | DIBBS |
| 5925-00-840-5393 | 2019-03-67 | 7 | MANUAL |
| 78557200 | 2018-07-198 | 2 | Thailand |
| 5925-00-840-5393 | 2015-12-348 | 125 | South Korea |
| 5925-00-840-5393 | 2015-07-211 | 198 | DIBBS |
| 5925-00-840-5393 | 2015-05-123 | 200 | DIBBS |
| 5925-00-840-5393 | 2015-04-118 | 85 | South Korea |
| 5925-00-840-5393 | 2015-03-82 | 100 | DIBBS |
| 5925-00-840-5393 | 2015-03-74 | 101 | DIBBS |
| 5925-00-840-5393 | 2015-03-64 | 196 | DIBBS |
| 5925-00-840-5393 | 2014-06-152 | 79 | DIBBS |
| 5925-00-840-5393 | 2013-04-108 | 1 | MANUAL |
| 5925-00-840-5393 | 2013-04-91 | 98 | DIBBS |
| 5925-00-840-5393 | 2012-11-320 | 598 | DIBBS |
| 5925-00-840-5393 | 2010-07-189 | 104 | Turkey |
| 78557200 | 2010-07-189 | 104 | Turkey |
| 5925-00-840-5393 | 2007-08-220 | 100 | DIBBS |
| 5925-00-840-5393 | 2007-07-192 | 63 | DIBBS |
| M1351687 | 2006-01-18 | 58 | US |
Cross Reference | NSN 5925-00-840-5393
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 55000653 | 0F875 | GENERAL DYNAMICS ORDNANCE AND TACTICAL SYSTEMS, INC. |
| 5925008405393 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 7855-7-200 | 82647 | SENSATA TECHNOLOGIES, INC DIV SENSATA ATTLEBORO |
| 7855-7-200 | 83803 | PEERLESS ELECTRONICS INC. |
| 870SS0207 | A0199 | OTO MELARA SPA |
| AA55571/08 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AA55571/08-002 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| C7855-7-200 | 82647 | SENSATA TECHNOLOGIES, INC DIV SENSATA ATTLEBORO |
| M13516/8-7 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS39069-2 | 0MVG5 | INTERNATIONAL PARTS SUPPLY CORPORATION |
| MS39069-2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5925-00-840-5393
Technical Data | NSN 5925-00-840-5393
| Characteristic | Specifications |
|---|---|
| POLE QUANTITY | 1 |
| MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE | 200.0 AMPERES DC SINGLE LOCATION |
| OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS | 575.0 DC SINGLE LOCATION |
| MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS | 3500.0 AC AND 6000.0 DC SINGLE LOCATION |
| CIRCUIT PROTECTION TYPE | OVERCURRENT SINGLE LOCATION |
| TRIP RELEASE METHOD | THERMAL SINGLE LOCATION |
| INTERNAL TRIP RELEASE CONFIGURATION | SERIES TRIP SINGLE LOCATION |
| TRIP RELEASE AMBIENT TEMP RATING | 25.0 DEG CELSIUS NOMINAL SINGLE LOCATION |
| TRIP RELEASE CHARACTERISTIC | TIME DELAY SINGLE LOCATION |
| TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT | 8.000 MINIMUM AT 200 PCT AND 50.000 MAXIMUM AT 200 PCT SINGLE LOCATION |
| ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT | 138.0 SINGLE LOCATION |
| RESET METHOD | AUTOMATIC |
| BODY STYLE | 18A SINGLE POLE TYPE |
| OVERALL LENGTH | 4.000 INCHES NOMINAL |

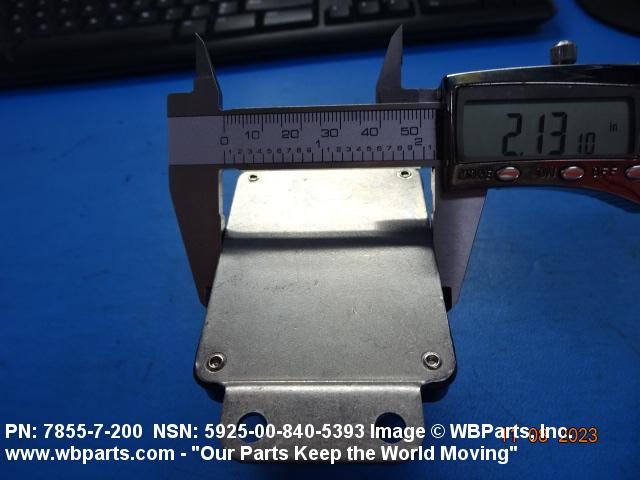

| BODY WIDTH | 2.120 INCHES NOMINAL |

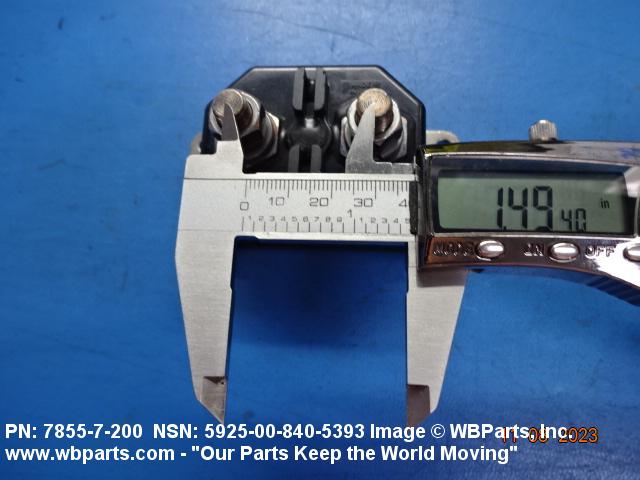

| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH | 1.485 INCHES MINIMUM AND 1.515 INCHES MAXIMUM |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 3.500 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 1.000 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 2.220 INCHES NOMINAL |
| CASE MATERIAL | PLASTIC |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.218 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 THREADED STUD |
| INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED | VIBRATION RESISTANT AND SHOCK RESISTANT AND SALT SPRAY PROOF AND FUNGUS RESISTANT |
| SPECIAL FEATURES | WEAPON CODED F |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
| III END ITEM IDENTIFICATION | M109 HOWITZER |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AA55571/08 |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AA55571/08-002 |
Restrictions/Controls & Freight Information | NSN 5925-00-840-5393
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
