NSN 5925-00-876-9217 AQBA10125, AQB-A101-25, AQBA101-25

Product Details | CIRCUIT BREAKER

5925-00-876-9217 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.

Part Alternates: AQBA10125, AQB-A101-25, AQBA101-25, S458D509G12, ETN2751, MIL-C-17361/4, MILC173614, 6319482G25L, 278A2184CKP3, 321-7303507 ITEM NO 9, 3217303507ITEMNO9, 375D413G12, 45761, 45-761, 458D509G12, 5925-00-876-9217, 00-876-9217, 5925008769217, 008769217

Electrical and Electronic Equipment Components | Circuit Breakers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1962	00-876-9217	00136 ( CIRCUIT BREAKER )

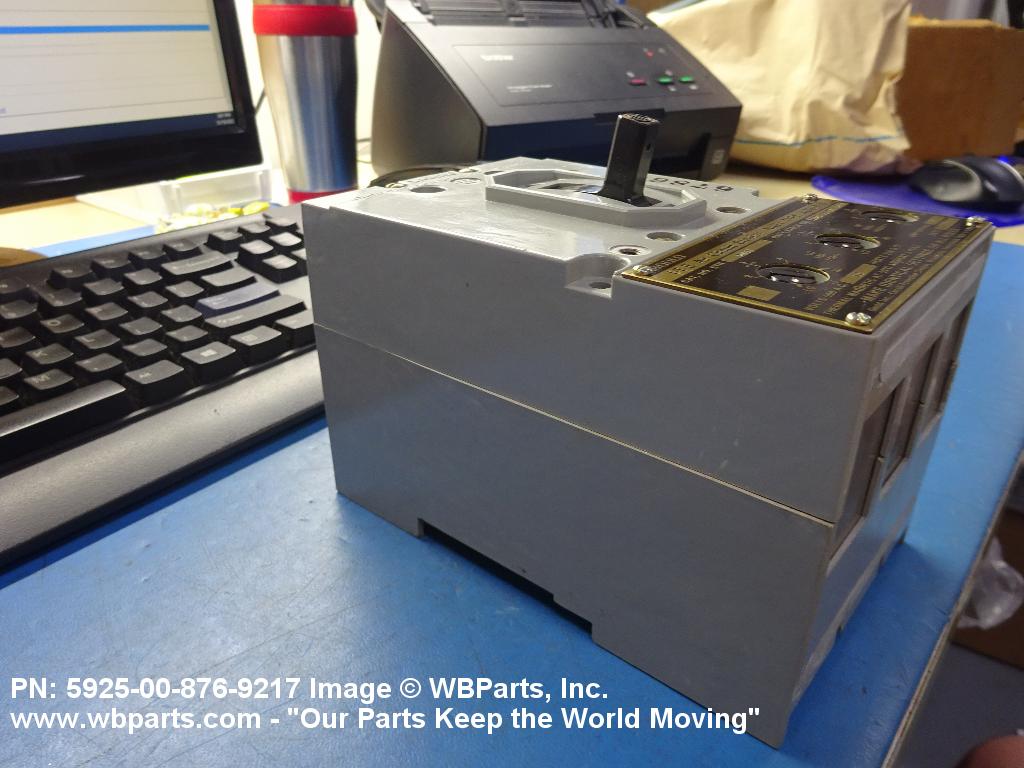

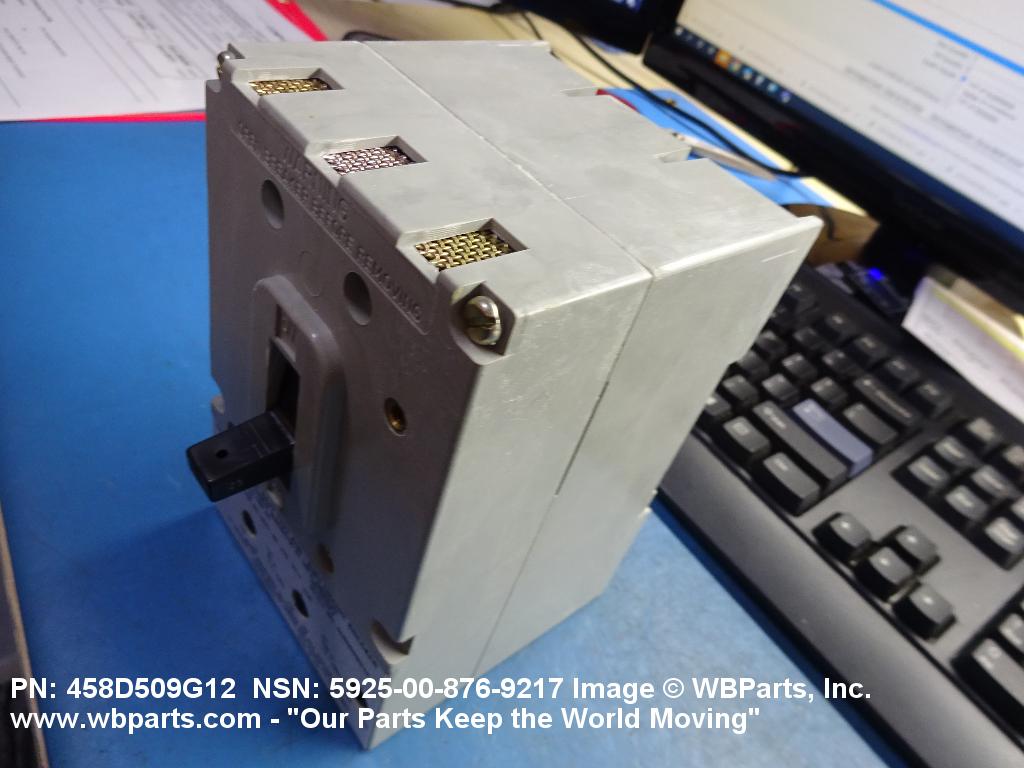

Drawings & Photos | NSN 5925-00-876-9217

Part Number	Request Date	QTY	Origin
5925-00-876-9217	2024-12-355	1	GU
5925-00-876-9217	2024-11-319	1	Italy
5925-00-876-9217	2023-09-257	2	US
5925-00-876-9217	2023-09-256	2	Poland
5925-00-876-9217	2023-07-188	20	Taiwan
5925-00-876-9217	2023-06-158	20	US
5925-00-876-9217	2022-06-178	48	Taiwan
5925-00-876-9217	2022-06-153	1	TW
5925-00-876-9217	2021-09-266	28	Taiwan
MILC173614	2021-08-222	1	United States
5925-00-876-9217	2021-04-118	7	United States
5925-00-876-9217	2020-08-223	19	DIBBS
5925-00-876-9217	2020-07-208	19	DIBBS
5925-00-876-9217	2020-05-139	84	DIBBS
5925-00-876-9217	2020-05-127	84	DIBBS
5925-00-876-9217	2020-02-51	68	DIBBS
5925-00-876-9217	2020-02-40	68	DIBBS
5925-00-876-9217	2020-01-21	77	DIBBS
5925-00-876-9217	2019-09-263	1	DIBBS-RFPs
5925-00-876-9217	2019-09-246	15	DIBBS
5925-00-876-9217	2019-08-233	15	DIBBS
5925-00-876-9217	2019-08-231	36	DIBBS
5925-00-876-9217	2019-08-219	36	DIBBS
5925-00-876-9217	2019-07-206	29	DIBBS
5925-00-876-9217	2019-07-195	29	DIBBS
5925-00-876-9217	2018-12-336	59	DIBBS
5925-00-876-9217	2018-11-307	1	United States
5925-00-876-9217	2018-08-213	82	DIBBS
5925-00-876-9217	2018-07-186	2	US
5925-00-876-9217	2018-06-172	34	DIBBS
5925-00-876-9217	2016-07-213	21	DIBBS
5925-00-876-9217	2016-05-138	17	DIBBS
5925-00-876-9217	2015-09-263	22	DIBBS
5925-00-876-9217	2015-07-194	24	DIBBS
5925-00-876-9217	2015-06-158	23	DIBBS
5925-00-876-9217	2015-04-106	19	DIBBS
5925-00-876-9217	2014-10-280	1	US
5925-00-876-9217	2014-07-207	87	DIBBS
5925-00-876-9217	2014-01-27	1	United States
5925-00-876-9217	2013-07-212	69	DIBBS
5925-00-876-9217	2013-07-209	26	DIBBS
5925-00-876-9217	2013-07-200	26	DIBBS
5925-00-876-9217	2013-07-185	26	DIBBS
5925-00-876-9217	2010-01-25	32	DIBBS
5925-00-876-9217	2009-04-114	59	DIBBS
5925-00-876-9217	2009-01-26	136	DIBBS
5925-00-876-9217	2008-12-364	50	DIBBS
AQBA10125	2008-04-102	15	Taiwan
5925-00-876-9217	2008-04-94	12	DIBBS
5925-00-876-9217	2008-03-87	21	DIBBS
5925-00-876-9217	2008-03-80	16	DIBBS
AQBA10125	2008-03-69	16	us
5925-00-876-9217	2007-12-354	150	DIBBS
5925-00-876-9217	2006-07-192	115	US

Cross Reference | NSN 5925-00-876-9217

Part Number	Cage Code	Manufacturer
278A2184CKP3	02989	GENERAL ELECTRIC CO GE DRIVE SYSTEMS
321-7303507 ITEM NO 9	53711	NAVAL SEA SYSTEMS COMMAND
375D413G12	89946	EATON CORPORATION
45-761	27192	DRS POWER & CONTROL TECHNOLOGIES, INC.
458D509G12	11660	WESTINGHOUSE ELECTRIC CORP CONTROL BUSINESS UNIT
6319482G25L	03497	GENERAL ELECTRIC CO OUTDOOR BREAKER BUSINESS SECTION
AQB-A101-25	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
AQBA101-25	80064	NAVAL SHIP SYSTEMS COMMAND
ETN2751	03950	NAVAL INVENTORY CONTROL POINT MECHANICSBURG
ETN2751	11660	WESTINGHOUSE ELECTRIC CORP CONTROL BUSINESS UNIT
ETN2751	30086	SPD ELECTRICAL SYSTEMS, INC
ETN2751	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-17361/4	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
S458D509G12	79500	WESTINGHOUSE ELECTRIC CORP

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5925-00-876-9217

Compare

Related Products | NSN 5925-00-876-9217

5925-00-876-9218, 5925-00-876-9219, 5925-00-876-9220, 5925-00-876-9300, 5925-00-877-2750

Technical Data | NSN 5925-00-876-9217

Characteristic	Specifications
POLE QUANTITY	3
MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE	25.0 AMPERES AC ALL LOCATIONS
OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS	500.0 AC ALL LOCATIONS
FREQUENCY IN HERTZ	60.0 ALL LOCATIONS
MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS	15000.0 AC ALL LOCATIONS
CIRCUIT PROTECTION TYPE	OVERCURRENT ALL LOCATIONS
TRIP RELEASE METHOD	THERMAL-MAGNETIC ALL LOCATIONS
TRIP RELEASE AMBIENT TEMP RATING	50.0 DEG CELSIUS NOMINAL ALL LOCATIONS
TRIP RELEASE CHARACTERISTIC	INSTANTANEOUS AND TIME DELAY ALL LOCATIONS
TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT	5.000 MINIMUM AT 200 PCT AND 15.000 MAXIMUM AT 200 PCT ALL LOCATIONS
ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT	150.0 ALL LOCATIONS
RESET METHOD	MANUAL
MAIN CONTACT TRIPPING MECHANISM TYPE	TRIP FREE
BODY STYLE	18B MULTIPOLE-SINGLE ACTUATOR TYPE

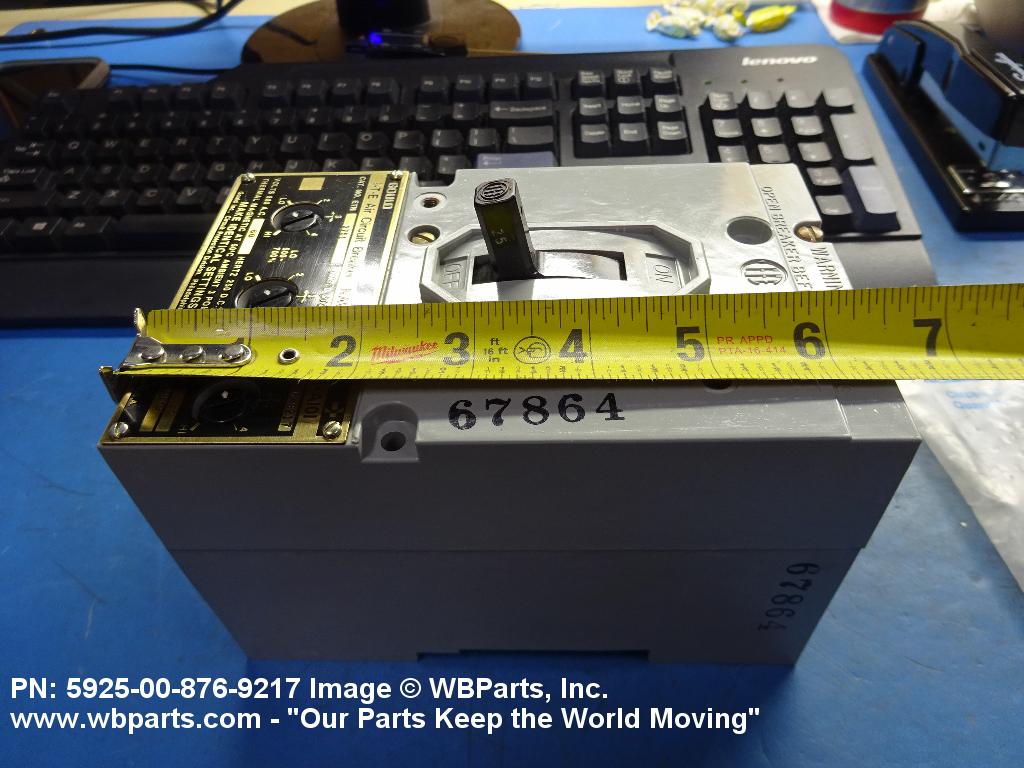

BODY LENGTH	6.500 INCHES NOMINAL
BODY WIDTH	4.125 INCHES NOMINAL

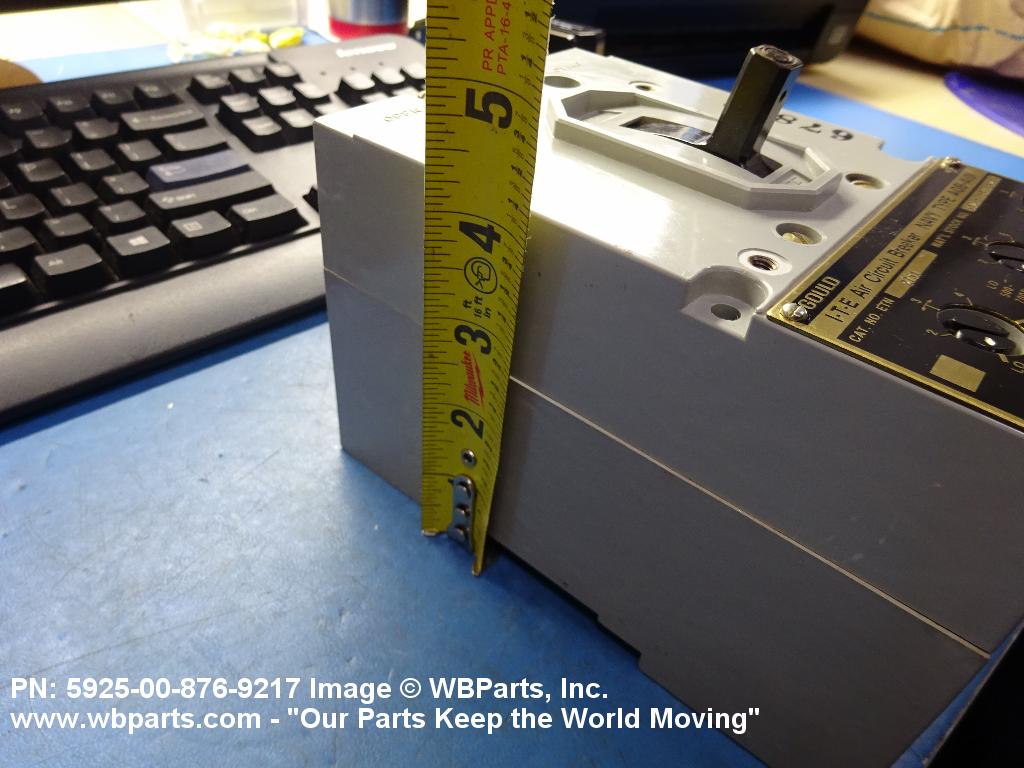

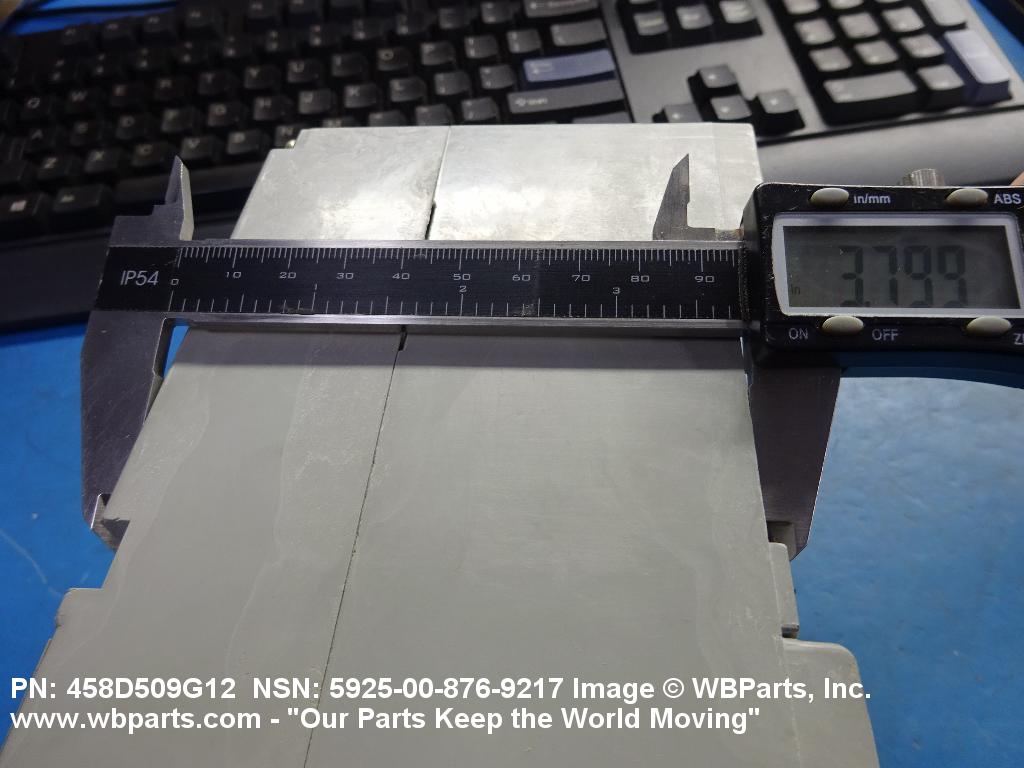

BODY HEIGHT	3.875 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH	3.938 INCHES NOMINAL

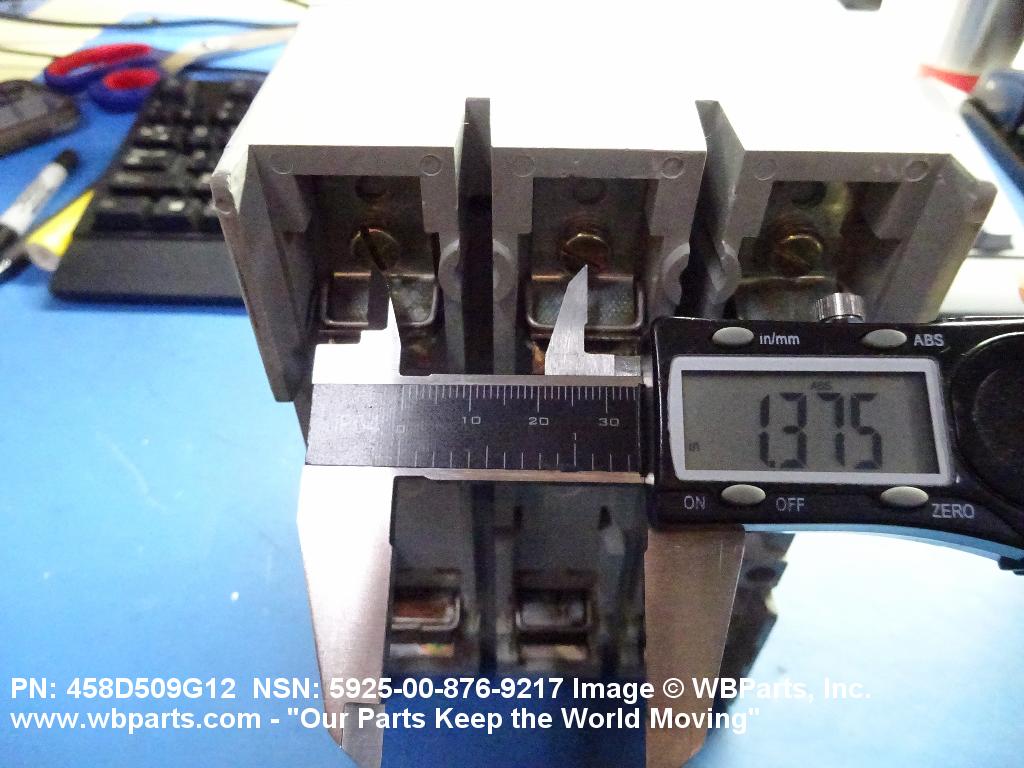

CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO WIDTH	1.375 INCHES NOMINAL
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH	4.827 INCHES NOMINAL
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH	1.343 INCHES NOMINAL
BOSS HEIGHT	0.187 INCHES NOMINAL
CASE MATERIAL	PLASTIC
MOUNTING FACILITY TYPE AND QUANTITY	4 UNTHREADED HOLE
UNTHREADED MOUNTING HOLE DIAMETER	0.190 INCHES NOMINAL
MANUAL ACTUATOR TYPE AND QUANTITY	1 TOGGLE
ACTUATOR FUNCTION	TRIP-RESET
ACTUATOR POSITION DESIGNATION	AT POLE TWO

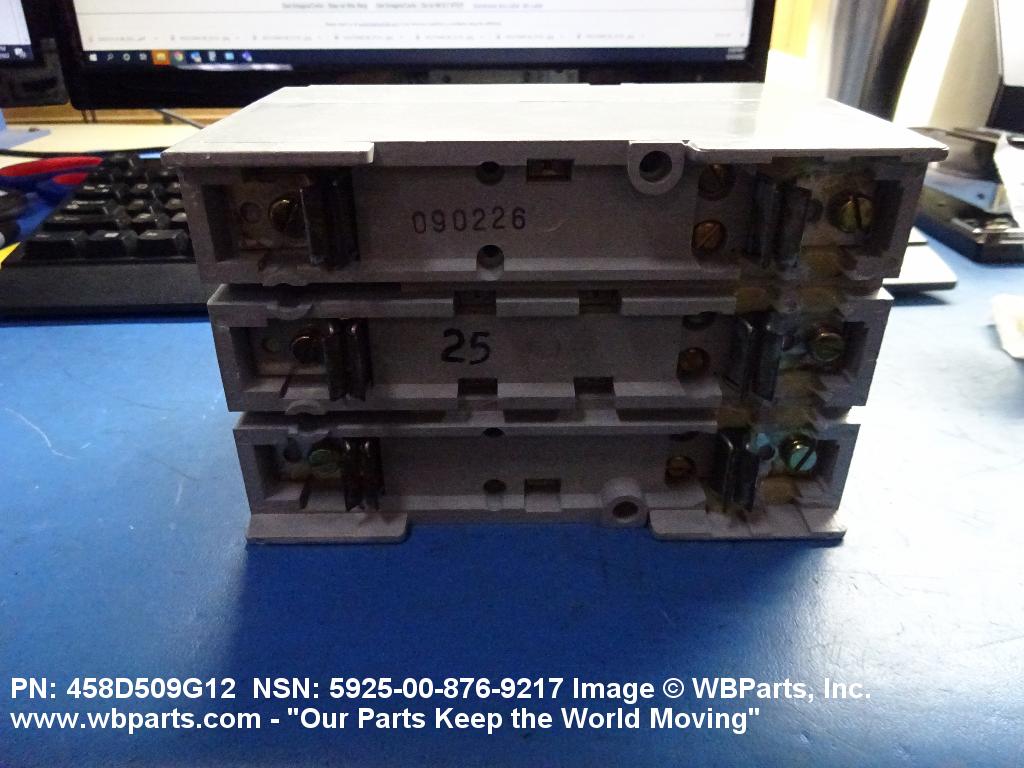

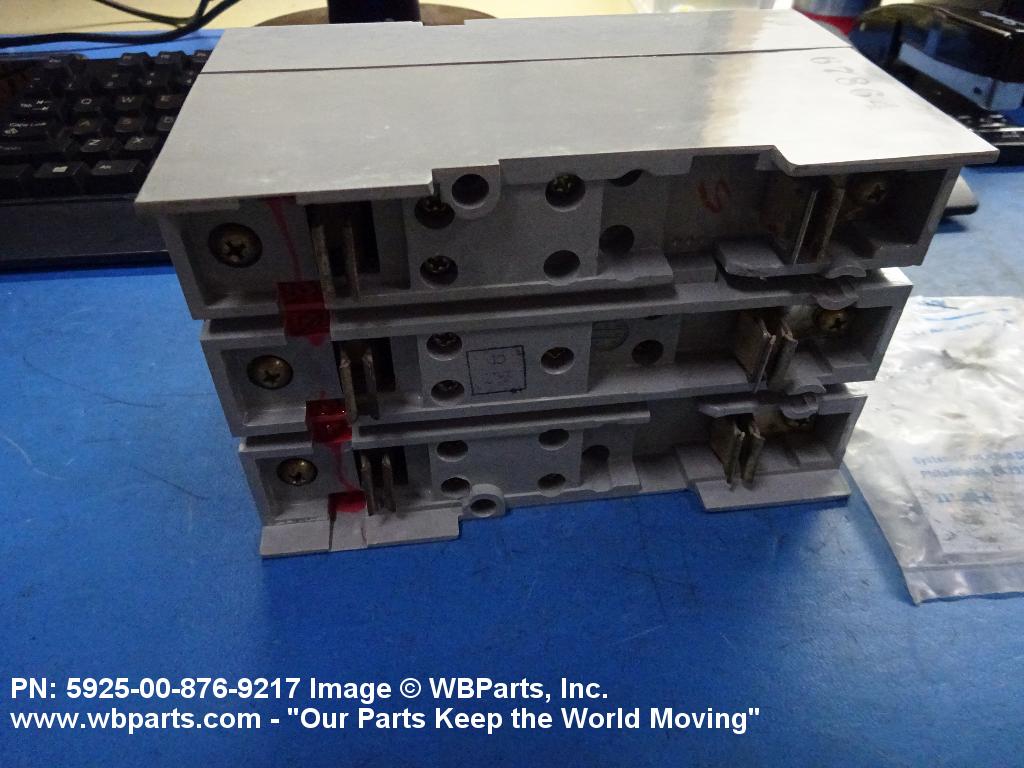

TERMINAL TYPE AND QUANTITY	6 QUICK DISCONNECT, MALE
INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED	SHOCK RESISTANT AND VIBRATION RESISTANT
SPECIAL FEATURES	CIRCUIT BREAKER SUPPLIED WITH TWO THREADED METAL INSERTS
TEST DATA DOCUMENT	81349-MIL-C-17361 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-C-17361/4 GOVERNMENT SPECIFICATION
III ARC QUENCHING METHOD	AIR
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE
III SPECIAL HANDLING FEATURE	MAGNETIC
III FRAGILITY FACTOR	MODERATELY RUGGED
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD	AQB-A101-25

Restrictions/Controls & Freight Information | NSN 5925-00-876-9217

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	658	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5925-00-876-9217

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
