NSN 5925-00-897-7932 MP15000351, MP1500-035-1, 84001917

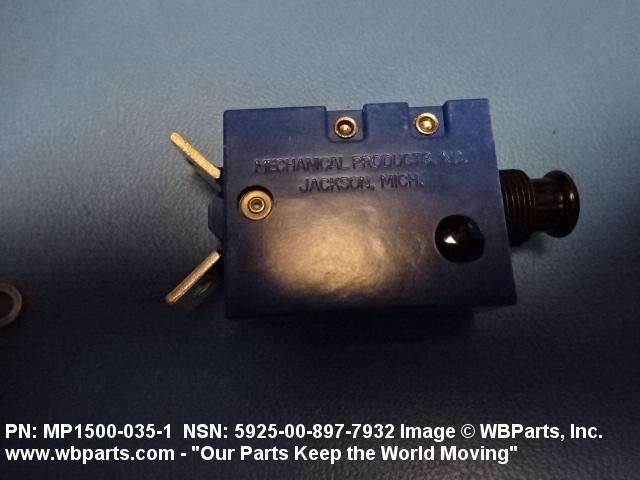

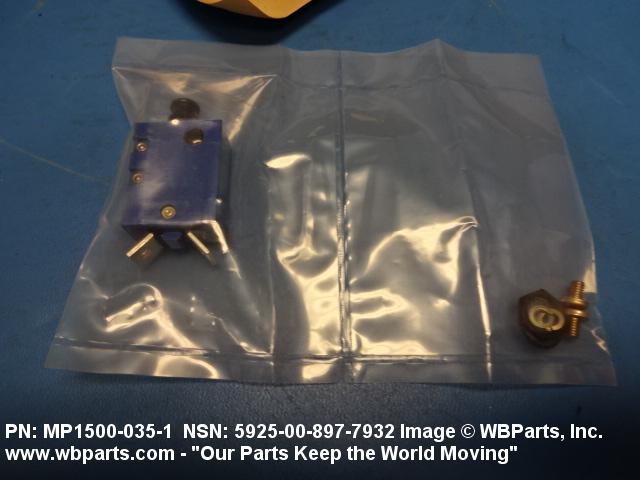

Product Details | CIRCUIT BREAKER
5925-00-897-7932 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.
Part Alternates: MP15000351, MP1500-035-1, 84001917, 840019-17, 5925-00-897-7932, 00-897-7932, 5925008977932, 008977932
Electrical and Electronic Equipment Components | Circuit Breakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 JAN 1967 | 00-897-7932 | 00136 ( CIRCUIT BREAKER ) |

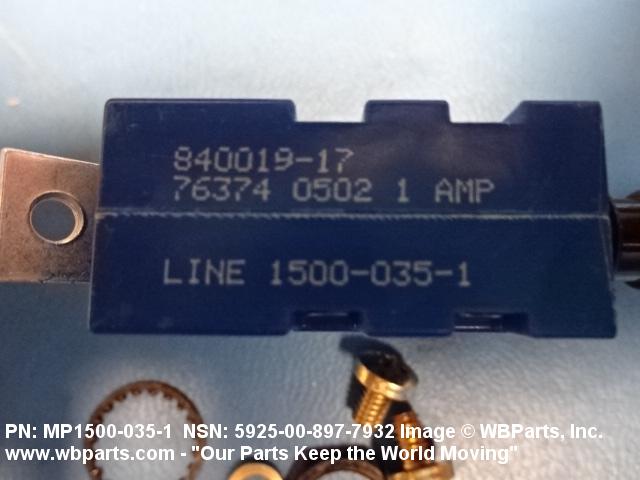

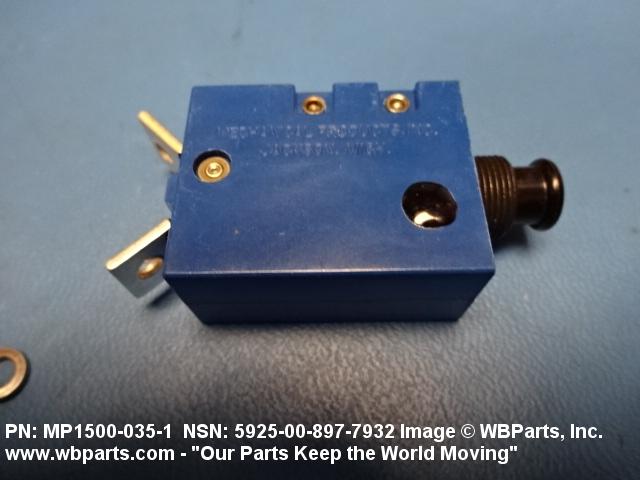

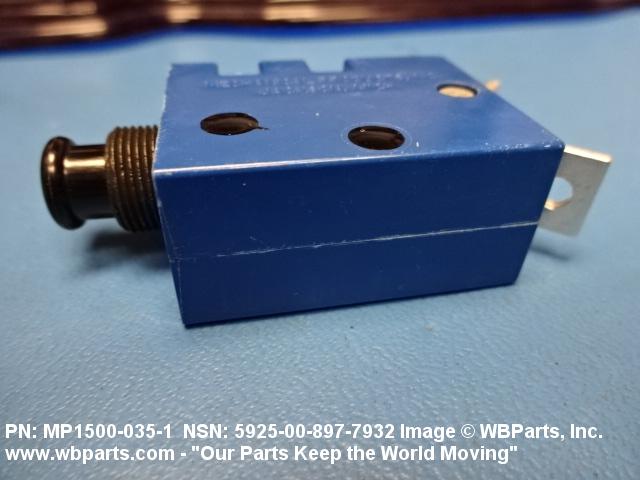

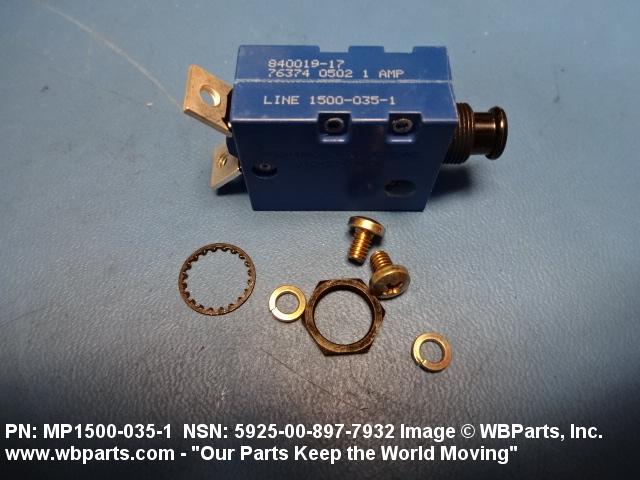

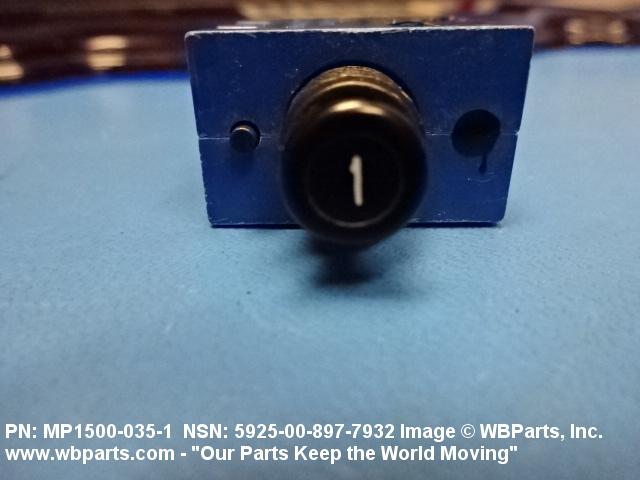

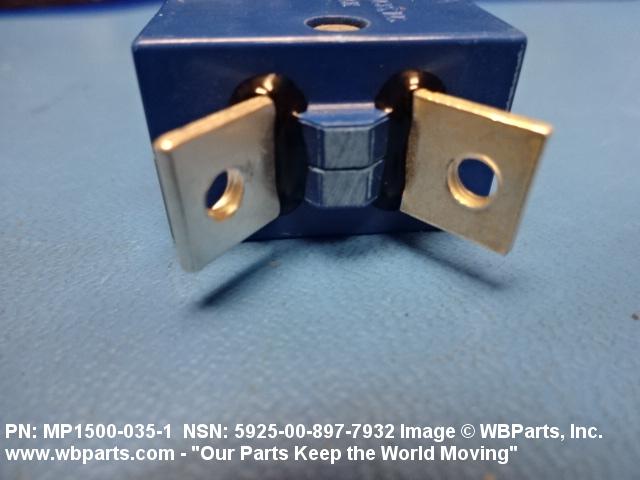

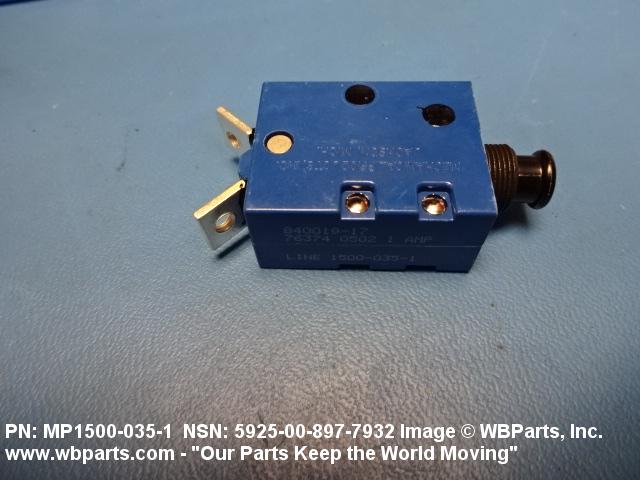

Drawings & Photos | NSN 5925-00-897-7932
Demand History | NSN 5925-00-897-7932
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 840019-17 | 2019-01-31 | 17 | DIBBS |
| MP1500-035-1 | 2019-01-31 | 17 | DIBBS |
| 5925-00-897-7932 | 2017-07-199 | 11 | DIBBS |
| 5925-00-897-7932 | 2017-07-185 | 11 | DIBBS |
| 5925-00-897-7932 | 2017-04-95 | 15 | DIBBS |
| 5925-00-897-7932 | 2017-02-58 | 15 | DIBBS |
| 5925-00-897-7932 | 2017-01-23 | 15 | DIBBS |
| 5925-00-897-7932 | 2017-01-12 | 15 | DIBBS |
| 5925-00-897-7932 | 2017-01-08 | 15 | DIBBS |
| 5925-00-897-7932 | 2016-12-361 | 15 | DIBBS |
| 5925-00-897-7932 | 2016-10-305 | 11 | DIBBS |
| 5925-00-897-7932 | 2016-10-294 | 11 | DIBBS |
| 5925-00-897-7932 | 2016-09-251 | 36 | DIBBS |
| 5925-00-897-7932 | 2016-08-228 | 1 | United States |
| 5925-00-897-7932 | 2016-06-159 | 8 | DIBBS |
| 5925-00-897-7932 | 2016-05-143 | 8 | DIBBS |
| 5925-00-897-7932 | 2016-04-103 | 3 | DIBBS |
| 5925-00-897-7932 | 2016-02-42 | 3 | DIBBS |
| 5925-00-897-7932 | 2016-01-10 | 2 | DIBBS |
| 5925-00-897-7932 | 2015-10-277 | 2 | DIBBS |
| 5925-00-897-7932 | 2015-08-230 | 2 | DIBBS |
| 5925-00-897-7932 | 2015-08-214 | 2 | DIBBS |
Cross Reference | NSN 5925-00-897-7932
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 840019-17 | 13028 | ASSOCIATED AIRCRAFT SUPPLY CO. |
| 840019-17 | 6M266 | WESCO AIRCRAFT HARDWARE CORP. DBA ELECTRONIC PRODUCTS GROUP |
| 840019-17 | 80249 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| MP1500-035-1 | 76374 | EATON CORPORATION DBA FLUID POWER DIV USE CAGE CODE |
