NSN 5925-01-136-5633 AQBA10175, AQB-A101-75, H59258769219
Product Details | CIRCUIT BREAKER
5925-01-136-5633 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.
Part Alternates: AQBA10175, AQB-A101-75, H59258769219, H5925-876-9219, MIL-C-17361/4, MILC173614, MIL-DTL-17361/4, MILDTL173614, ETN2743, ETN-2743, ETN2753, 30211004, 302-11-004, 375D413G14, 458D509G14, 4835054, 483505-4, 707009 ITEM 236, 707009ITEM236, 5925-01-136-5633, 01-136-5633, 5925011365633, 011365633
Electrical and Electronic Equipment Components | Circuit Breakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 AUG 1982 | 01-136-5633 | 00136 ( CIRCUIT BREAKER ) |

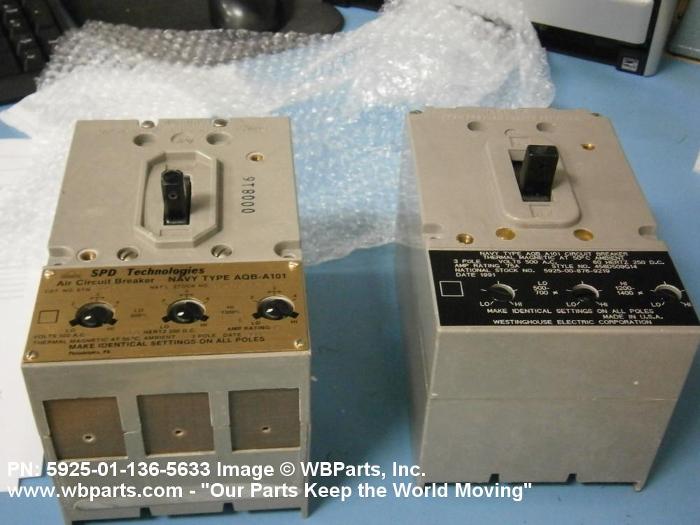

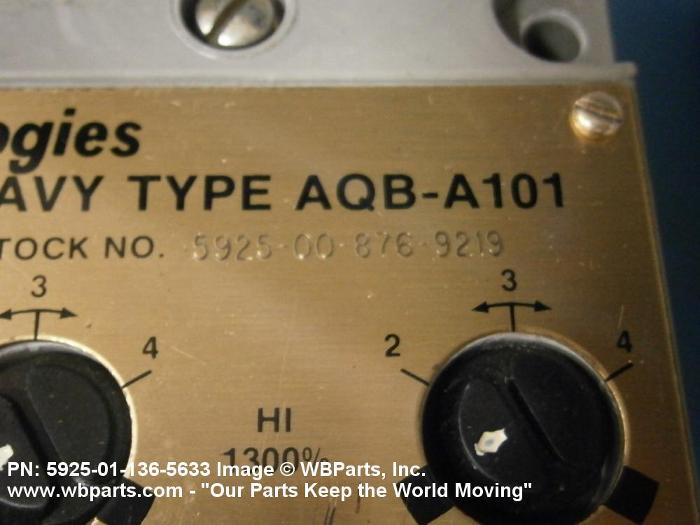

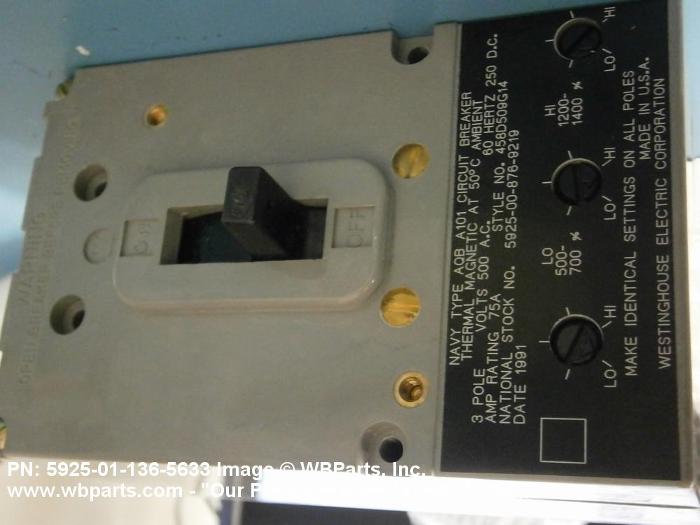

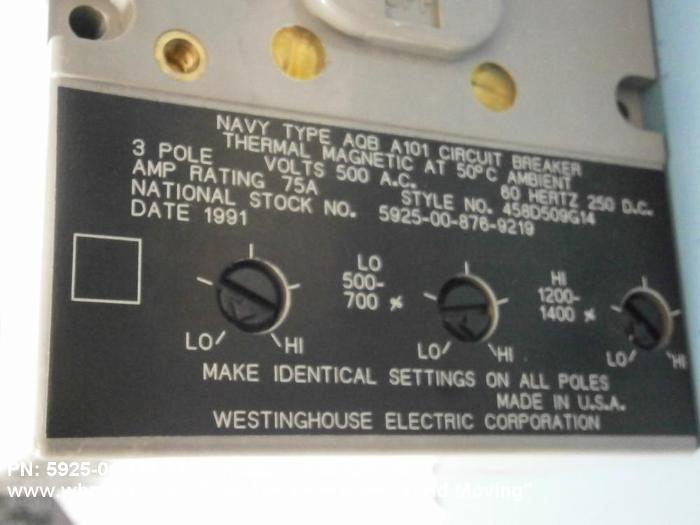

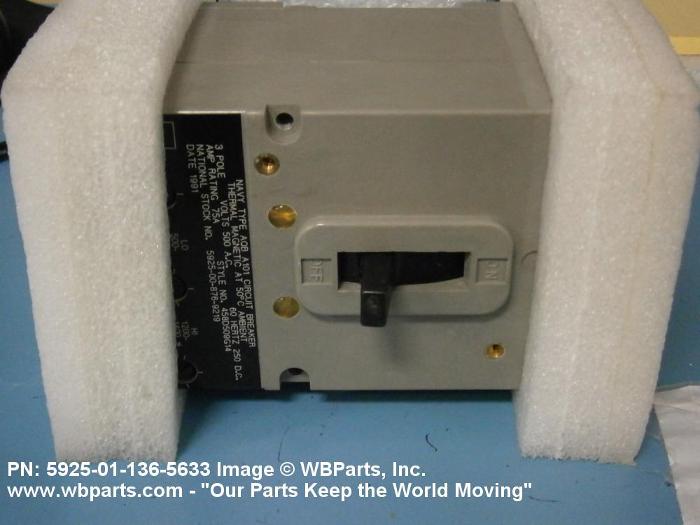

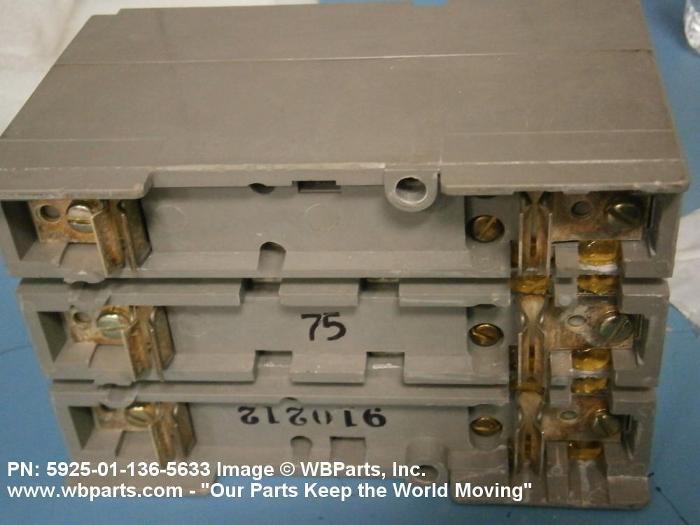

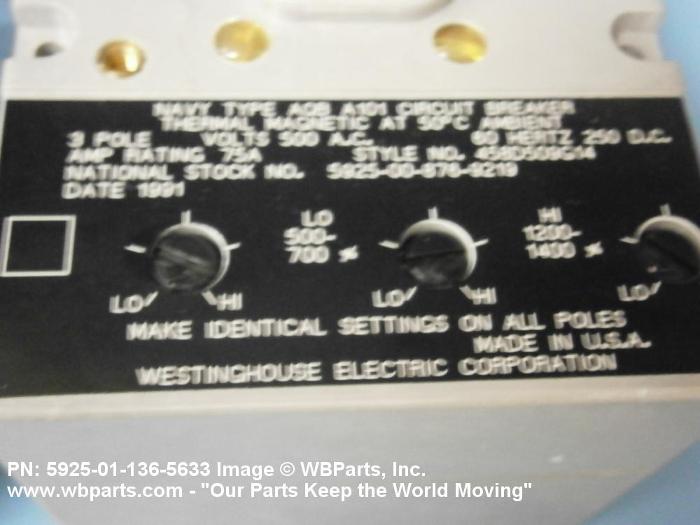

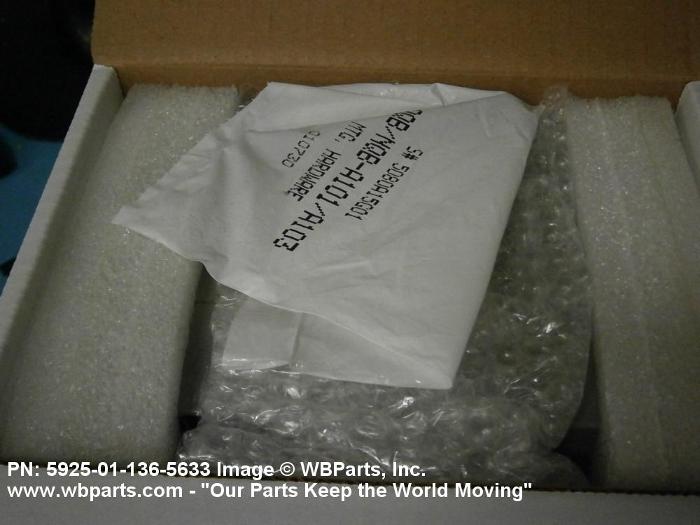

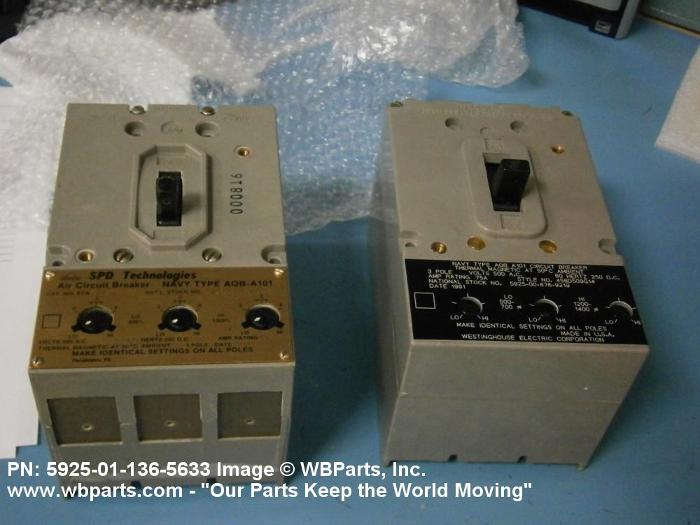

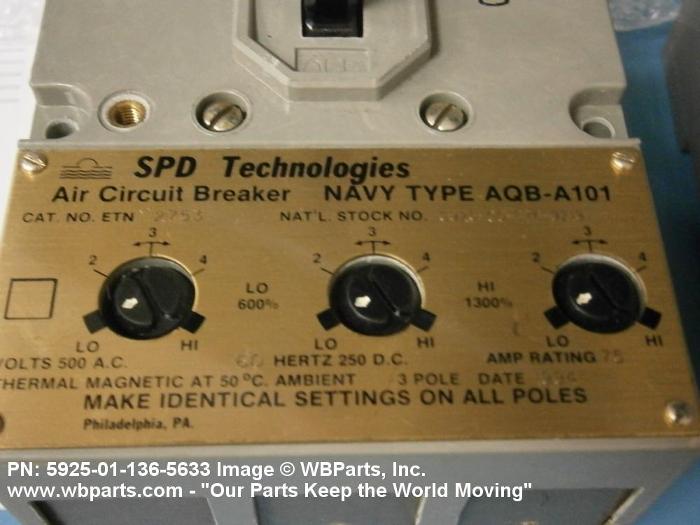

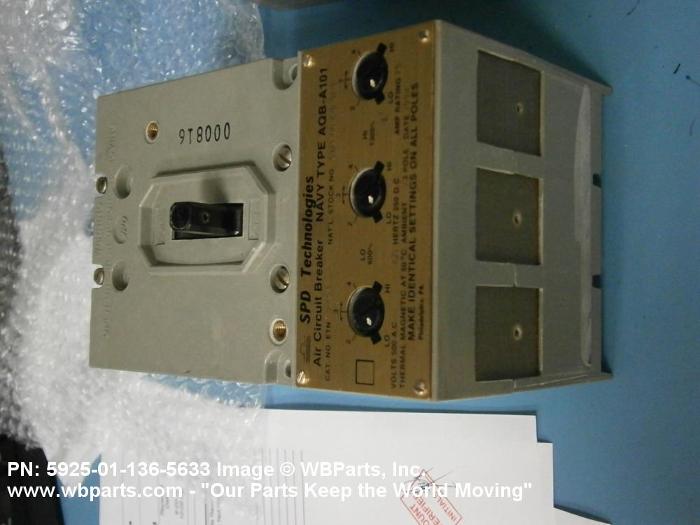

Drawings & Photos | NSN 5925-01-136-5633
Demand History | NSN 5925-01-136-5633
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 458D509G14 | 2025-12-346 | 1 | CN |
| MILDTL173614 | 2025-09-266 | 11 | United States |
| AQBA10175 | 2025-06-169 | 1 | United States |
| 458D509G14 | 2025-05-132 | 2 | United States |
| ETN2743 | 2025-03-65 | 1 | United States |
| AQBA10175 | 2025-02-49 | 1 | United States |
| ETN2743 | 2025-02-36 | 1 | Australia |
| 5925-01-136-5633 | 2025-01-31 | 1 | United States |
| 5925-01-136-5633 | 2024-09-274 | 1 | Taiwan |
| 5925-01-136-5633 | 2024-05-145 | 1 | US |
| 5925-01-136-5633 | 2024-05-145 | 2 | US |
| 458D509G14 | 2023-06-160 | 1 | United States |
| 458D509G14 | 2023-05-150 | 1 | United States |
| 5925-01-136-5633 | 2022-01-11 | 3 | United States |
| MILC173614 | 2021-08-222 | 1 | United States |
| 458D509G14 | 2021-07-194 | 0 | |
| 5925-01-136-5633 | 2021-03-64 | 1 | United States |
| 5925-01-136-5633 | 2020-07-212 | 3 | US |
| 5925-01-136-5633 | 2019-09-263 | 1 | DIBBS-RFPs |
| 5925-01-136-5633 | 2019-01-22 | 21 | DIBBS |
| 5925-01-136-5633 | 2018-08-242 | 20 | DIBBS |
| 5925-01-136-5633 | 2018-03-65 | 26 | DIBBS |
| 5925-01-136-5633 | 2017-11-324 | 23 | DIBBS |
| 5925-01-136-5633 | 2017-09-262 | 16 | DIBBS |
| 5925-01-136-5633 | 2017-05-134 | 7 | DIBBS |
| 5925-01-136-5633 | 2017-01-31 | 17 | DIBBS |
| 5925-01-136-5633 | 2016-05-122 | 14 | DIBBS |
| 5925-01-136-5633 | 2016-02-60 | 25 | DIBBS |
| 5925-01-136-5633 | 2015-06-158 | 25 | DIBBS |
| 5925-01-136-5633 | 2014-08-227 | 18 | DIBBS |
| 5925-01-136-5633 | 2013-11-322 | 24 | DIBBS |
| 5925-01-136-5633 | 2013-06-156 | 21 | DIBBS |
| 5925-01-136-5633 | 2013-01-17 | 32 | DIBBS |
| 5925-01-136-5633 | 2012-08-244 | 28 | DIBBS |
| 5925-01-136-5633 | 2012-06-166 | 2 | United States |
| 5925-01-136-5633 | 2012-06-164 | 2 | United States |
| 5925-01-136-5633 | 2010-10-288 | 46 | US |
| 5925-01-136-5633 | 2010-10-287 | 46 | DIBBS |
| 5925-01-136-5633 | 2010-04-95 | 50 | DIBBS |
| 5925-01-136-5633 | 2010-02-41 | 10 | DIBBS |
| 458D509G14 | 2009-08-233 | 16 | Taiwan |
| AQBA10175 | 2007-03-71 | 99 | US |
| 5925-01-136-5633 | 2007-02-59 | 99 | DIBBS |
Cross Reference | NSN 5925-01-136-5633
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 302-11-004 | 58475 | WESTWOOD CORPORATION DBA NMP DIVISION |
| 375D413G14 | 11660 | WESTINGHOUSE ELECTRIC CORP CONTROL BUSINESS UNIT |
| 375D413G14 | 89946 | EATON CORPORATION |
| 458D509G14 | 02989 | GENERAL ELECTRIC CO GE DRIVE SYSTEMS |
| 458D509G14 | 11660 | WESTINGHOUSE ELECTRIC CORP CONTROL BUSINESS UNIT |
| 458D509G14 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 458D509G14 | 58475 | WESTWOOD CORPORATION DBA NMP DIVISION |
| 483505-4 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 707009 ITEM 236 | 58475 | WESTWOOD CORPORATION DBA NMP DIVISION |
| AQB-A101-75 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| ETN-2743 | 31955 | I-T-E IMPERIAL CORP SUB OF GOULD INC DISTRIBUTION AND |
| ETN2743 | 30086 | SPD ELECTRICAL SYSTEMS, INC |
| ETN2753 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| H5925-876-9219 | 63319 | ELECTRICAL PACKAGING CO INC |
| MIL-C-17361/4 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-17361/4 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5925-01-136-5633
Technical Data | NSN 5925-01-136-5633
| Characteristic | Specifications |
|---|---|
| POLE QUANTITY | 3 |
| MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE | 75.0 AMPERES AC ALL LOCATIONS |
| OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS | 500.0 AC ALL LOCATIONS |
| FREQUENCY IN HERTZ | 400.0 ALL LOCATIONS |
| MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS | 7500.0 AC ALL LOCATIONS |
| CIRCUIT PROTECTION TYPE | OVERCURRENT ALL LOCATIONS |
| TRIP RELEASE METHOD | THERMAL-MAGNETIC ALL LOCATIONS |
| TRIP RELEASE AMBIENT TEMP RATING | 50.0 DEG CELSIUS NOMINAL ALL LOCATIONS |
| TRIP RELEASE CHARACTERISTIC | INSTANTANEOUS AND TIME DELAY ALL LOCATIONS |
| TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT | 5.000 MINIMUM AT 200 PCT AND 15.000 MAXIMUM AT 200 PCT ALL LOCATIONS |
| ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT | 150.0 ALL LOCATIONS |
| RESET METHOD | MANUAL |
| MAIN CONTACT TRIPPING MECHANISM TYPE | TRIP FREE |
| BODY STYLE | 18B MULTIPOLE-SINGLE ACTUATOR TYPE |
| BODY LENGTH | 6.500 INCHES NOMINAL |
| BODY WIDTH | 4.125 INCHES NOMINAL |
| BODY HEIGHT | 4.062 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH | 3.938 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO WIDTH | 1.344 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 4.827 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 3.688 INCHES NOMINAL |
| BOSS HEIGHT | 0.188 INCHES NOMINAL |
| CASE MATERIAL | PLASTIC |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.190 INCHES NOMINAL |
| MANUAL ACTUATOR TYPE AND QUANTITY | 1 TOGGLE |
| ACTUATOR FUNCTION | TRIP-RESET |
| ACTUATOR POSITION DESIGNATION | AT POLE TWO |
| TERMINAL TYPE AND QUANTITY | 6 QUICK DISCONNECT, MALE |
| INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED | SHOCK RESISTANT AND VIBRATION RESISTANT |
| SPECIAL FEATURES | CIRCUIT BREAKER SUPPLIED WITH TWO THREADED METAL INSERTS |
| TEST DATA DOCUMENT | 81349-MIL-C-17361 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-17361/4 GOVERNMENT SPECIFICATION |
| III ARC QUENCHING METHOD | AIR |
| III STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
| III SPECIAL HANDLING FEATURE | MAGNETIC |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD | AQB-A101-75 |
Restrictions/Controls & Freight Information | NSN 5925-01-136-5633
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
