NSN 5925-01-167-7747 MS1415415, MS14154-15, AS14154

Product Details | CIRCUIT BREAKER

5925-01-167-7747 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.

Part Alternates: MS1415415, MS14154-15, AS14154, AS58091, MILC5809, MIL-C-5809, 921672, 300990-009, 583G533J1M1B2S0X15, 583-G533-J1M1-B2S0X-15, 5925-01-167-7747, 01-167-7747, 5925011677747, 300990009, 011677747

Electrical and Electronic Equipment Components | Circuit Breakers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	06 DEC 1983	01-167-7747	00136 ( CIRCUIT BREAKER )

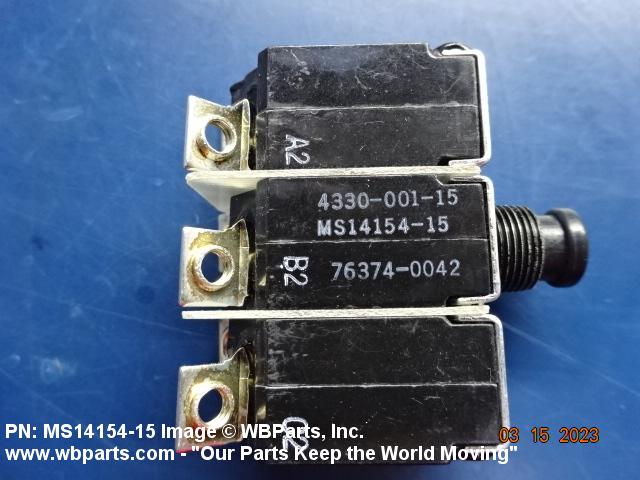

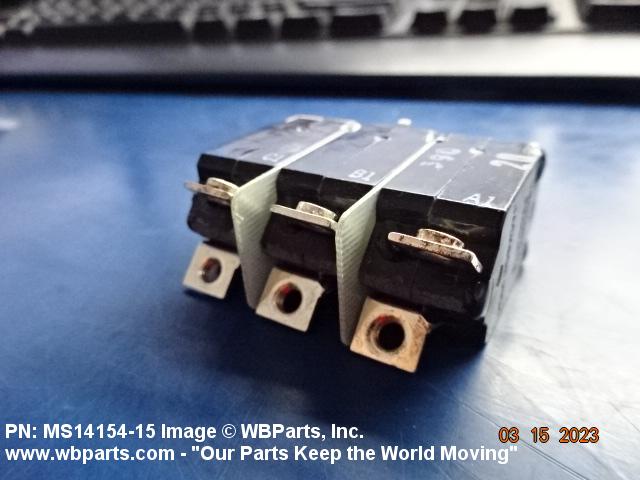

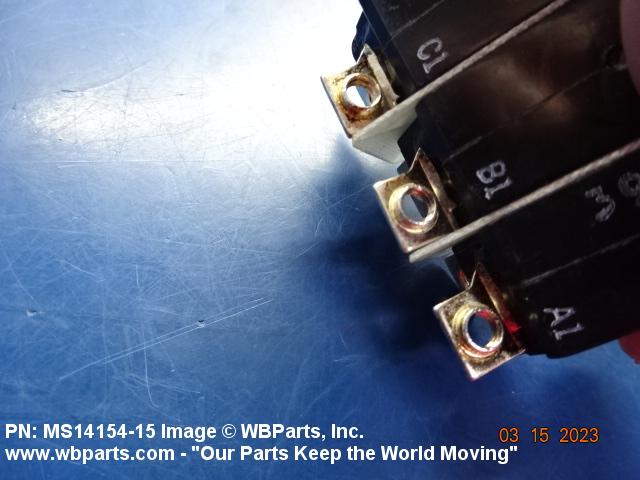

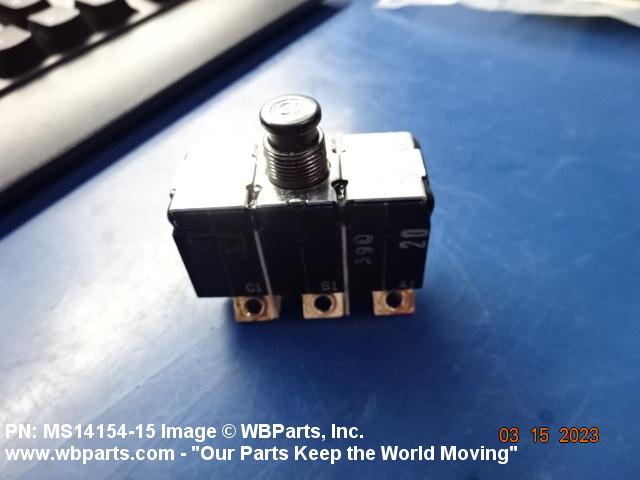

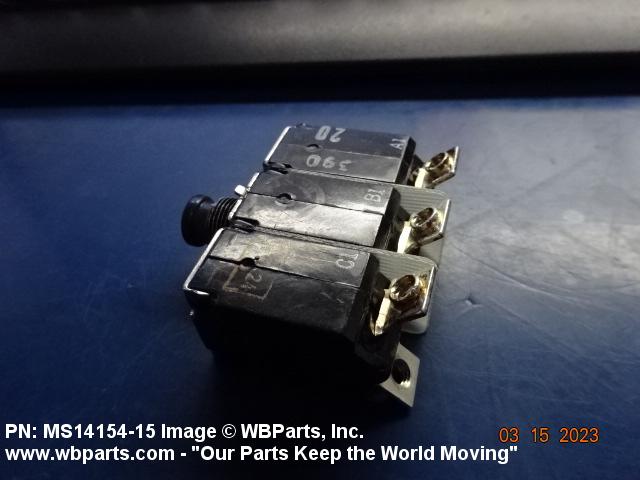

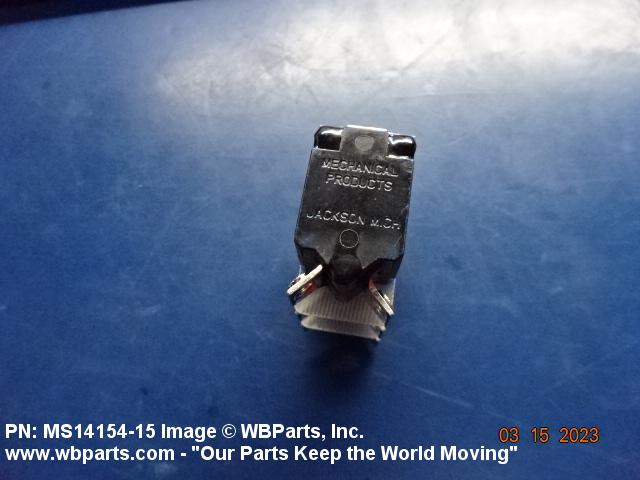

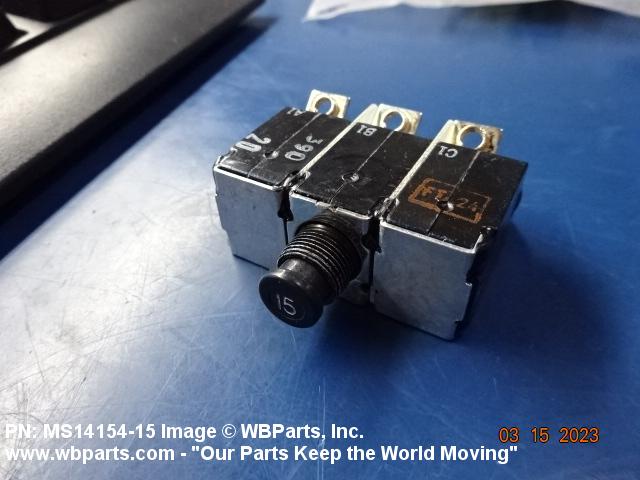

Drawings & Photos | NSN 5925-01-167-7747

Part Number	Request Date	QTY	Origin
5925-01-167-7747	2025-12-338	45	DIBBS
5925-01-167-7747	2024-08-242	69	DIBBS
5925-01-167-7747	2023-09-261	35	DIBBS
5925-01-167-7747	2023-07-201	94	DIBBS
5925-01-167-7747	2023-07-186	94	DIBBS
MS1415415	2023-03-66	30	Denmark
MS1415415	2023-03-62	50	US
5925-01-167-7747	2022-07-193	101	DIBBS
5925-01-167-7747	2021-07-210	142	DIBBS
5925-01-167-7747	2021-07-195	142	DIBBS
MS1415415	2021-02-57	80	CN
5925-01-167-7747	2020-08-217	29	DIBBS
5925-01-167-7747	2020-07-203	22	DIBBS
5925-01-167-7747	2020-06-173	133	DIBBS
AS58091	2018-05-121	5	United States
5925-01-167-7747	2017-03-61	101	DIBBS
5925-01-167-7747	2016-03-91	116	DIBBS
5925-01-167-7747	2015-12-340	162	DIBBS
5925-01-167-7747	2015-09-265	92	DIBBS
5925-01-167-7747	2014-12-352	72	DIBBS
5925-01-167-7747	2013-11-325	66	DIBBS
5925-01-167-7747	2013-05-141	44	DIBBS
5925-01-167-7747	2013-01-17	9	Italy
5925-01-167-7747	2011-07-190	77	DIBBS
MIL-C-5809	2011-06-155	1	Saudi Arabia
5925-01-167-7747	2011-04-104	65	DIBBS
5925-01-167-7747	2011-04-91	57	DIBBS
MS1415415	2011-03-62	4	United States
5925-01-167-7747	2011-01-07	60	DIBBS
5925-01-167-7747	2010-07-210	16	DIBBS
5925-01-167-7747	2010-06-175	1	US
5925-01-167-7747	2010-05-121	49	DIBBS
MS1415415	2010-02-39	1	US
583G533J1M1B2S0X15	2009-11-308	1	US
MS1415415	2009-11-308	0	US
5925-01-167-7747	2009-10-301	49	DIBBS
5925-01-167-7747	2008-12-338	173	DIBBS
5925-01-167-7747	2008-02-50	46	DIBBS
5925-01-167-7747	2008-01-08	109	DIBBS
5925-01-167-7747	2007-08-240	49	US
5925-01-167-7747	2007-08-227	49	DIBBS
5925-01-167-7747	2007-05-149	126	DIBBS
5925-01-167-7747	2007-04-93	82	DIBBS

Cross Reference | NSN 5925-01-167-7747

Part Number	Cage Code	Manufacturer
300990-009	19059	DATAMETRICS CORPORATION
583-G533-J1M1-B2S0X-15	06402	OAKLAND INDUSTRIES LTD DBA E-T-A CIRCUIT BREAKERS
921672	34228	L-3 COMMUNICATIONS CORPORATION DBA L-3 KEO
AS14154	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS58091	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MIL-C-5809	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS14154-15	76374	EATON CORPORATION DBA FLUID POWER DIV USE CAGE CODE
MS14154-15	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS14154-15	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS14154-15	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5925-01-167-7747

Compare

Related Products | NSN 5925-01-167-7747

5925-01-167-8026, 5925-01-167-8144, 5925-01-167-9769, 5925-01-168-0198, 5925-01-168-1801

Technical Data | NSN 5925-01-167-7747

Characteristic	Specifications
POLE QUANTITY	3
MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE	15.0 AMPERES AC ALL LOCATIONS
OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS	200.0 AC ALL LOCATIONS
FREQUENCY IN HERTZ	400.0 ALL LOCATIONS
MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS	5000.0 AC ALL LOCATIONS
CIRCUIT PROTECTION TYPE	OVERCURRENT ALL LOCATIONS
TRIP RELEASE METHOD	THERMAL ALL LOCATIONS
INTERNAL TRIP RELEASE CONFIGURATION	SERIES TRIP ALL LOCATIONS
TRIP RELEASE AMBIENT TEMP RATING	25.0 DEG CELSIUS NOMINAL ALL LOCATIONS
TRIP RELEASE CHARACTERISTIC	TIME DELAY ALL LOCATIONS
TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT	4.000 MINIMUM AT 200 PCT AND 20.000 MAXIMUM AT 200 PCT ALL LOCATIONS
ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT	135.0 ALL LOCATIONS
RESET METHOD	MANUAL
MAIN CONTACT TRIPPING MECHANISM TYPE	TRIP FREE
BODY STYLE	5B MULTIPOLE-SINGLE ACTUATOR TYPE
BUSHING LENGTH	0.219 INCHES MINIMUM AND 0.281 INCHES MAXIMUM
BODY LENGTH	0.781 INCHES MAXIMUM
BODY WIDTH	1.840 INCHES MAXIMUM
BODY HEIGHT	1.381 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH	0.469 INCHES MINIMUM AND 0.531 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO WIDTH	0.593 INCHES MINIMUM AND 0.655 INCHES MAXIMUM
CASE MATERIAL	PLASTIC
MOUNTING FACILITY TYPE AND QUANTITY	1 THREADED BUSHING
THREAD SERIES DESIGNATOR	UNS
NOMINAL THREAD SIZE	0.469 INCHES
THREAD QUANTITY PER INCH	32
MANUAL ACTUATOR TYPE AND QUANTITY	1 PUSH-PULL
ACTUATOR FUNCTION	TRIP-RESET
ACTUATOR POSITION DESIGNATION	AT POLE TWO
TERMINAL TYPE AND QUANTITY	6 SCREW
INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED	FUNGUS PROOF AND SHOCKPROOF AND VIBRATIONPROOF
TEST DATA DOCUMENT	81349-MIL-C-5809 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS14154 GOVERNMENT STANDARD
III ARC QUENCHING METHOD	MAGNETIC BLOWOUT
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE
III FRAGILITY FACTOR	MODERATELY RUGGED
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-C-5809
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS14154-15

Restrictions/Controls & Freight Information | NSN 5925-01-167-7747

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	658	unknown
Originating Activity Code	ZE	New Zealand ZF ZG
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5925-01-167-7747

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
