NSN 5925-01-202-8350 APL1578321, APL-15-7832-1, 408669
Product Details | CIRCUIT BREAKER
5925-01-202-8350 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.
Part Alternates: APL1578321, APL-15-7832-1, 408669, 5925-01-202-8350, 01-202-8350, 5925012028350, 012028350
Electrical and Electronic Equipment Components | Circuit Breakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 MAR 1985 | 01-202-8350 | 00136 ( CIRCUIT BREAKER ) |

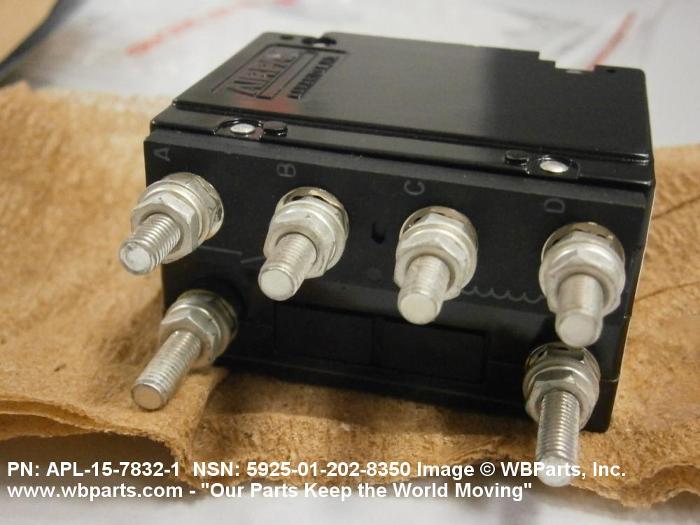

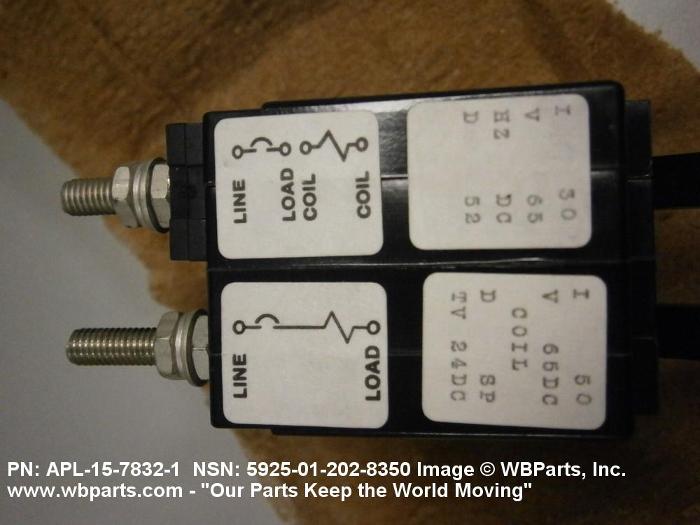

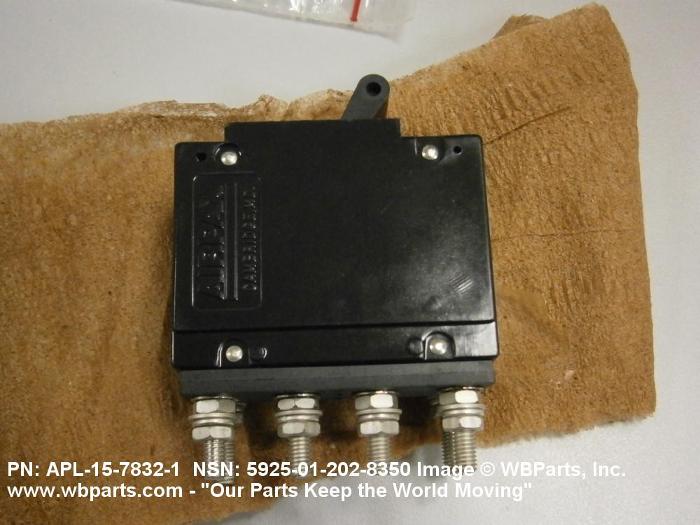

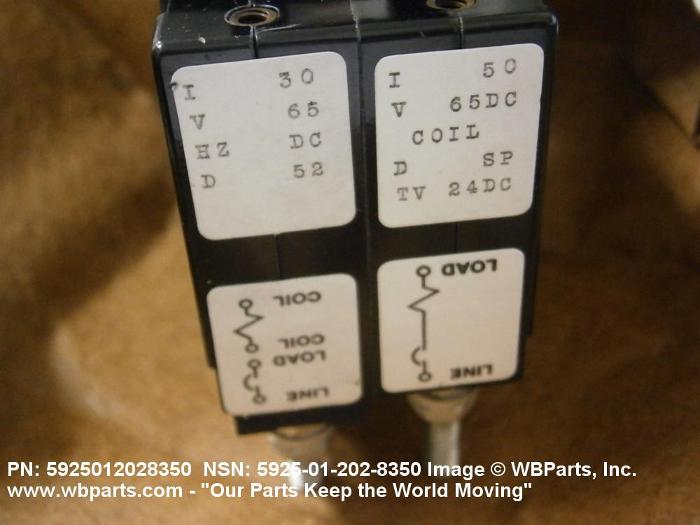

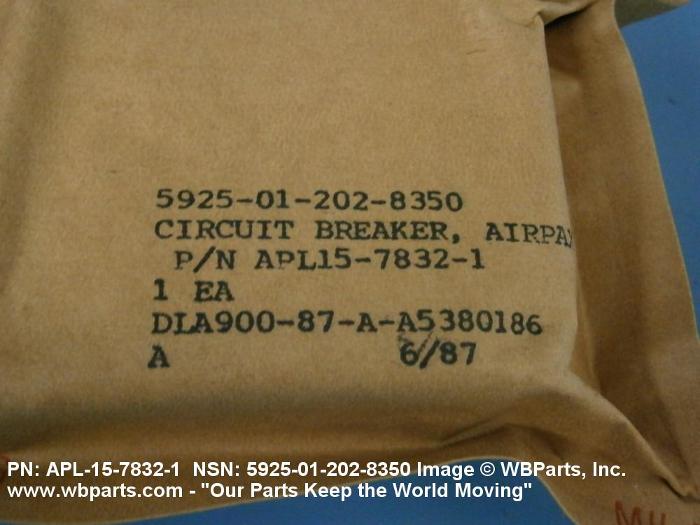

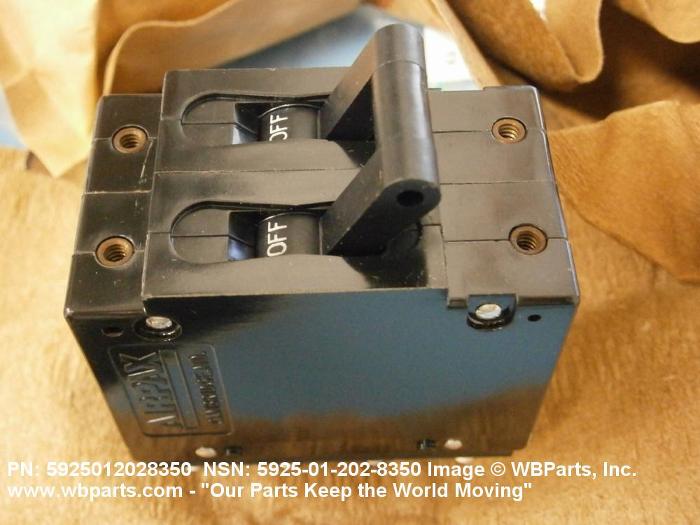

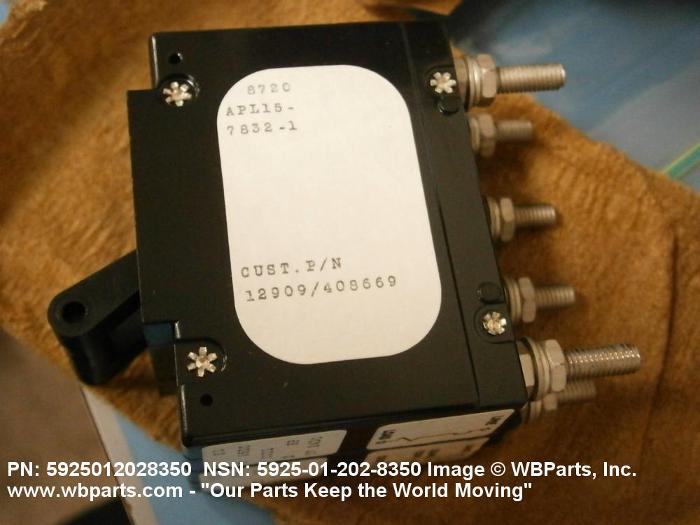

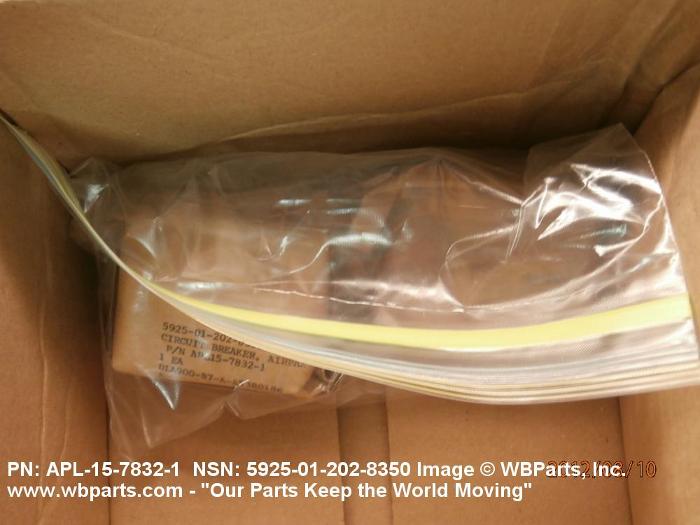

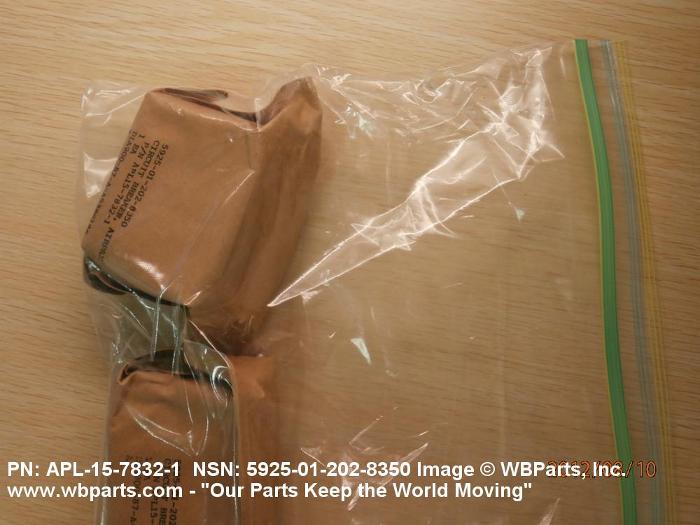

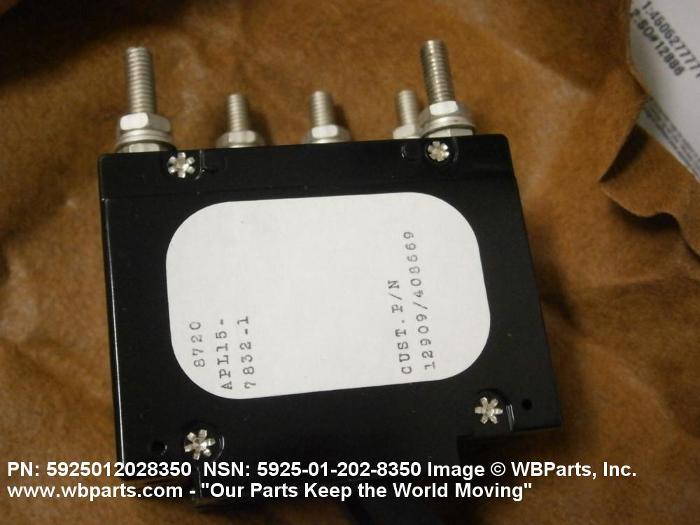

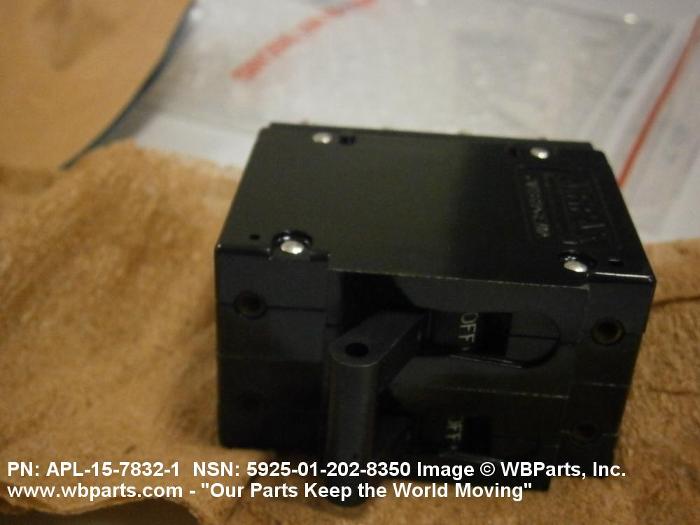

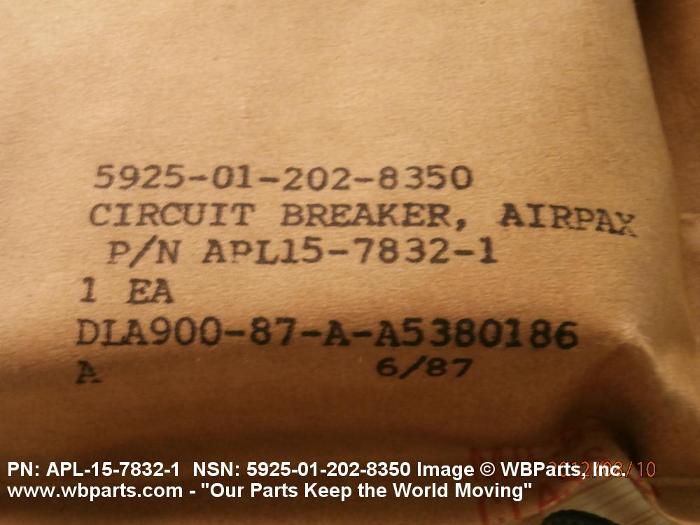

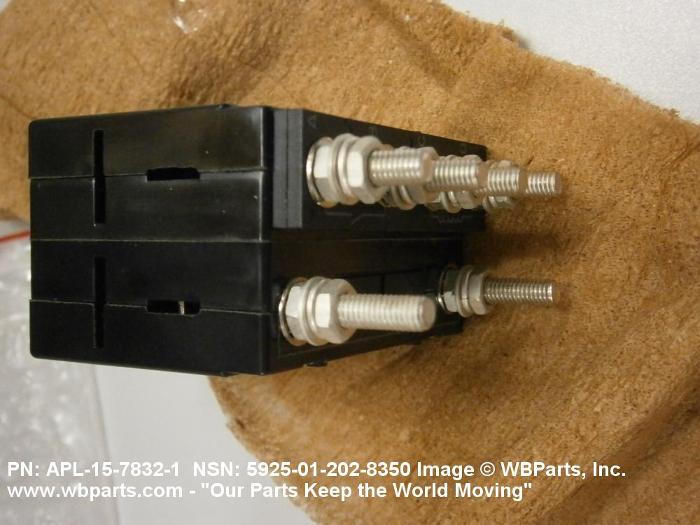

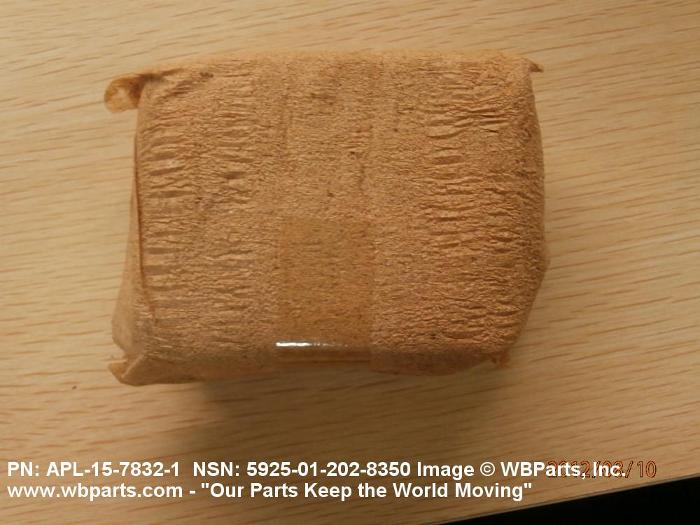

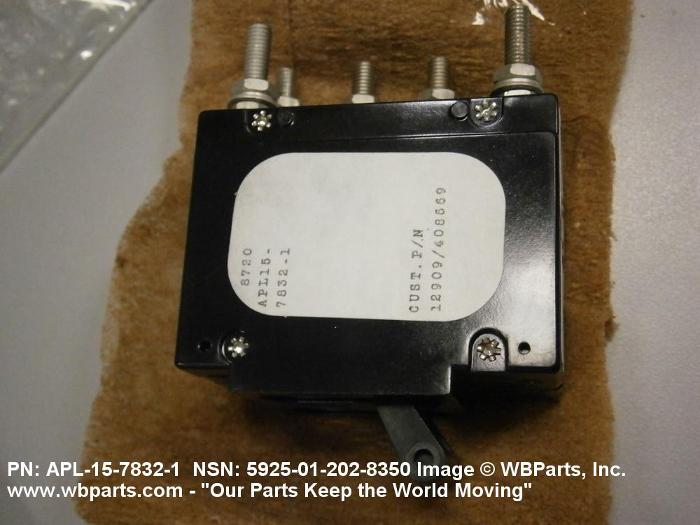

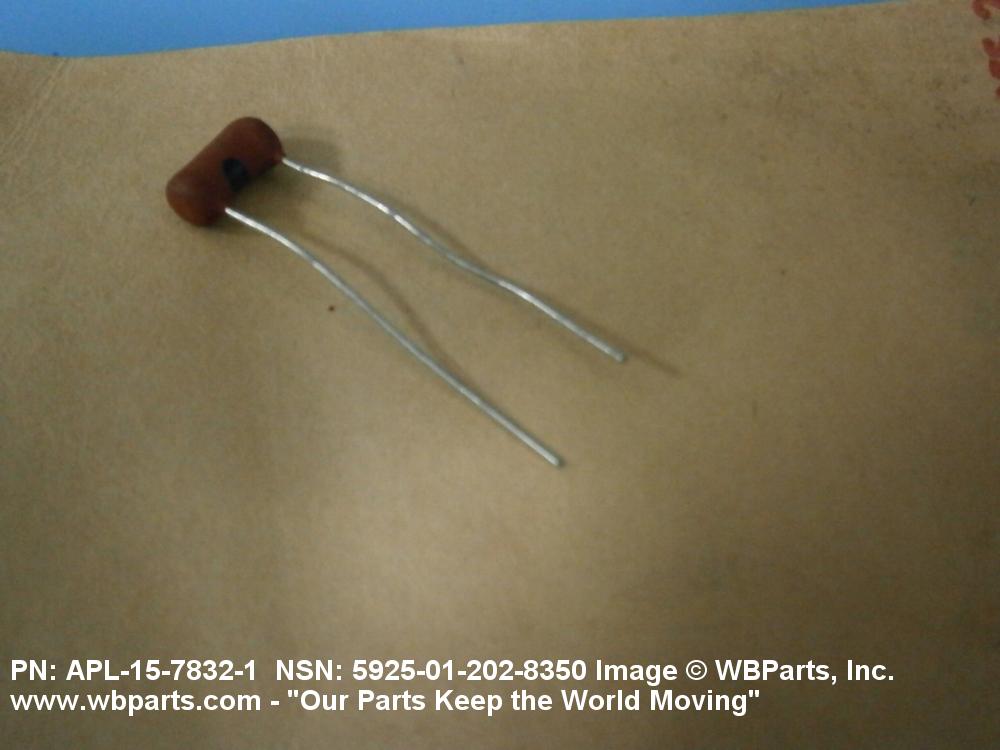

Drawings & Photos | NSN 5925-01-202-8350
Demand History | NSN 5925-01-202-8350
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| APL1578321 | 2015-03-61 | 1 | United States |
| APL1578321 | 2014-10-275 | 1 | United States |
| APL1578321 | 2014-09-252 | 1 | United States |
| APL1578321 | 2013-03-73 | 2 | United States |
| APL1578321 | 2012-08-220 | 2 | United States |
| 5925-01-202-8350 | 2012-06-164 | 1 | United States |
| 5925-01-202-8350 | 2012-04-94 | 1 | United States |
| 5925-01-202-8350 | 2011-10-294 | 1 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5925-01-202-8350
Technical Data | NSN 5925-01-202-8350
| Characteristic | Specifications |
|---|---|
| MANUAL ACTUATOR TYPE AND QUANTITY | 2 TOGGLE |
| MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE | 30.0 AMPERES DC SECOND LOCATION |
| BODY WIDTH | 1.500 INCHES NOMINAL |
| TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT | 2.500 MINIMUM AT 200 PCT SECOND LOCATION AND 8.000 MAXIMUM AT 200 PCT SECOND LOCATION |
| STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS | 65.0 DC ALL LOCATIONS |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH | 0.667 INCHES NOMINAL AND 1.440 INCHES NOMINAL |
| CASE MATERIAL | PLASTIC |
| MAIN CONTACT TRIPPING MECHANISM TYPE | TRIP FREE |
| INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED | GENERAL PURPOSE |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO WIDTH | 0.750 INCHES MAXIMUM |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 2.060 INCHES NOMINAL |
| BODY LENGTH | 2.490 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC |
| TRIP RELEASE METHOD | MAGNETIC-HYDRAULIC ALL LOCATIONS |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 2.437 INCHES NOMINAL |
| MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS | 1000.0 DC ALL LOCATIONS |
| BOSS HEIGHT | 0.675 INCHES NOMINAL |
| ACTUATOR POSITION DESIGNATION | AT EACH POLE |
| POLE QUANTITY | 2 |
| TRIP RELEASE CHARACTERISTIC | TIME DELAY SECOND LOCATION |
| TERMINAL TYPE AND QUANTITY | 6 THREADED STUD |
| FRAGILITY FACTOR | MODERATELY RUGGED |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 0.750 INCHES NOMINAL |
| MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE | 50.0 AMPERES DC FIRST LOCATION |
| BODY STYLE | MULTIPOLE-MULTIPLE ACTUATOR TYPE |
| INTERNAL TRIP RELEASE CONFIGURATION | RELAY TRIP FIRST LOCATION |
| CIRCUIT PROTECTION TYPE | OVERCURRENT ALL LOCATIONS |
| ACTUATOR FUNCTION | TRIP-RESET |
| ARC QUENCHING METHOD | MAGNETIC BLOWOUT |
| RESET METHOD | MANUAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT | 138.0 ALL LOCATIONS |
| INTERNAL TRIP RELEASE CONFIGURATION | SERIES TRIP SECOND LOCATION |
| TRIP RELEASE CHARACTERISTIC | INSTANTANEOUS FIRST LOCATION |
| EXTERNAL ACTUATOR LINKAGE ARRANGEMENT | ONE AND TWO LINKED |
Restrictions/Controls & Freight Information | NSN 5925-01-202-8350
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
