NSN 5925-01-228-3032 APG11116430301, APG-111-1-64-303-01, 4030030

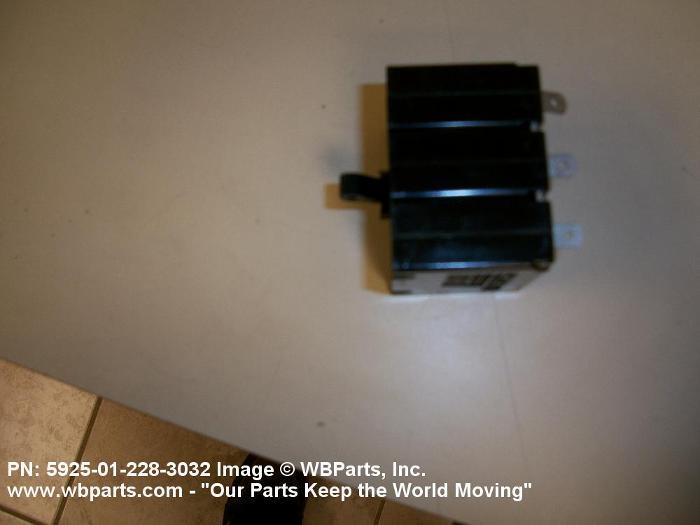

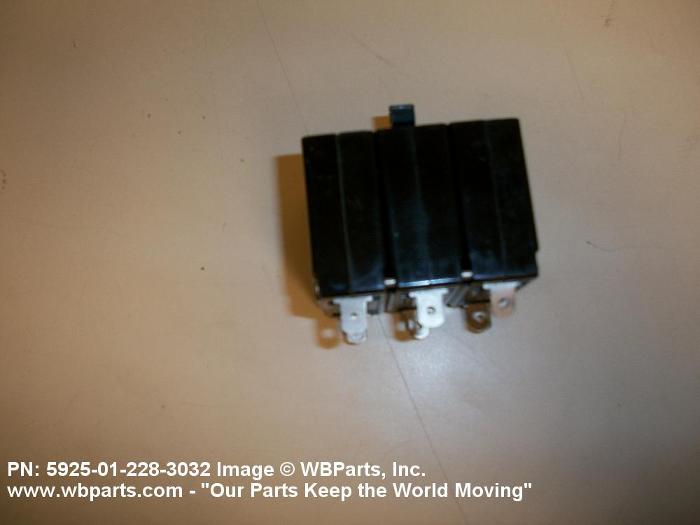

Product Details | CIRCUIT BREAKER
5925-01-228-3032 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.
Part Alternates: APG11116430301, APG-111-1-64-303-01, 4030030, 5925-01-228-3032, 01-228-3032, 5925012283032, 012283032
Electrical and Electronic Equipment Components | Circuit Breakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 MAR 1986 | 01-228-3032 | 00136 ( CIRCUIT BREAKER ) |
Drawings & Photos | NSN 5925-01-228-3032
Demand History | NSN 5925-01-228-3032
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5925-01-228-3032 | 2010-03-75 | 1 | United States |
| APG11116430301 | 2008-11-330 | 2 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5925-01-228-3032
Related Products | NSN 5925-01-228-3032
Technical Data | NSN 5925-01-228-3032
| Characteristic | Specifications |
|---|---|
| TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT | 0.150 MINIMUM AT 200 PCT AND 3.000 MAXIMUM AT 200 PCT ALL LOCATIONS |
| MOUNTING FACILITY TYPE AND QUANTITY | 6 THREADED HOLE |
| STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE | 30.0 AMPERES AC ALL LOCATIONS |
| CASE MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 6 QUICK DISCONNECT, MALE |
| MAIN CONTACT TRIPPING MECHANISM TYPE | TRIP FREE |
| THREAD QUANTITY PER INCH | 32 |
| THREAD SERIES DESIGNATOR | UNC |
| BODY LENGTH | 2.000 INCHES NOMINAL |
| OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS | 277.0 AC ALL LOCATIONS |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO WIDTH | 0.750 INCHES NOMINAL |
| TRIP RELEASE METHOD | MAGNETIC-HYDRAULIC ALL LOCATIONS |
| SPECIAL FEATURES | ACTUATOR BLACK WITH WHITE MARKINGS |
| INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED | HERMETICALLY SEALED AND SHOCK RESISTANT AND VIBRATION RESISTANT |
| UNPACKAGED UNIT WEIGHT | 6.600 OUNCES |
| FREQUENCY IN HERTZ | 50.0 OR 60.0 ALL LOCATIONS |
| ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT | 115.0 ALL LOCATIONS |
| FRAGILITY FACTOR | MODERATELY RUGGED |
| TRIP RELEASE CHARACTERISTIC | TIME DELAY ALL LOCATIONS |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 0.750 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 2.000 INCHES MAXIMUM |
| CIRCUIT PROTECTION TYPE | OVERCURRENT ALL LOCATIONS |
| ACTUATOR FUNCTION | TRIP-RESET |
| POLE QUANTITY | 3 |
| ARC QUENCHING METHOD | MAGNETIC BLOWOUT |
| RESET METHOD | MANUAL |
| MANUAL ACTUATOR TYPE AND QUANTITY | 1 TOGGLE |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 1.660 INCHES NOMINAL |
| BODY STYLE | MULTIPOLE-SINGLE ACTUATOR TYPE |
| MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS | 5000.0 AC ALL LOCATIONS |
| BOSS HEIGHT | 0.130 INCHES NOMINAL |
| ACTUATOR POSITION DESIGNATION | AT POLE TWO |
| SPECIAL HANDLING FEATURE | MAGNETIC |
| THREAD PITCH DIAMETERS | +0.1177 TO 0.1214 INCHES |
| BODY WIDTH | 2.265 INCHES MAXIMUM |
| INTERNAL TRIP RELEASE CONFIGURATION | SERIES TRIP ALL LOCATIONS |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH | 1.530 INCHES NOMINAL |
