NSN 5925-01-324-6031 MS1415330, MS14153-30, AS14153
Product Details | CIRCUIT BREAKER
5925-01-324-6031 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.
Part Alternates: MS1415330, MS14153-30, AS14153, AS58091, MILC5809G, MIL-C-5809G, 5925-01-324-6031, 01-324-6031, 5925013246031, 013246031
Electrical and Electronic Equipment Components | Circuit Breakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 AUG 1990 | 01-324-6031 | 00136 ( CIRCUIT BREAKER ) |

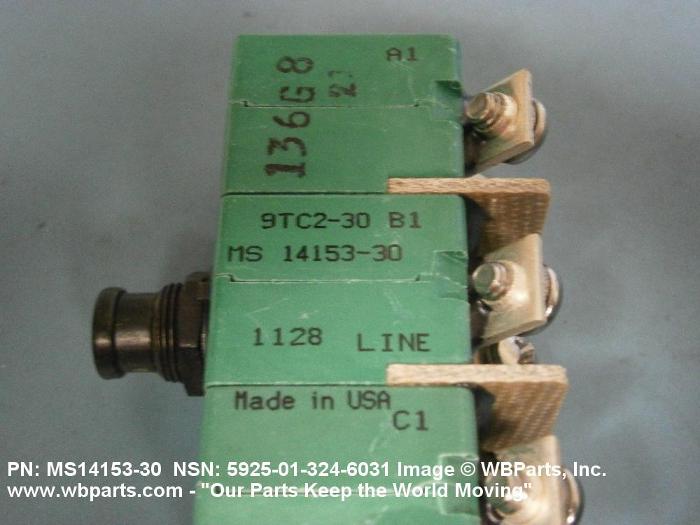

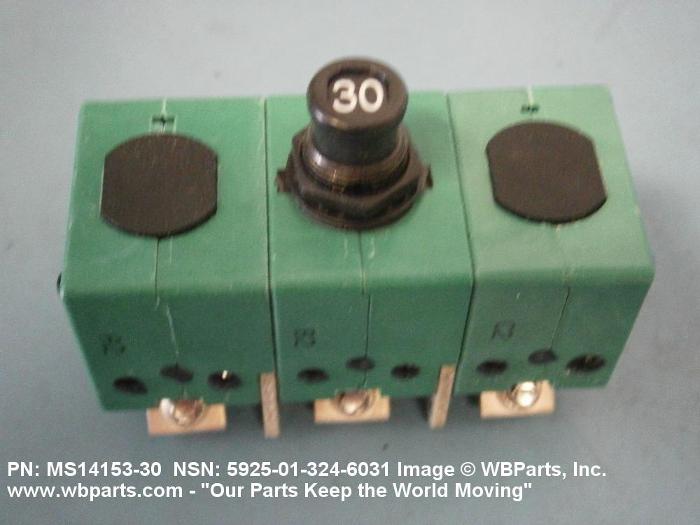

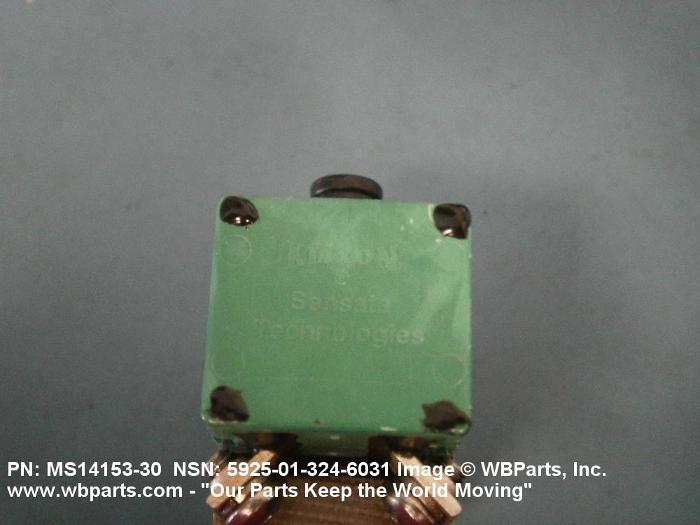

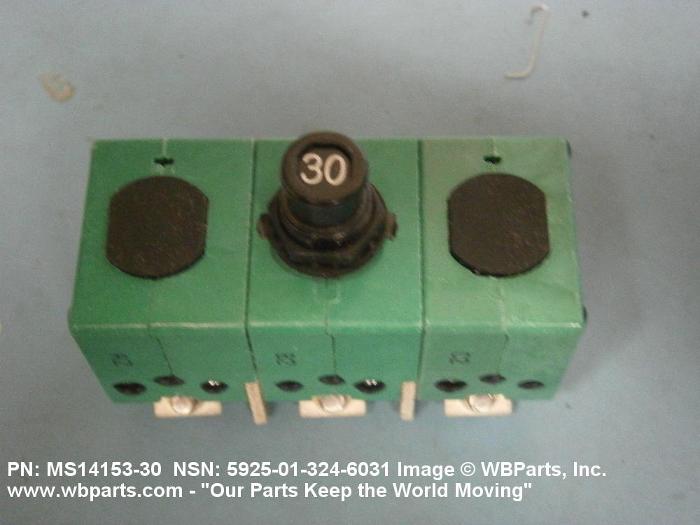

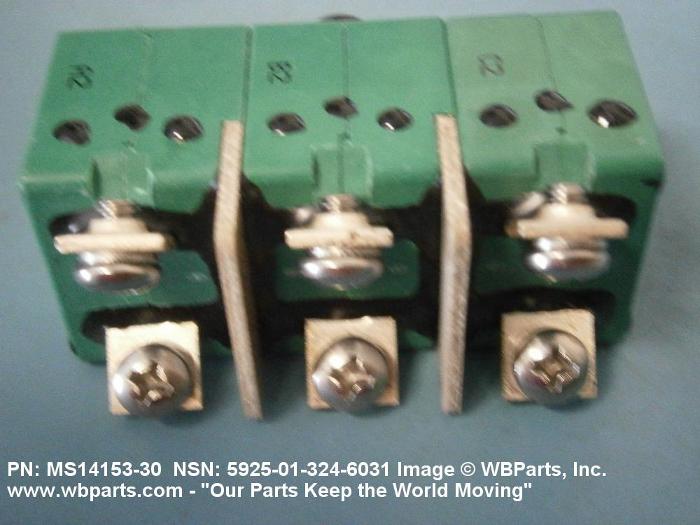

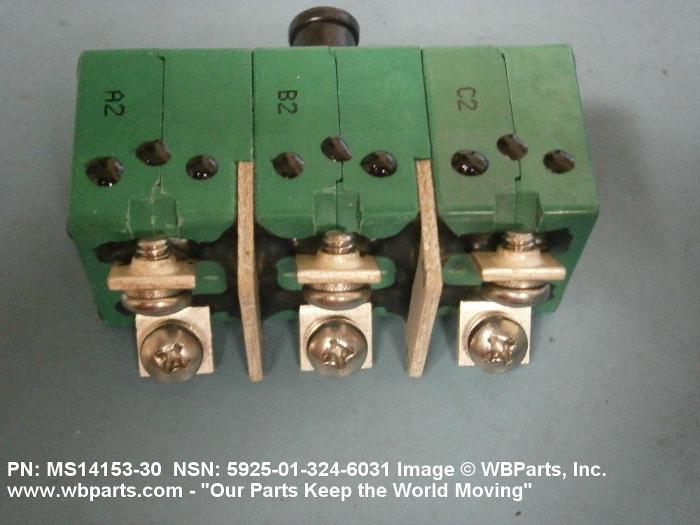

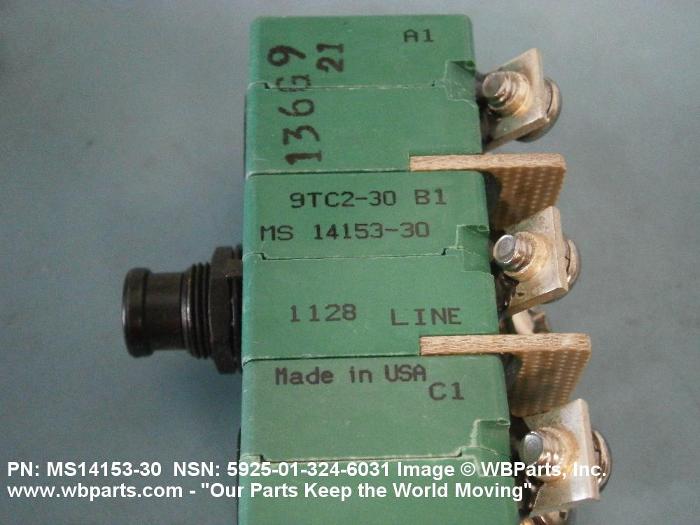

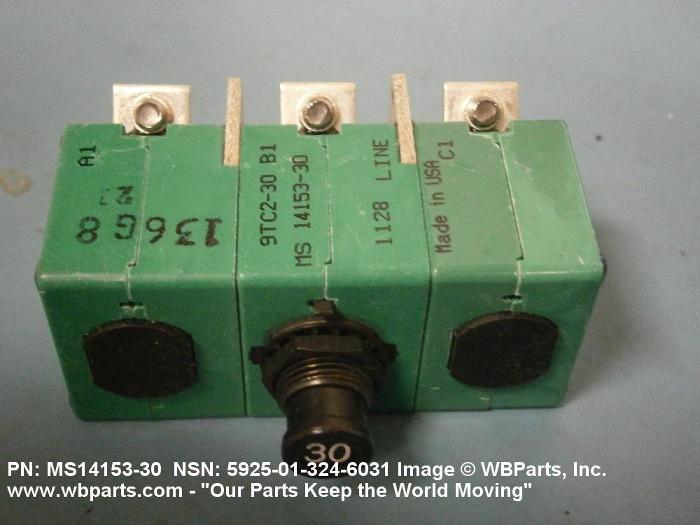

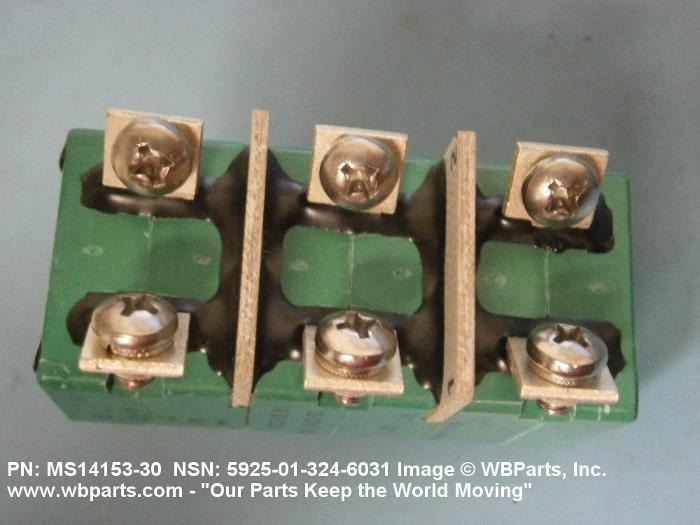

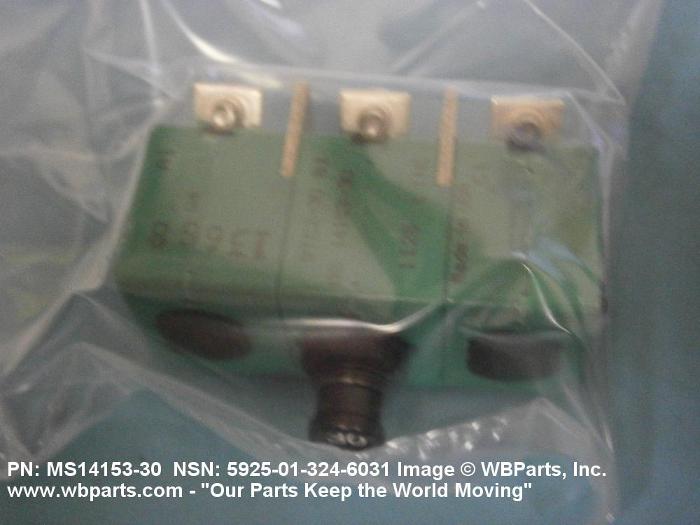

Drawings & Photos | NSN 5925-01-324-6031
Demand History | NSN 5925-01-324-6031
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5925-01-324-6031 | 2025-03-87 | 96 | DIBBS |
| 5925-01-324-6031 | 2025-03-76 | 96 | DIBBS |
| 5925-01-324-6031 | 2024-12-344 | 5 | DIBBS |
| 5925-01-324-6031 | 2024-10-295 | 71 | DIBBS |
| 5925-01-324-6031 | 2024-10-284 | 71 | DIBBS |
| 5925-01-324-6031 | 2024-09-271 | 2 | US |
| 5925-01-324-6031 | 2024-08-214 | 55 | DIBBS |
| 5925-01-324-6031 | 2024-07-190 | 40 | DIBBS |
| 5925-01-324-6031 | 2024-06-177 | 40 | DIBBS |
| 5925-01-324-6031 | 2024-06-176 | 30 | DIBBS |
| 5925-01-324-6031 | 2024-06-163 | 30 | DIBBS |
| 5925-01-324-6031 | 2024-06-162 | 10 | DIBBS |
| 5925-01-324-6031 | 2024-05-151 | 10 | DIBBS |
| 5925-01-324-6031 | 2024-02-45 | 16 | DIBBS |
| 5925-01-324-6031 | 2023-02-44 | 8 | DIBBS |
| 5925-01-324-6031 | 2023-02-33 | 8 | DIBBS |
| 5925-01-324-6031 | 2019-01-31 | 16 | DIBBS |
| 5925-01-324-6031 | 2018-06-179 | 14 | DIBBS |
| AS58091 | 2018-05-121 | 5 | United States |
| 5925-01-324-6031 | 2018-01-10 | 32 | DIBBS |
| 5925-01-324-6031 | 2017-09-263 | 16 | DIBBS |
| 5925-01-324-6031 | 2017-07-190 | 16 | DIBBS |
| 5925-01-324-6031 | 2017-04-103 | 20 | DIBBS |
| 5925-01-324-6031 | 2017-03-65 | 38 | DIBBS |
| 5925-01-324-6031 | 2016-04-95 | 15 | DIBBS |
| 5925-01-324-6031 | 2015-07-210 | 29 | DIBBS |
| 5925-01-324-6031 | 2015-06-166 | 28 | DIBBS |
| 5925-01-324-6031 | 2015-05-126 | 7 | DIBBS |
| MS1415330 | 2014-05-139 | 35 | United States |
| 5925-01-324-6031 | 2013-11-309 | 35 | United States |
| 5925-01-324-6031 | 2013-08-228 | 35 | US |
| 5925-01-324-6031 | 2013-07-212 | 35 | United States |
| MS1415330 | 2013-07-211 | 150 | CN |
| MS1415330 | 2013-04-92 | 5 | US |
| MS1415330 | 2012-04-115 | 2 | us |
| 5925-01-324-6031 | 2008-12-364 | 16 | DIBBS |
| MS1415330 | 2008-11-323 | 15 | us |
| 5925-01-324-6031 | 2008-10-304 | 15 | DIBBS |
| 5925-01-324-6031 | 2008-08-242 | 9 | DIBBS |
| 5925-01-324-6031 | 2008-06-176 | 9 | DIBBS |
| MS1415330 | 2008-02-50 | 50 | Mexico |
Cross Reference | NSN 5925-01-324-6031
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS14153 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS58091 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MIL-C-5809G | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS14153-30 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS14153-30 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5925-01-324-6031
Related Products | NSN 5925-01-324-6031
Technical Data | NSN 5925-01-324-6031
| Characteristic | Specifications |
|---|---|
| MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE | 30.0 AMPERES AC SINGLE LOCATION |
| OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS | 200.0 AC SINGLE LOCATION |
| FREQUENCY IN HERTZ | 400.0 SINGLE LOCATION |
| BODY LENGTH | 2.300 INCHES MAXIMUM |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.381 INCHES MAXIMUM |
| MANUAL ACTUATOR TYPE AND QUANTITY | 1 PUSH-PULL |
| TEST DATA DOCUMENT | 96906-MS14153 STANDARD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-5809G |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS14153-30 |
Restrictions/Controls & Freight Information | NSN 5925-01-324-6031
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | YB | Spain YD YE |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5925-01-324-6031
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
