NSN 5930-00-052-3121 1271, 127-1, 127107
Product Details | TOGGLE SWITCH
5930-00-052-3121 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: 1271, 127-1, 127107, 127-107, 3065307, 306-5307, 5930-00-052-3121, 00-052-3121, 5930000523121, 000523121
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 MAY 1967 | 00-052-3121 | 00184 ( SWITCH, TOGGLE ) |
Drawings & Photos | NSN 5930-00-052-3121
Demand History | NSN 5930-00-052-3121
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1271 | 2014-09-251 | 1 | Singapore |
| 127-1 | 2011-06-169 | 1 | Spain |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-052-3121
Related Products | NSN 5930-00-052-3121
Technical Data | NSN 5930-00-052-3121
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 5.000 AMPERES RESISTIVE DC |

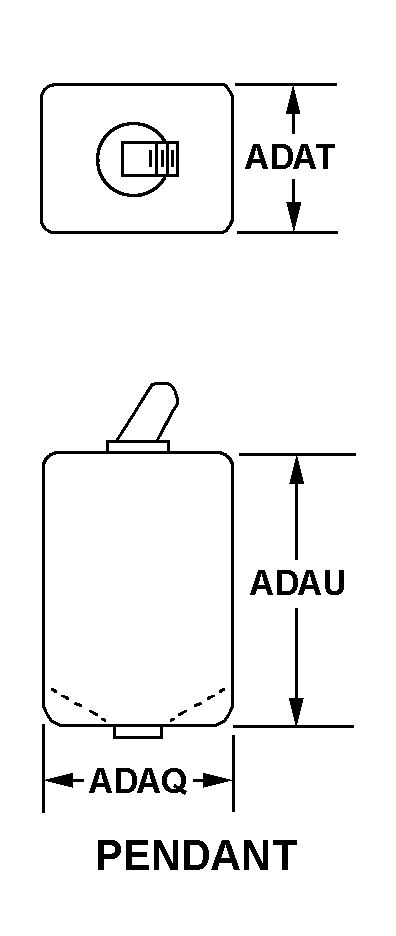

| BODY STYLE | 23P PENDANT |
| BODY LENGTH | 1.370 INCHES NOMINAL |
| BODY WIDTH | 1.215 INCHES NOMINAL |
| BODY HEIGHT | 1.400 INCHES NOMINAL |
| ACTUATOR STYLE | 18 RECTANGULAR |
| ACTUATOR LENGTH | 0.468 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.370 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND CENTER POSITION MAINTAINED |
| ACTUATOR COLOR | BLACK SINGLE ACTUATOR |
| TERMINAL TYPE AND QUANTITY | 6 WIRE LEAD |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | HUMIDITY RESISTANT AND FUNGUS RESISTANT |
| III OVERALL LENGTH | 1.370 INCHES NOMINAL |
| III OVERALL WIDTH | 1.215 INCHES NOMINAL |
| III OVERALL HEIGHT | 2.470 INCHES NOMINAL |
| MANUFACTURERS CODE | 0J481 |
| MFR SOURCE CONTROLLING REFERENCE | 127-1 |
