NSN 5930-00-064-2455 MS423/07-04, MS4230704, M5423/07-04

Product Details | DUST AND MOISTURE SEAL BOOT

5930-00-064-2455 A flexible, nonmetallic item designed to prevent entry of dust, moisture and other contaminants into critical areas around shafts, levers, electrical wires and hoses. Sealing may be either static or dynamic. The item may include mounting hardware (support plates, clamps and the like). Excludes BELLOWS, PROTECTION; GROMMET, NONMETALLIC; and CABLE NIPPLE, ELECTRICAL. See also CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and SHIELD, ELECTRICAL CONNECTOR.20253400020Hardware, Commercial59300008Switches

Part Alternates: MS423/07-04, MS4230704, M5423/07-04, M54230704, N3040BLK, NA6323625, NA632362-5, SYMZ7027710, SYMZ-70277-10, G2217505, G221750-5, MIL-B-5423/7, MILB54237, MILB54237TYPEBSTYLE, MILB5423-7TYPEBSTYLE, MIL-DTL-5423/7, MILDTL54237, 1088823PC2, 63236215, 632362-15, 77677-12X1R01 PIECE 11, 7767712X1R01PIECE11, 8519562, 2562-43548, 40201, 5930-00-064-2455, 00-064-2455, 5930000642455, 000642455, 256243548

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	27 JUN 1967	00-064-2455	19302 ( BOOT, DUST AND MOISTURE SEAL )

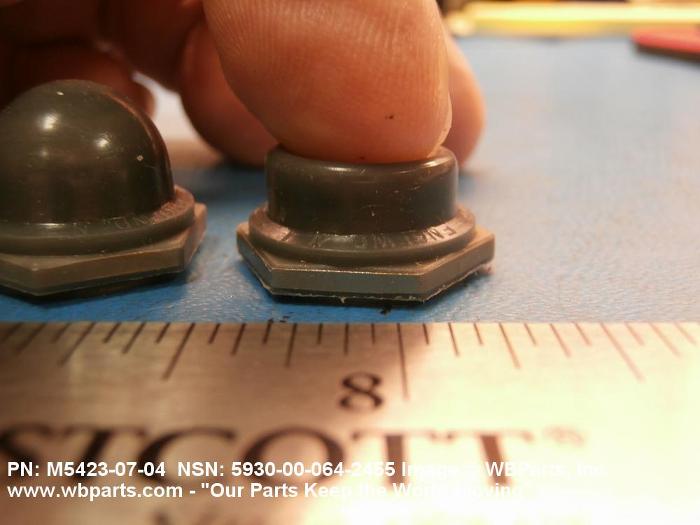

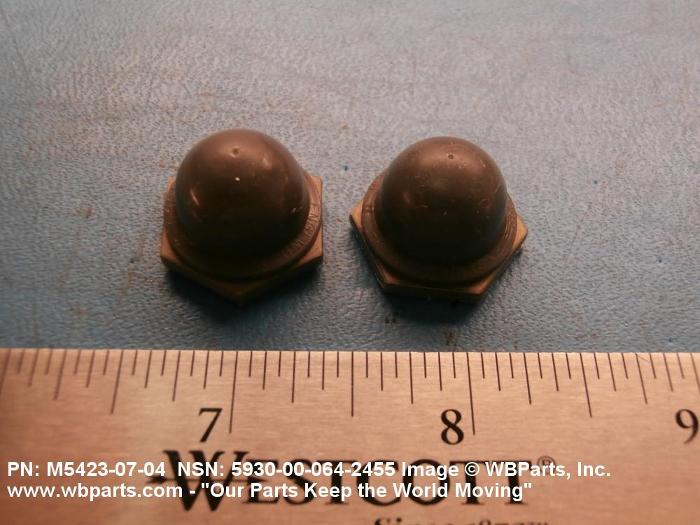

Drawings & Photos | NSN 5930-00-064-2455

Part Number	Request Date	QTY	Origin
5930-00-064-2455	2025-09-266	700	US
5930-00-064-2455	2024-03-65	1855	DIBBS
5930-00-064-2455	2024-01-21	1045	DIBBS
5930-00-064-2455	2023-10-278	1855	DIBBS
5930-00-064-2455	2021-07-182	1327	DIBBS
M54230704	2021-06-161	5	United States
5930-00-064-2455	2019-09-255	1470	DIBBS
5930-00-064-2455	2018-06-179	1283	DIBBS
5930-00-064-2455	2016-05-146	3044	DIBBS
5930-00-064-2455	2015-12-340	1443	DIBBS
5930-00-064-2455	2015-07-193	752	DIBBS
5930-00-064-2455	2015-04-110	250	DIBBS
5930-00-064-2455	2014-02-52	2	Singapore
5930-00-064-2455	2013-01-06	2	Singapore
5930-00-064-2455	2012-10-304	5520	United States
5930-00-064-2455	2012-10-296	2	SG
5930-00-064-2455	2011-03-68	192	MANUAL
5930-00-064-2455	2010-05-133	420	US
5930-00-064-2455	2008-02-36	2184	DIBBS
5930-00-064-2455	2007-08-215	2183	DIBBS

Cross Reference | NSN 5930-00-064-2455

Part Number	Cage Code	Manufacturer
1088823PC2	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
2562-43548	14418	UNISYS CORP DEFENSE SYSTEMS
40201	97539	A P M HEXSEAL CORPORATION
632362-15	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
77677-12X1R01 PIECE 11	96169	ELECTRIC BOAT CORPORATION
8519562	19204	ARMY UNITED STATES DEPARTMENT OF THE
G221750-5	64959	AMERICAN TELEPHONE AND TELEGRAPH CO
G221750-5	70408	AT AND T CORP
M5423/07-04	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-B-5423/7	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-DTL-5423/7	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILB5423-7TYPEBSTYLE	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS423/07-04	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
N3040BLK	97539	A P M HEXSEAL CORPORATION
NA632362-5	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
SYMZ-70277-10	05624	GE AVIATION SYSTEMS LLC DBA GE AVIATION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-00-064-2455

Compare

Related Products | NSN 5930-00-064-2455

5930-00-064-2615, 5930-00-064-2649, 5930-00-064-2665, 5930-00-064-2689, 5930-00-064-2732

Technical Data | NSN 5930-00-064-2455

Characteristic	Specifications
STYLE DESIGNATOR	A24 CLOSED END
OVERALL HEIGHT	0.547 INCHES NOMINAL
MATERIAL THICKNESS	ANY ACCEPTABLE
DOME HEIGHT	0.467 INCHES NOMINAL
BASE HEIGHT	0.186 INCHES NOMINAL
WIDTH ACROSS FLATS	0.750 INCHES NOMINAL
BASE INSIDE DIAMETER	0.516 INCHES NOMINAL
OPENING INSIDE DIAMETER	ANY ACCEPTABLE
MATERIAL	RUBBER SILICONE BODY
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION	DUSTPROOF-NEMA TYPE 13 AND WATERTIGHT-NEMA TYPE 4
MOUNTING METHOD	INTEGRAL THREADED NUT
MOUNTING DEVICE QUANTITY	1
SEALING METHOD	COMPRESSION
BASE THREAD LOCATION	EXTERNAL
THREAD SERIES	UNS
NOMINAL THREAD SIZE	0.469 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	2B
THREAD LENGTH	0.176 INCHES NOMINAL
TEST DATA DOCUMENT	81349-MIL-B-5423 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-B-5423/7 GOVERNMENT SPECIFICATION
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-DTL-5423/7
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M5423/07-04

Restrictions/Controls & Freight Information | NSN 5930-00-064-2455

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	Z	240 months
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194090	WASHERS/SEALS
Less than car load rating
Less than truck load rating	S	60.0
Water commodity Code	846	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5930-00-064-2455

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	S	Surveillance Target Acquisition and Night Observation (STANO)
Weapons Systems/End Item or Homogeneous Group	SA	Radar and Sensor
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Z	240 months
Purchasing	QTY UOM	5 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Z	240 months
Purchasing	QTY UOM	5 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Z	240 months
Purchasing	QTY UOM	5 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Z	240 months
Purchasing	QTY UOM	5 EA : Each
