NSN 5930-00-103-6379 PSF100A, PSF100A-0.5, PSF100A05
Product Details | PRESSURE SWITCH
5930-00-103-6379 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: PSF100A, PSF100A-0.5, PSF100A05, 11242060, 146056, 3376902, 337690-2, 9244580001, 924458-0001, 5930-00-103-6379, 00-103-6379, 5930001036379, 001036379
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 JUN 1968 | 00-103-6379 | 00206 ( SWITCH, PRESSURE ) |

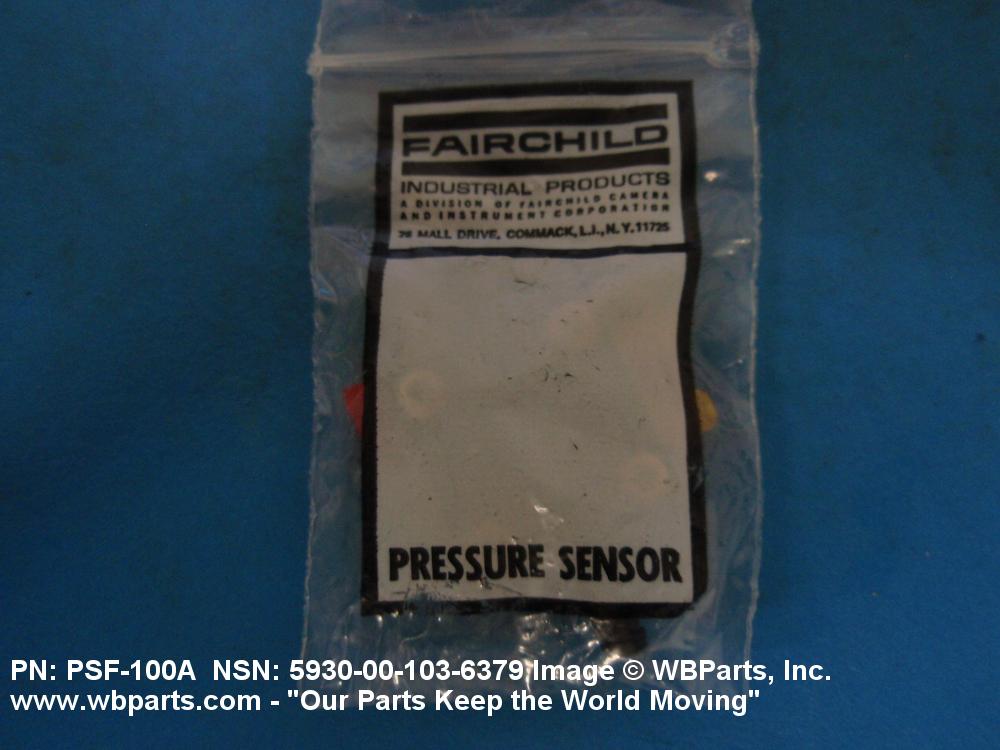

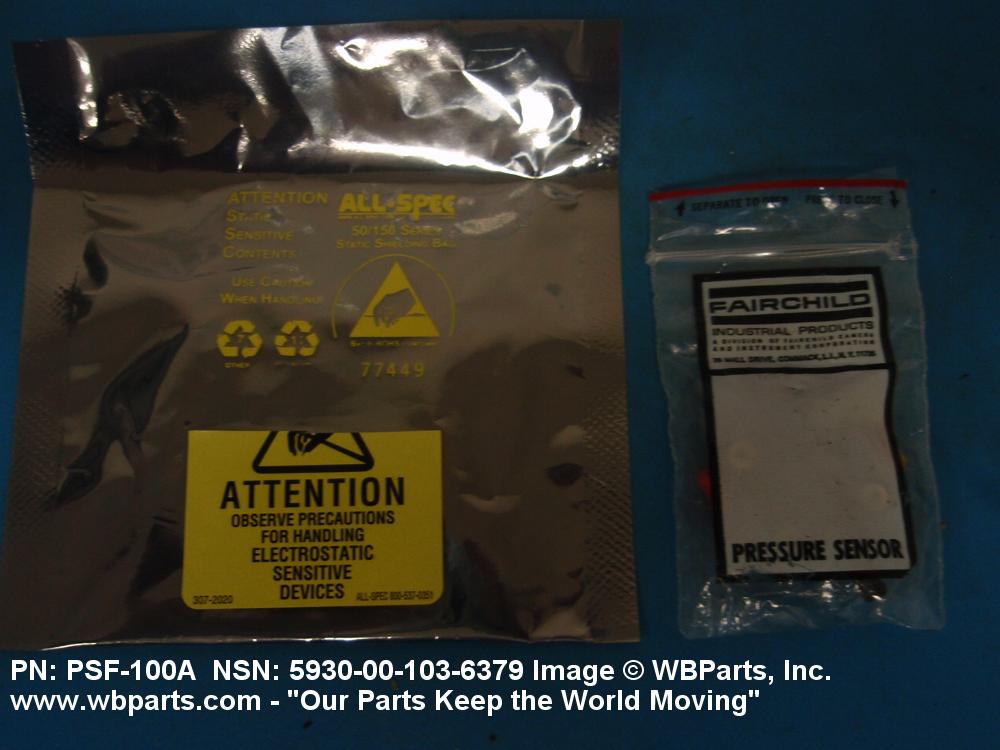

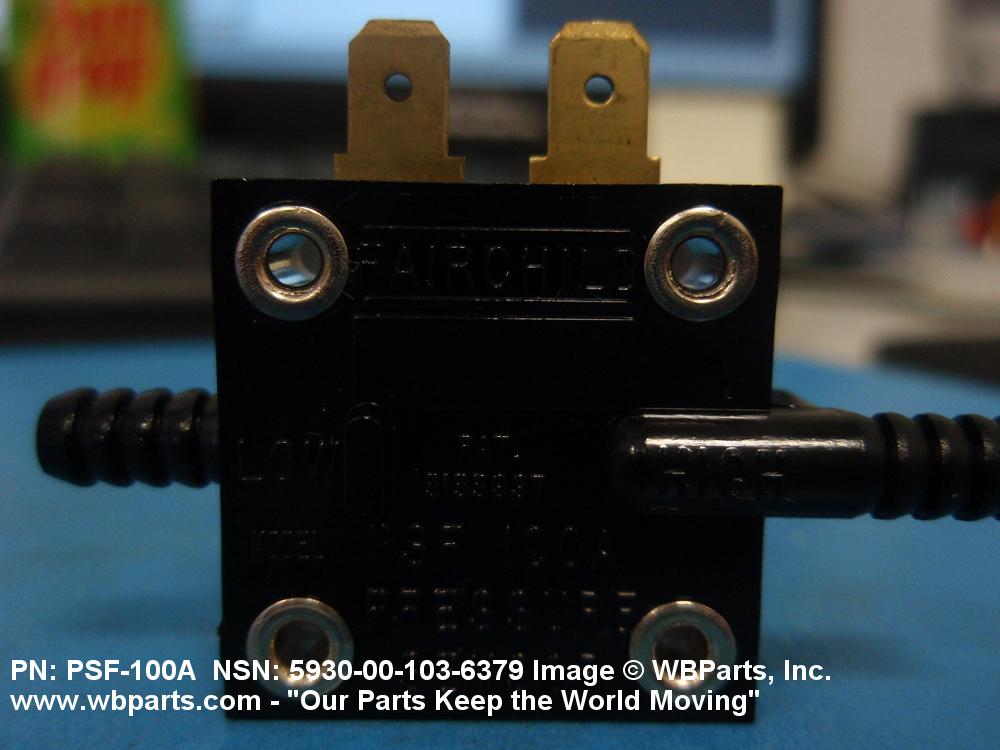

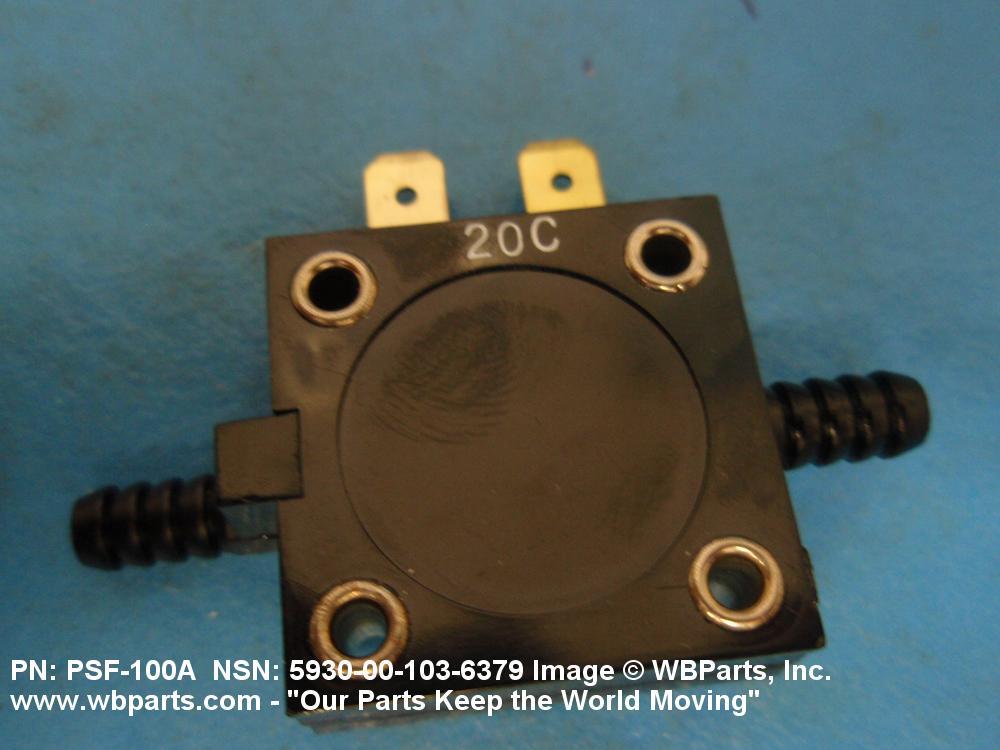

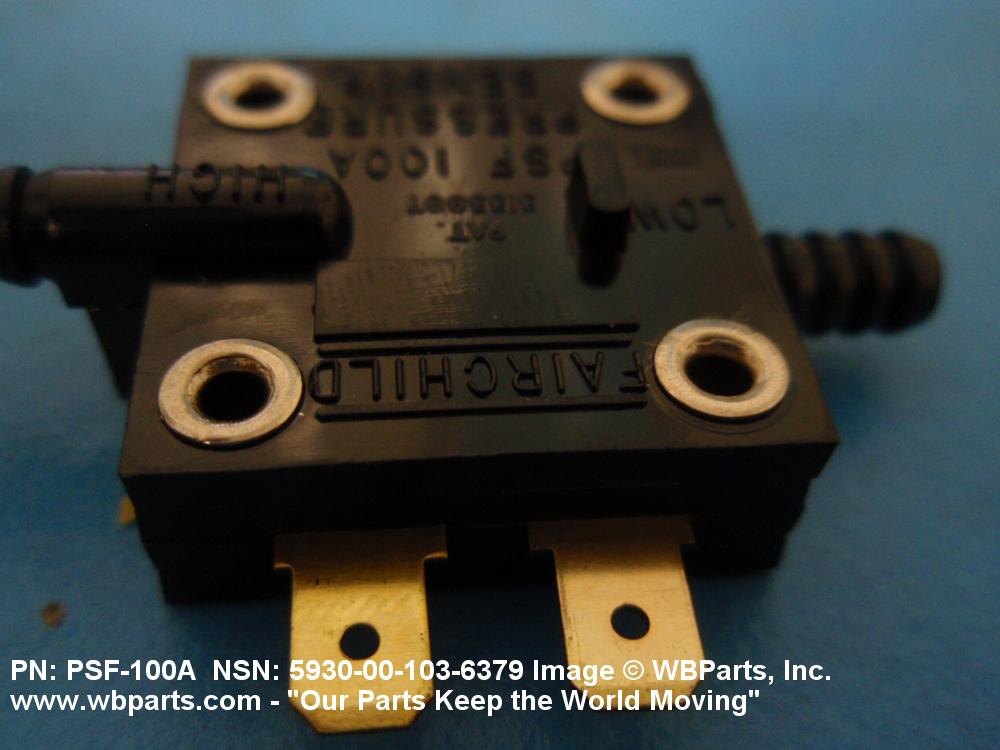

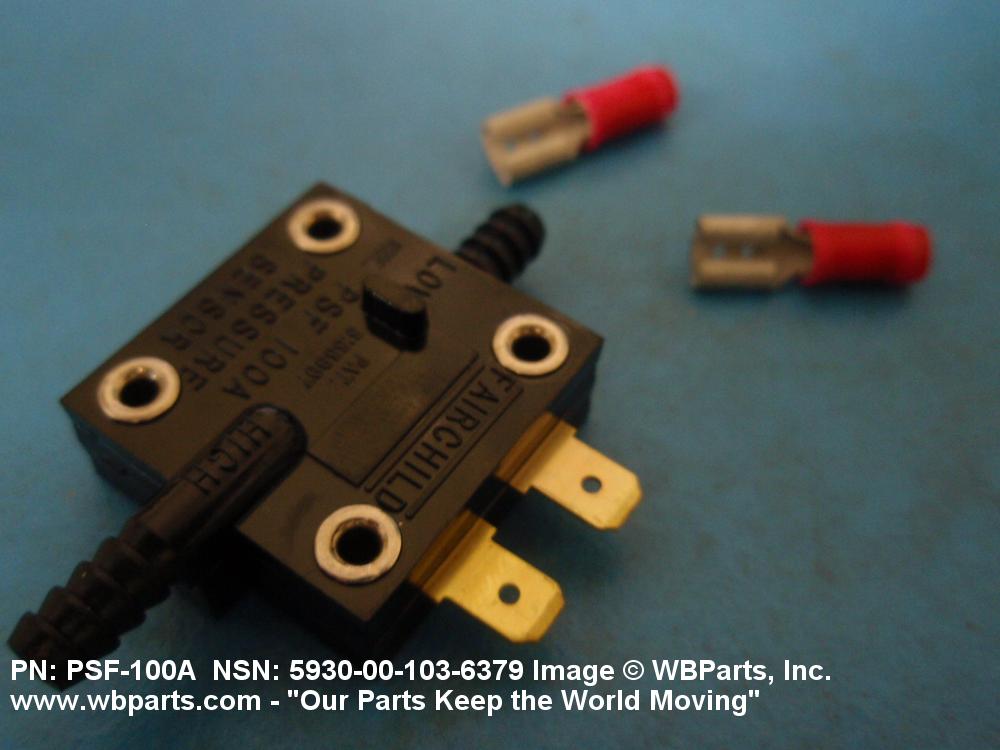

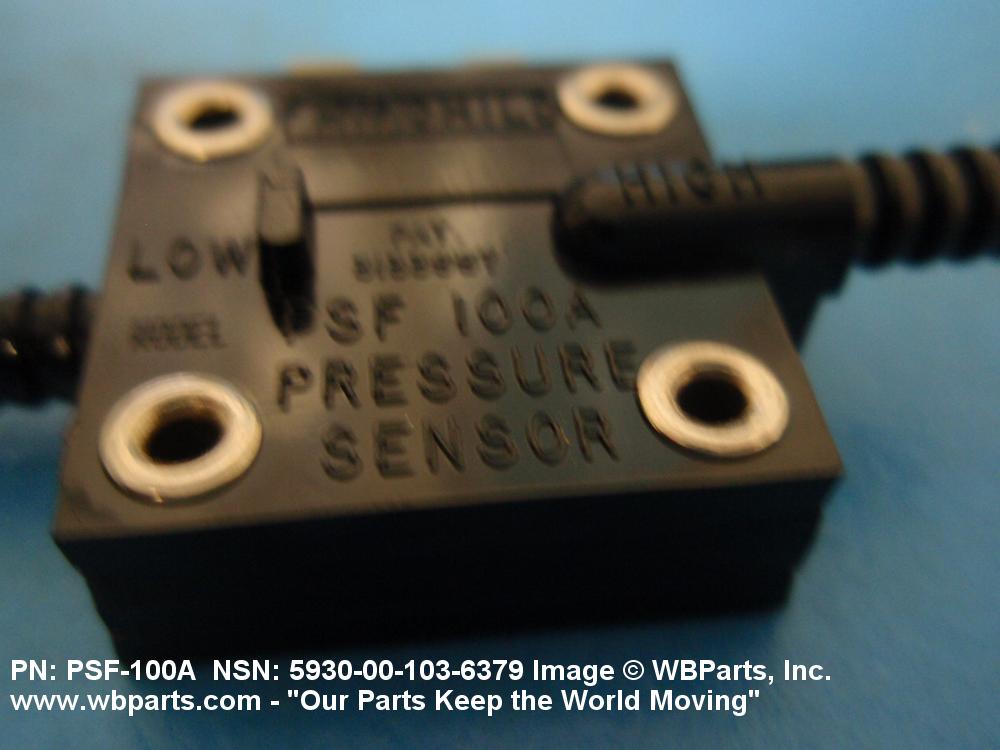

Drawings & Photos | NSN 5930-00-103-6379
Demand History | NSN 5930-00-103-6379
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3376902 | 2021-01-11 | 1 | US |
| 146056 | 2019-06-178 | 123 | DIBBS |
| 337690-2 | 2019-06-178 | 123 | DIBBS |
| 924458-0001 | 2019-06-178 | 123 | DIBBS |
| PSF100A-0.5 | 2019-06-178 | 123 | DIBBS |
| 5930-00-103-6379 | 2015-07-201 | 139 | DIBBS |
| 5930-00-103-6379 | 2015-07-188 | 139 | DIBBS |
| 5930-00-103-6379 | 2014-07-187 | 87 | DIBBS |
| PSF100A | 2011-03-66 | 1 | United States |
| PSF100A05 | 2011-01-21 | 5 | US |
| PSF100A | 2010-09-249 | 10 | VN |
| 5930-00-103-6379 | 2010-01-08 | 112 | DIBBS |
| PSF100A | 2007-11-317 | 10 | MX |
Cross Reference | NSN 5930-00-103-6379
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11242060 | 17773 | BALLISTIC MISSILE DEFENSE SYSTEMS COMMAND |
| 146056 | 21877 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
| 337690-2 | 21877 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
| 924458-0001 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| PSF100A | 02335 | FAIRCHILD CONTROLS DIV FAIRCHILD CAMERA AND INSTRUMENT CORP |
| PSF100A | 06141 | L-3 COMMUNICATIONS CORPORATION DBA L-3 COMMUNICATIONS AVIATION |
| PSF100A | 60423 | DUMONT INSTRUMENTATION INC |
| PSF100A-0.5 | 0C579 | WORLD MAGNETICS COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-103-6379
Related Products | NSN 5930-00-103-6379
Technical Data | NSN 5930-00-103-6379
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 28 RECTANGULAR |
| OVERALL LENGTH | 1.750 INCHES NOMINAL |
| OVERALL HEIGHT | 0.375 INCHES NOMINAL |
| OVERALL WIDTH | 1.312 INCHES NOMINAL |
| BODY LENGTH | 1.000 INCHES NOMINAL |
| PRESSURE SWITCH TYPE | GAGE |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | DEACTUATION POINT NOT ADJUSTABLE AND ACTUATION POINT NOT ADJUSTABLE |
| CONTACT STIMULUS RATING | 0.50 ACTUATION POINT NOMINAL INCHES OF WATER AND 0.40 DEACTUATION POINT NOMINAL INCHES OF WATER AND 0.10 DIFFERENTIAL POINT NOMINAL INCHES OF WATER |
| CONTACT VOLTAGE RATING IN VOLTS | 115.0 AC AT SEA LEVEL FIRST VOLTAGE 30.0 DC AT SEA LEVEL SECOND VOLTAGE |
| CONTACT LOAD CURRENT RATING | 10.0 MILLIAMPERES RESISTIVE LOAD FIRST VOLTAGE 10.0 MILLIAMPERES RESISTIVE LOAD SECOND VOLTAGE |
| OPERATING TEMP RATING | -40.0 DEG FAHRENHEIT MINIMUM AND 150.0 DEG FAHRENHEIT MAXIMUM |
| MEDIA FOR WHICH DESIGNED | LIQUID |
| PRESSURE CONNECTOR TYPE | BARBED, UNTHREADED EXTERNAL ALL CONNECTIONS |
| INSIDE DIAMETER | 0.125 INCHES NOMINAL ALL CONNECTIONS |
| OUTSIDE DIAMETER | 0.195 INCHES MINIMUM AND 0.205 INCHES MAXIMUM ALL CONNECTIONS |
| TERMINAL TYPE | QUICK DISCONNECT, MALE |
| MOUNTING METHOD | BASE AND UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.094 INCHES NOMINAL |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 0.719 INCHES NOMINAL |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 0.719 INCHES NOMINAL |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III SENSING ELEMENT BURST PRESSURE | 8.00 POUNDS PER SQUARE INCH GAGE |
| III END ITEM IDENTIFICATION | WASPCLASS LHD, COUNTERMEASURE SET, AN/SLQ-32, TICONDEROGA CLASS CG (47),RADAR (HIGHPAR) AN/GPN-22(V), ARLEIGH BURKE CLASS DDG, NIMITZ CLASS CVN, SPRUANCE CLASS DD (963), FORRESTAL CLASS CV, OLIVER PERRY CLASS FFG. |
Restrictions/Controls & Freight Information | NSN 5930-00-103-6379
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | HH | Navy ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-103-6379
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
