NSN 5930-00-113-7546 M40074, M-4007-4, A308121

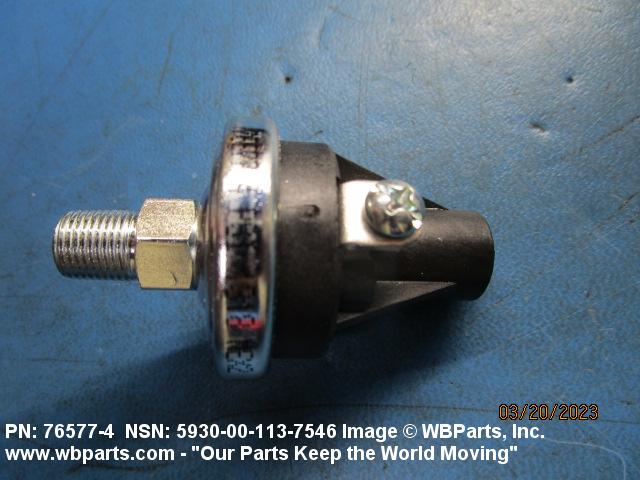

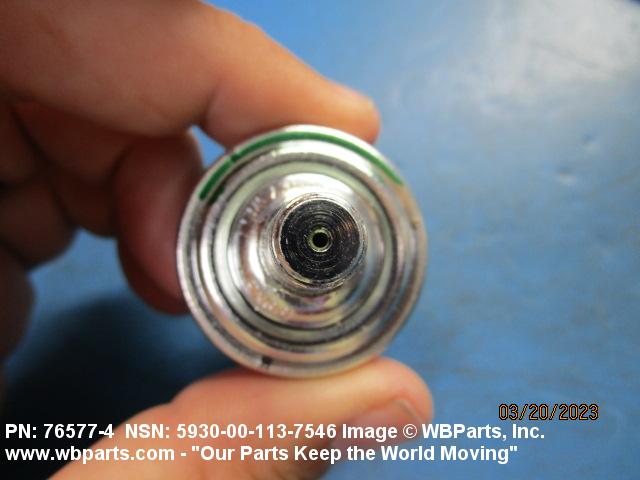

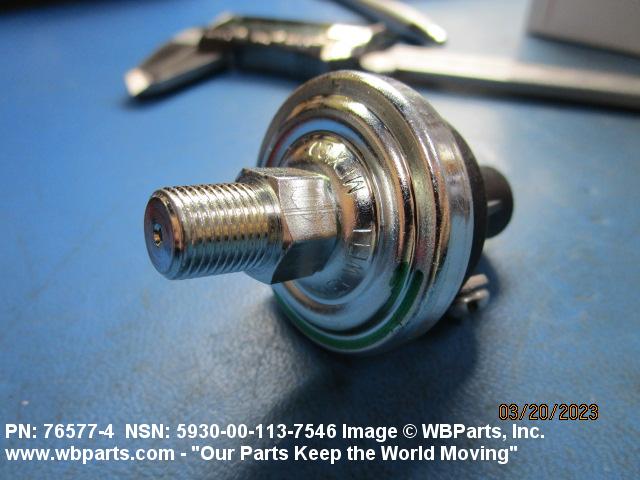

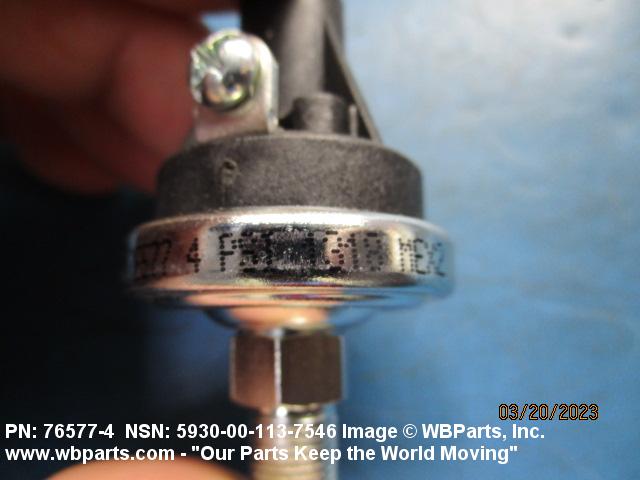

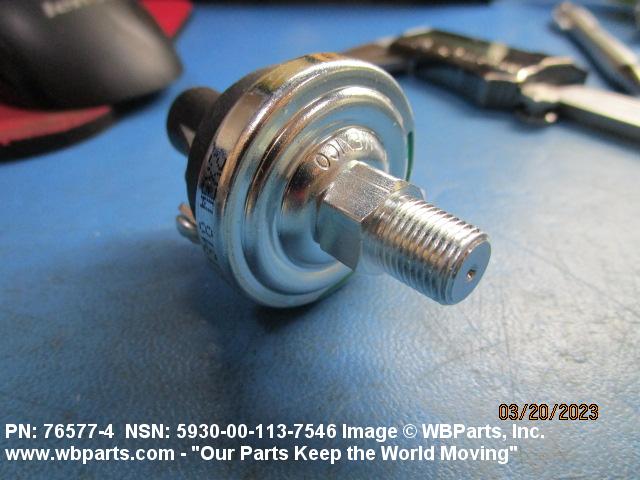

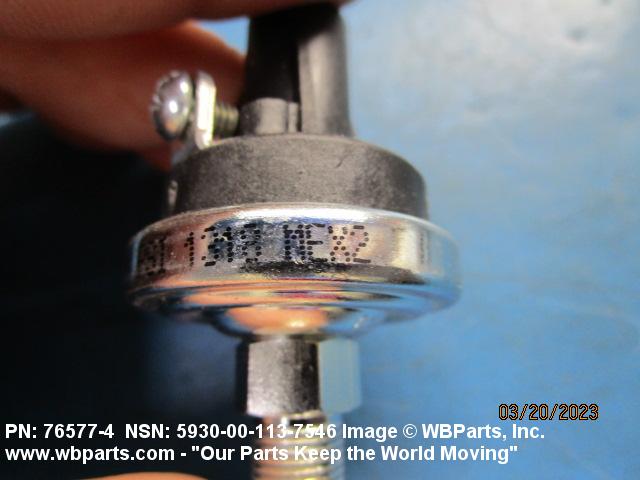

Product Details | PRESSURE SWITCH
5930-00-113-7546 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: M40074, M-4007-4, A308121, A308-121, A308133, A308-133, 3080133, 308-0133, 308133, 308-133, 765774, 76577-4, 5930-00-113-7546, 00-113-7546, 5930001137546, 001137546
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 SEP 1968 | 00-113-7546 | 00206 ( SWITCH, PRESSURE ) |

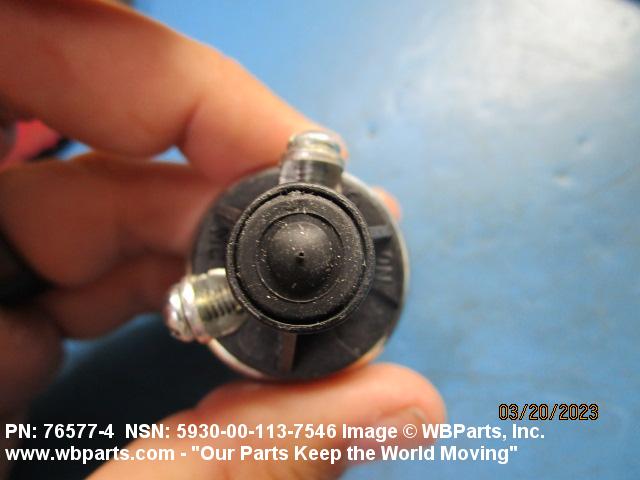

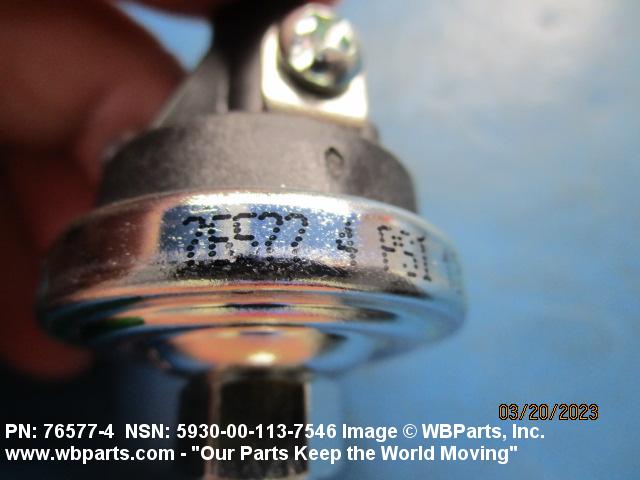

Drawings & Photos | NSN 5930-00-113-7546
Demand History | NSN 5930-00-113-7546
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-113-7546 | 2023-03-67 | 1 | United States |
| 5930-00-113-7546 | 2023-03-67 | 1 | United States |
| 308-133 | 2021-09-245 | 26 | DIBBS |
| 76577-00000040-01 | 2021-09-245 | 26 | DIBBS |
| A308-133 | 2021-09-245 | 26 | DIBBS |
| 5930-00-113-7546 | 2018-01-04 | 209 | DIBBS |
| 5930-00-113-7546 | 2017-10-293 | 1 | Singapore |
| 5930-00-113-7546 | 2013-03-74 | 276 | DIBBS |
| 5930-00-113-7546 | 2013-01-17 | 41 | DIBBS |
| 5930-00-113-7546 | 2013-01-04 | 0 | DIBBS |
| 5930-00-113-7546 | 2012-08-241 | 0 | DIBBS |
| 5930-00-113-7546 | 2009-09-245 | 250 | DIBBS |
| 5930-00-113-7546 | 2009-05-146 | 182 | DIBBS |
| 5930-00-113-7546 | 2007-06-179 | 180 | DIBBS |
| 5930-00-113-7546 | 2007-06-163 | 102 | DIBBS |
Cross Reference | NSN 5930-00-113-7546
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 308-0133 | 03533 | CRANE CARRIER COMPANY |
| 308-133 | 03533 | CRANE CARRIER COMPANY |
| 76577-4 | 57733 | STEWART-WARNER CORPORATION |
| 76577-4 | 74400 | HOBBS CORP |
| 76577-4 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| A308-121 | 03533 | CRANE CARRIER COMPANY |
| A308-133 | 03533 | CRANE CARRIER COMPANY |
| M-4007-4 | 74400 | HOBBS CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-113-7546
Related Products | NSN 5930-00-113-7546
Technical Data | NSN 5930-00-113-7546
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 17 CYLINDRICAL |

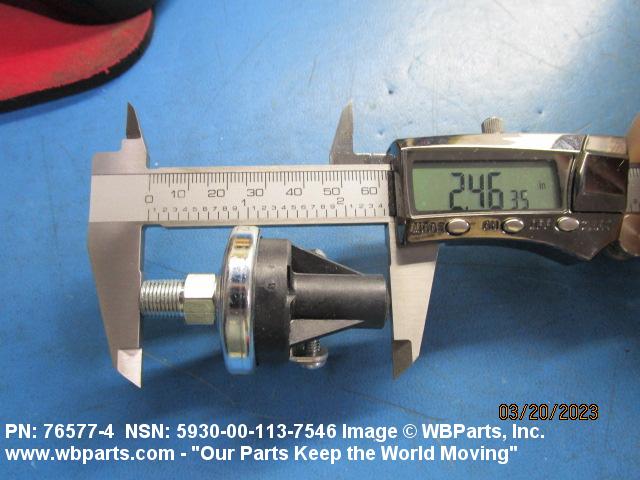

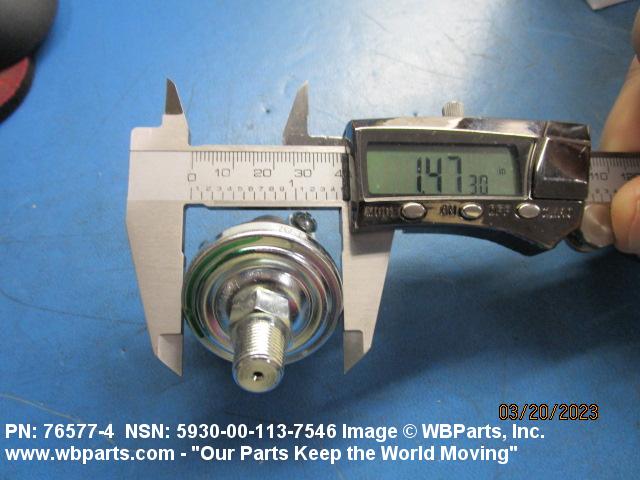

| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| OVERALL DIAMETER | 1.690 INCHES NOMINAL |
| PRESSURE SWITCH TYPE | GAGE |

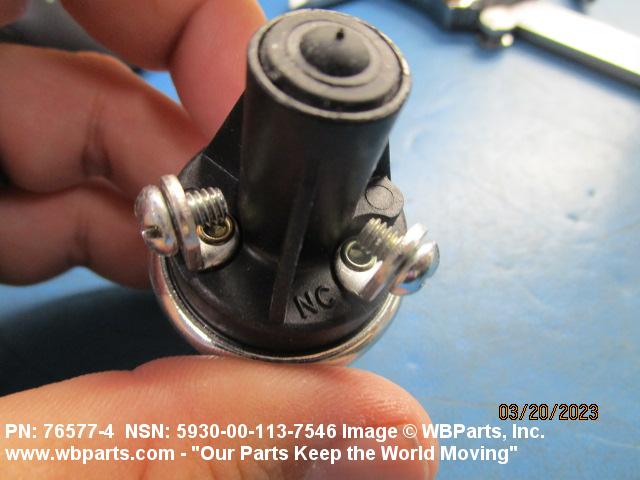

| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | DEACTUATION POINT NOT ADJUSTABLE AND ACTUATION POINT NOT ADJUSTABLE |
| CONTACT STIMULUS RATING | 4.00 ACTUATION POINT NOMINAL POUNDS PER SQUARE INCH AND 3.00 DEACTUATION POINT NOMINAL POUNDS PER SQUARE INCH AND 1.00 DIFFERENTIAL POINT NOMINAL POUNDS PER SQUARE INCH |
| CONTACT VOLTAGE RATING IN VOLTS | 24.0 DC AT SEA LEVEL FIRST VOLTAGE 6.0 DC AT SEA LEVEL SECOND VOLTAGE |
| CONTACT LOAD CURRENT RATING | 4.0 AMPERES RESISTIVE LOAD FIRST VOLTAGE 15.0 AMPERES RESISTIVE LOAD SECOND VOLTAGE |
| MEDIA FOR WHICH DESIGNED | GAS OR LIQUID |
| PRESSURE CONNECTOR TYPE | FLARED, THREADED EXTERNAL SINGLE CONNECTION |
| TERMINAL TYPE | TAB W/SCREW |
| MOUNTING METHOD | CLAMP |
| THREAD SERIES DESIGNATOR | NPT SINGLE PRESSURE CONNECTION |
| NOMINAL THREAD SIZE | 0.125 INCHES SINGLE PRESSURE CONNECTION |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | TRUCK,FIRE/CRASH P2,P15 |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACTS SILVER |
