NSN 5930-00-116-2762 W9601BB, 10545610, 00-116-2762

Product Details | PUSH SWITCH

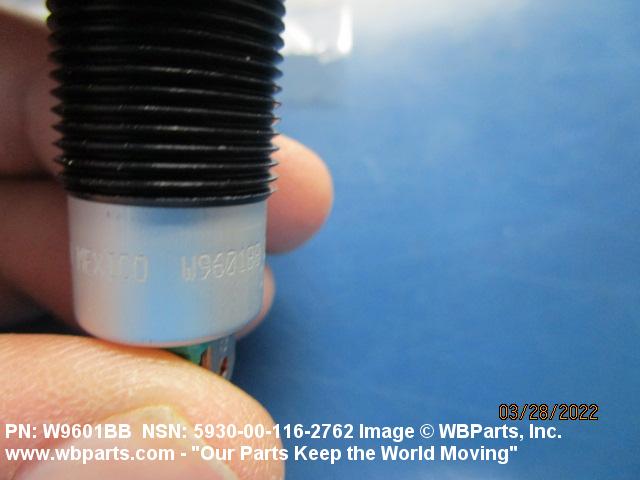

5930-00-116-2762 A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lamp(s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes LIGHT-SWITCH; LIGHT-SWITCH ASSEMBLY; SWITCH, BEAM SELECTING, HEADLIGHT; SWITCH, FOOT; SWITCH, INTERLOCK; SWITCH, PRESSURE; SWITCH, PUSH-PULL; SWITCH, SENSITIVE and SWITCH ASSEMBLY. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see STARTER, MOTOR and CONTROLLER, MOTOR.

Part Alternates: W9601BB, 10545610, 5930-00-116-2762, 00-116-2762, 5930001162762, 001162762

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	25 SEP 1968	00-116-2762	00406 ( SWITCH, PUSH )

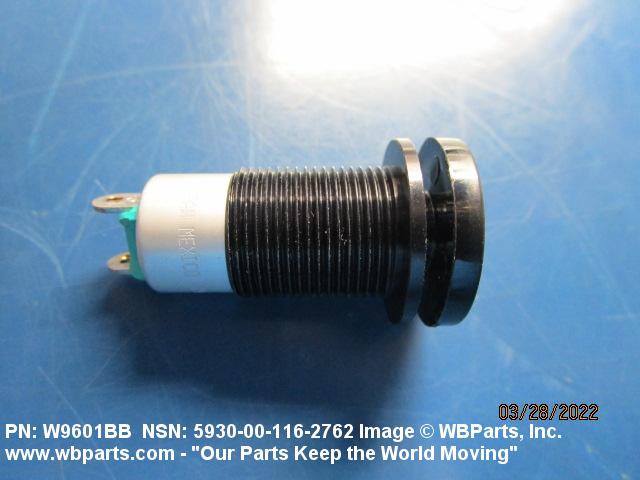

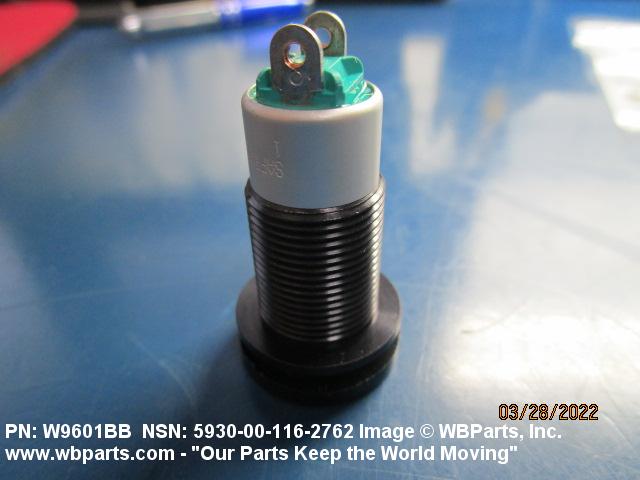

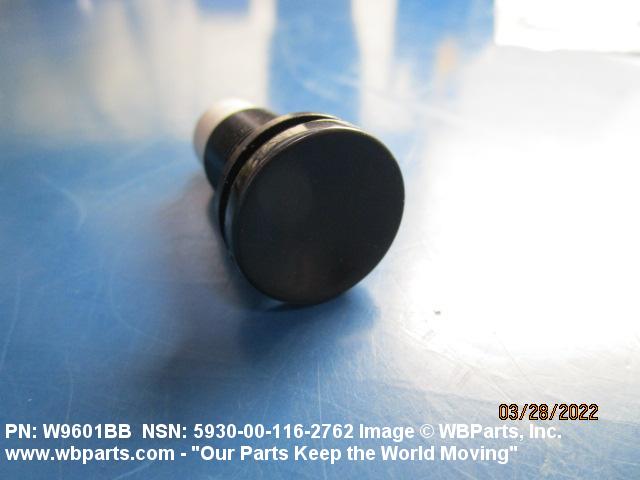

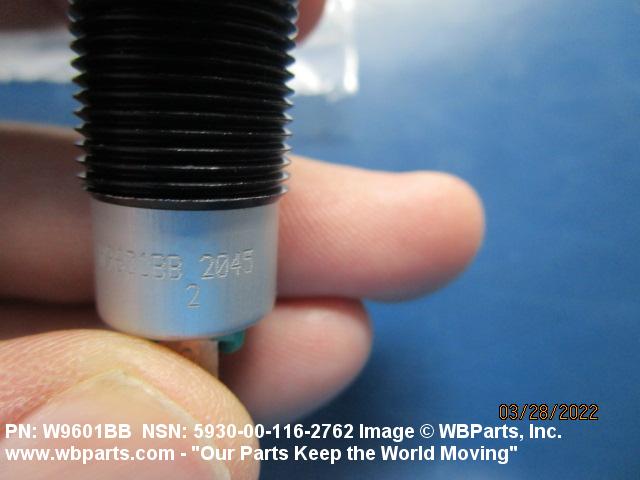

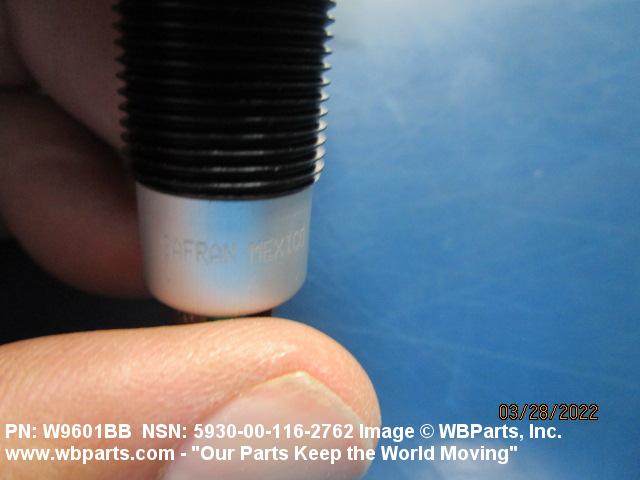

Drawings & Photos | NSN 5930-00-116-2762

Part Number	Request Date	QTY	Origin
5930-00-116-2762	2023-09-262	100	KR
5930-00-116-2762	2023-09-262	100	KR
5930-00-116-2762	2023-09-262	100	KR
5930-00-116-2762	2023-09-249	85	KR
5930-00-116-2762	2023-09-246	87	KR
5930-00-116-2762	2023-08-240	87	KR
5930-00-116-2762	2023-08-240	87	KR
5930-00-116-2762	2023-04-106	40	South Korea
5930-00-116-2762	2022-11-318	130	DIBBS
5930-00-116-2762	2022-07-209	50	DIBBS
5930-00-116-2762	2022-05-146	21	DIBBS
5930-00-116-2762	2022-03-69	1	United States
5930-00-116-2762	2021-07-182	97	DIBBS
5930-00-116-2762	2020-07-212	15	DIBBS
5930-00-116-2762	2020-06-156	32	DIBBS
5930-00-116-2762	2018-09-268	168	DIBBS
5930-00-116-2762	2017-12-346	120	DIBBS
5930-00-116-2762	2015-10-275	128	DIBBS
5930-00-116-2762	2015-09-245	240	DIBBS
5930-00-116-2762	2015-07-182	128	DIBBS
5930-00-116-2762	2015-03-70	128	DIBBS
5930-00-116-2762	2014-09-266	101	DIBBS
5930-00-116-2762	2013-08-226	111	DIBBS
5930-00-116-2762	2012-07-205	54	South Korea
5930-00-116-2762	2011-09-251	243	DIBBS
5930-00-116-2762	2010-09-250	181	DIBBS
5930-00-116-2762	2010-04-97	59	DIBBS
5930-00-116-2762	2010-04-97	69	DIBBS
5930-00-116-2762	2006-06-179	351	DIBBS

Cross Reference | NSN 5930-00-116-2762

Part Number	Cage Code	Manufacturer
10545610	19200	US ARMY ARDEC RDECOM
10545610	A9271	GORIZIANE GROUP SPA
W9601BB	81640	EATON CORPORATION DBA FLUID POWER DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-00-116-2762

Compare

Related Products | NSN 5930-00-116-2762

5930-00-116-2767, 5930-00-116-2768, 5930-00-116-2769, 5930-00-116-3194, 5930-00-116-3272

Technical Data | NSN 5930-00-116-2762

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	1 POLE, SINGLE THROW, NORMALLY OPEN, DOUBLE MAKE, MOMENTARY ACTION SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	120.0 AC AND 28.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	10.000 AMPERES RESISTIVE DC AND 10.000 AMPERES RESISTIVE AC
BODY STYLE	2K BUSHING MOUNTED
BUSHING LENGTH	0.750 INCHES NOMINAL
BODY LENGTH	0.422 INCHES NOMINAL

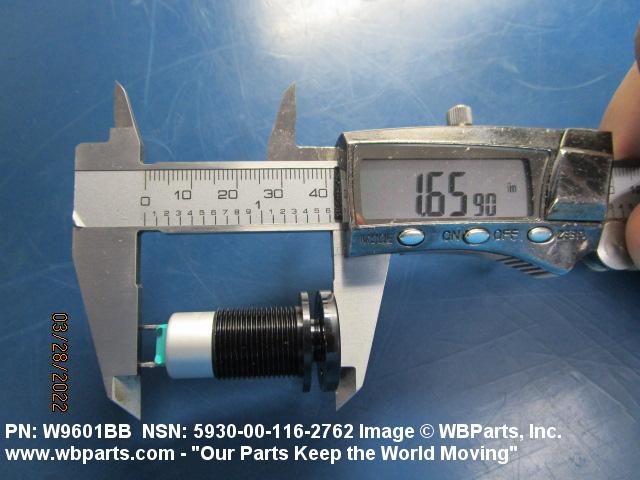

OVERALL LENGTH	1.844 INCHES NOMINAL
OVERALL WIDTH	0.875 INCHES NOMINAL
OVERALL HEIGHT	0.875 INCHES NOMINAL

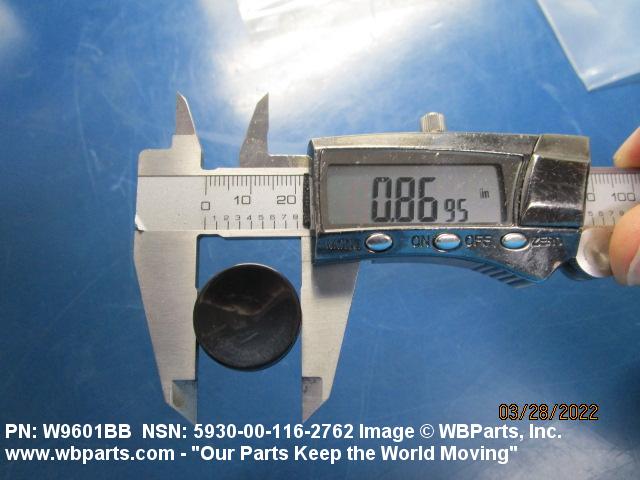

ACTUATOR DIAMETER	0.875 INCHES NOMINAL
ACTUATOR HEIGHT	0.281 INCHES NOMINAL
ACTUATOR COLOR	BLACK SINGLE ACTUATOR

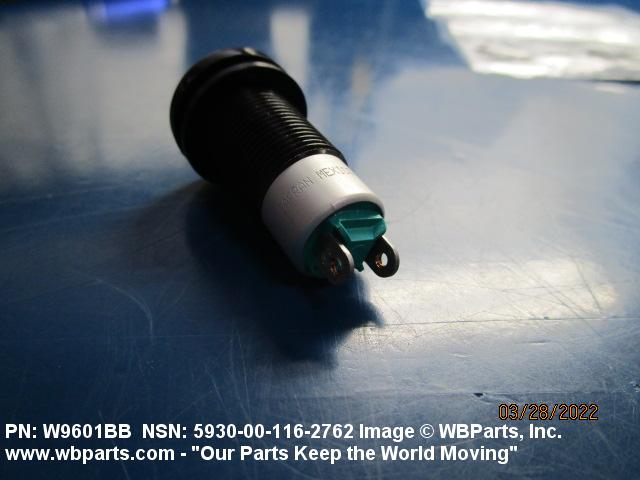

TERMINAL TYPE AND QUANTITY	2 TAB, SOLDER LUG
INCLOSURE TYPE	FULLY INCLOSED
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION	MOISTURE PROOF
MOUNTING METHOD	THREADED BUSHING
THREAD SERIES DESIGNATOR	UNEF
NOMINAL THREAD SIZE	0.625 INCHES
THREAD QUANTITY PER INCH	24
FEATURES PROVIDED	ACTUATOR SEAL

Restrictions/Controls & Freight Information | NSN 5930-00-116-2762

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	B	Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5930-00-116-2762

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
