NSN 5930-00-134-0378 M9395/1-03, M9395103, MIL-S-9395/1
Product Details | PRESSURE SWITCH
5930-00-134-0378 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: M9395/1-03, M9395103, MIL-S-9395/1, MILS93951, 150153, 15015-3, 5930-00-134-0378, 00-134-0378, 5930001340378, 001340378
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 NOV 1968 | 00-134-0378 | 00206 ( SWITCH, PRESSURE ) |
Drawings & Photos | NSN 5930-00-134-0378
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-134-0378
Related Products | NSN 5930-00-134-0378
Technical Data | NSN 5930-00-134-0378
| Characteristic | Specifications |
|---|---|

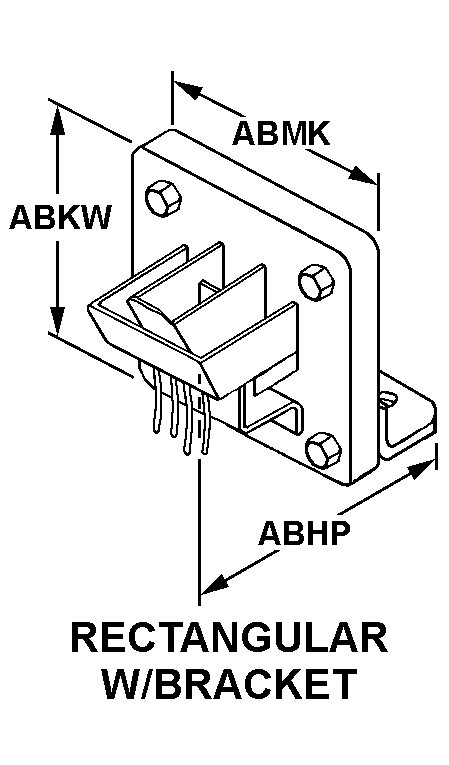

| STYLE DESIGNATOR | 20 RECTANGULAR W/BRACKET |
| OVERALL LENGTH | 2.750 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.030 INCHES MAXIMUM |
| OVERALL WIDTH | 3.590 INCHES MAXIMUM |
| PRESSURE SWITCH TYPE | GAGE |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | DEACTUATION POINT NOT ADJUSTABLE AND ACTUATION POINT NOT ADJUSTABLE |
| CONTACT STIMULUS RATING | 2850.00 ACTUATION POINT NOMINAL POUNDS PER SQUARE INCH GAGE AND 2550.00 DEACTUATION POINT NOMINAL POUNDS PER SQUARE INCH GAGE AND 300.00 DIFFERENTIAL POINT NOMINAL POUNDS PER SQUARE INCH GAGE |
| CONTACT VOLTAGE RATING IN VOLTS | 30.0 DC AT SEA LEVEL FIRST VOLTAGE 18.0 DC AT SEA LEVEL SECOND VOLTAGE |
| CONTACT LOAD CURRENT RATING | 3.0 AMPERES RESISTIVE LOAD AND 1.0 AMPERES INDUCTIVE LOAD FIRST VOLTAGE 3.0 AMPERES RESISTIVE LOAD AND 1.0 AMPERES INDUCTIVE LOAD SECOND VOLTAGE |
| OPERATING TEMP RATING | -65.0 DEG FAHRENHEIT MINIMUM AND 275.0 DEG FAHRENHEIT MAXIMUM |
| MEDIA FOR WHICH DESIGNED | LIQUID |
| PROOF PRESSURE | 4500.00 POUNDS PER SQUARE INCH GAGE |
| PRESSURE CONNECTOR TYPE | PLAIN, THREADED INTERNAL SINGLE CONNECTION |
| INSIDE DIAMETER | 0.438 INCHES NOMINAL SINGLE CONNECTION |
| TERMINAL TYPE | CONNECTOR, RECEPTACLE |
| MOUNTING METHOD | BRACKET AND UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.208 INCHES NOMINAL |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.370 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF SINGLE PRESSURE CONNECTION |
| NOMINAL THREAD SIZE | 0.4375 INCHES SINGLE PRESSURE CONNECTION |
| THREAD CLASS | 3B SINGLE PRESSURE CONNECTION |
| THREAD QUANTITY PER INCH | 20 SINGLE PRESSURE CONNECTION |
| SPECIAL FEATURES | CENTER MTG HOLE SPACED 1.310 IN. C TO C FROM TWO OUTER MTG HOLES |
| TEST DATA DOCUMENT | 81349-MIL-S-9395 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-S-9395/1 GOVERNMENT SPECIFICATION |
| III SENSING ELEMENT BURST PRESSURE | 7500.00 POUNDS PER SQUARE INCH GAGE |
| III UNPACKAGED UNIT WEIGHT | 0.500 POUNDS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-9395/1 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M9395/1-03 |
