NSN 5930-00-215-8831 F750112, F-75011-2, FAB2032
Product Details | LIQUID LEVEL SWITCH
5930-00-215-8831 A switch which is actuated by a float or sensing device(s) to control liquid level and/or actuate visual or audible warning systems. It may include a relay controlled by the switch element. Excludes TRANSMITTER,LIQUID QUANTITY.20429100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers59300008Switches66800078Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
Part Alternates: F750112, F-75011-2, FAB2032, FAB203-2, 25347172, 2534717-2, 2750112-02, 5930-00-215-8831, 00-215-8831, 5930002158831, 002158831, 275011202
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 MAY 1973 | 00-215-8831 | 37187 ( SWITCH, LIQUID LEVEL ) |

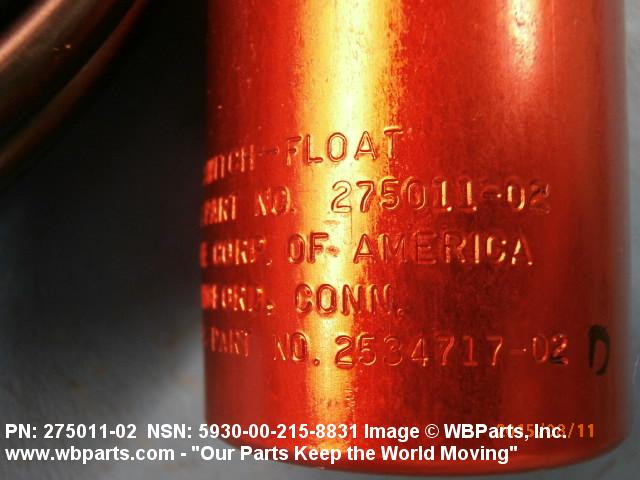

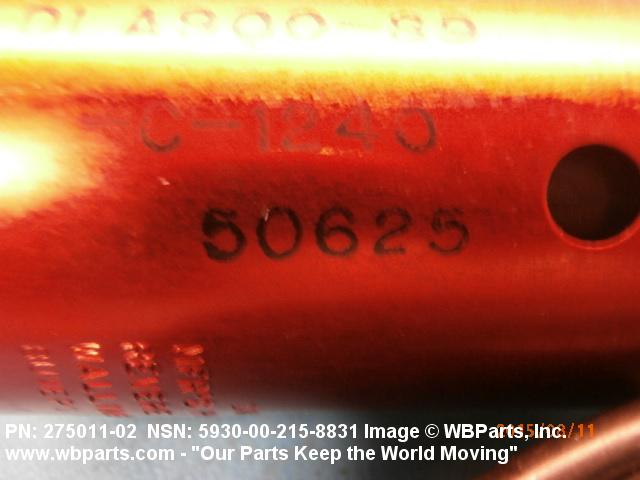

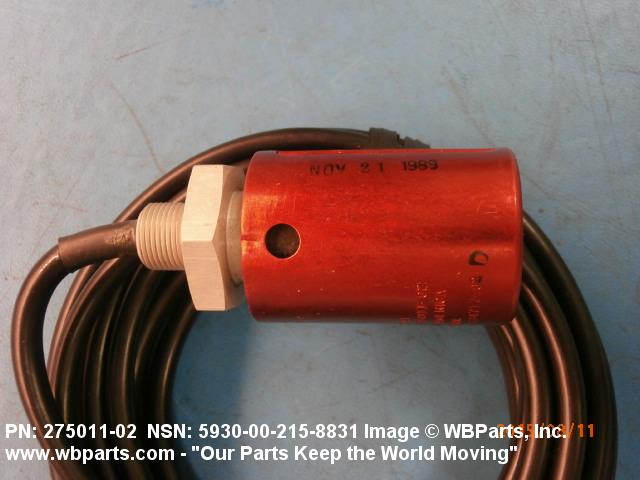

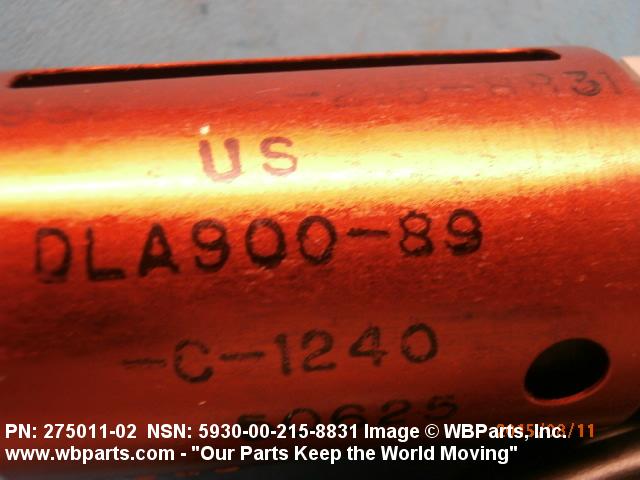

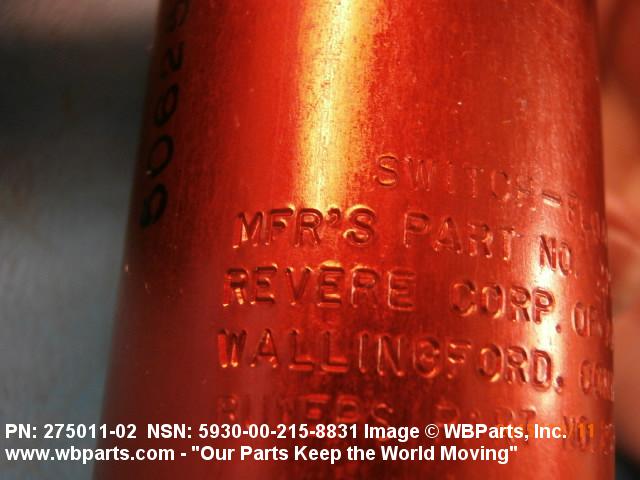

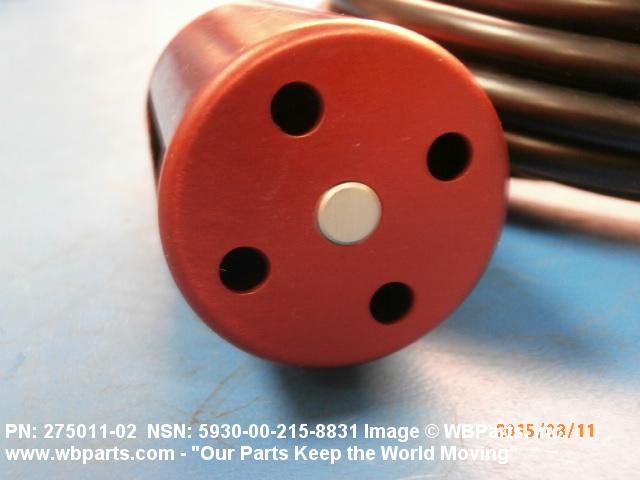

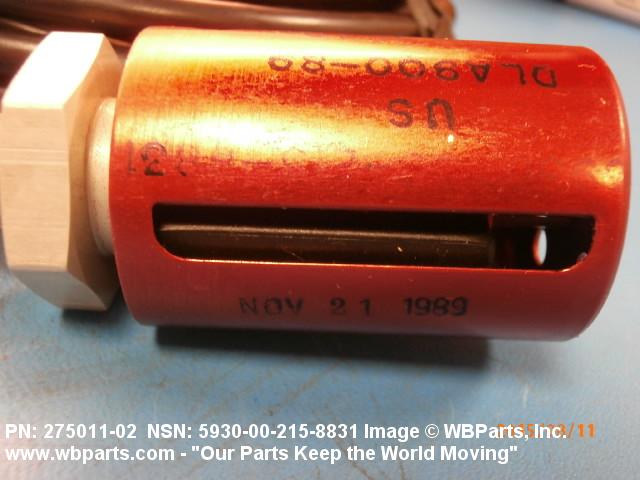

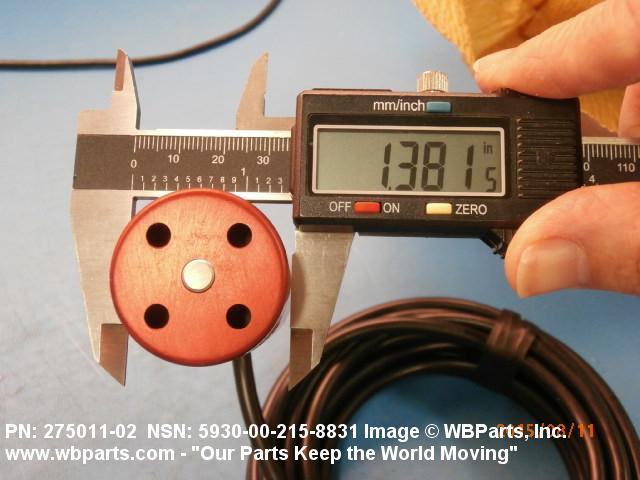

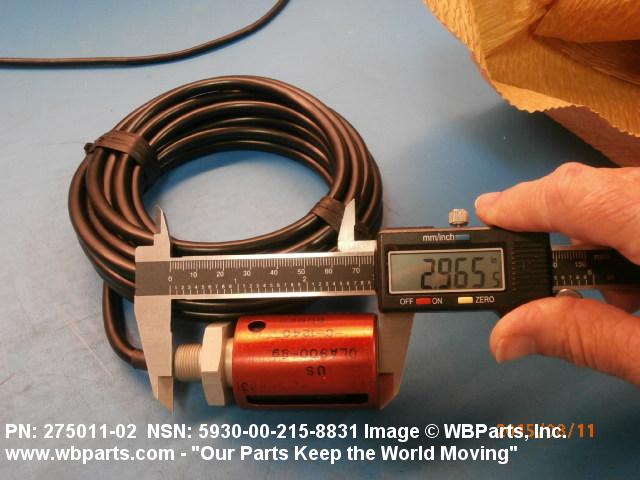

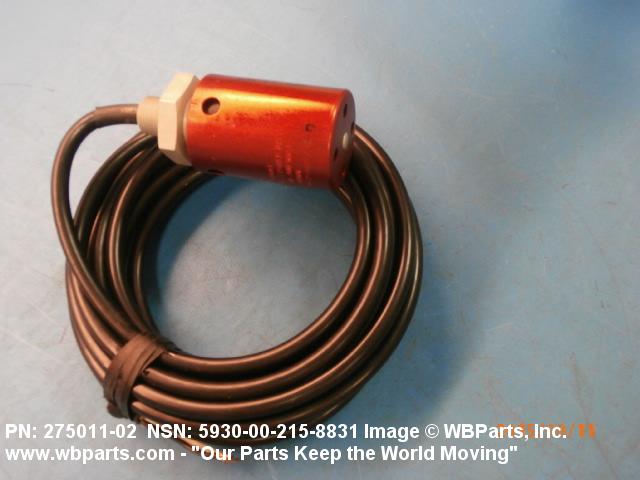

Drawings & Photos | NSN 5930-00-215-8831
Demand History | NSN 5930-00-215-8831
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-215-8831 | 2015-05-125 | 5 | Taiwan |
| 5930-00-215-8831 | 2012-02-47 | 3 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-215-8831
Technical Data | NSN 5930-00-215-8831
| Characteristic | Specifications |
|---|---|
| DC VOLTAGE RATING | 28.0 VOLTS NOMINAL |
| INTERNAL BATTERY ACCOMMODATION | NOT INCLUDED |
| CONTACT ARRANGEMENT | ST,NORMALLYCLOSED |
| ELECTRICAL CONNECTION TYPE | CABLE |

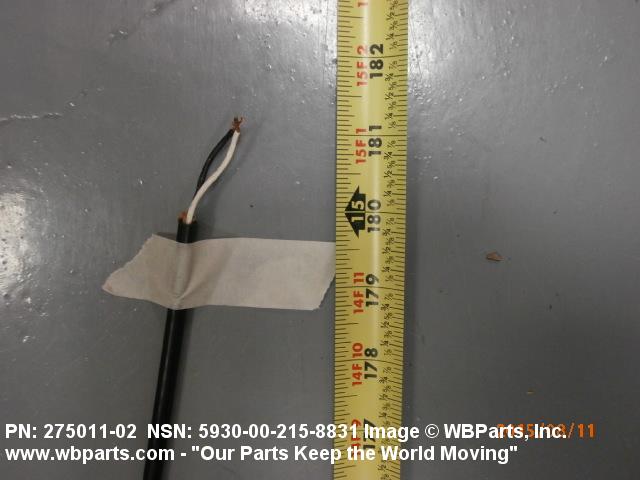

| POWER CABLE LENGTH | 120.000 INCHES NOMINAL |
| RELAY | NOT INCLUDED |
| LIQUID TYPE FOR WHICH DESIGNED | LUBRICATING OIL |
| OPERATING TEMP RATING | -20.0 DEG CELSIUS MINIMUM AND 75.0 DEG CELSIUS MAXIMUM |
| ACTUATION METHOD | BUOYANCY |
| FLOAT QUANTITY | 1 |
| MOUNTING POSITION | VERTICAL |
| MOUNTING METHOD | THREAD |
| MOUNTING DIMENSIONS | MTD BY ONE 9/16-24UNEF-2ATHD BUSHING |
| OVERALL LENGTH | 2.968 INCHES NOMINAL |
| OVERALL DIAMETER | 1.461 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5930-00-215-8831
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | HH | Navy ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-215-8831
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
