NSN 5930-00-256-8528 MS274092M, MS27409-2M, MILDTL3950
Product Details | TOGGLE SWITCH
5930-00-256-8528 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: MS274092M, MS27409-2M, MILDTL3950, MIL-DTL-3950, MILS3950, 8505K60, 5930-00-256-8528, 00-256-8528, 5930002568528, 002568528
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 MAR 1971 | 00-256-8528 | 00184 ( SWITCH, TOGGLE ) |

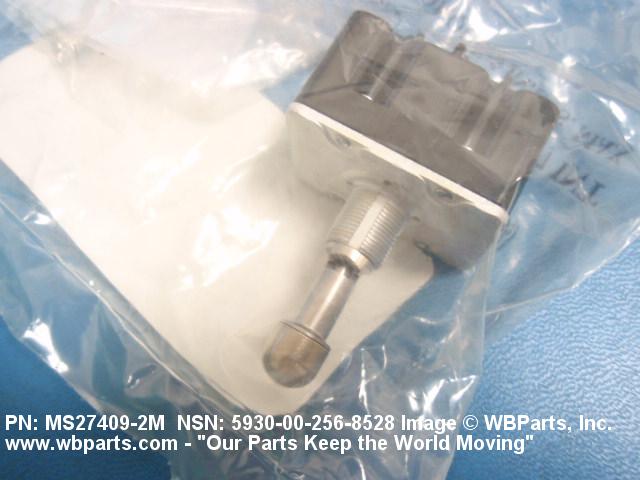

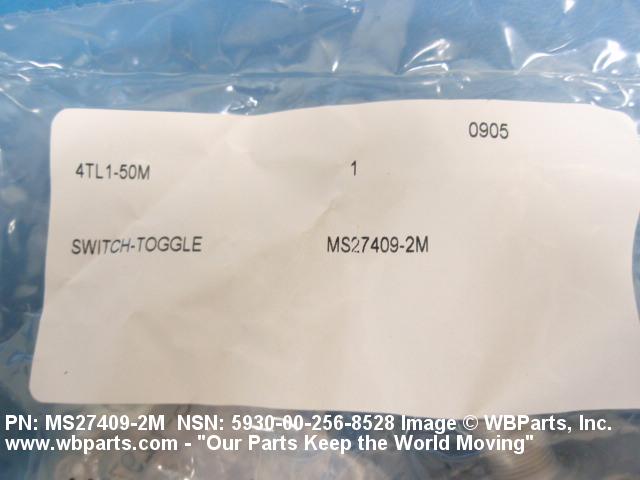

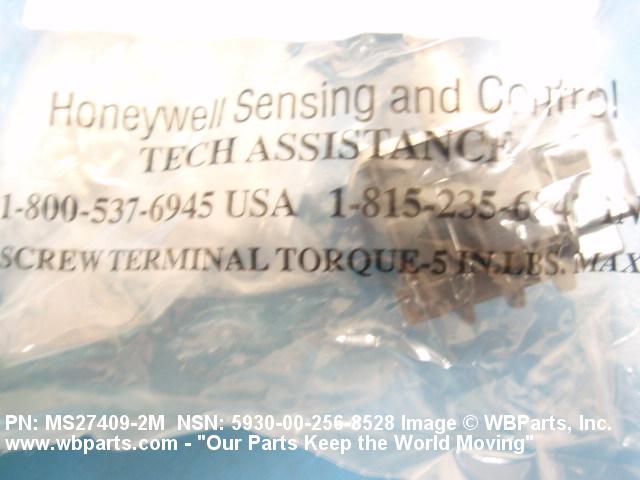

Drawings & Photos | NSN 5930-00-256-8528
Demand History | NSN 5930-00-256-8528
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-256-8528 | 2025-02-56 | 1 | United States |
| 5930-00-256-8528 | 2025-02-56 | 1 | United States |
| 5930-00-256-8528 | 2023-08-229 | 52 | DIBBS |
| 5930-00-256-8528 | 2022-12-363 | 49 | DIBBS |
| 5930-00-256-8528 | 2019-05-122 | 85 | DIBBS |
| 5930-00-256-8528 | 2017-11-334 | 69 | DIBBS |
| 5930-00-256-8528 | 2016-03-91 | 90 | DIBBS |
| 5930-00-256-8528 | 2016-03-80 | 90 | DIBBS |
| MILS3950 | 2014-02-56 | 4 | Canada |
| MILS3950 | 2013-01-11 | 48 | US |
| 5930-00-256-8528 | 2012-08-240 | 42 | DIBBS |
| 8505K60 | 2011-08-243 | 20 | US |
| 5930-00-256-8528 | 2011-08-213 | 49 | DIBBS |
| 5930-00-256-8528 | 2010-10-285 | 47 | DIBBS |
| 5930-00-256-8528 | 2010-07-188 | 1 | United States |
| 8505K60 | 2010-06-162 | 30 | US |
| 5930-00-256-8528 | 2010-06-161 | 1 | US |
| 5930-00-256-8528 | 2009-04-105 | 40 | DIBBS |
| 5930-00-256-8528 | 2007-06-169 | 47 | DIBBS |
Cross Reference | NSN 5930-00-256-8528
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8505K60 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 8505K60 | 96182 | EATON CORPORATION DBA AEROSPACE & COMMERCIAL DIVISION |
| MIL-DTL-3950 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILS3950 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS27409-2M | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-256-8528
Related Products | NSN 5930-00-256-8528
Technical Data | NSN 5930-00-256-8528
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 4 POLE, DOUBLE THROW, ONE POSITION MOMENTARY, TWO POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 18.000 AMPERES RESISTIVE DC AND 10.000 AMPERES INDUCTIVE DC AND 4.000 AMPERES LAMP DC AND 11.000 AMPERES RESISTIVE AC AND 8.000 AMPERES INDUCTIVE AC AND 2.000 AMPERES LAMP AC |
| BODY STYLE | 5P BUSHING MOUNT |
| BUSHING LENGTH | 0.470 INCHES NOMINAL |
| BODY LENGTH | 1.340 INCHES MAXIMUM |
| BODY WIDTH | 1.660 INCHES MAXIMUM |
| BODY HEIGHT | 1.100 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.370 INCHES MAXIMUM |
| OVERALL LENGTH | 1.340 INCHES MAXIMUM |
| OVERALL WIDTH | 1.660 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.980 INCHES NOMINAL |
| ACTUATOR STYLE | 26 ROUND |
| ACTUATOR DIAMETER | 0.420 INCHES NOMINAL |
| ACTUATOR HEIGHT | 1.050 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MOMENTARY AND CENTER POSITION MAINTAINED |
| ACTUATOR POSITION-LOCKING RELATIONSHIP | UP POSITION LOCKED IN AND OUT AND DOWN POSITION NO LOCKING ACTION AND CENTER POSITION NO LOCKING ACTION |
| TERMINAL TYPE AND QUANTITY | 12 SCREW |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WEATHERPROOF |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.469 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| FEATURES PROVIDED | ACTUATOR SEAL |
| TEST DATA DOCUMENT | 81349-MIL-S-3950 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 96906-MS27409 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-DTL-3950 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS27409-2M |
Restrictions/Controls & Freight Information | NSN 5930-00-256-8528
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-256-8528
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
