Product Details | ROTARY SWITCH
5930-00-259-8902 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: SYM 2702, SYM2702, 02012, 5568-L TYPE S1JR10-3B, 5568LTYPES1JR103B, 9S5568LS1JR103B, 9S5568LS1JR10-3B, 5930-00-259-8902, 00-259-8902, 5930002598902, 002598902
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-259-8902 | 02134 ( SWITCH, ROTARY ) |

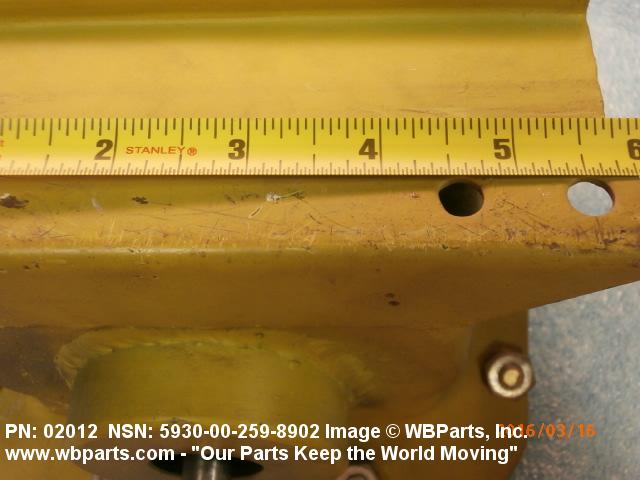

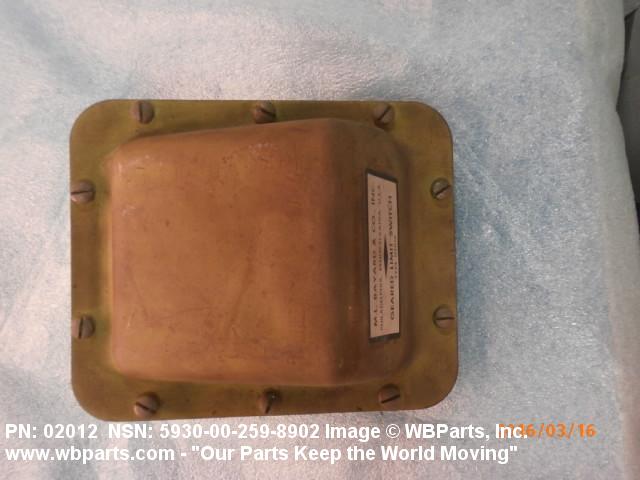

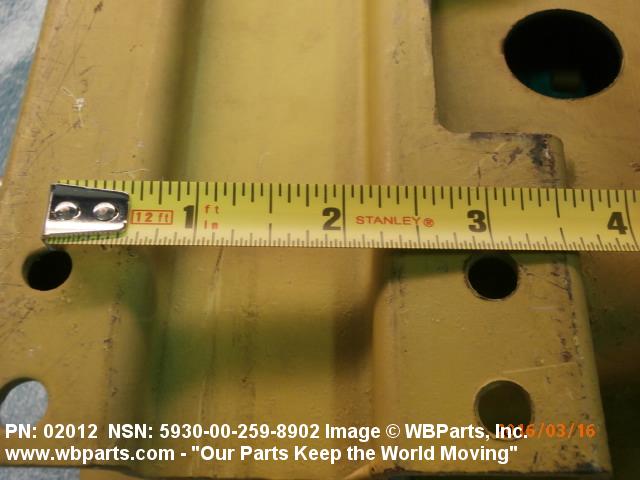

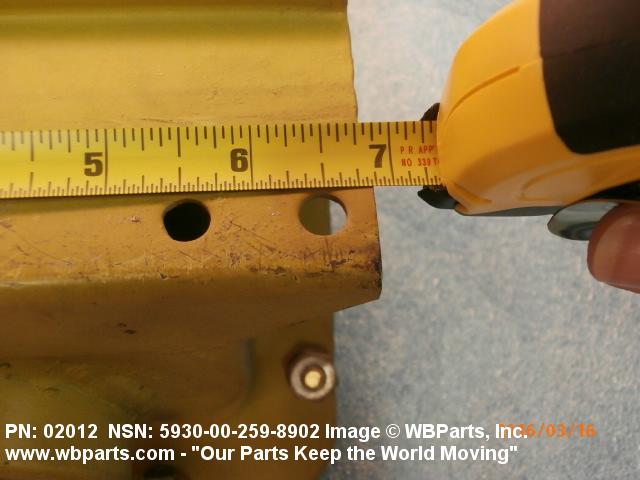

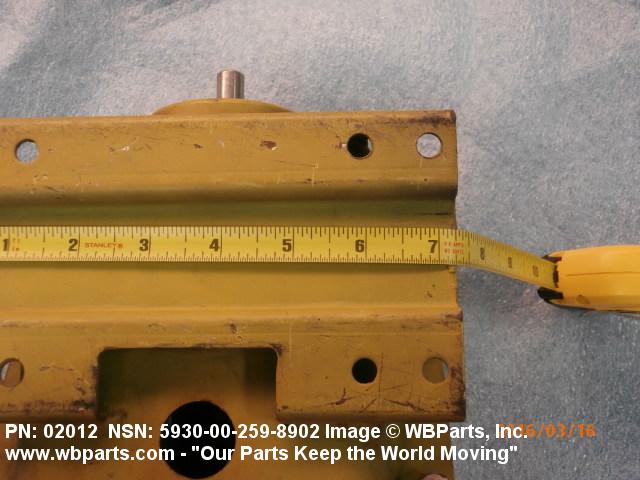

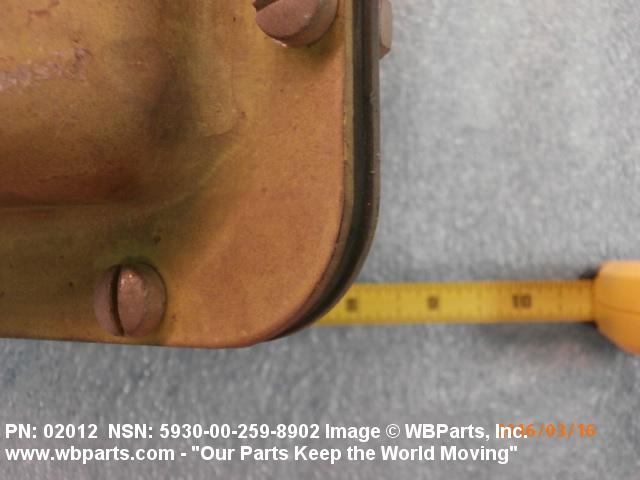

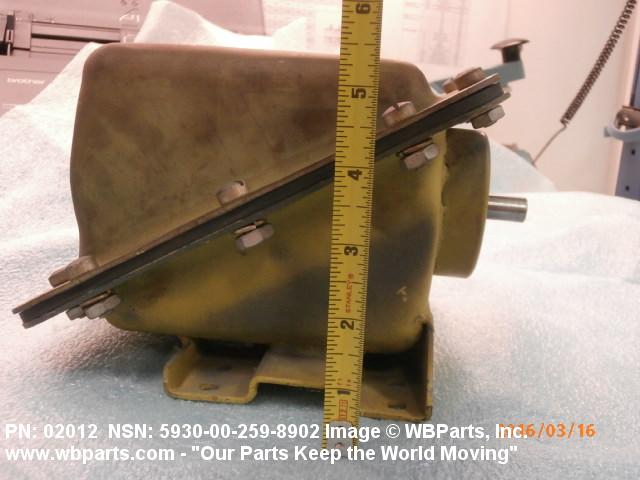

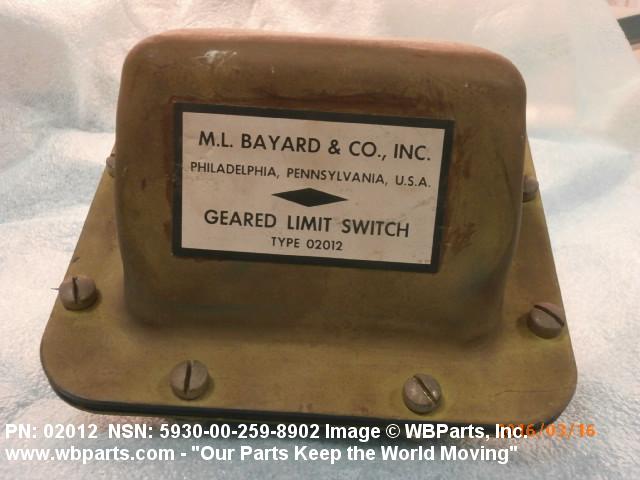

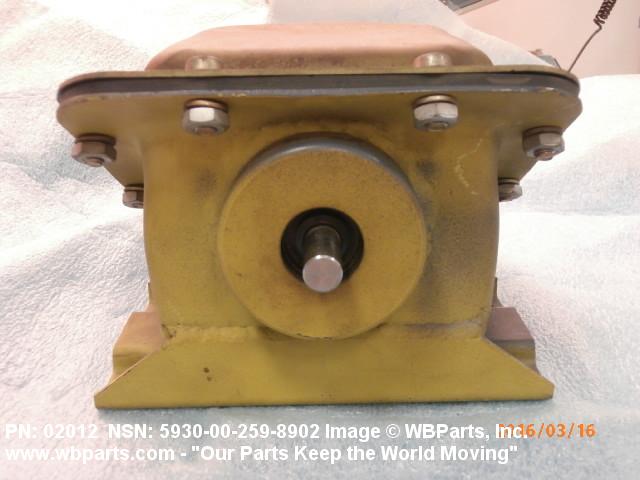

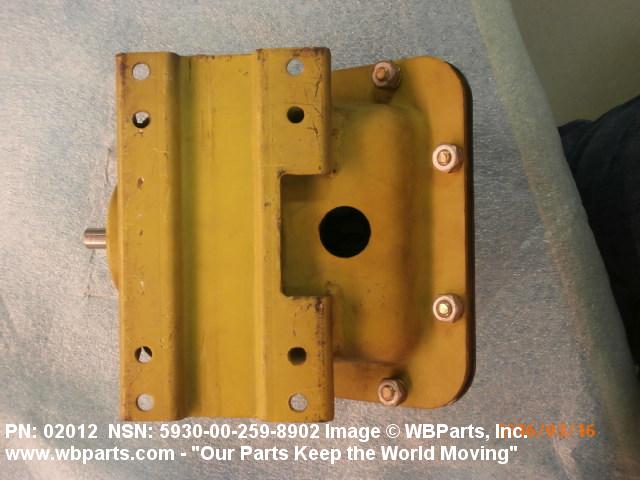

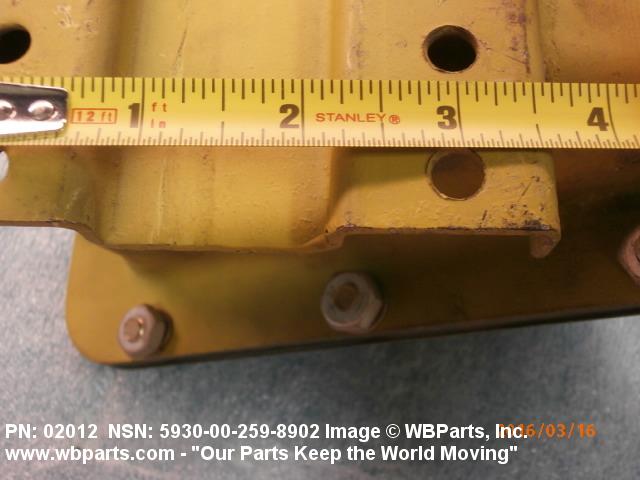

Drawings & Photos | NSN 5930-00-259-8902
Demand History | NSN 5930-00-259-8902
Cross Reference | NSN 5930-00-259-8902
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 02012 | 70885 | DAVIES ASSOCIATES |
| 5568-L TYPE S1JR10-3B | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 9S5568LS1JR10-3B | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| SYM 2702 | 44291 | U.S. PIONEER, L.L.C. DBA U.S. PIONEER |
| SYM 2702 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5930-00-259-8902
Related Products | NSN 5930-00-259-8902
5930-00-259-8903, 5930-00-259-8904, 5930-00-259-8907, 5930-00-259-8909, 5930-00-259-8923
Technical Data | NSN 5930-00-259-8902
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 1 TAP, CIRCUIT SELECTOR |
| OVERALL LENGTH | 8.126 INCHES NOMINAL |
| OVERALL HEIGHT | 2.812 INCHES NOMINAL |
| OVERALL WIDTH | 2.812 INCHES NOMINAL |
| INDIVIDUAL SECTION QUANTITY | 10 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP SYMMETRICAL |
| POLE QUANTITY | 1 EACH SECTION REAR |
| THROW QUANTITY | 7 EACH SECTION REAR |
| CONTACT SWITCHING ACTION | BREAKS BEFORE MAKES EACH SECTION REAR |
| CONTACT VOLTAGE RATING IN VOLTS | 125.0 AC AT SEA LEVEL 30.0 DC AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 10.0 AMPERES RESISTIVE LOAD AC AT SEA LEVEL 10.0 AMPERES RESISTIVE LOAD DC AT SEA LEVEL |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 7 SINGLE ACTUATOR |
| SWITCH ACTUATOR POSITIONING INCREMENT | 45.0 DEGREES SINGLE ACTUATOR |
| SWITCH ACTUATOR STOP DEVICE TYPE | ADJUSTABLE STOP SINGLE ACTUATOR |
| SHAFT TYPE | RECTANGULAR/SQUARE, THREADED HOLE SINGLE ACTUATOR |
| SHAFT LENGTH | 1.304 INCHES NOMINAL SINGLE ACTUATOR |
| SQUARE SHAFT SIZE | 0.250 INCHES NOMINAL SINGLE ACTUATOR |
| TERMINAL TYPE | TAB W/SCREW |
| MOUNTING METHOD | BRACKET AND THREADED HOLE SINGLE MOUNTING FACILITY |
| THREAD SERIES DESIGNATOR | UNC SINGLE MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 0.190 INCHES SINGLE MOUNTING FACILITY |
| THREAD CLASS | 2B SINGLE MOUNTING FACILITY |
| THREAD QUANTITY PER INCH | 24 SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR SINGLE MOUNTING FACILITY |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 2.297 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 2.297 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| FEATURES PROVIDED | ACTUATOR KNOB |
| SPECIAL FEATURES | 6-32 THREADED HOLE LOCATED ON VERTICAL AXIS OF SHAFT |
| TEST DATA DOCUMENT | 81349-MIL-S-15743 SPECIFICATION |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WATERTIGHT |
| III KNOB MANUFACTURER CODE | 80064 |
| III KNOB MANUFACTURER PART NUMBER | 9-S-5564-L-19 |
| III SHAFT FLAT/SLOT ANGULAR LOCATION | 22.5 DEGREES FROM CONTACT POSITION 1 SINGLE ACTUATOR |
