Product Details | TOGGLE SWITCH
5930-00-272-1363 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: AN302211, AN3022-11, 7239, 8215K3, 5930-00-272-1363, 00-272-1363, 5930002721363, 002721363
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-272-1363 | 00184 ( SWITCH, TOGGLE ) |

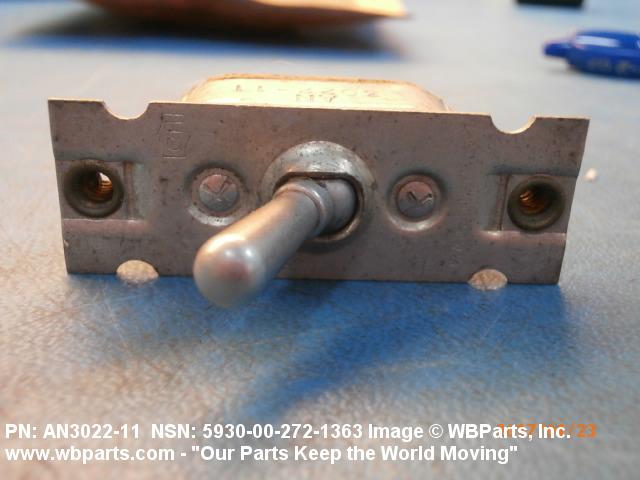

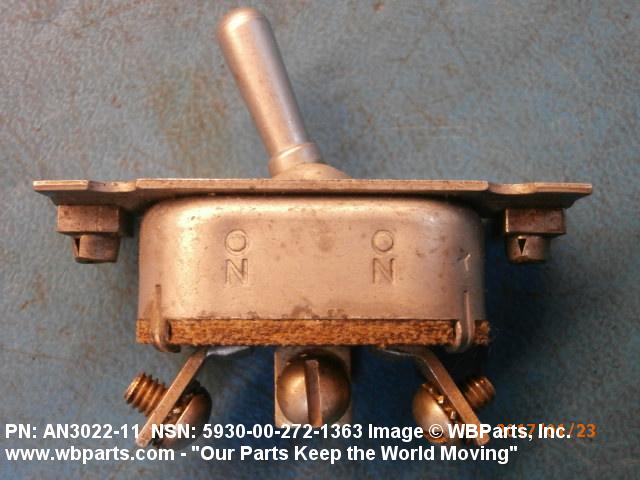

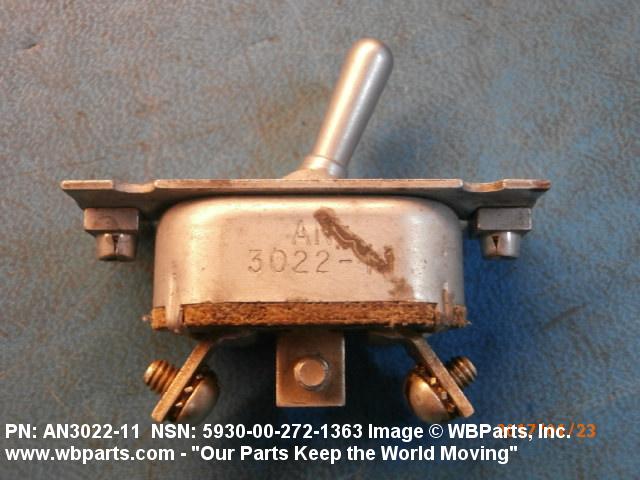

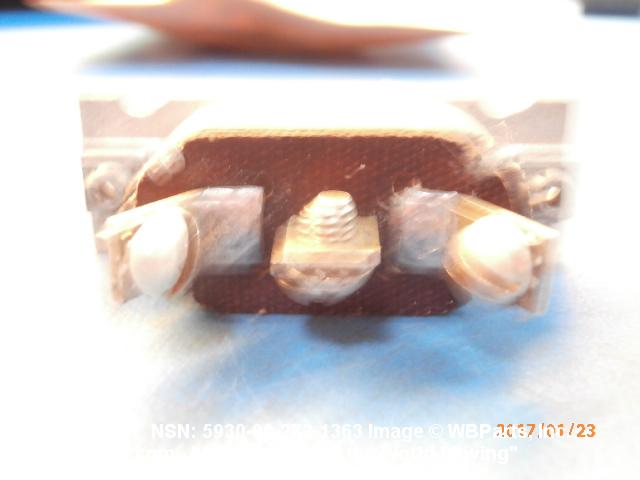

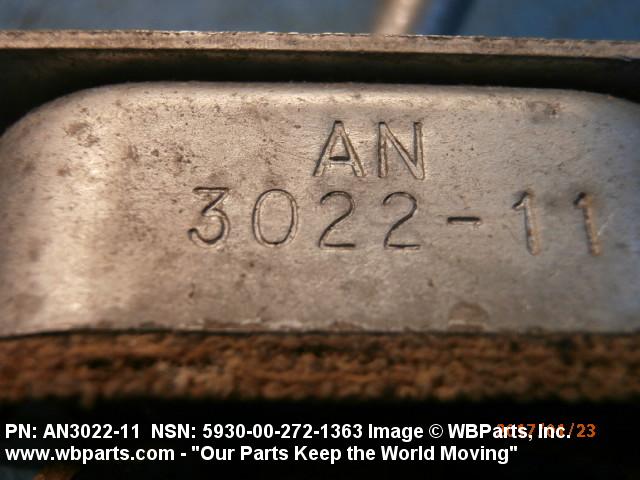

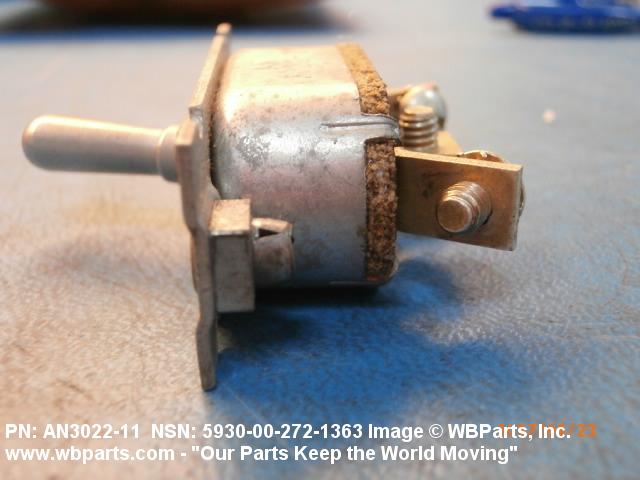

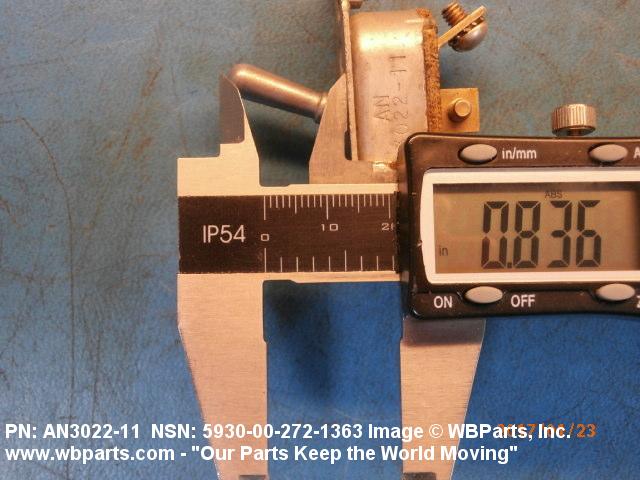

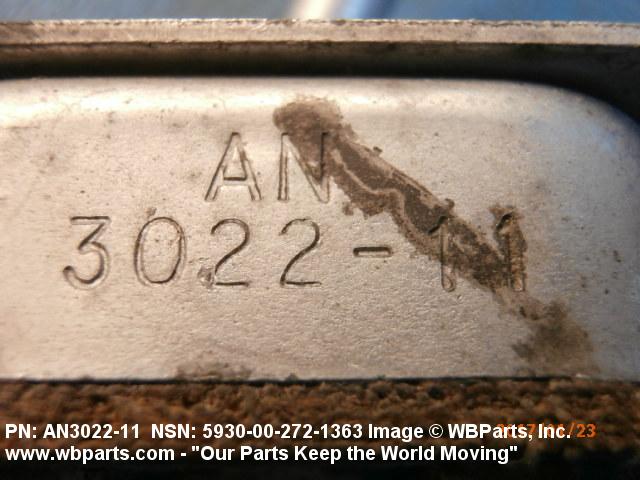

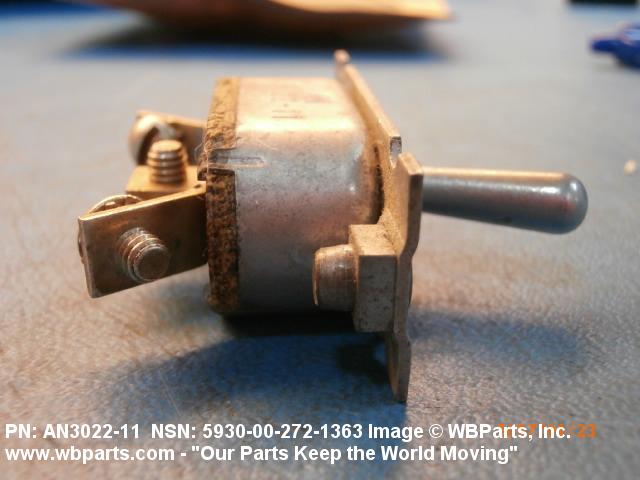

Drawings & Photos | NSN 5930-00-272-1363
Demand History | NSN 5930-00-272-1363
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-272-1363 | 2024-05-06 | 6 | US |
| 5930-00-272-1363 | 2024-04-24 | 10 | US |
| AN302211 | 2024-02-23 | 1 | US |
| 5930-00-272-1363 | 2023-10-26 | 2 | HU |
| 5930-00-272-1363 | 2022-03-13 | 25 | US |
| AN302211 | 2022-02-22 | 1 | United States |
| 5930-00-272-1363 | 2021-06-29 | 6 | US |
| AN302211 | 2020-09-22 | 5 | US |
| AN302211 | 2020-09-20 | 1 | US |
| AN302211 | 2020-09-18 | 50 | GU |
| 5930-00-272-1363 | 2020-09-01 | 2 | United States |
| 5930-00-272-1363 | 2019-08-22 | 25 | United States |
| 5930-00-272-1363 | 2018-07-30 | 1 | US |
| 5930-00-272-1363 | 2016-12-18 | 2 | Australia |
| 5930-00-272-1363 | 2016-12-18 | 2 | Australia |
| AN302211 | 2015-05-13 | 2 | United States |
| 5930-00-272-1363 | 2014-06-02 | 2 | US |
| 5930-00-272-1363 | 2013-08-20 | 5 | US |
| AN302211 | 2013-01-21 | 2 | us |
| AN302211 | 2012-12-04 | 2 | US |
| AN302211 | 2009-05-07 | 2 | US |
| AN302211 | 2007-06-04 | 6 | US |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5930-00-272-1363
Related Products | NSN 5930-00-272-1363
5930-00-272-1365, 5930-00-272-1366, 5930-00-272-1367, 5930-00-272-1368, 5930-00-272-1369
Technical Data | NSN 5930-00-272-1363
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 25.000 AMPERES RESISTIVE DC AND 15.000 AMPERES RESISTIVE AC |
| BODY STYLE | 10P HOLE MOUNT |

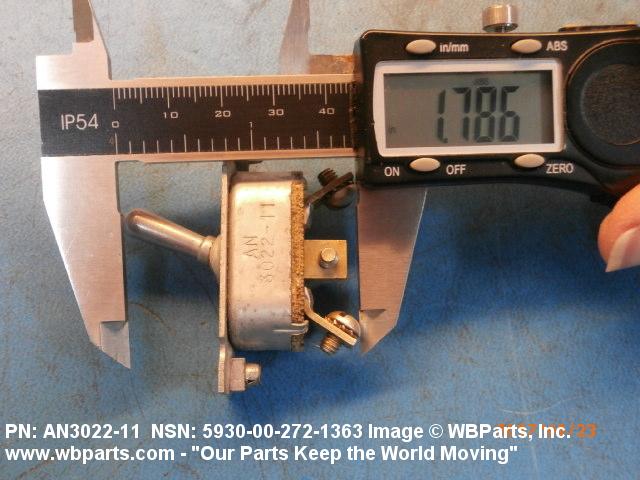

| BODY LENGTH | 1.453 INCHES NOMINAL |

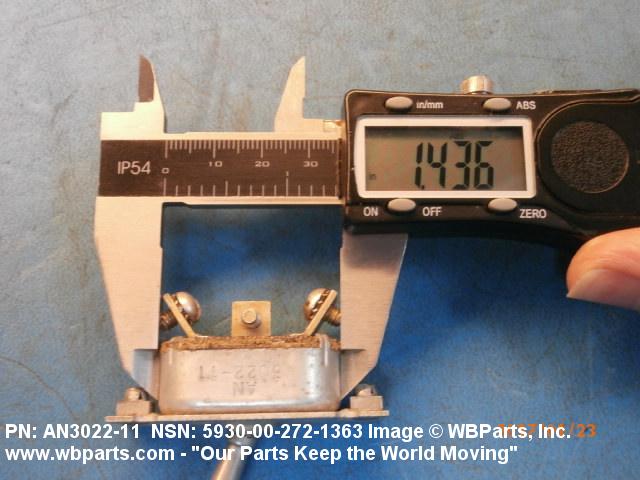

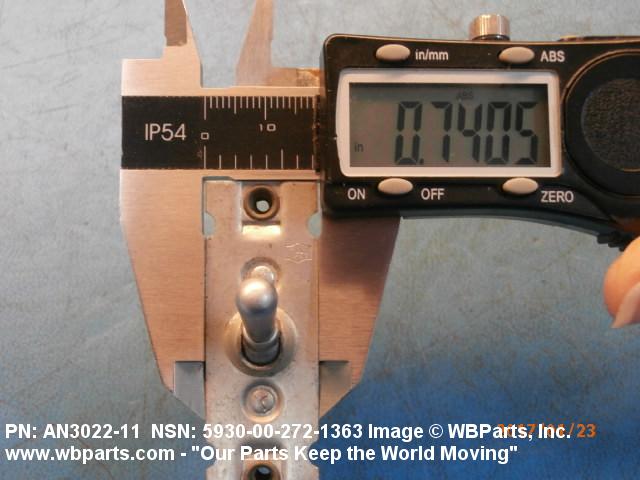

| BODY WIDTH | 0.766 INCHES NOMINAL |
