NSN 5930-00-272-1412 AN32335, AN3233-5, HR1
Product Details | SENSITIVE SWITCH HOUSING
5930-00-272-1412 An item designed to inclose a basic sensitive switch providing characteristics features such as dust-proof, explosion-proof, watertight, and the like, and having provisions for actuating the switch. Excludes BOX, SWITCH.
Part Alternates: AN32335, AN3233-5, HR1, IMR1, LMR1, 911325X, 9-11325X, 5930-00-272-1412, 00-272-1412, 5930002721412, 002721412
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-272-1412 | 15317 ( HOUSING, SENSITIVE SWITCH ) |
Drawings & Photos | NSN 5930-00-272-1412
Cross Reference | NSN 5930-00-272-1412
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9-11325X | 91229 | CELANESE COATINGS CO |
| AN3233-5 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| HR1 | 91229 | CELANESE COATINGS CO |
| IMR1 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| LMR1 | 91229 | CELANESE COATINGS CO |
| LMR1 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-272-1412
Technical Data | NSN 5930-00-272-1412
| Characteristic | Specifications |
|---|---|

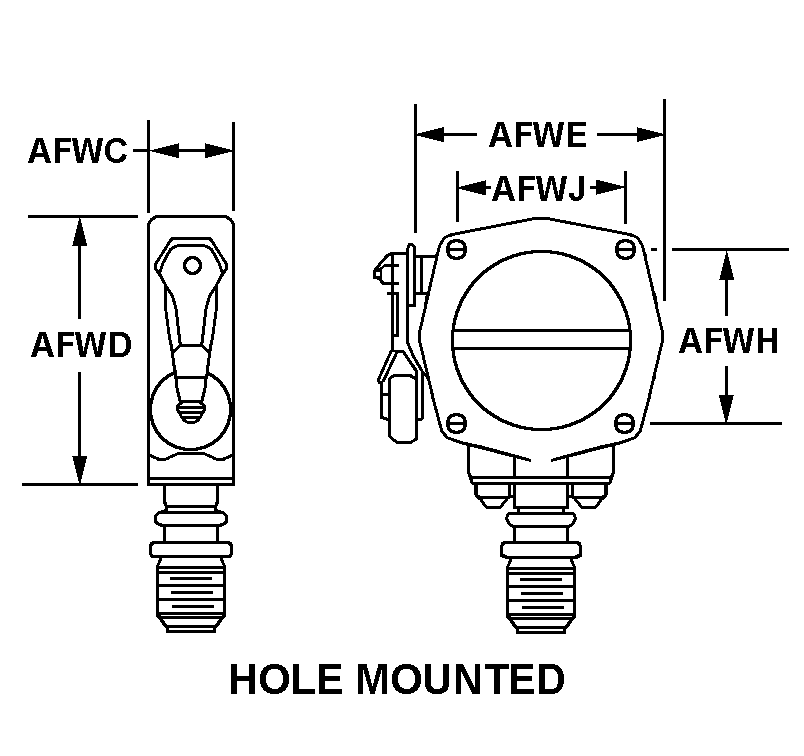

| BODY STYLE | 73M HOLE MOUNTED |
| ACTUATOR STYLE | 51 ROLLER ARM |
| ACTUATOR ROLLER DIAMETER | 0.750 INCHES NOMINAL |
| ACTUATOR ROLLER WIDTH | 0.281 INCHES NOMINAL |
| MOUNTING METHOD | FLUSH AND THREADED HOLE |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 32 |
| FEATURES PROVIDED | ADJUSTABLE |
| III OVERALL LENGTH | 3.188 INCHES NOMINAL |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN3233-5 |
Restrictions/Controls & Freight Information | NSN 5930-00-272-1412
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-272-1412
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
