NSN 5930-00-296-6319 MS390612, MS39061-2, MILDTL13735
Product Details | TOGGLE SWITCH
5930-00-296-6319 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: MS390612, MS39061-2, MILDTL13735, MIL-DTL-13735, MILS13735, MIL-S-13735, 384476-251, 8376807, 5930-00-296-6319, 00-296-6319, 5930002966319, 384476251, 002966319
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-296-6319 | 00184 ( SWITCH, TOGGLE ) |

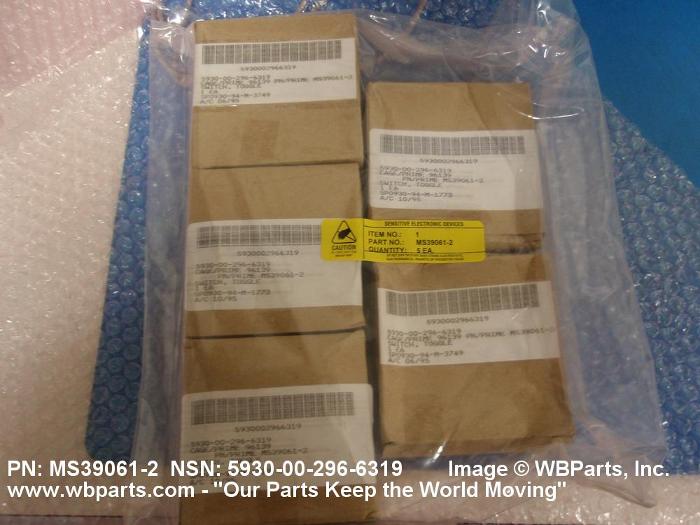

Drawings & Photos | NSN 5930-00-296-6319
Demand History | NSN 5930-00-296-6319
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-296-6319 | 2025-09-265 | 2 | UA |
| 5930-00-296-6319 | 2025-09-245 | 1 | Australia |
| 5930-00-296-6319 | 2025-07-199 | 1 | PK |
| 002966319 | 2024-08-229 | 54 | Saudi Arabia |
| 5930-00-296-6319 | 2024-07-186 | 341 | DIBBS |
| 5930-00-296-6319 | 2024-06-176 | 1 | United States |
| 5930-00-296-6319 | 2024-05-136 | 55 | United Kingdom |
| 5930-00-296-6319 | 2024-02-43 | 297 | DIBBS |
| 5930-00-296-6319 | 2024-01-31 | 297 | DIBBS |
| MS390612 | 2023-04-118 | 3 | United States |
| 5930-00-296-6319 | 2022-08-220 | 366 | DIBBS |
| 5930-00-296-6319 | 2022-07-209 | 366 | DIBBS |
| 5930-00-296-6319 | 2021-08-224 | 147 | DIBBS |
| 5930-00-296-6319 | 2021-04-101 | 110 | United States |
| 5930-00-296-6319 | 2020-12-348 | 111 | Taiwan |
| 5930-00-296-6319 | 2020-11-314 | 1 | Brazil |
| 5930-00-296-6319 | 2020-10-282 | 289 | DIBBS |
| 5930-00-296-6319 | 2020-08-219 | 424 | DIBBS |
| 5930-00-296-6319 | 2020-06-167 | 16 | United States |
| 5930-00-296-6319 | 2020-01-02 | 281 | DIBBS |
| 5930-00-296-6319 | 2019-07-186 | 45 | US |
| 5930-00-296-6319 | 2019-07-185 | 262 | DIBBS |
| 5930-00-296-6319 | 2019-05-140 | 200 | US |
| 5930-00-296-6319 | 2019-04-116 | 3 | Taiwan |
| 5930-00-296-6319 | 2019-03-73 | 184 | DIBBS |
| 5930-00-296-6319 | 2019-01-10 | 6 | MANUAL |
| MS39061-2 | 2019-01-10 | 6 | Thailand |
| 5930-00-296-6319 | 2018-12-354 | 2 | DIBBS-KIT |
| MS39061-2 | 2018-12-353 | 2 | |
| 5930002966319 | 2018-11-306 | 2 | Thailand |
| 5930-00-296-6319 | 2018-10-292 | 2 | MANUAL |
| MS39061-2 | 2018-10-292 | 2 | Thailand |
| 5930-00-296-6319 | 2018-08-233 | 76 | United States |
| 5930-00-296-6319 | 2018-08-218 | 370 | DIBBS |
| 5930-00-296-6319 | 2018-07-205 | 126 | DIBBS |
| 5930-00-296-6319 | 2018-07-191 | 25 | DIBBS |
| MS390612 | 2018-05-124 | 15 | United States |
| MS390612 | 2018-04-94 | 46 | US |
| 5930-00-296-6319 | 2018-03-80 | 50 | South Korea |
| 5930-00-296-6319 | 2017-11-312 | 25 | DIBBS |
| 5930-00-296-6319 | 2017-06-155 | 309 | DIBBS |
| 5930-00-296-6319 | 2017-05-127 | 180 | DIBBS |
| 5930-00-296-6319 | 2017-02-32 | 6 | MANUAL |
| MS39061-2 | 2017-02-32 | 6 | United States |
| 5930-00-296-6319 | 2017-01-16 | 94 | DIBBS |
| 5930-00-296-6319 | 2016-10-299 | 100 | DIBBS |
| 5930-00-296-6319 | 2016-08-221 | 12 | Israel |
| 5930-00-296-6319 | 2015-05-141 | 6 | South Korea |
| 5930-00-296-6319 | 2014-10-274 | 3 | Pakistan |
| 5930-00-296-6319 | 2013-04-108 | 200 | MANUAL |
| 5930-00-296-6319 | 2011-03-68 | 93 | MANUAL |
| 5930-00-296-6319 | 2009-11-308 | 10 | Germany |
| MS390612 | 2008-09-246 | 5 | France |
| 5930-00-296-6319 | 2007-12-338 | 1489 | DIBBS |
| 5930-00-296-6319 | 2007-03-67 | 407 | DIBBS |
| 5930-00-296-6319 | 2007-03-67 | 412 | DIBBS |
| 5930-00-296-6319 | 2007-03-67 | 682 | DIBBS |
| 5930-00-296-6319 | 2007-03-67 | 692 | DIBBS |
| 5930-00-296-6319 | 2007-03-67 | 853 | DIBBS |
Cross Reference | NSN 5930-00-296-6319
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 384476-251 | 92333 | FRUEHAUF CORP MILITARY PRODUCTS DIV |
| 5930-296-6319 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 5930002966319 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 8376807 | 19206 | ARMY, UNITED STATES DEPARTMENT OF THE |
| MIL-DTL-13735 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-S-13735 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS39061-2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-296-6319
Related Products | NSN 5930-00-296-6319
Technical Data | NSN 5930-00-296-6319
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 24.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 25.000 AMPERES RESISTIVE DC AND 15.000 AMPERES INDUCTIVE DC AND 6.000 AMPERES LAMP DC |
| BODY STYLE | 10P HOLE MOUNT |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.812 INCHES NOMINAL |
| BODY LENGTH | 2.250 INCHES NOMINAL |
| BODY WIDTH | 0.969 INCHES NOMINAL |
| BODY HEIGHT | 1.625 INCHES NOMINAL |
| OVERALL LENGTH | 2.250 INCHES NOMINAL |
| OVERALL WIDTH | 0.969 INCHES NOMINAL |
| OVERALL HEIGHT | 2.563 INCHES NOMINAL |
| ACTUATOR STYLE | 25 ROUND |
| ACTUATOR HEIGHT | 0.750 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MOMENTARY |
| TERMINAL TYPE AND QUANTITY | 2 CONNECTOR, RECEPTACLE |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WATERTIGHT |
| MOUNTING METHOD | UNTHREADED HOLE |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| TEST DATA DOCUMENT | 81349-MIL-S-13735 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 96906-MS39061 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-DTL-13735 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS39061-2 |
