NSN 5930-00-351-1130 AT1237, 6135217, 613521-7
Product Details | TOGGLE SWITCH
5930-00-351-1130 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: AT1237, 6135217, 613521-7, 5930-00-351-1130, 00-351-1130, 5930003511130, 003511130
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-351-1130 | 00184 ( SWITCH, TOGGLE ) |

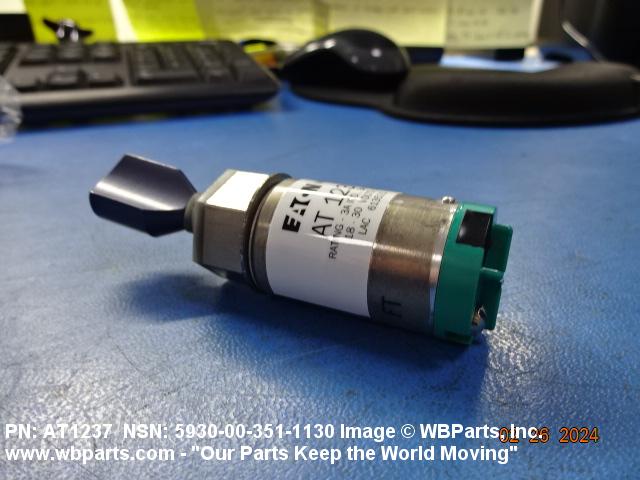

Drawings & Photos | NSN 5930-00-351-1130
Demand History | NSN 5930-00-351-1130
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AT1237 | 2024-11-318 | 3 | CA |
| 613521-7 | 2024-05-134 | 16 | DIBBS |
| AT1237 | 2024-05-134 | 16 | DIBBS |
| 613521-7 | 2024-05-123 | 16 | DIBBS |
| AT1237 | 2024-05-123 | 16 | DIBBS |
| 5930-00-351-1130 | 2024-02-38 | 3 | United States |
| 5930-00-351-1130 | 2024-02-38 | 2 | United States |
| 613521-7 | 2023-11-316 | 20 | DIBBS |
| AT1237 | 2023-11-316 | 20 | DIBBS |
| 5930-00-351-1130 | 2023-08-213 | 1 | US |
| 613521-7 | 2022-10-279 | 33 | DIBBS |
| AT1237 | 2022-10-279 | 33 | DIBBS |
| 5930-00-351-1130 | 2021-06-176 | 8 | TW |
| 613521-7 | 2020-03-72 | 28 | DIBBS |
| AT1237 | 2020-03-72 | 28 | DIBBS |
| 5930-00-351-1130 | 2018-09-260 | 31 | DIBBS |
| 5930-00-351-1130 | 2018-09-249 | 31 | DIBBS |
| 5930-00-351-1130 | 2016-04-104 | 9 | DIBBS |
| 5930-00-351-1130 | 2016-02-39 | 8 | DIBBS |
| 5930-00-351-1130 | 2011-06-172 | 14 | DIBBS |
| 5930-00-351-1130 | 2011-01-19 | 16 | DIBBS |
| 5930-00-351-1130 | 2010-11-316 | 16 | DIBBS |
| 6135217 | 2010-08-225 | 20 | TW |
| AT1237 | 2010-05-140 | 40 | China |
| 5930-00-351-1130 | 2007-08-219 | 9 | DIBBS |
| 5930-00-351-1130 | 2007-06-158 | 13 | DIBBS |
| 5930-00-351-1130 | 2007-02-41 | 56 | DIBBS |
| 5930-00-351-1130 | 2007-02-36 | 105 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-351-1130
Related Products | NSN 5930-00-351-1130
Technical Data | NSN 5930-00-351-1130
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 30.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 3.000 AMPERES RESISTIVE DC AND 3.000 AMPERES INDUCTIVE DC |
| BODY STYLE | 2P BUSHING MOUNT |
| BODY DIAMETER | 0.967 INCHES NOMINAL |
| BUSHING LENGTH | 0.504 INCHES NOMINAL |
| OVERALL LENGTH | 3.328 INCHES NOMINAL |
| OVERALL WIDTH | 0.967 INCHES NOMINAL |
| OVERALL HEIGHT | 0.967 INCHES NOMINAL |
| ACTUATOR STYLE | 22 ROUND |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MOMENTARY |
| TERMINAL TYPE AND QUANTITY | 3 SCREW |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | THREADED BUSHING |
| FEATURES PROVIDED | ACTUATOR SEAL |
Restrictions/Controls & Freight Information | NSN 5930-00-351-1130
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-351-1130
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
