NSN 5930-00-400-8397 PH8P37, 00-400-8397, 004008397
Product Details | PRESSURE SWITCH
5930-00-400-8397 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: PH8P37, 5930-00-400-8397, 00-400-8397, 5930004008397, 004008397
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 NOV 1969 | 00-400-8397 | 00206 ( SWITCH, PRESSURE ) |

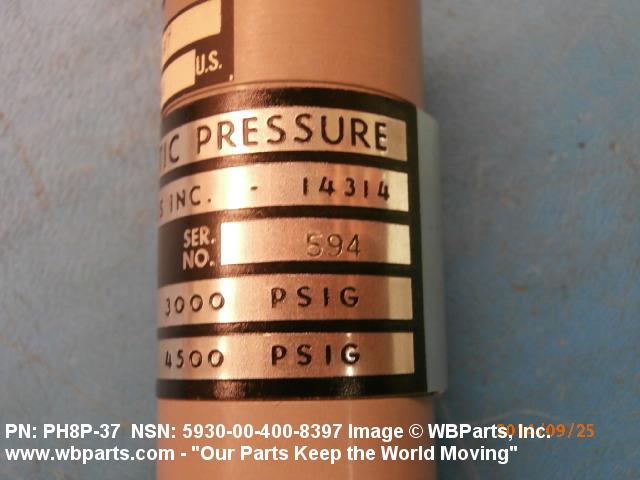

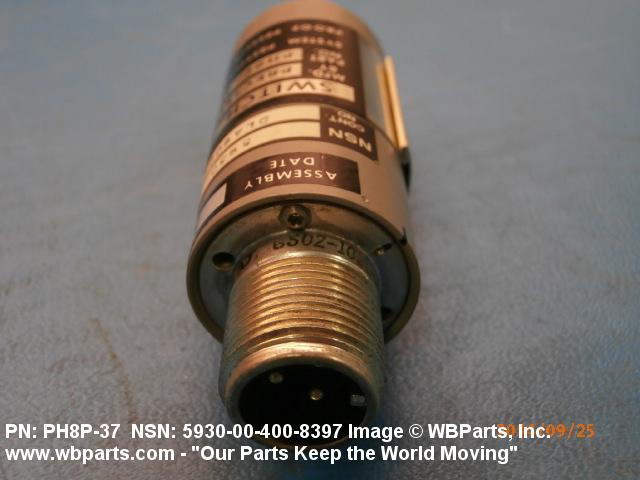

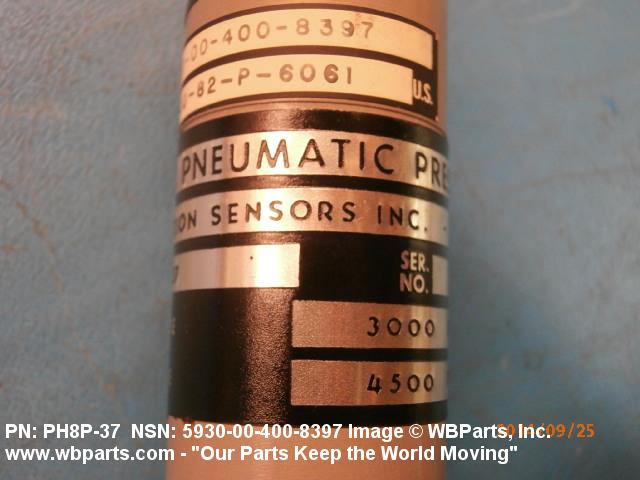

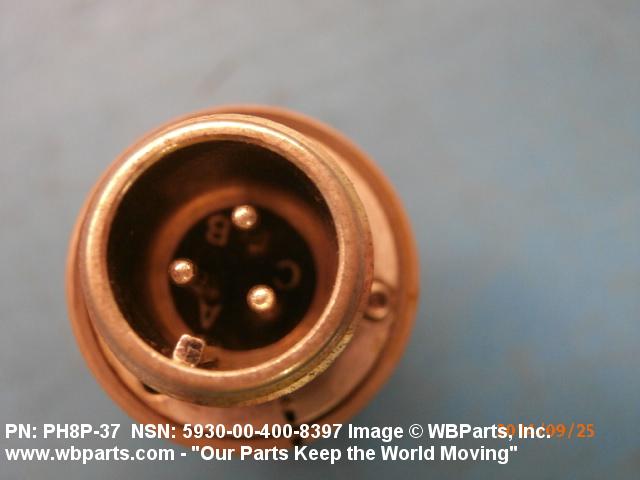

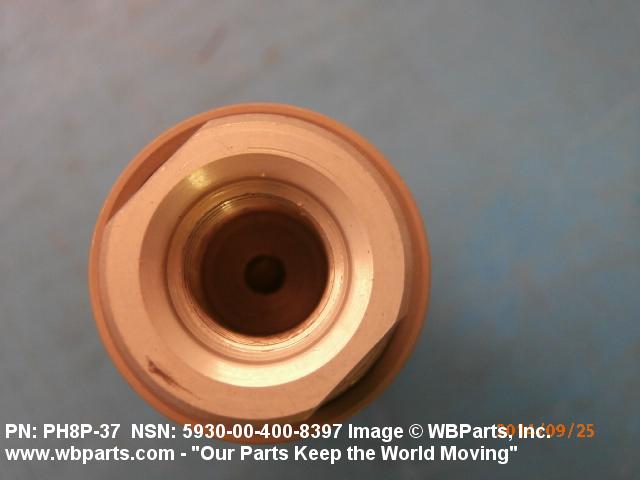

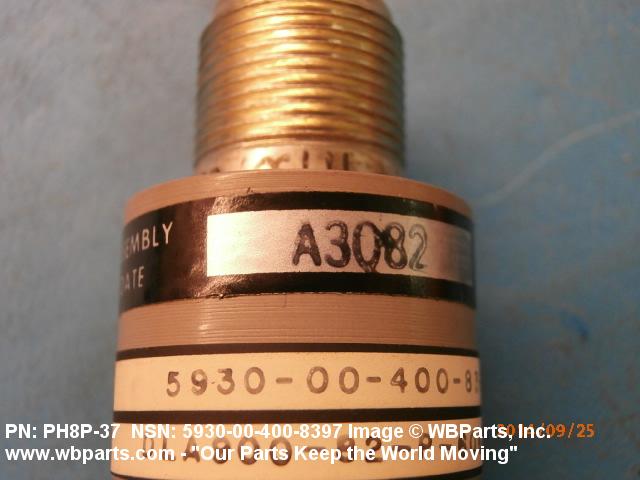

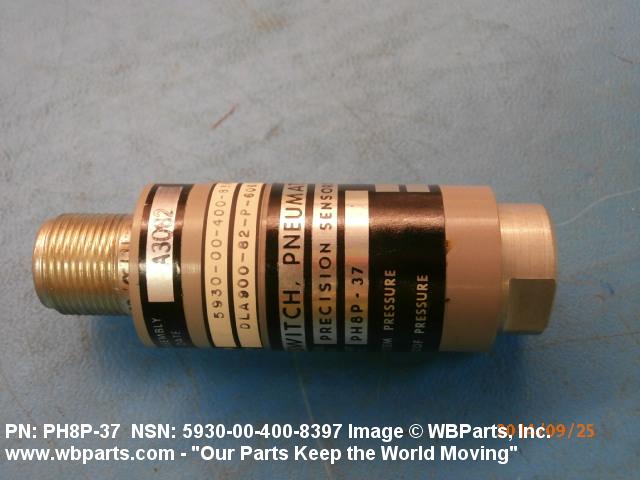

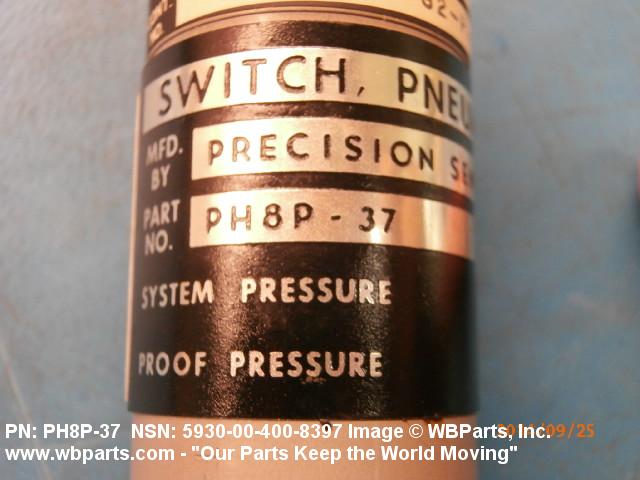

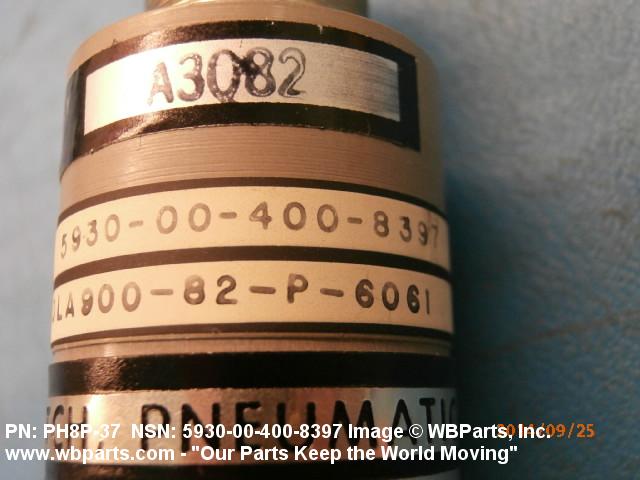

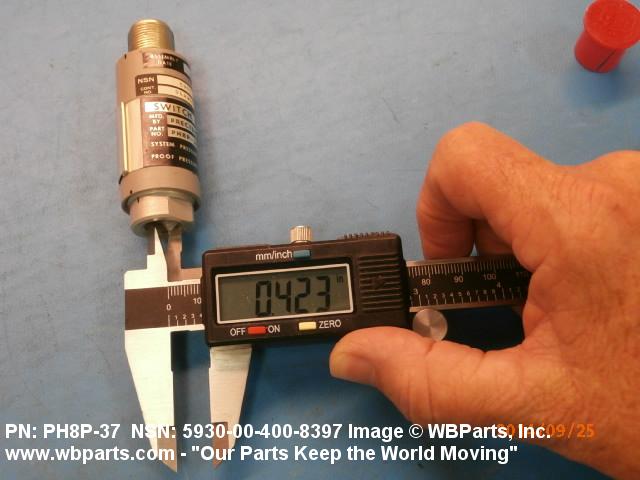

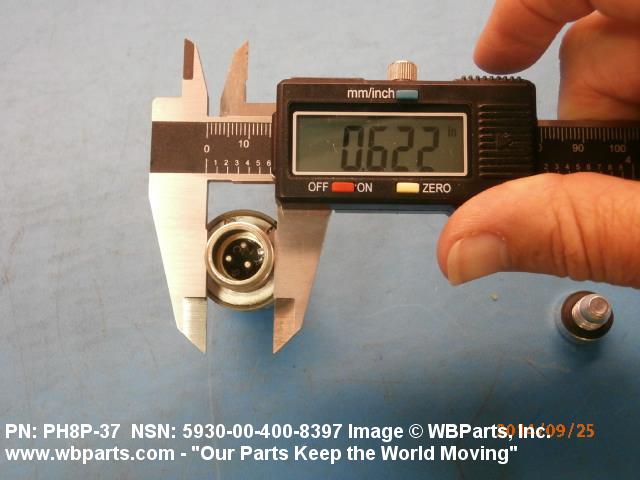

Drawings & Photos | NSN 5930-00-400-8397
Demand History | NSN 5930-00-400-8397
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-400-8397 | 2014-09-251 | 1 | United States |
| PH8P37 | 2014-09-248 | 1 | United States |
Cross Reference | NSN 5930-00-400-8397
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PH8P37 | 14314 | UNITED ELECTRIC CONTROLS COMPANY DBA PRECISION SENSORS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-400-8397
Related Products | NSN 5930-00-400-8397
Technical Data | NSN 5930-00-400-8397
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 2 CYLINDRICAL W/FLANGE |

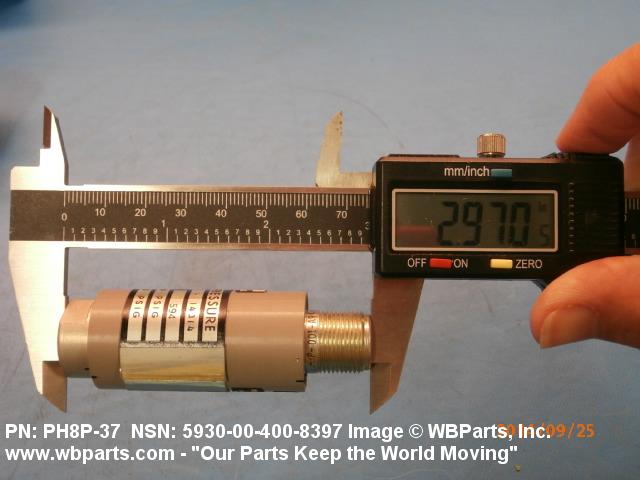

| OVERALL LENGTH | 3.000 INCHES MAXIMUM |

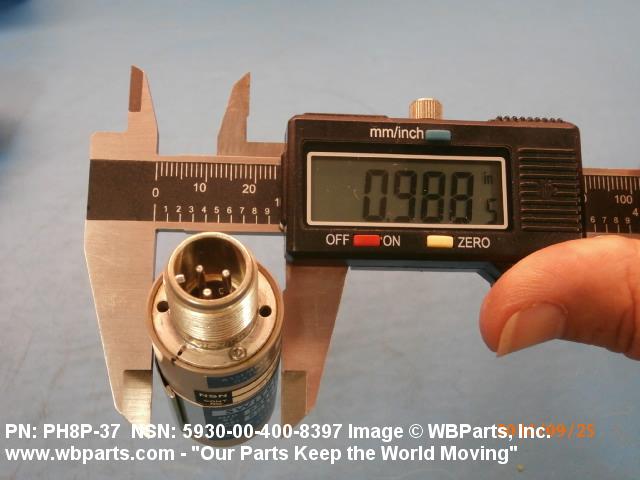

| OVERALL DIAMETER | 1.120 INCHES MAXIMUM |
