NSN 5930-00-401-6786 AS635C4, 00-401-6786, 004016786
Product Details | MERCURY SWITCH
5930-00-401-6786 A switch in which a mercury pool is used to bridge fixed contacts when their inclosing sealed capsule is tilted. Do not use if switch has an actuator, such as lever, push button, toggle, and the like. See SWITCH (as modified). For items in which a contact may be moved into a mercury pool by a magnetic field, see SWITCH, REED.
Part Alternates: AS635C4, 5930-00-401-6786, 00-401-6786, 5930004016786, 004016786
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 NOV 1969 | 00-401-6786 | 00159 ( SWITCH, MERCURY ) |
Drawings & Photos | NSN 5930-00-401-6786
Cross Reference | NSN 5930-00-401-6786
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS635C4 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-401-6786
Technical Data | NSN 5930-00-401-6786
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 230.0 AC AND 30.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 11.000 AMPERES RESISTIVE DC AND 10.000 AMPERES RESISTIVE AC |

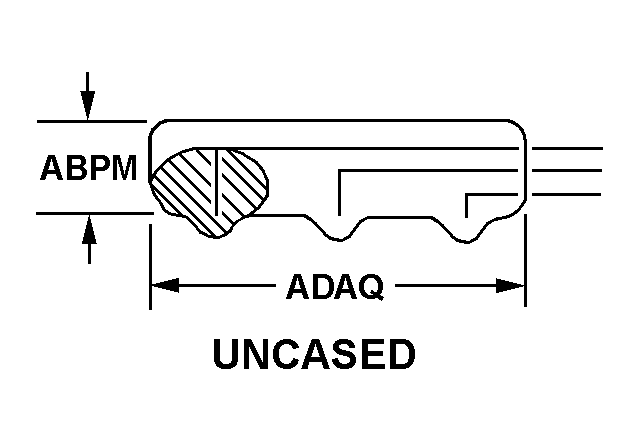

| BODY STYLE | 11J UNCASED |
| BODY DIAMETER | 0.609 INCHES NOMINAL |
| BODY LENGTH | 2.970 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 3 WIRE LEAD |
| SWITCH ACTUATION DIFFERENTIAL ANGLE | 1.0 DEGREES MINIMUM AND 4.5 DEGREES MAXIMUM |
| MOUNTING METHOD | TERMINAL |
Restrictions/Controls & Freight Information | NSN 5930-00-401-6786
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-401-6786
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
