NSN 5930-00-433-7813 14711017 PC 13, 14711017PC13, 6957ED165233
Product Details | PUSH SWITCH
5930-00-433-7813 A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lamp(s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes LIGHT-SWITCH; LIGHT-SWITCH ASSEMBLY; SWITCH, BEAM SELECTING, HEADLIGHT; SWITCH, FOOT; SWITCH, INTERLOCK; SWITCH, PRESSURE; SWITCH, PUSH-PULL; SWITCH, SENSITIVE and SWITCH ASSEMBLY. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see STARTER, MOTOR and CONTROLLER, MOTOR.
Part Alternates: 14711017 PC 13, 14711017PC13, 6957ED165233, 6957ED165-233, 6981ED16514, 6981ED165-14, 862446, 86-2446, 5930-00-433-7813, 00-433-7813, 5930004337813, 004337813
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 JUL 1970 | 00-433-7813 | 00406 ( SWITCH, PUSH ) |

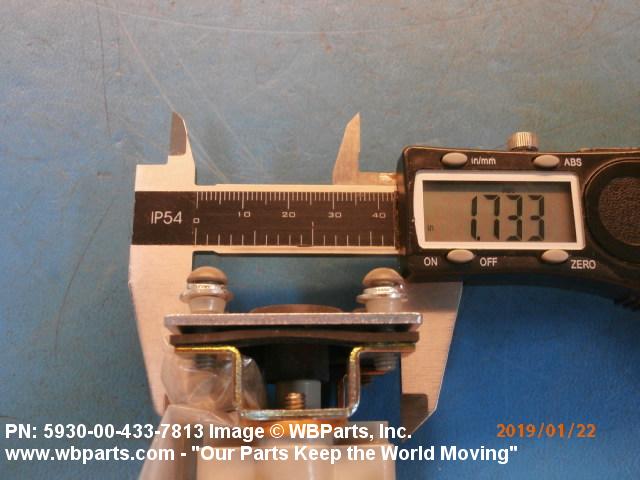

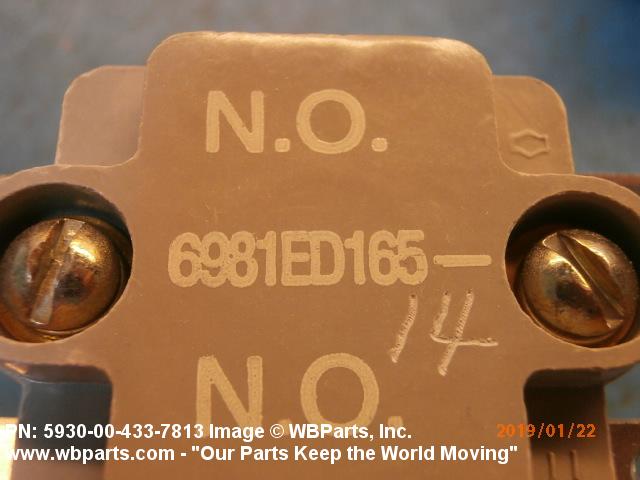

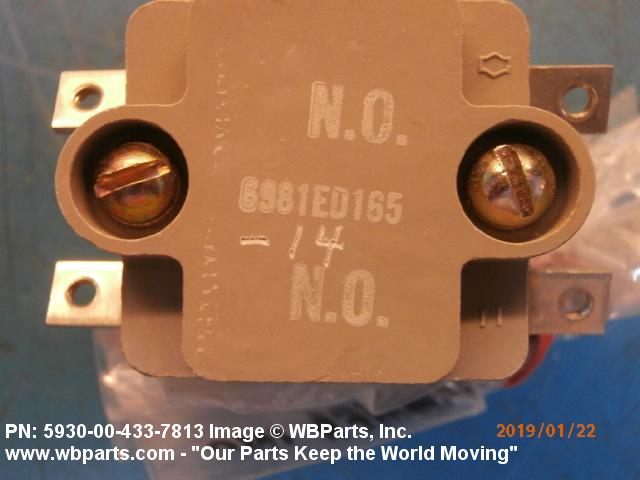

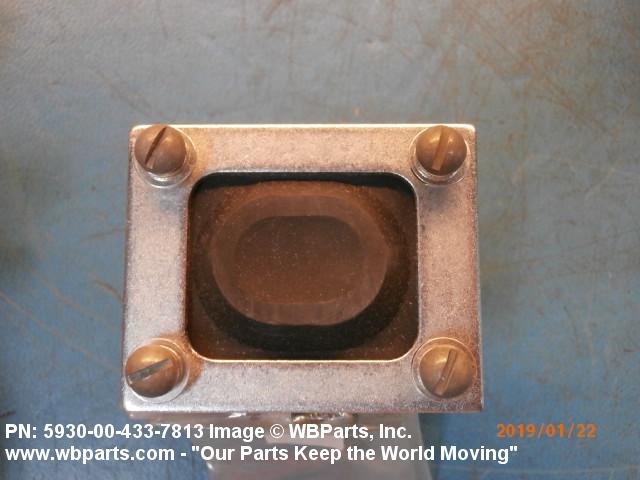

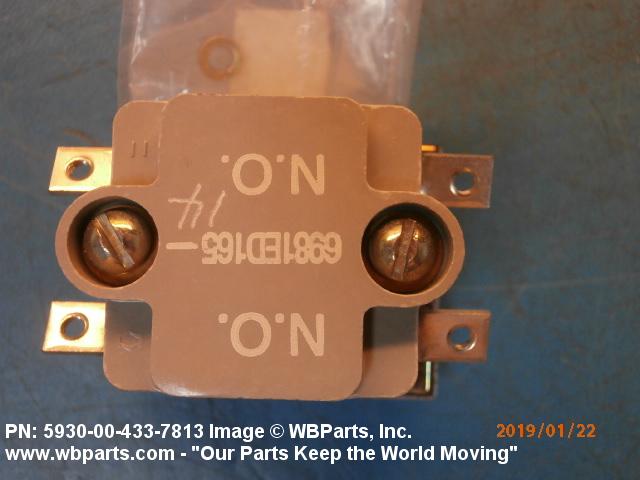

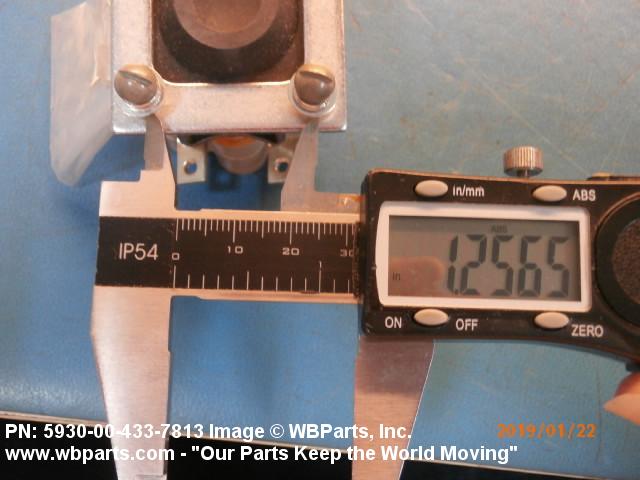

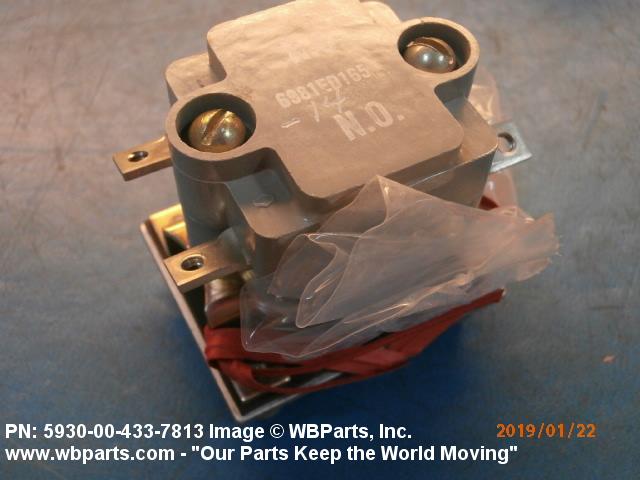

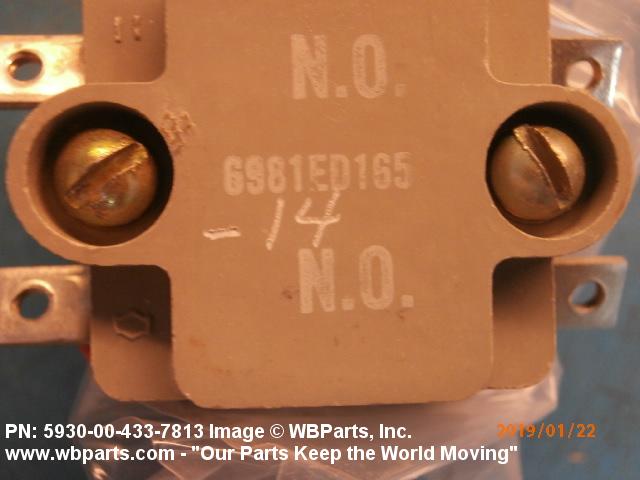

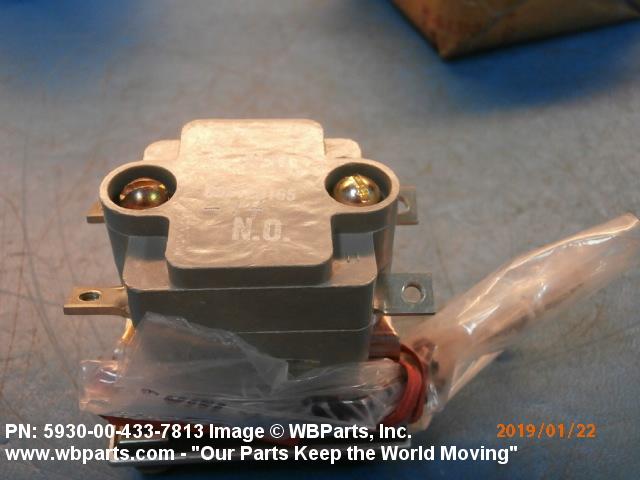

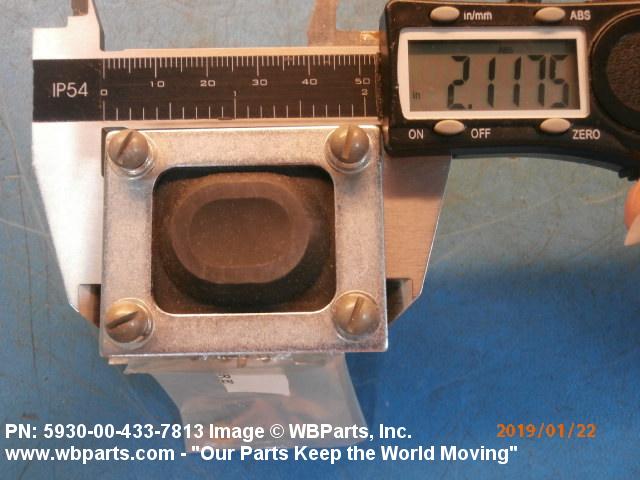

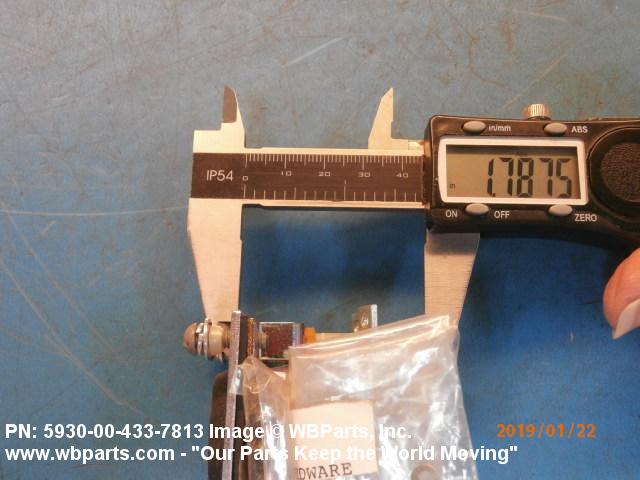

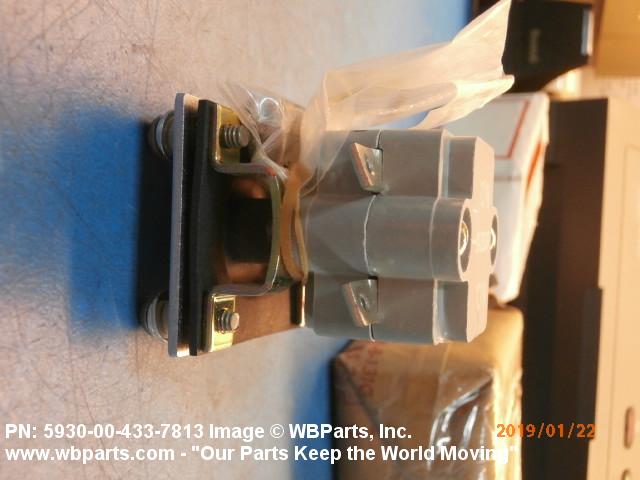

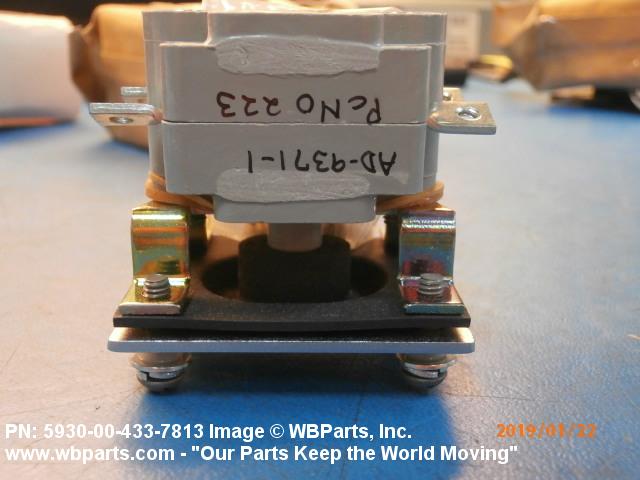

Drawings & Photos | NSN 5930-00-433-7813
Demand History | NSN 5930-00-433-7813
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6981ED165-14 | 2024-03-61 | 60 | DIBBS |
| 86-2446 | 2024-03-61 | 60 | DIBBS |
| 5930-00-433-7813 | 2024-02-50 | 60 | DIBBS |
| 6981ED165-14 | 2024-02-36 | 60 | DIBBS |
| 86-2446 | 2024-02-36 | 60 | DIBBS |
| 6981ED165-14 | 2023-11-328 | 42 | DIBBS |
| 86-2446 | 2023-11-328 | 42 | DIBBS |
| 6981ED165-14 | 2023-11-317 | 42 | DIBBS |
| 86-2446 | 2023-11-317 | 42 | DIBBS |
| 5930-00-433-7813 | 2023-03-75 | 38 | DIBBS |
| 5930-00-433-7813 | 2022-01-27 | 3 | DIBBS |
| 5930-00-433-7813 | 2022-01-13 | 3 | DIBBS |
| 5930-00-433-7813 | 2022-01-02 | 7 | DIBBS |
| 5930-00-433-7813 | 2021-11-308 | 4 | DIBBS |
| 5930-00-433-7813 | 2021-10-280 | 3 | DIBBS |
| 5930-00-433-7813 | 2021-09-256 | 3 | DIBBS |
| 5930-00-433-7813 | 2021-09-245 | 3 | DIBBS |
| 5930-00-433-7813 | 2021-06-173 | 12 | DIBBS |
| 5930-00-433-7813 | 2021-06-158 | 12 | DIBBS |
| 5930-00-433-7813 | 2020-09-245 | 1 | UM |
| 5930-00-433-7813 | 2018-08-242 | 26 | DIBBS |
| 5930-00-433-7813 | 2018-07-193 | 3 | United States |
| 6981ED16514 | 2018-07-193 | 3 | United States |
| 5930-00-433-7813 | 2015-06-159 | 34 | DIBBS |
| 5930-00-433-7813 | 2015-05-147 | 34 | DIBBS |
| 5930-00-433-7813 | 2014-06-164 | 7 | DIBBS |
| 5930-00-433-7813 | 2014-06-153 | 7 | DIBBS |
| 5930-00-433-7813 | 2009-05-132 | 105 | DIBBS |
Cross Reference | NSN 5930-00-433-7813
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 14711017 PC 13 | 0DHG4 | GULF COAST HOLDINGS INC DBA UNIDYNAMICS |
| 6957ED165-233 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 6981ED165-14 | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
| 6981ED165-14 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 86-2446 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-433-7813
Technical Data | NSN 5930-00-433-7813
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 TWO CIRCUIT, DOUBLE BREAK/DOUBLE MAKE, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 440.0 AC AND 355.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 500.000 MILLIAMPERES INDUCTIVE DC AND 5.000 AMPERES INDUCTIVE AC |
| BODY STYLE | 21K HOLE MOUNT |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.620 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 1.250 INCHES NOMINAL |
| OVERALL LENGTH | 2.125 INCHES NOMINAL |
| OVERALL WIDTH | 1.750 INCHES NOMINAL |
| OVERALL HEIGHT | 1.620 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 4 TAB, SOLDER LUG |
| INCLOSURE TYPE | FULLY INCLOSED |
Restrictions/Controls & Freight Information | NSN 5930-00-433-7813
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-433-7813
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
