NSN 5930-00-445-9274 MS274074, MS27407-4, A24252

Product Details | TOGGLE SWITCH

5930-00-445-9274 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.

Part Alternates: MS274074, MS27407-4, A24252, E7991715C, ES367001, ES3670-01, FS700279V ITEM 38, FS700279V/38, FS700279V38, FS700279VITEM38, MILDTL3950, MIL-DTL-3950, MILS3950, MIL-S-3950, 007525624 ITEM 38, 007525624/38, 00752562438, 007525624ITEM38, 0107 3535, 01073535, 0T2V6, 11070062, 11687971, 2TL110, 2TL1-10, 6099152, 6415324, 5930-00-445-9274, 00-445-9274, 5930004459274, 004459274

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1961	00-445-9274	00184 ( SWITCH, TOGGLE )

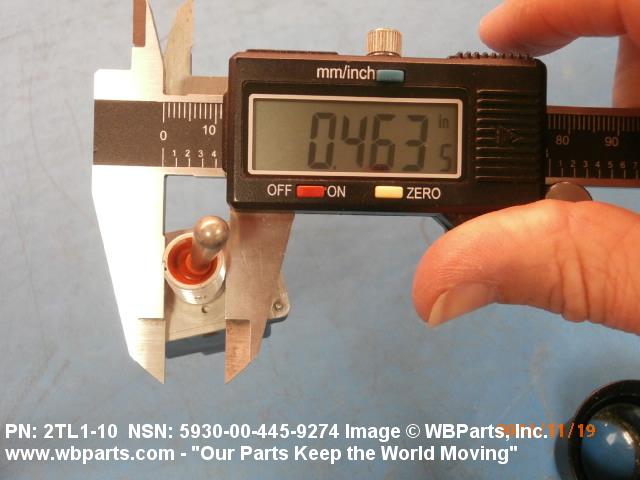

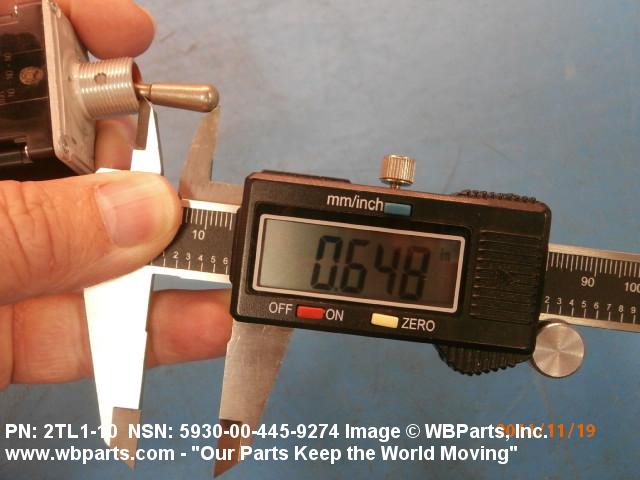

Drawings & Photos | NSN 5930-00-445-9274

Part Number	Request Date	QTY	Origin
MS274074	2025-12-338	1	Czech Republic
MS274074	2025-12-335	1	Czech Republic
MS274074	2025-09-260	1	Czech Republic
5930-00-445-9274	2023-08-222	5	UM
MS274074	2021-08-228	1	JP
MS274074	2021-07-207	1	Malaysia
5930-00-445-9274	2017-07-205	125	TR
MS27407-4	2015-04-91	5	Greece
5930-00-445-9274	2014-12-356	554	DIBBS
2TL110	2014-11-311	2	United States
MILS3950	2014-02-56	4	Canada
MILS3950	2013-01-11	48	US
2TL1-10	2012-11-310	12
5930-00-445-9274	2012-06-171	3	MANUAL
MS27407-4	2012-06-171	3	Malaysia
2TL110	2008-10-280	9	US
5930-00-445-9274	2007-10-295	584	DIBBS
5930-00-445-9274	2007-07-186	228	DIBBS

Cross Reference | NSN 5930-00-445-9274

Part Number	Cage Code	Manufacturer
007525624 ITEM 38	K2516	MINISTRY OF DEFENCE NAVY SHIPS SUPPORT AGENCY
007525624/38	K2516	MINISTRY OF DEFENCE NAVY SHIPS SUPPORT AGENCY
0107 3535	D8246	STRUEVER, AD. KG (GMBH & CO.)
0T2V6	11660	WESTINGHOUSE ELECTRIC CORP CONTROL BUSINESS UNIT
11070062	18876	U S ARMY AVIATION AND MISSILE COMMAND
11070062	20418	DRS SUSTAINMENT SYSTEMS, INC. Use CAGE Code 98255 for cataloging
11687971	19204	ARMY UNITED STATES DEPARTMENT OF THE
2TL1-10	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
6099152	03640	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
6415324	001JK	EMBRAER S/A
6415324	FB459	EMBRAER AVIATION INTERNATIONAL
6415324	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
A24252	K0967	MBDA UK LTD
E7991715C	U1381	ROLLS-ROYCE MARINE ELECTRICAL SYSTEMS LTD
E7991715C	U5295	VOSPER THORNYCROFT CONTROLS LTD
ES3670-01	20418	DRS SUSTAINMENT SYSTEMS, INC. Use CAGE Code 98255 for cataloging
FS700279V ITEM 38	U1381	ROLLS-ROYCE MARINE ELECTRICAL SYSTEMS LTD
FS700279V ITEM 38	U5295	VOSPER THORNYCROFT CONTROLS LTD
FS700279V/38	U1381	ROLLS-ROYCE MARINE ELECTRICAL SYSTEMS LTD
FS700279V/38	U5295	VOSPER THORNYCROFT CONTROLS LTD
MIL-DTL-3950	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-S-3950	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS27407-4	83803	PEERLESS ELECTRONICS INC.
MS27407-4	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
MS27407-4	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
