NSN 5930-00-491-5442 G330048S9, 6250F612, 6250F61-2
Product Details | FLOW SWITCH
5930-00-491-5442 A switch which is specifically designed to operate by the influence of a gaseous, liquid, or solid media velocity on its actuator.
Part Alternates: G330048S9, 6250F612, 6250F61-2, 6250F622, 6250F62-2, 5930-00-491-5442, 00-491-5442, 5930004915442, 004915442
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 OCT 1972 | 00-491-5442 | 36841 ( SWITCH, FLOW ) |
Drawings & Photos | NSN 5930-00-491-5442
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-491-5442
Related Products | NSN 5930-00-491-5442
Technical Data | NSN 5930-00-491-5442
| Characteristic | Specifications |
|---|---|

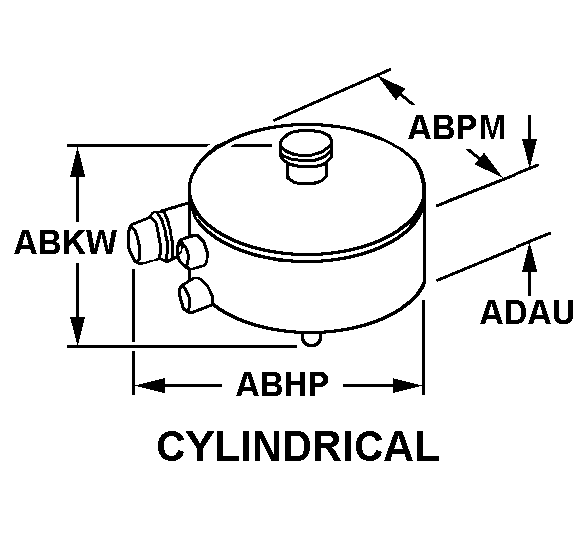

| STYLE DESIGNATOR | 40 CYLINDRICAL |
| OVERALL LENGTH | 3.185 INCHES NOMINAL |
| OVERALL HEIGHT | 2.600 INCHES NOMINAL |
| BODY DIAMETER | 2.370 INCHES NOMINAL |
| BODY HEIGHT | 1.410 INCHES NOMINAL |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| CONTACT ACTION STIMULUS | DECREASE |
| CONTACT ADJUSTABILITY | ACTUATION POINT NOT ADJUSTABLE AND DEACTUATION POINT NOT ADJUSTABLE |
| CONTACT STIMULUS RATING | 0.65 ACTUATION POINT NOMINAL GALLONS PER MINUTE AND 0.50 DEACTUATION POINT NOMINAL GALLONS PER MINUTE |
| CONTACT VOLTAGE RATING IN VOLTS | 28.0 DC AT SEA LEVEL FIRST VOLTAGE 50.0 DC AT SEA LEVEL SECOND VOLTAGE |
| CONTACT LOAD CURRENT RATING | 3.0 AMPERES INDUCTIVE LOAD FIRST VOLTAGE 500.0 MILLIAMPERES RESISTIVE LOAD SECOND VOLTAGE |
| OPERATING TEMP RATING | -10.0 DEG CELSIUS MINIMUM AND 65.0 DEG CELSIUS MAXIMUM |
| MEDIA FOR WHICH DESIGNED | LIQUID |
| TERMINAL TYPE | CONNECTOR, RECEPTACLE |
| MOUNTING METHOD | LINE |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | CORROSION RESISTANT |
Restrictions/Controls & Freight Information | NSN 5930-00-491-5442
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | HH | Navy ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
