NSN 5930-00-494-4657 SMA777702, SM-A-777702, SW1AN10301
Product Details | DUST AND MOISTURE SEAL BOOT
5930-00-494-4657 A flexible, nonmetallic item designed to prevent entry of dust, moisture and other contaminants into critical areas around shafts, levers, electrical wires and hoses. Sealing may be either static or dynamic. The item may include mounting hardware (support plates, clamps and the like). Excludes BELLOWS, PROTECTION; GROMMET, NONMETALLIC; and CABLE NIPPLE, ELECTRICAL. See also CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and SHIELD, ELECTRICAL CONNECTOR.20253400020Hardware, Commercial59300008Switches
Part Alternates: SMA777702, SM-A-777702, SW1AN10301, SW1AN1030-1, GB806K1A, IN1030RFI, IN-1030RFI, IN1030-RFI, IN103RFI, IN-103-RFI, K88M0037, 5M2235001, 5M2235-001, 86447, 9521431, 952143-1, 10163160, 3586447, 35-86447, 50155, 5262723, 10252708-1, 1103040016, 11-0304-0016, 1103040026, 11-0304-0026, 1104040002, 11-0404-0002, 113121RFI, 1131-21RFI, 1904958096, 19-049580-96, 3186447, 31-86447, 331C021U01, 35344, 35-344, 355/001/900, 5930-00-494-4657, 00-494-4657, 5930004944657, 004944657, 102527081, 355001900
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 JUN 1969 | 00-494-4657 | 19302 ( BOOT, DUST AND MOISTURE SEAL ) |

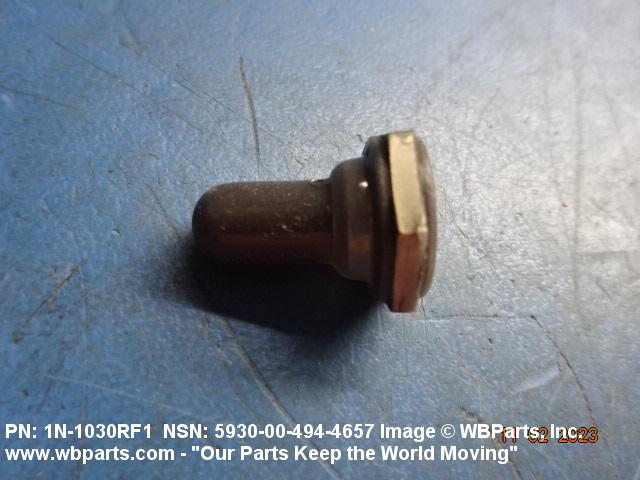

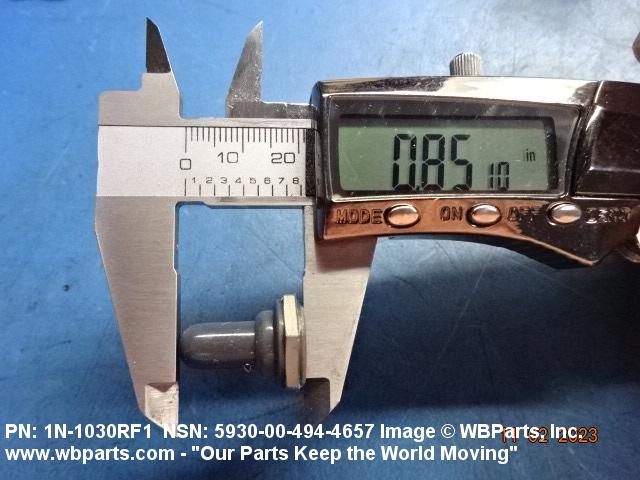

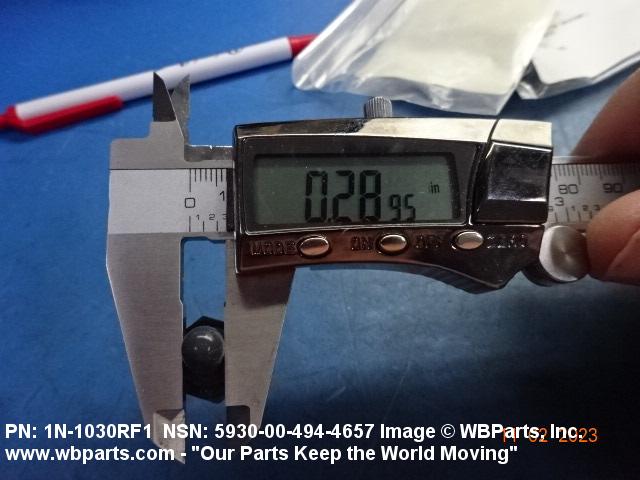

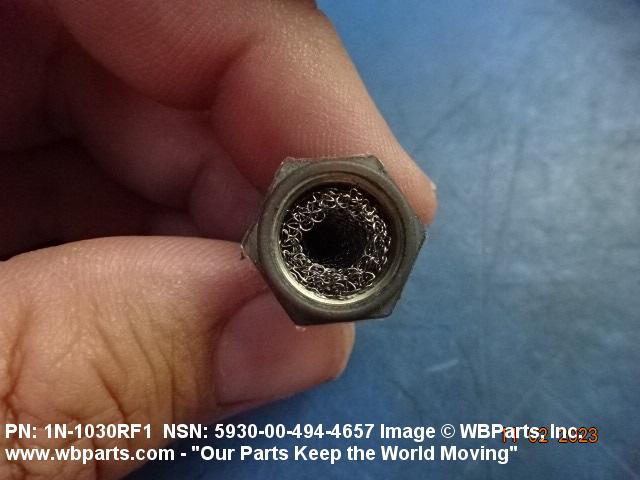

Drawings & Photos | NSN 5930-00-494-4657
Demand History | NSN 5930-00-494-4657
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3186447 | 2023-10-282 | 2 | United States |
| 3186447 | 2012-03-75 | 48 | United States |
| 5930-00-494-4657 | 2011-06-171 | 4 | us |
| 3186447 | 2011-05-147 | 130 | United States |
| IN1030RFI | 2011-05-147 | 130 | United States |
| 5930-00-494-4657 | 2011-05-138 | 60 | US |
| 5930-00-494-4657 | 2011-05-132 | 60 | US |
| 3186447 | 2011-04-111 | 130 | United States |
| 3186447 | 2011-03-68 | 200 | US |
Cross Reference | NSN 5930-00-494-4657
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10163160 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 10252708-1 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 11-0304-0016 | 18565 | PARKER-HANNIFIN, CORPORATION DBA PARKER CHOMERICS DIV |
| 11-0304-0016 | 28817 | CAL-METEX CORP SUBSIDIARY OF METEX CORP |
| 11-0304-0026 | 12881 | METEX CORPORATION DIV ELECTRONIC SHIELDING GROUP |
| 11-0304-0026 | 18565 | PARKER-HANNIFIN, CORPORATION DBA PARKER CHOMERICS DIV |
| 11-0404-0002 | 12881 | METEX CORPORATION DIV ELECTRONIC SHIELDING GROUP |
| 11-0404-0002 | 18565 | PARKER-HANNIFIN, CORPORATION DBA PARKER CHOMERICS DIV |
| 1131-21RFI | 97539 | A P M HEXSEAL CORPORATION |
| 19-049580-96 | 31435 | LUCAS AEROSPACE POWER EQUIPMENT CORPORATION |
| 19-049580-96 | 3CPE0 | SAFRAN POWER USA, LLC |
| 31-86447 | 07700 | TECHNICAL WIRE PRODUCTS LLC DBA TWP |
| 331C021U01 | 52599 | DELTA DATA SYSTEMS CORP |
| 35-344 | 12881 | METEX CORPORATION DIV ELECTRONIC SHIELDING GROUP |
| 35-344 | 18565 | PARKER-HANNIFIN, CORPORATION DBA PARKER CHOMERICS DIV |
| 35-86447 | 07700 | TECHNICAL WIRE PRODUCTS LLC DBA TWP |
| 355/001/900 | 07421 | INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS |
| 50155 | 13074 | MULTI-FLEX SEALS INC |
| 5262723 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 5M2235-001 | 6A356 | LCOMP INC |
| 5M2235-001 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 5M2235-001 | 97539 | A P M HEXSEAL CORPORATION |
| 86447 | 07700 | TECHNICAL WIRE PRODUCTS LLC DBA TWP |
| 952143-1 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 952143-1 | 12881 | METEX CORPORATION DIV ELECTRONIC SHIELDING GROUP |
| 952143-1 | 18565 | PARKER-HANNIFIN, CORPORATION DBA PARKER CHOMERICS DIV |
| GB806K1A | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| IN-103-RFI | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| IN-103-RFI | 97539 | A P M HEXSEAL CORPORATION |
| IN-1030RFI | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| IN1030-RFI | 6A356 | LCOMP INC |
| K88M0037 | 12464 | MCDONNELL DOUGLAS CORP MCDONNELL DOUGLAS ELECTRONIC SYSTEMS |
| SM-A-777702 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| SW1AN1030-1 | 81640 | EATON CORPORATION DBA FLUID POWER DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-494-4657
Technical Data | NSN 5930-00-494-4657
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A23 CLOSED END |
| OVERALL HEIGHT | 0.810 INCHES MINIMUM AND 1.891 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.053 INCHES NOMINAL |
| DOME HEIGHT | 0.831 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.275 INCHES MINIMUM AND 0.335 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.625 INCHES NOMINAL |
| OPENING INSIDE DIAMETER | 0.219 INCHES NOMINAL |
| MATERIAL | RUBBER SILICONE BODY |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | ANY ACCEPTABLE |
| MOUNTING METHOD | THREAD |
| MOUNTING DEVICE QUANTITY | 1 |
| SEALING METHOD | COMPRESSION |
| BASE THREAD LOCATION | INTERNAL |
| THREAD SERIES | UNS |
| NOMINAL THREAD SIZE | 0.469 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD LENGTH | 0.176 INCHES NOMINAL |
| TEST DATA DOCUMENT | 81349-MIL-B-5423 SPECIFICATION |
| III FSC APPLICATION DATA | SWITCH,TOGGLE |
Restrictions/Controls & Freight Information | NSN 5930-00-494-4657
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-494-4657
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
