NSN 5930-00-501-0071 LER26260, LER2-6260, 2542319900
Product Details | THERMOSTATIC SWITCH
5930-00-501-0071 A switch that is actuated by changes in ambient temperature. Excludes CIRCUIT BREAKER; CONTROL, TEMPERATURE (as modified); FUSE (as modified); PROTECTOR, THERMAL-OVERLOAD, ELECTRICAL MOTOR; RELAY, THERMAL; and THERMOSTAT, FLOW CONTROL. See also CONTROL, TEMPERATURE (as modified) and REGULATOR, TEMPERATURE (as modified).
Part Alternates: LER26260, LER2-6260, 2542319900, 25423199-00, 5070045, 5-07004-5, 695314, 6953145, 695314-5, 5930-00-501-0071, 00-501-0071, 5930005010071, 005010071
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-501-0071 | 00451 ( SWITCH, THERMOSTATIC ) |

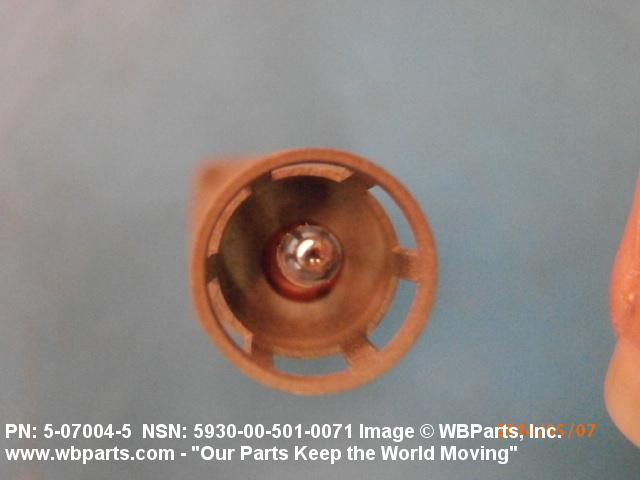

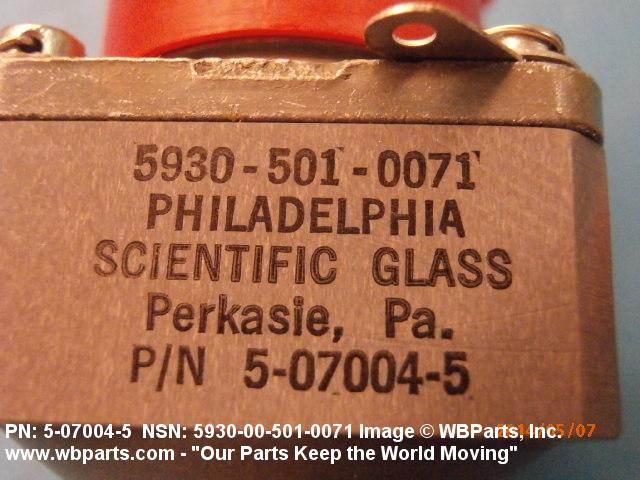

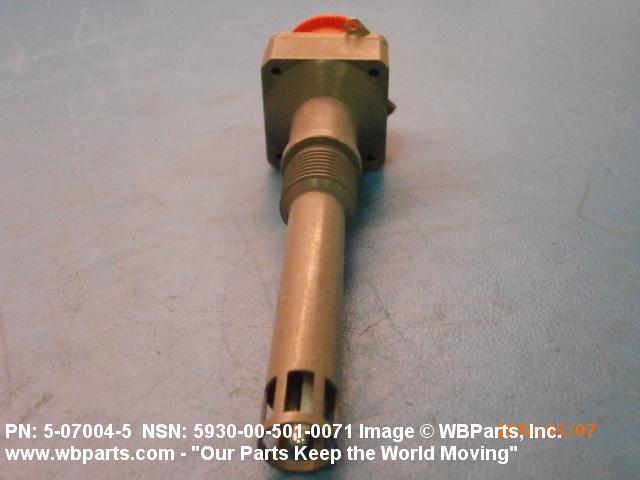

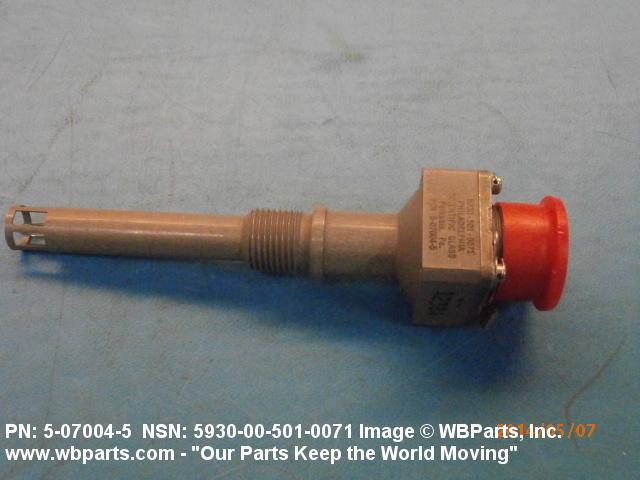

Drawings & Photos | NSN 5930-00-501-0071
Demand History | NSN 5930-00-501-0071
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-501-0071 | 2014-04-119 | 3 | United States |
| 5930-00-501-0071 | 2007-07-194 | 7 | DIBBS |
Cross Reference | NSN 5930-00-501-0071
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 25423199-00 | 45153 | HAMILTON SUNDSTRAND CORPORATION DBA HAMILTON SUNDSTRAND POWER SYTEMS |
| 25423199-00 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
| 5-07004-5 | 18509 | PSG CONTROLS, INC. |
| 695314 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| 695314-5 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| LER2-6260 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-501-0071
Related Products | NSN 5930-00-501-0071
Technical Data | NSN 5930-00-501-0071
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 56 RECTANGULAR |

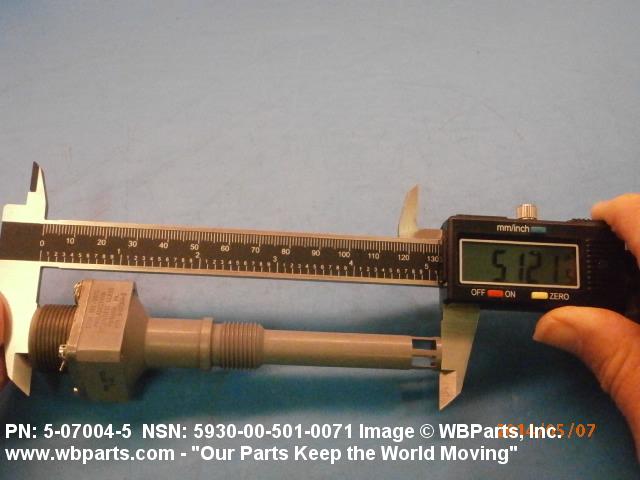

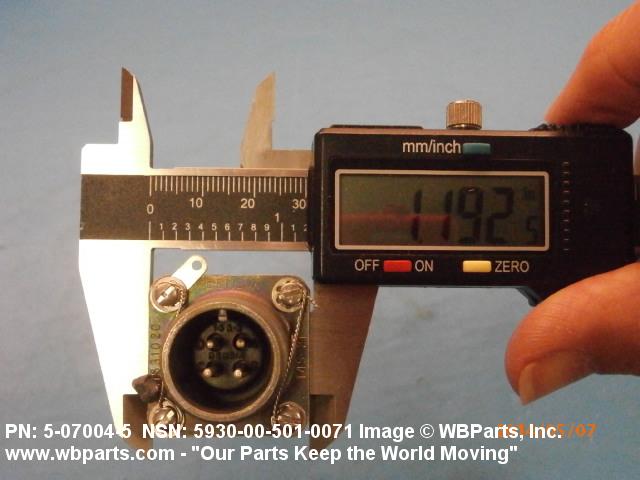

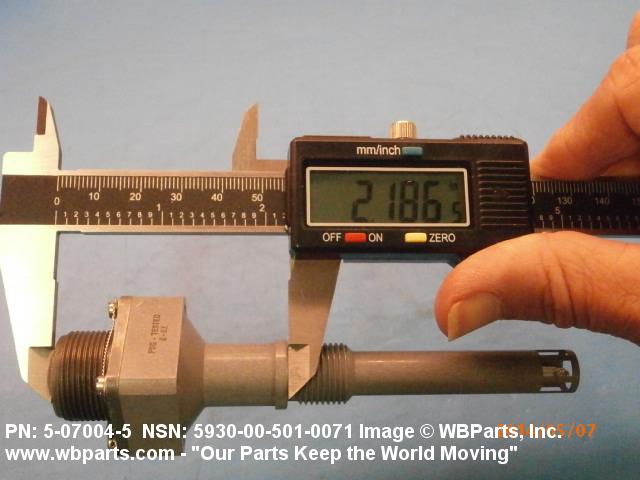

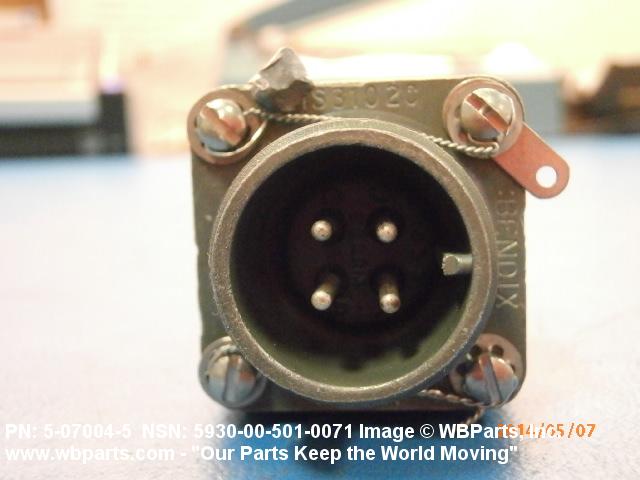

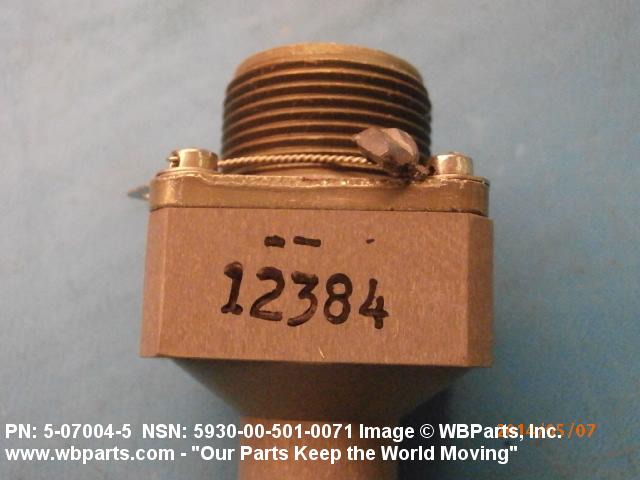

| OVERALL LENGTH | 5.125 INCHES NOMINAL |
| OVERALL HEIGHT | 1.187 INCHES NOMINAL |
| OVERALL WIDTH | 1.187 INCHES NOMINAL |
| BODY LENGTH | 2.312 INCHES NOMINAL |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | ACTUATION POINT NOT ADJUSTABLE |
| CONTACT STIMULUS RATING | 440.00 ACTUATION POINT NOMINAL DEGREES FAHRENHEIT AND 233.00 DEACTUATION POINT MINIMUM DEGREES FAHRENHEIT AND 230.00 DEACTUATION POINT MAXIMUM DEGREES FAHRENHEIT |
| CONTACT VOLTAGE RATING IN VOLTS | 30.0 DC AT SEA LEVEL SINGLE VOLTAGE |
| CONTACT LOAD CURRENT RATING | 100.0 MILLIAMPERES RESISTIVE LOAD SINGLE VOLTAGE |
| OPERATING TEMP RATING | -65.0 DEG FAHRENHEIT MINIMUM AND 465.0 DEG FAHRENHEIT MAXIMUM |
| MEDIA FOR WHICH DESIGNED | GAS |
| TEMP SENSING ELEMENT TYPE | INTERNAL SENSOR |
| TERMINAL TYPE | CONNECTOR, RECEPTACLE |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNF SINGLE THREADED BUSHING |
| NOMINAL THREAD SIZE | 0.625 INCHES SINGLE THREADED BUSHING |
| THREAD CLASS | 2A SINGLE THREADED BUSHING |

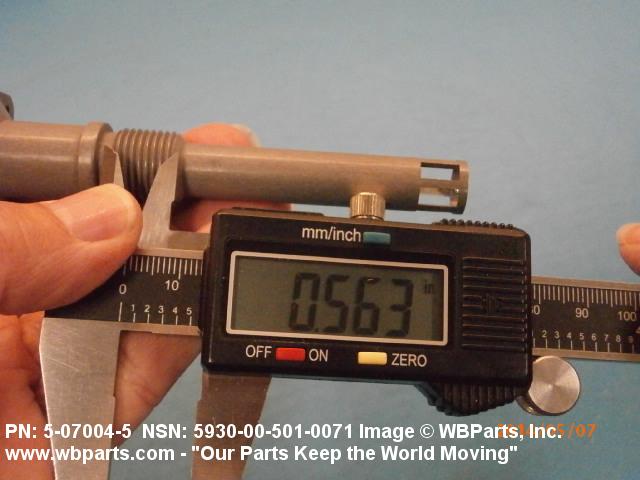

| THREAD LENGTH | 0.562 INCHES NOMINAL SINGLE THREADED BUSHING |
