NSN 5930-00-503-4194 812E7132, 00-503-4194, 005034194
Product Details | PRESSURE SWITCH
5930-00-503-4194 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: 812E7132, 5930-00-503-4194, 00-503-4194, 5930005034194, 005034194
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-503-4194 | 00206 ( SWITCH, PRESSURE ) |
Drawings & Photos | NSN 5930-00-503-4194
Cross Reference | NSN 5930-00-503-4194
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 812E7132 | 02413 | KERSEY / AMERICAN LAFRANCE A DIV OF FIGGIE INTERNATIONAL INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-503-4194
Technical Data | NSN 5930-00-503-4194
| Characteristic | Specifications |
|---|---|

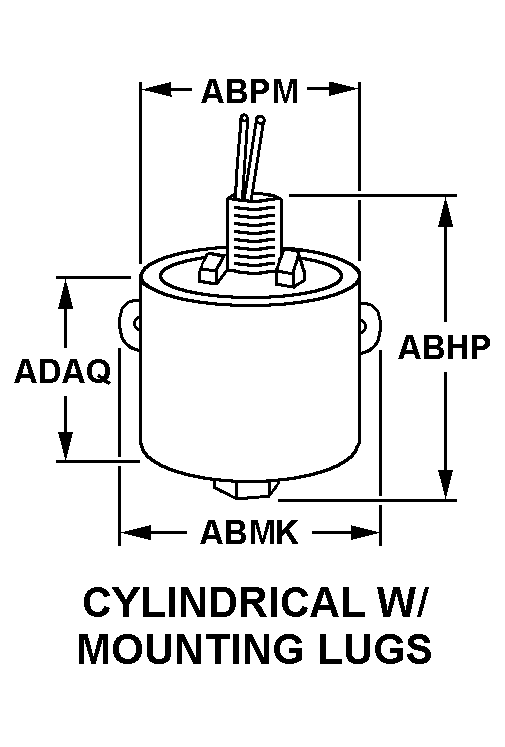

| STYLE DESIGNATOR | 46 CYLINDRICAL W/MOUNTING LUGS |
| OVERALL LENGTH | 3.030 INCHES NOMINAL |
| BODY DIAMETER | 2.560 INCHES NOMINAL |
| BODY LENGTH | 1.750 INCHES NOMINAL |
| PRESSURE SWITCH TYPE | GAGE |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | ACTUATION POINT NOT ADJUSTABLE |
| CONTACT STIMULUS RATING | 1.00 DIFFERENTIAL POINT NOMINAL INCHES OF MERCURY |
| CONTACT VOLTAGE RATING IN VOLTS | 28.0 DC AT SEA LEVEL SINGLE VOLTAGE |
| CONTACT LOAD CURRENT RATING | 5.0 AMPERES RESISTIVE LOAD SINGLE VOLTAGE |
| TERMINAL TYPE | TAB W/SCREW |
| MOUNTING METHOD | BASE |
| MANUFACTURERS CODE | 02413 |
| DESIGN CONTROL REFERENCE | 812E7132 |
