NSN 5930-00-503-4490 DS10133, DS1013-3, R655722
Product Details | PRESSURE SWITCH
5930-00-503-4490 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: DS10133, DS1013-3, R655722, R6557-22, 30030, 613437, 5930-00-503-4490, 00-503-4490, 5930005034490, 005034490
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-503-4490 | 00206 ( SWITCH, PRESSURE ) |
Drawings & Photos | NSN 5930-00-503-4490
Demand History | NSN 5930-00-503-4490
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 30030 | 2021-05-147 | 1 | United States |
| 30030 | 2021-01-04 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-503-4490
Technical Data | NSN 5930-00-503-4490
| Characteristic | Specifications |
|---|---|

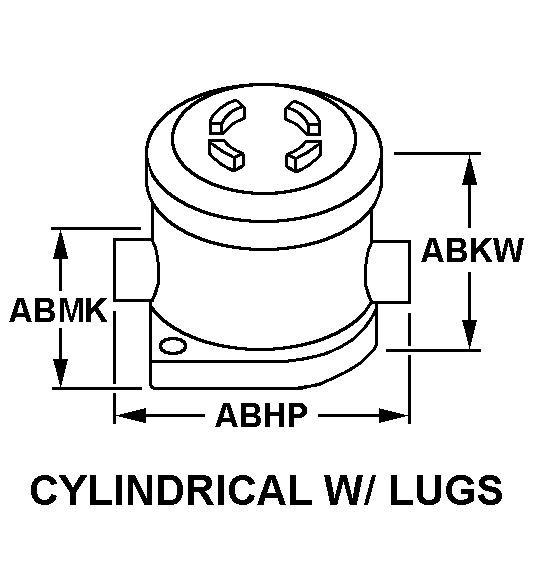

| STYLE DESIGNATOR | 27 CYLINDRICAL W/LUGS |
| OVERALL LENGTH | 5.250 INCHES NOMINAL |
| OVERALL HEIGHT | 4.094 INCHES MAXIMUM |
| OVERALL WIDTH | 5.250 INCHES NOMINAL |
| BODY DIAMETER | 4.062 INCHES MAXIMUM |
| PRESSURE SWITCH TYPE | DIFFERENTIAL |
| NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| CONTACT ACTION STIMULUS | DECREASE |
| CONTACT VOLTAGE RATING IN VOLTS | 250.0 DC AT SEA LEVEL SINGLE VOLTAGE |
| CONTACT LOAD CURRENT RATING | 10.0 AMPERES RESISTIVE LOAD SINGLE VOLTAGE |
| MEDIA FOR WHICH DESIGNED | GAS OR LIQUID |
| PRESSURE CONNECTOR TYPE | PLAIN, THREADED INTERNAL ALL CONNECTIONS |
| TERMINAL TYPE | CONNECTOR, RECEPTACLE |
| MOUNTING METHOD | BRACKET AND UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.190 INCHES NOMINAL |
| MOUNTING FACILITY PATTERN | THREE POSITION CIRCULAR |
| MOUNTING FACILITY CIRCLE RADIUS | 2.312 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | NPT ALL PRESSURE CONNECTION |
| NOMINAL THREAD SIZE | 0.250 INCHES SINGLE PRESSURE CONNECTION |
| FEATURES PROVIDED | ELECTRICAL BOX CONNECTOR |
Restrictions/Controls & Freight Information | NSN 5930-00-503-4490
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
